◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51517 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#145704) — 84 parça

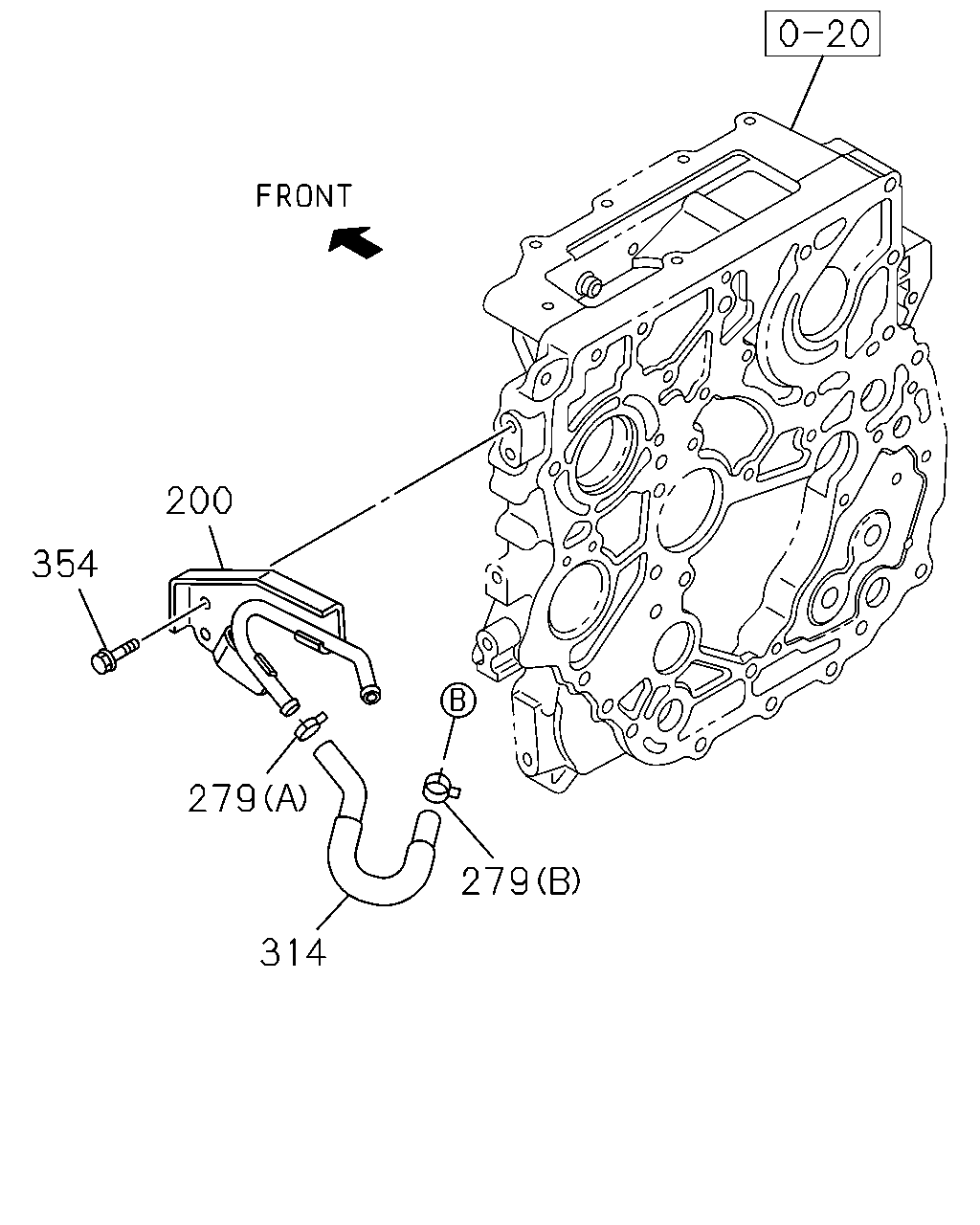

çizim 431219
200 354 279 314 279
BalonParca AdiParca NoAdetTipApplied Date A B
200 03.330 PIPE; FUEL FEED 8-98132-088-0 01 1 1407-1508 ●
200 03.330 PIPE; FUEL FEED 8-98132-088-0 01 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
(B) ID=17.8 		8-97944-611-0 01 1 1407-1508 ●
279 03.162 CLIP; FUEL HOSE
(B) ID=17.8 		8-97944-611-0 01 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
01.762 (A) ID=16 		8-98030-682-0 01 1 1407-1508 ●
279 03.162 CLIP; FUEL HOSE
01.762 (A) ID=16 		8-98030-682-0 01 1 1509- ● ●
314 03.163 HOSE; INLET,FUEL 8-98175-561-0 01 1 1407-1508 ●
314 03.163 HOSE; INLET,FUEL 8-98175-561-0 01 1 1509- ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407-1508 ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●

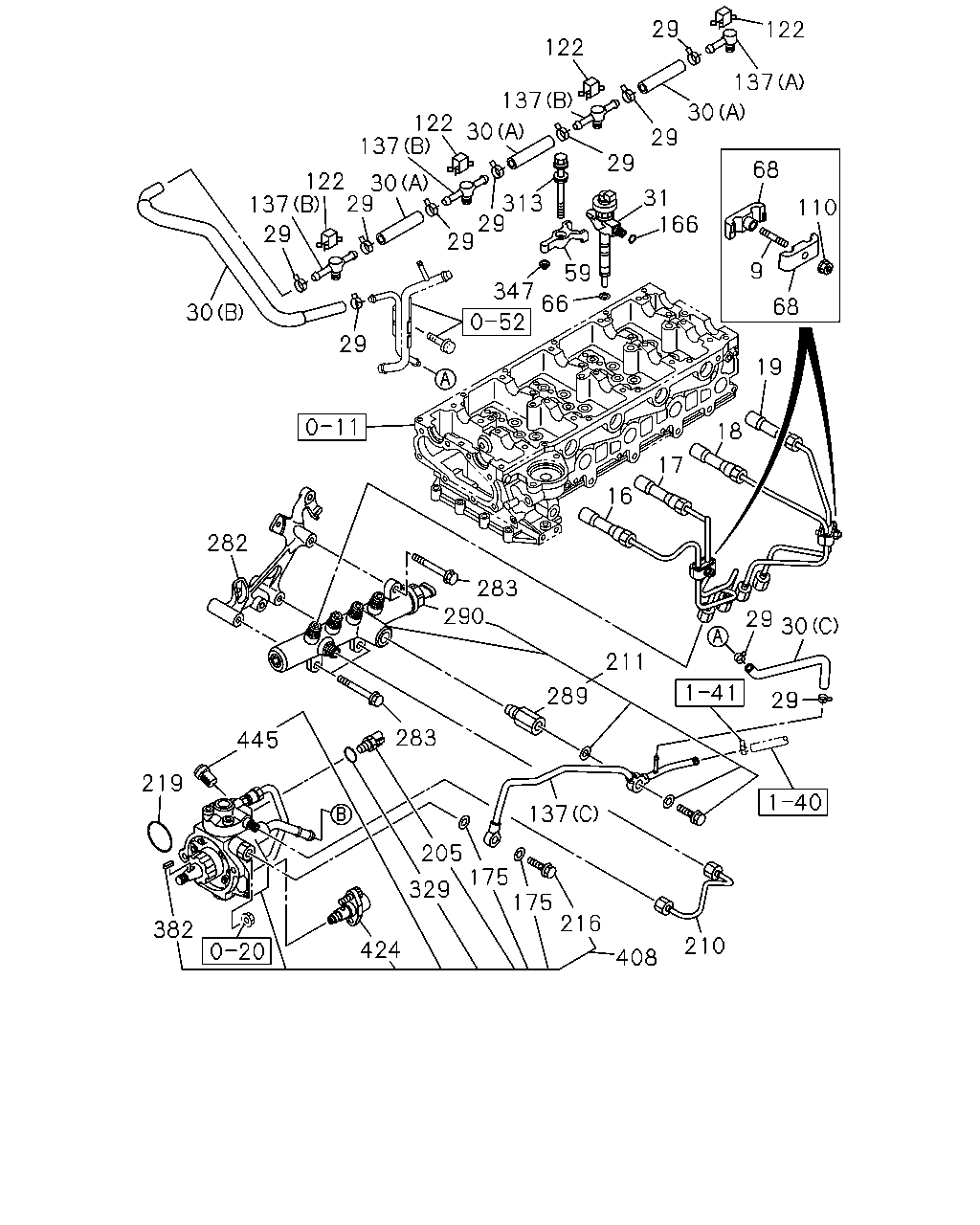

çizim 432219
122 29 122 137 30 29 29 137 122 137 122 137 30 29 29 29 313 59 31 166 68 68 9 110 19 18 17 16 347 29 30 283 290 282 445 219 283 289 211 29 30 137 205 329 175 175 216 408 210 29 424 382 66 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1407-1508 ●
9 03.340 STUD; CLIP
00.413 M6X30 L=38 		0-41010-630-0 02 1 1509- ● ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1407-1508 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1407-1508 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1407-1508 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1407-1508 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1509- ● ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1407-1508 ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1509- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1407-1508 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1509- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1407-1508 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1509- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1407-1508 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1509- ● ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1509- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1407- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1407-1508 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1509- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1407-1508 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1407-1508 ●
68 03.162 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1509- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1407-1508 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1407-1508 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1509- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1407-1508 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1509- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1407-1508 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1509- ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1407-1508 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1509- ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1407-1508 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1509- ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1407-1505 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506-1508 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1509- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1407-1508 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1407-1508 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1407-1508 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
03.280 		9-88130-088-0 01 1 1407-1409 ●
216 03.162 BOLT; EYE 8-98209-777-0 01 1 1410-1508 ●
216 03.162 BOLT; EYE 8-98209-777-0 01 1 1509- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1407-1508 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1407-1508 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
M8X66 FLANGE 		8-98228-566-0 03 1 1407-1508 ●
283 03.330 BOLT; COMMON RAIL
M8X66 FLANGE 		8-98228-566-0 03 1 1509- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1407-1508 ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1509- ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1407-1508 ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1509- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1407-1508 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1509- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1407-1409 ●
347 03.332 PIN 8-98165-035-0 04 1 1407-1508 ●
347 03.332 PIN 8-98165-035-0 04 1 1509- ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1407-1409 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1508 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1509- ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1407-1508 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1509- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1407-1508 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1509- ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1407-1508 ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1509- ● ●
