Isuzu WW
▶
SUV
▶
UCR
▶
51517 - UCR/UCS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

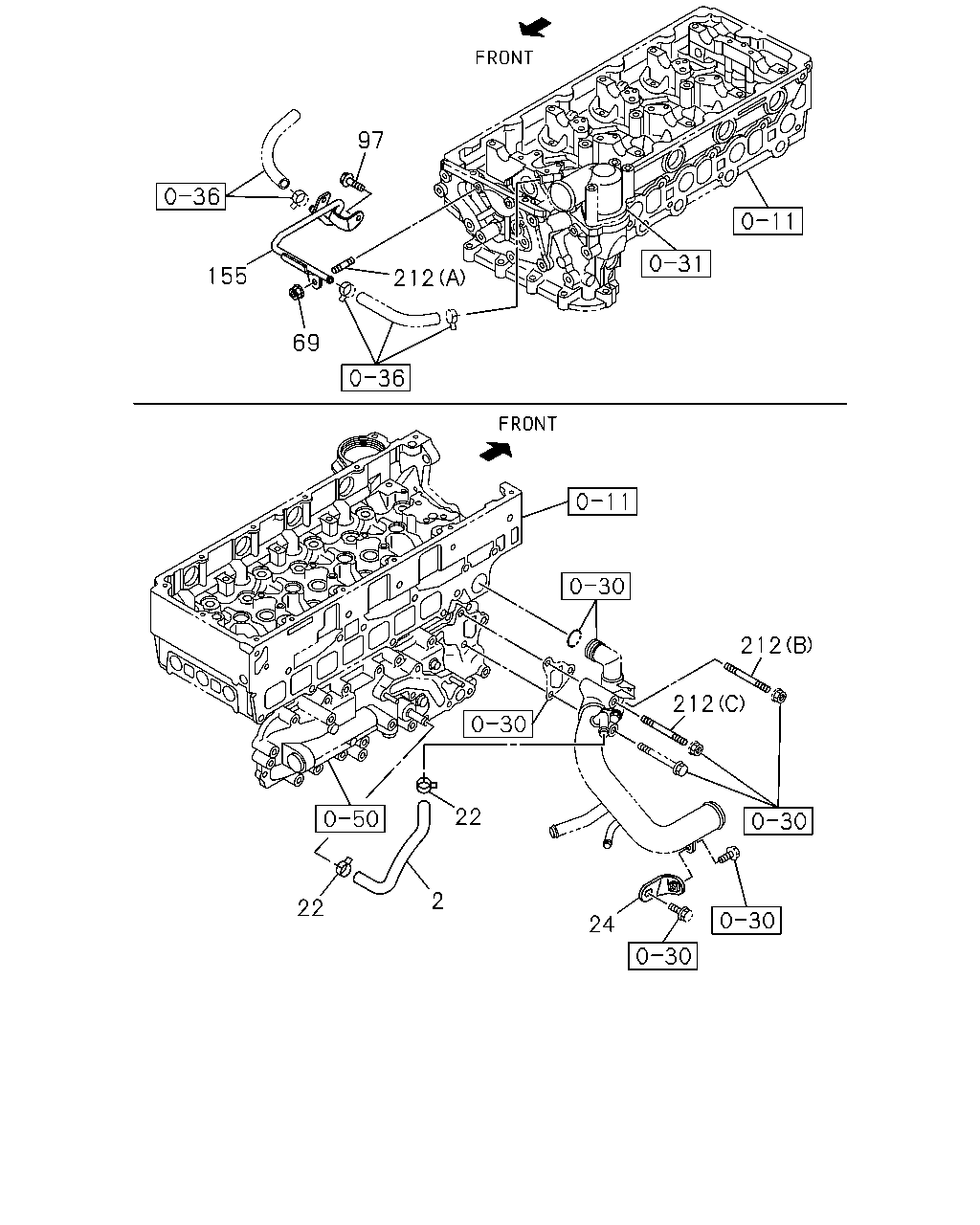

0-32 — WATER PIPING; ENGINE
(#145701) — 18 parça
Tümü
A - 4JK1-TCX ENG
B - 4JJ1-TCX ENG
97
212
69
155
212
212
24
22
2
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-98225-143-0
01
1
1407-1508
●
2
01.097 HOSE; WATER,BY-PASS
8-98225-143-0
01
1
1509-
●
●
22
01.153 CLIP; WATER HOSE
03.342 ID=15.1
8-98179-581-0
02
1
1407-1508
●
22
01.153 CLIP; WATER HOSE
03.342 ID=15.1
8-98179-581-0
02
1
1509-
●
●
24
01.166 BRACKET; WATER PIPE
8-98228-424-1
01
1
1407-1508
●
24
01.166 BRACKET; WATER PIPE
8-98228-424-1
01
1
1509-
●
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1407-1508
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1509-
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1407-1508
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1509-
●
●
155
01.153 PIPE ASM; WATER
8-98205-964-0
01
1
1407-1508
●
155
01.153 PIPE ASM; WATER
8-98205-964-0
01
1
1509-
●
●
212
01.153 STUD; PIPE
01.453 (A) M6X12 L=21
0-41010-612-0
01
1
1407-1508
●
212
01.153 STUD; PIPE
01.453 (A) M6X12 L=21
0-41010-612-0
01
1
1509-
●
●
212
01.153 STUD; PIPE
01.540 (B) M8X40 L=52
0-41010-840-0
01
1
1407-1508
●
212
01.153 STUD; PIPE
01.540 (B) M8X40 L=52
0-41010-840-0
01
1
1509-
●
●
212
01.153 STUD; PIPE
03.275 (C) M8X75 L=87
9-04110-875-0
01
1
1407-1508
●
212
01.153 STUD; PIPE
03.275 (C) M8X75 L=87
9-04110-875-0
01
1
1509-
●
●
