1-11 — RADIATOR HOSE AND SUB TANK (#14570) — 148 parça

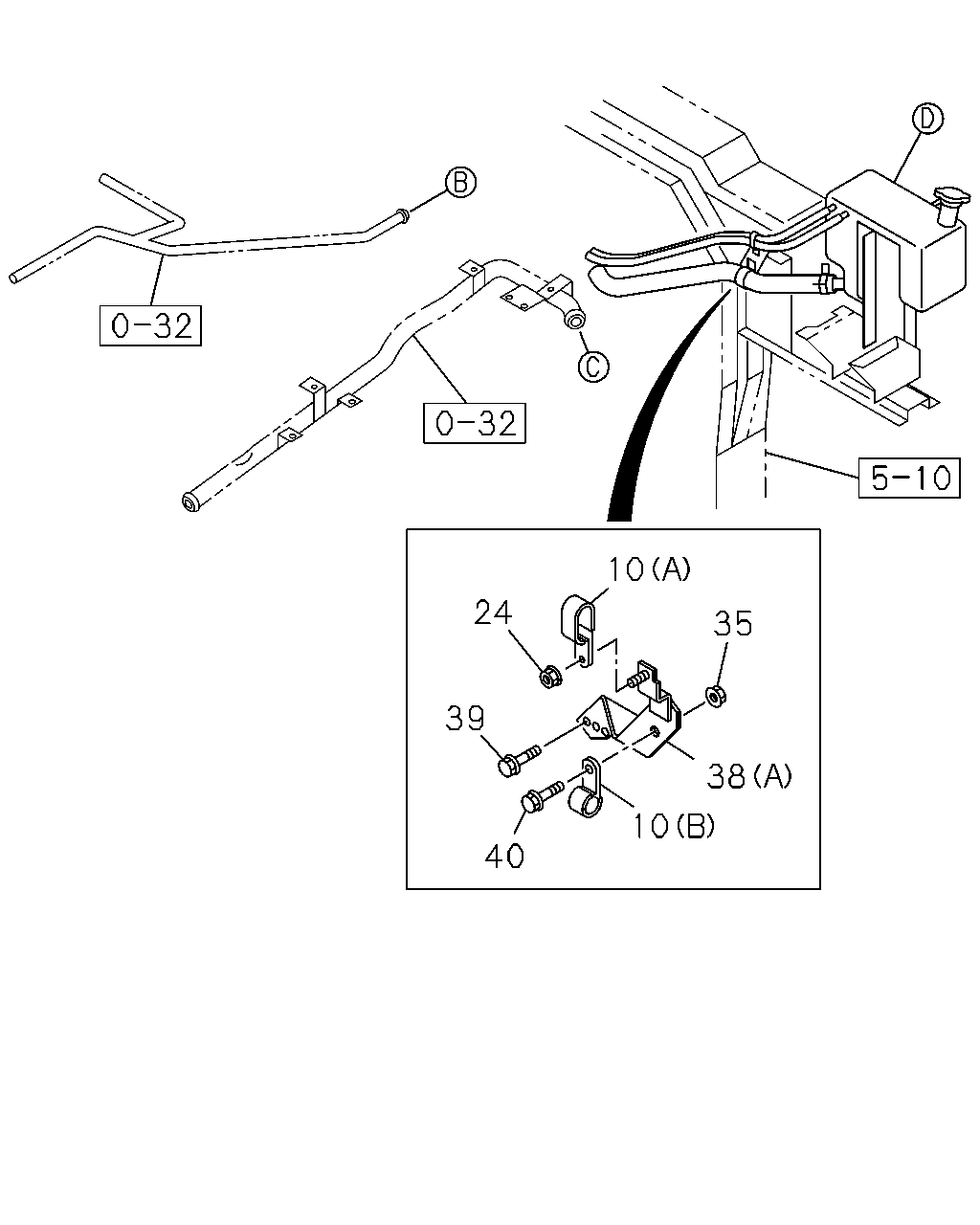

çizim 141480
10 24 35 39 38 10 40
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CLIP; RUBBER HOSE
CYZ(CY****) (A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 0710-0710 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 03 1 0711-1005 ●
10 CLIP; RUBBER HOSE
CXZ(CX****) (A) ID=16X2 L=20 		0-95325-535-0 03 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1010-1107 ● ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1108- ● ● ●
24 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-1005 ●
24 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006-1107 ● ●
24 NUT
M8 FLANGE 		0-91180-108-0 01 1 1108- ● ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 0710-1005 ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 1006-1107 ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 1108- ● ● ●
38 BRACKET; RUBBER HOSE
(B) 		8-98079-139-0 01 1 0711-1005 ●
38 BRACKET; RUBBER HOSE
CXZ(CX****) (B) 		8-98079-139-0 01 1 1006-1009 ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 0710-1005 ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 1006-1107 ● ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 1108- ● ● ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-1005 ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1006-1107 ● ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1108- ● ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 0710-1005 ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 1006-1107 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 1108- ● ● ●
çizim 141481
56 10 55 10 56 56 42 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CLIP; RUBBER HOSE
CYZ(CY****) (A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 0710-0710 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 03 1 0711-1005 ●
10 CLIP; RUBBER HOSE
CXZ(CX****) (A) ID=16X2 L=20 		0-95325-535-0 03 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1010-1107 ● ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1108- ● ● ●
42 HOSE; RUBBER
(A) L=260 SERVICED BY L=3000 		0-03559-300-0 01 1 1108- ●
42 HOSE; RUBBER
CYZ(CY****) (B) L=650 		1-21489-186-0 01 1 1006-1009 ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1006-1009 ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1010-1107 ● ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1108- ● ● ●
42 HOSE; RUBBER
(A) L=280 SERVICED BY L=3000 		0-03559-300-0 01 1 0710-1005 ●
42 HOSE; RUBBER
(A) L=280 SERVICED BY L=3000 		0-03559-300-0 01 1 1006- ● ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 0710-0710 ●
42 HOSE; RUBBER
(B) 		1-21436-023-0 01 1 0711-1005 ●
42 HOSE; RUBBER
CXZ(CX****) (B) 		1-21436-023-0 01 1 1006-1009 ●
55 HOSE; WATER,RAD OUTLET 1-21430-194-1 01 1 1011- ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-1 01 1 0710-1005 ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-1 01 1 1006-1010 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 1011-1107 ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 1108- ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0710-1005 ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 1006-1107 ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 1108- ● ● ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 0710-1005 ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 1006-1107 ● ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 1108- ● ● ●

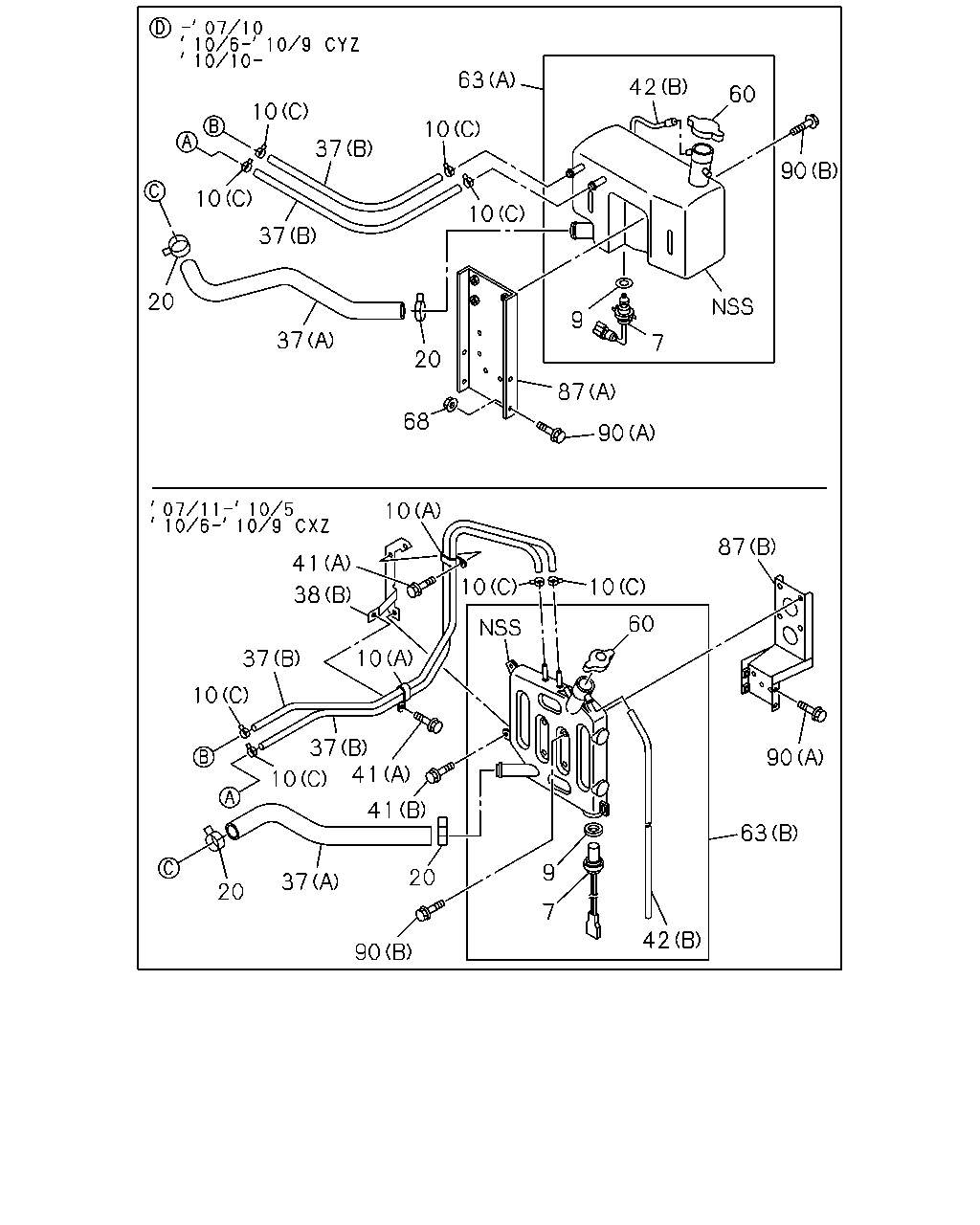

çizim 141814
63 42 60 10 10 37 90 10 10 37 20 9 37 7 20 87 68 90 10 87 41 10 10 38 60 10 37 10 37 41 90 10 41 63 9 20 37 20 7 42 90
BalonParca AdiParca NoAdetTipApplied Date A B C
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0710-1005 ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 1006-1107 ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 1108-1206 ● ● ●
7 SWITCH ASM; TANK 8-97640-800-0 01 1 1207- ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0710-1005 ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 1006-1107 ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
CYZ(CY****) (A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 0710-0710 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 03 1 0711-1005 ●
10 CLIP; RUBBER HOSE
CXZ(CX****) (A) ID=16X2 L=20 		0-95325-535-0 03 1 1006-1009 ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1010-1107 ● ●
10 CLIP; RUBBER HOSE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(B) ID=43 L=40 		1-09700-624-2 01 1 1108- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 0710-1005 ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1006-1107 ● ●
10 CLIP; RUBBER HOSE
(C) ID=14 		1-09704-102-0 06 1 1108- ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0710-1005 ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 1006-1107 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 1108- ● ● ●
37 HOSE; RUBBER
CYZ(CY****) (A) 		1-21430-207-0 01 1 1006-1009 ●
37 HOSE; RUBBER
(A) 		1-21430-207-0 01 1 1006-1009 ●
37 HOSE; RUBBER
(A) 		1-21430-207-0 01 1 1010-1107 ● ●
37 HOSE; RUBBER
(A) 		1-21430-207-0 01 1 1108- ● ● ●
37 HOSE; RUBBER
CYZ(CY****) (B) 		8-98061-808-1 02 1 1006-1009 ●
37 HOSE; RUBBER
(B) 		8-98061-808-1 02 1 1006-1009 ●
37 HOSE; RUBBER
(B) 		8-98061-808-1 02 1 1010-1107 ● ●
37 HOSE; RUBBER
(B) 		8-98061-808-1 02 1 1108- ● ● ●
37 HOSE; RUBBER
(A) 		1-21430-166-0 01 1 0710-0710 ●
37 HOSE; RUBBER
(A) 		1-21430-185-0 01 1 0711-1005 ●
37 HOSE; RUBBER
CXZ(CX****) (A) 		1-21430-185-0 01 1 1006-1009 ●
37 HOSE; RUBBER
(B) 		8-98061-808-1 02 1 0710-0710 ●
37 HOSE; RUBBER
(B) 		8-98079-228-0 02 1 0711-1005 ●
37 HOSE; RUBBER
CXZ(CX****) (B) 		8-98079-228-0 02 1 1006-1009 ●
38 BRACKET; RUBBER HOSE
(B) 		8-98079-139-0 01 1 0711-1005 ●
38 BRACKET; RUBBER HOSE
CXZ(CX****) (B) 		8-98079-139-0 01 1 1006-1009 ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 0710-1005 ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 1006-1107 ● ●
38 BRACKET; RUBBER HOSE
(A) 		1-21489-202-2 01 1 1108- ● ● ●
41 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0711-1005 ●
41 BOLT
CXZ(CX****) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1006-1009 ●
41 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0711-1005 ●
41 BOLT
CXZ(CX****) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1006-1009 ●
42 HOSE; RUBBER
(A) L=260 SERVICED BY L=3000 		0-03559-300-0 01 1 1108- ●
42 HOSE; RUBBER
CYZ(CY****) (B) L=650 		1-21489-186-0 01 1 1006-1009 ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1006-1009 ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1010-1107 ● ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 1108- ● ● ●
42 HOSE; RUBBER
(A) L=280 SERVICED BY L=3000 		0-03559-300-0 01 1 0710-1005 ●
42 HOSE; RUBBER
(A) L=280 SERVICED BY L=3000 		0-03559-300-0 01 1 1006- ● ●
42 HOSE; RUBBER
(B) L=650 		1-21489-186-0 01 1 0710-0710 ●
42 HOSE; RUBBER
(B) 		1-21436-023-0 01 1 0711-1005 ●
42 HOSE; RUBBER
CXZ(CX****) (B) 		1-21436-023-0 01 1 1006-1009 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0710-1005 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 1006-1107 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 1108- ● ● ●
63 TANK ASM; SUB
CYZ(CY****) (A) 		1-21481-147-1 01 1 1006-1009 ●
63 TANK ASM; SUB
(A) 		1-21481-147-1 01 1 1006-1009 ●
63 TANK ASM; SUB
(A) 		1-21481-147-2 01 1 1010-1107 ● ●
63 TANK ASM; SUB
(A) 		1-21481-147-2 01 1 1108- ● ● ●
63 TANK ASM; SUB
(A) 		1-21481-147-1 01 1 0710-0710 ●
63 TANK ASM; SUB
(B) 		1-21481-149-1 01 1 0711-1005 ●
63 TANK ASM; SUB
CXZ(CX****) (B) 		1-21481-149-1 01 1 1006-1009 ●
68 NUT; BRKT
CYZ(CY****) M8 FLANGE 		0-91180-108-0 04 1 1006-1009 ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1006-1009 ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1010-1107 ● ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1108- ● ● ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-0710 ●
87 BRACKET; SUB TANK
CYZ(CY****) (A) 		1-21489-193-2 01 1 1006-1009 ●
87 BRACKET; SUB TANK
(A) 		1-21489-193-2 01 1 1006-1009 ●
87 BRACKET; SUB TANK
(A) 		1-21489-193-2 01 1 1010-1107 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-193-2 01 1 1108- ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-193-2 01 1 0710-0710 ●
87 BRACKET; SUB TANK
(B) 		1-21489-206-1 01 1 0711-1005 ●
87 BRACKET; SUB TANK
CXZ(CX****) (B) 		1-21489-206-1 01 1 1006-1009 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710-1005 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1006-1107 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1108- ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0710-1005 ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1006-1107 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1108- ● ● ●
