◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1457) — 57 parça

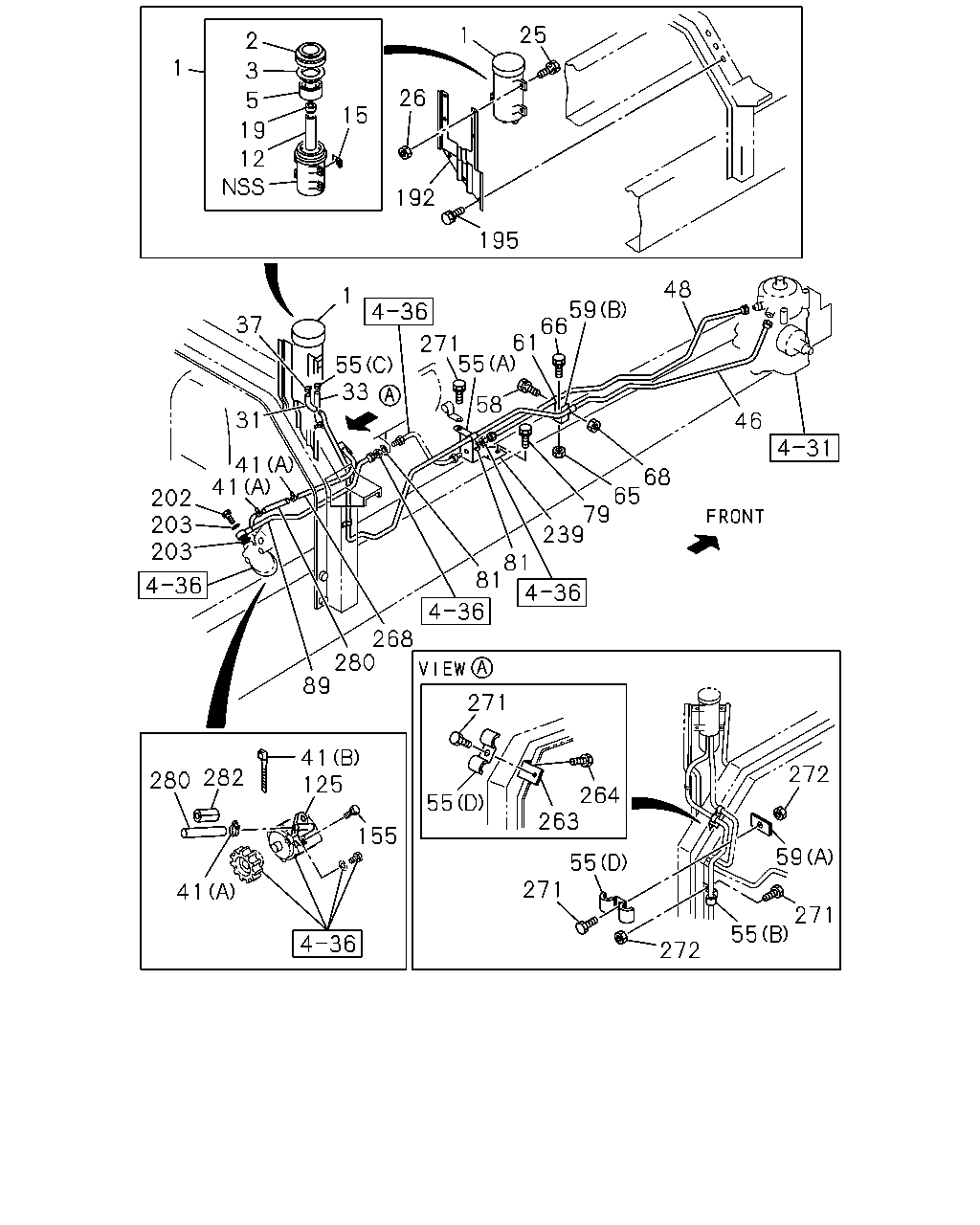

çizim 29392
25 1 2 1 3 26 5 15 19 12 192 195 48 1 59 66 61 37 271 55 55 33 58 31 46 41 41 68 65 79 239 202 203 203 81 81 268 280 89 271 41 125 272 282 280 264 263 55 155 59 55 271 41 271 55 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 9203- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9203- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9203- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9203- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9203- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 9203- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9203- ● ●
25 BOLT; OIL TANK BRKT
M8X18 		0-28010-818-0 04 1 9203-9204 ● ●
25 BOLT; OIL TANK BRKT
M8X18 FLANGE 		0-28080-818-0 04 1 9205- ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9203- ● ●
31 HOSE; P/S OIL TANK,INL 1-21112-549-1 01 1 9203- ● ●
33 HOSE; RUBBER,POWER STRG 1-21112-612-1 01 1 9203- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9203- ● ●
41 CLIP; HOSE,P/S
(A) ID=32 		1-09704-085-0 02 1 9203- ● ●
41 CLIP; HOSE,P/S
(B) L=140 		5-09707-031-0 01 1 9203- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21114-291-0 01 1 9203- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21114-290-0 01 1 9203-9212 ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 1-21114-749-0 01 1 9301- ● ●
55 CLIP; P/S RUBBER HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9203- ● ●
55 CLIP; P/S RUBBER HOSE
(D) ID=19 & 16 L=21.5 & 21.5 		1-09700-979-0 02 1 9203- ● ●
55 CLIP; P/S RUBBER HOSE
(C) ID=32 		1-09704-085-0 02 1 9203- ● ●
55 CLIP; P/S RUBBER HOSE
(A) ID=16 L=50 		9-09525-586-0 01 1 9203- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28010-820-0 01 1 9203-9204 ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47475-299-2 01 1 9203- ● ●
59 BRACKET; CLIP,OIL PIPE
(B) 		1-47476-925-1 01 1 9203- ● ●
61 CLIP; OIL PIPE
ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9203- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9203-9207 ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28010-825-0 02 1 9203-9204 ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 03 1 9205-9404 ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9405- ● ●
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9405- ● ●
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9203- ● ●
79 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 02 1 9203-9204 ● ●
79 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 02 1 9203- ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 1-21112-546-0 01 1 9203-9212 ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 1-21114-594-0 01 1 9301- ● ●
125 CONNECTOR; P/S PUMP 1-21122-019-2 01 1 9203- ● ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9203- ● ●
192 BRACKET; P/S OIL TANK 1-21219-080-2 01 1 9203- ● ●
195 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 03 1 9203- ● ●
202 BOLT; EYE,OIL PIPE
M18X36 		1-09675-059-0 01 1 9203-9310 ● ●
202 BOLT; EYE,OIL PIPE
M18X36 		1-09675-205-0 01 1 9311- ● ●
203 GASKET; EYE BOLT
ID=18 		9-09571-418-0 02 1 9203- ● ●
239 BRACKET; FLEX HOSE 1-21119-071-2 01 1 9203- ● ●
263 BRACKET; P/S PIPE 1-47475-599-0 01 1 9203- ● ●
264 BOLT; PIPE BRKT
M8X18 		0-28010-818-0 02 1 9203-9204 ● ●
264 BOLT; PIPE BRKT
M8X18 FLANGE 		0-28080-818-0 02 1 9205- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 1-21113-699-1 01 1 9203-9403 ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 1-21113-399-0 01 1 9404- ● ●
271 BOLT; P/S OIL PIPE FIX
M8X20 FLANGE 		0-28010-820-0 04 1 9203-9204 ● ●
271 BOLT; P/S OIL PIPE FIX
M8X20 FLANGE 		0-28080-820-0 04 1 9205- ● ●
272 NUT; P/S OIL PIPE FIX
M8 		9-09110-408-0 03 1 9203- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21112-613-0 01 1 9203-9403 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21114-908-0 01 1 9404- ● ●
282 SLEEVE; RUBBER,PIPE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9203- ● ●
