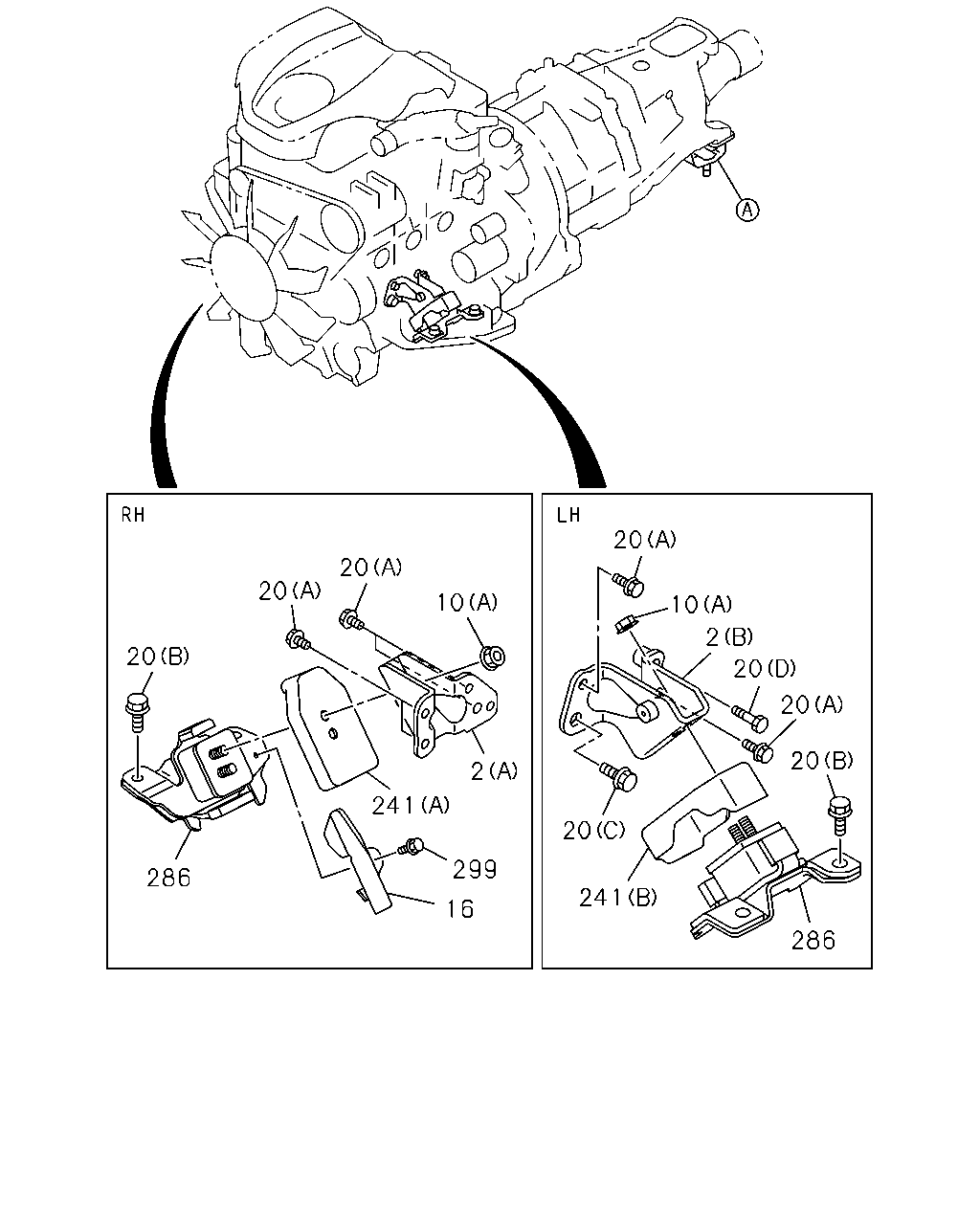

0-22 — ENGINE MOUNTING (#145696) — 68 parça

10 10 10 52 52 20 78 20 52 10 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1407-1508	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1509-	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1407-1508	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1509-	●	●
10	04.085 NUT; MTG RUBBER M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE	0-91180-210-0	02	1	1407-	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1509-	●	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE	0-28751-035-0	02	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE	0-28751-035-0	02	1	1509-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) PHILIPPINE ISLANDS EQUIPMENT(B15),LAOS EQUIPMENT(CF0) (C)	8-98238-914-0	01	1	1509-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), LAOS EQUIPMENT(CF0) (C)	8-98234-918-0	01	1	1509-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) PHILIPPINE ISLANDS EQUIPMENT(B15),LAOS EQUIPMENT(CF0) (C)	8-98270-987-0	01	1	1407-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), LAOS EQUIPMENT(CF0) (C)	8-98193-342-0	01	1	1407-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) PHILIPPINE ISLANDS EQUIPMENT(B15),LAOS EQUIPMENT(CF0) (A)	8-98270-984-0	01	1	1407-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), LAOS EQUIPMENT(CF0) (A)	8-98193-626-0	01	1	1407-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) PHILIPPINE ISLANDS EQUIPMENT(B15),LAOS EQUIPMENT(CF0) (B)	8-98238-913-0	01	1	1407-1508	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) PHILIPPINE ISLANDS EQUIPMENT(B15),LAOS EQUIPMENT(CF0) (B)	8-98238-913-0	01	1	1509-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), LAOS EQUIPMENT(CF0) (B)	8-98193-346-0	01	1	1407-1508	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15), LAOS EQUIPMENT(CF0) (B)	8-98193-346-0	01	1	1509-	●	●
78	00.029 BRACKET; ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1)	8-98164-580-2	01	1	1407-1508	●
78	00.029 BRACKET; ENG MTG,RR 4X2(UCB***) A/T 5 SPEED-AISIN(MA1)	8-98164-580-2	01	1	1509-	●	●

20 10 2 20 20 20 286 241 20 2 241 16 299 10 20 20 20 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.029 FOOT; ENG (A)	8-98132-100-0	01	1	1407-1508	●
2	00.029 FOOT; ENG (A)	8-98132-100-0	01	1	1509-	●	●
2	00.029 FOOT; ENG (B)	8-98132-101-0	01	1	1407-1508	●
2	00.029 FOOT; ENG (B)	8-98132-101-0	01	1	1509-	●	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1407-1508	●
10	04.085 NUT; MTG RUBBER 05.816 (B) M12 FLANGE	0-91180-212-0	02	1	1509-	●	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1407-1508	●
10	04.085 NUT; MTG RUBBER (A) M10 FLANGE	0-91180-210-0	04	1	1509-	●	●
10	04.085 NUT; MTG RUBBER M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE	0-91180-210-0	02	1	1407-	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-98182-916-1	01	1	1407-1508	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-98182-916-1	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (A) M10X20 FLANGE	0-28051-020-0	06	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (D) M10X35 W/LK WASHER	0-50741-035-0	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (F) M10X25 FLANGE	0-28651-025-0	04	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE	8-98035-672-0	02	1	1509-	●	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1407-1508	●
20	00.029 BOLT; ENG FOOT (B) M10X30 FLANGE	8-98013-800-0	04	1	1509-	●	●
20	00.029 BOLT; ENG FOOT 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE	0-28751-035-0	02	1	1407-1508	●
20	00.029 BOLT; ENG FOOT 4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE	0-28751-035-0	02	1	1509-	●	●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (A)	8-98194-507-1	01	1	1407-1508	●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (A)	8-98194-507-1	01	1	1509-	●	●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (B)	8-98194-508-1	01	1	1407-1508	●
241	00.027 COVER; ENG MTG A/T 5 SPEED-AISIN(MA1) (B)	8-98194-508-1	01	1	1509-	●	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (A)	8-98101-956-2	01	1	1407-	●
241	00.027 COVER; ENG MTG M/T MUA 5 SPEED 5H(MWQ) (B)	8-98101-957-1	01	1	1407-	●
286	00.027 MOUNTING ASM; ENGINE	8-98075-376-2	01	1	1407-1508	●
286	00.027 MOUNTING ASM; ENGINE	8-98075-376-2	01	1	1509-	●	●
286	00.027 MOUNTING ASM; ENGINE	8-98250-592-0	01	1	1407-1508	●
286	00.027 MOUNTING ASM; ENGINE	8-98250-592-0	01	1	1509-	●	●
299	00.029 BOLT 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1407-1508	●
299	00.029 BOLT 03.671 M6X10 FLANGE	0-28050-610-0	01	1	1509-	●	●
