0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#145694) — 82 parça

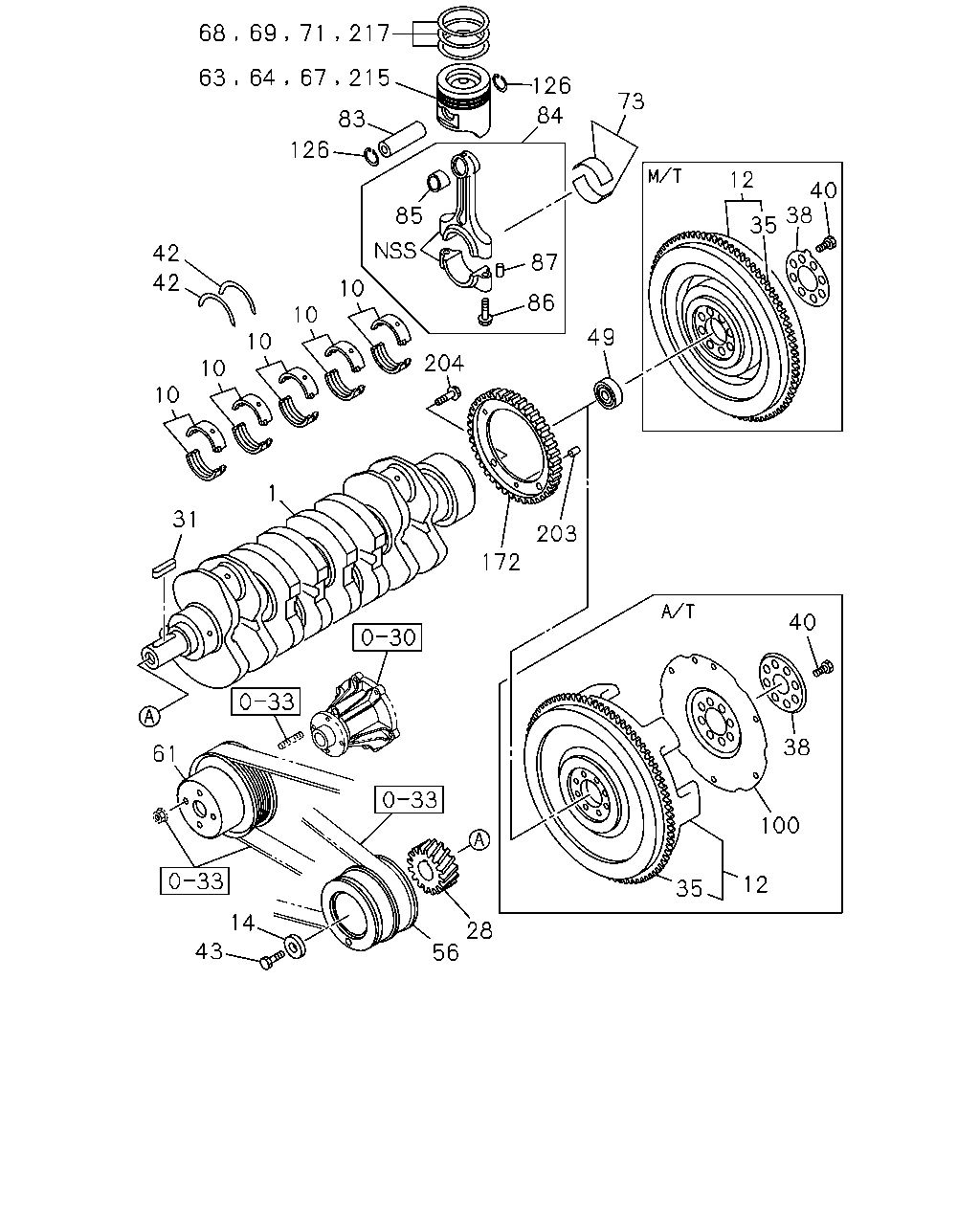

çizim 432317
217 71 69 68 63 215 67 64 126 83 73 126 84 85 87 86 204 10 10 10 10 10 42 42 40 38 35 12 49 203 172 1 31 61 28 56 14 43 38 40 100 12 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.646 CRANKSHAFT 8-97311-632-1 01 1 1509- ●
1 00.646 CRANKSHAFT 8-98131-999-1 01 1 1407- ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97388-502-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97388-502-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97388-503-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97388-503-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97388-504-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97388-504-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97388-505-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97388-505-0 05 1 1509- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
RED 		8-97388-506-0 05 1 1407-1508 ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
RED 		8-97388-506-0 05 1 1509- ● ●
12 00.666 FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98132-505-0 01 1 1407-1508 ●
12 00.666 FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98132-505-0 01 1 1509- ● ●
12 00.666 FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 		8-98077-180-0 01 1 1407- ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1407-1508 ●
14 00.662 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 1509- ● ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1407-1508 ●
28 00.728 GEAR; CR/SHF
Z=44 		8-97312-199-1 01 1 1509- ● ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1407-1508 ●
31 00.662 KEY; FEATHER,CR/SHF
00.729 		9-08030-743-0 01 1 1509- ● ●
35 00.673 GEAR; RING
A/T 5 SPEED-AISIN(MA1) Z=122 		8-94364-395-1 01 1 1407-1508 ●
35 00.673 GEAR; RING
A/T 5 SPEED-AISIN(MA1) Z=122 		8-94364-395-1 01 1 1509- ● ●
35 00.673 GEAR; RING
M/T MUA 5 SPEED 5H(MWQ) Z=108 		8-97912-516-1 01 1 1407- ●
38 00.862 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98195-090-0 01 1 1407-1508 ●
38 00.862 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) 		8-98195-090-0 01 1 1509- ● ●
38 00.862 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) 00.669 		8-94133-970-1 01 1 1407- ●
40 00.669 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) M13X78 		8-97080-561-1 08 1 1407-1508 ●
40 00.669 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN(MA1) M13X78 		8-97080-561-1 08 1 1509- ● ●
40 00.669 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H(MWQ) M13X36 		8-97941-069-0 08 1 1407- ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1407-1508 ●
42 00.095 WASHER; THRUST,CR/SHF 8-97354-055-1 02 1 1509- ● ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1407-1508 ●
43 00.662 BOLT; CR/SHF PULLEY
M16X43 		8-97373-852-1 01 1 1509- ● ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ) 00.096 NSK 		8-97920-344-2 01 1 1407- ●
49 00.669 BEARING; PILOT
M/T MUA 5 SPEED 5H(MWQ) NACHI 		8-97922-552-1 01 1 1407- ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98183-902-0 01 1 1407-1508 ●
56 00.659 PULLEY; CR/SHF DAMPER
2-GROOVE 		8-98183-902-0 01 1 1509- ● ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-98131-628-0 01 1 1407-1508 ●
61 00.659 PULLEY; FAN DRIVE
1-GROOVE 		8-98131-628-0 01 1 1509- ● ●
63 00.629 PISTON
GRADE=A 		8-98133-458-1 04 1 1509- ●
63 00.629 PISTON
GRADE=B 		8-98133-459-1 04 1 1509- ●
63 00.629 PISTON
GRADE=C 		8-98133-460-1 04 1 1509- ●
63 00.629 PISTON
GRADE=A 		8-98132-548-1 04 1 1407- ●
63 00.629 PISTON
GRADE=B 		8-98132-549-1 04 1 1407- ●
63 00.629 PISTON
GRADE=C 		8-98132-550-1 04 1 1407- ●
64 00.629 PISTON; O/S=0.50 8-98132-711-1 04 1 1509- ●
64 00.629 PISTON; O/S=0.50 8-98132-708-1 04 1 1407- ●
67 00.629 PISTON; O/S=0.25 8-98132-710-1 04 1 1509- ●
67 00.629 PISTON; O/S=0.25 8-98132-707-1 04 1 1407- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-044-0 04 1 1509- ●
68 00.643 RING SET; PISTON,STANDARD 8-98171-040-0 04 1 1407- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-046-0 04 1 1509- ●
69 00.643 RING SET; PISTON,O/S=0.50 8-98171-042-0 04 1 1407- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-045-0 04 1 1509- ●
71 00.643 RING SET; PISTON,O/S=0.25 8-98171-041-0 04 1 1407- ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1407-1508 ●
73 00.616 METAL SET; CONN ROD,STANDARD 8-97388-735-0 04 1 1509- ● ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1407-1508 ●
83 00.636 PIN; PISTON 8-98150-333-0 04 1 1509- ● ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1407-1508 ●
84 00.603 ROD ASM; CONN 8-97357-716-3 04 1 1509- ● ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1407-1508 ●
85 00.613 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97383-066-0 04 1 1509- ● ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1407-1508 ●
86 00.623 BOLT; CONNROD
M11X44.5 		8-98048-538-0 08 1 1509- ● ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1407-1508 ●
87 00.613 PIN; CONNROD BIG END
OD=5 L=8 		9-08160-508-0 08 1 1509- ● ●
100 00.666 PLATE; FLEX
A/T 5 SPEED-AISIN(MA1) 		8-98192-379-0 01 1 1407-1508 ●
100 00.666 PLATE; FLEX
A/T 5 SPEED-AISIN(MA1) 		8-98192-379-0 01 1 1509- ● ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1407-1508 ●
126 00.639 RING; SNAP,PISTON PIN
OD=37.5 		8-94460-687-0 08 1 1509- ● ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1407-1508 ●
172 02.383 ROTOR; CRANK SENSOR 8-98163-693-0 01 1 1509- ● ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1407-1508 ●
203 01.150 PIN; ROTOR
00.613 OD=5 L=8 		9-08160-508-0 01 1 1509- ● ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 1407-1508 ●
204 01.150 BOLT; ROTOR 8-97944-142-1 03 1 1509- ● ●
215 00.629 PISTON; O/S=0.75 8-98132-712-1 04 1 1509- ●
215 00.629 PISTON; O/S=0.75 8-98132-709-1 04 1 1407- ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-047-0 04 1 1509- ●
217 00.643 RING SET; PISTON,O/S=0.75 8-98171-043-0 04 1 1407- ●
