0-12 — CYLINDER BLOCK (#145691) — 68 parça

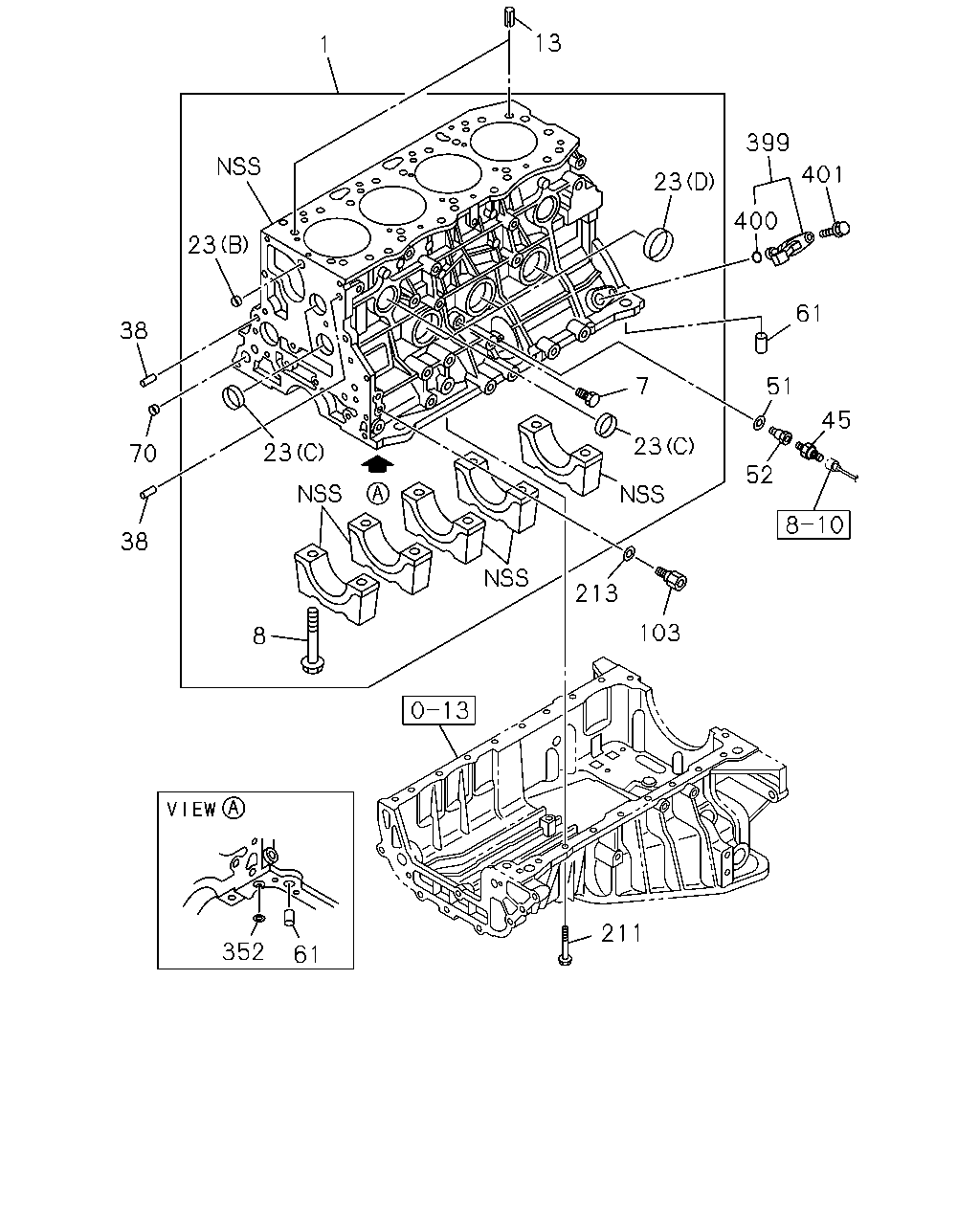

çizim 431055
211 103 213 23 7 23 399 401 400 61 51 52 45 8 38 70 38 23 1 13 23 352 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98244-867-1 01 1 1407- ●
1 00.033 BLOCK ASM; CYL 8-98244-866-1 01 1 1509- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1407-1508 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1509- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1407-1508 ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1509- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1407-1508 ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1509- ● ●
38 00.206 PIN; TIMING GEAR CASE
00.669 OD=10 L=20 		9-08151-020-0 02 1 1407-1508 ●
38 00.206 PIN; TIMING GEAR CASE
00.669 OD=10 L=20 		9-08151-020-0 02 1 1509- ● ●
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1407-1508 ●
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1509- ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97912-498-0 01 1 1407-1508 ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97912-498-0 01 1 1509- ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1407-1502 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1503-1508 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1509- ● ●
61 00.206 PIN; STRAIGHT
01.453 L=31 		8-97920-964-1 02 1 1407-1508 ●
61 00.206 PIN; STRAIGHT
01.453 L=31 		8-97920-964-1 02 1 1509- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1407-1508 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1509- ● ●
103 01.531 NIPPLE; OIL FEED 8-98240-170-1 01 1 1407-1508 ●
103 01.531 NIPPLE; OIL FEED 8-98240-170-1 01 1 1509- ● ●
211 01.428 BOLT; CRANKCASE
01.252 M8X80 FLANGE 		0-28050-880-0 06 1 1407-1508 ●
211 01.428 BOLT; CRANKCASE
01.252 M8X80 FLANGE 		0-28050-880-0 06 1 1509- ● ●
211 01.428 BOLT; CRANKCASE
06.216 M8X25 FLANGE 		0-28650-825-0 14 1 1407-1508 ●
211 01.428 BOLT; CRANKCASE
06.216 M8X25 FLANGE 		0-28650-825-0 14 1 1509- ● ●
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1407-1508 ●
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1509- ● ●
352 01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 00.724 		9-09566-109-0 01 1 1407-1508 ●
352 01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 00.724 		9-09566-109-0 01 1 1509- ● ●
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 1407-1508 ●
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 1509- ● ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1407-1508 ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1509- ● ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1407-1508 ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1509- ● ●

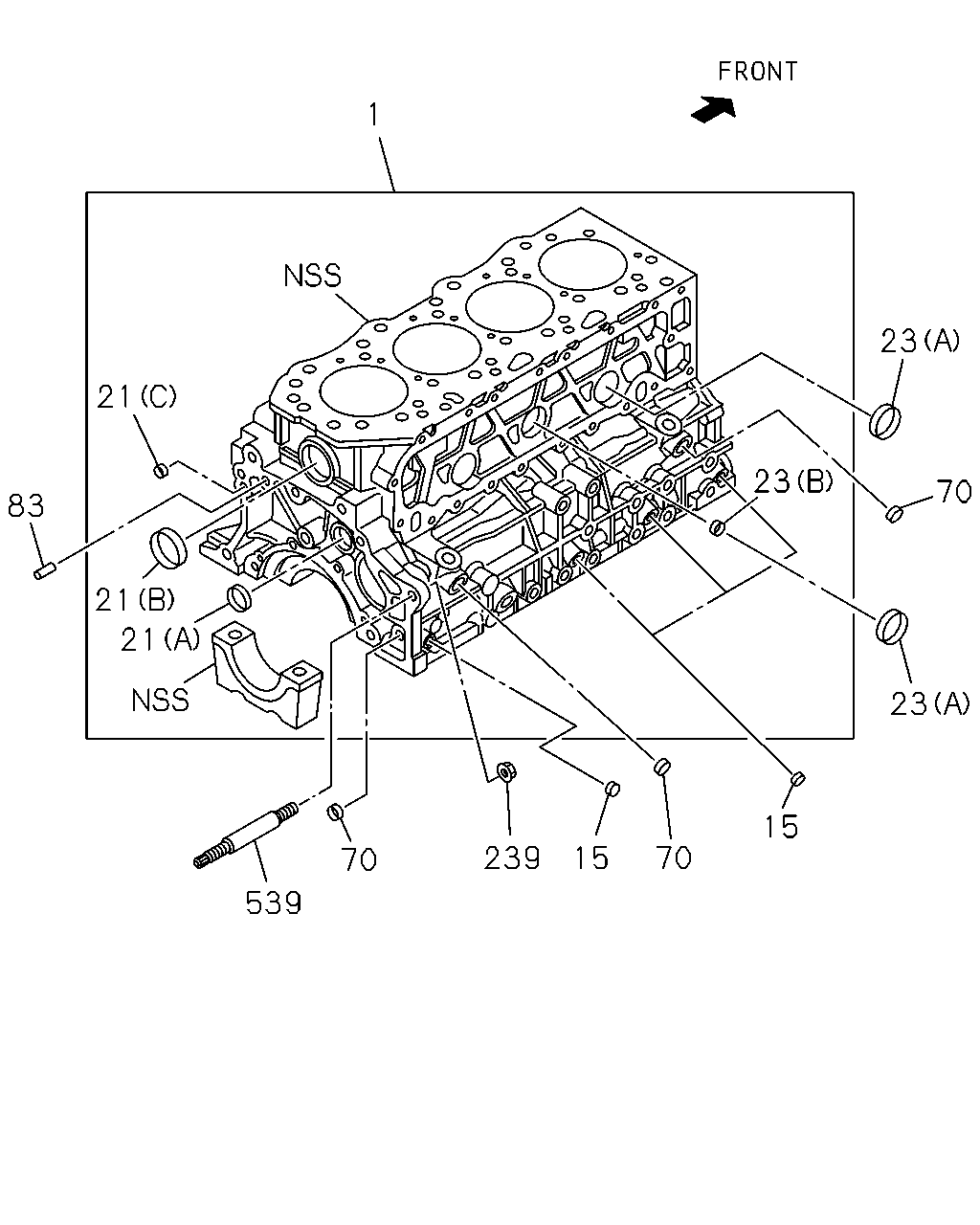

çizim 431056
23 70 23 23 15 70 15 239 70 539 21 21 83 21 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98244-867-1 01 1 1407- ●
1 00.033 BLOCK ASM; CYL 8-98244-866-1 01 1 1509- ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1407-1508 ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1509- ● ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1407-1508 ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1509- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1407-1508 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1509- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1407-1508 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1509- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1407-1508 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-97036-550-1 03 1 1509- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1407-1508 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1509- ● ●
83 00.685 PIN; FLYWHEEL HSG
M/T MUA 5 SPEED 5H(MWQ) 08.939 OD=10 L=32 		9-08161-032-0 01 1 1407- ●
239 02.100 NUT; STUD,C/BL
M/T MUA 5 SPEED 5H(MWQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1407- ●
539 01.428 STUD; REAMER
M/T MUA 5 SPEED 5H(MWQ) 00.862 M10X40 L=75.5 		8-97371-842-1 01 1 1407- ●
