8-90 — RADIO AND TV (#145685) — 17 parça

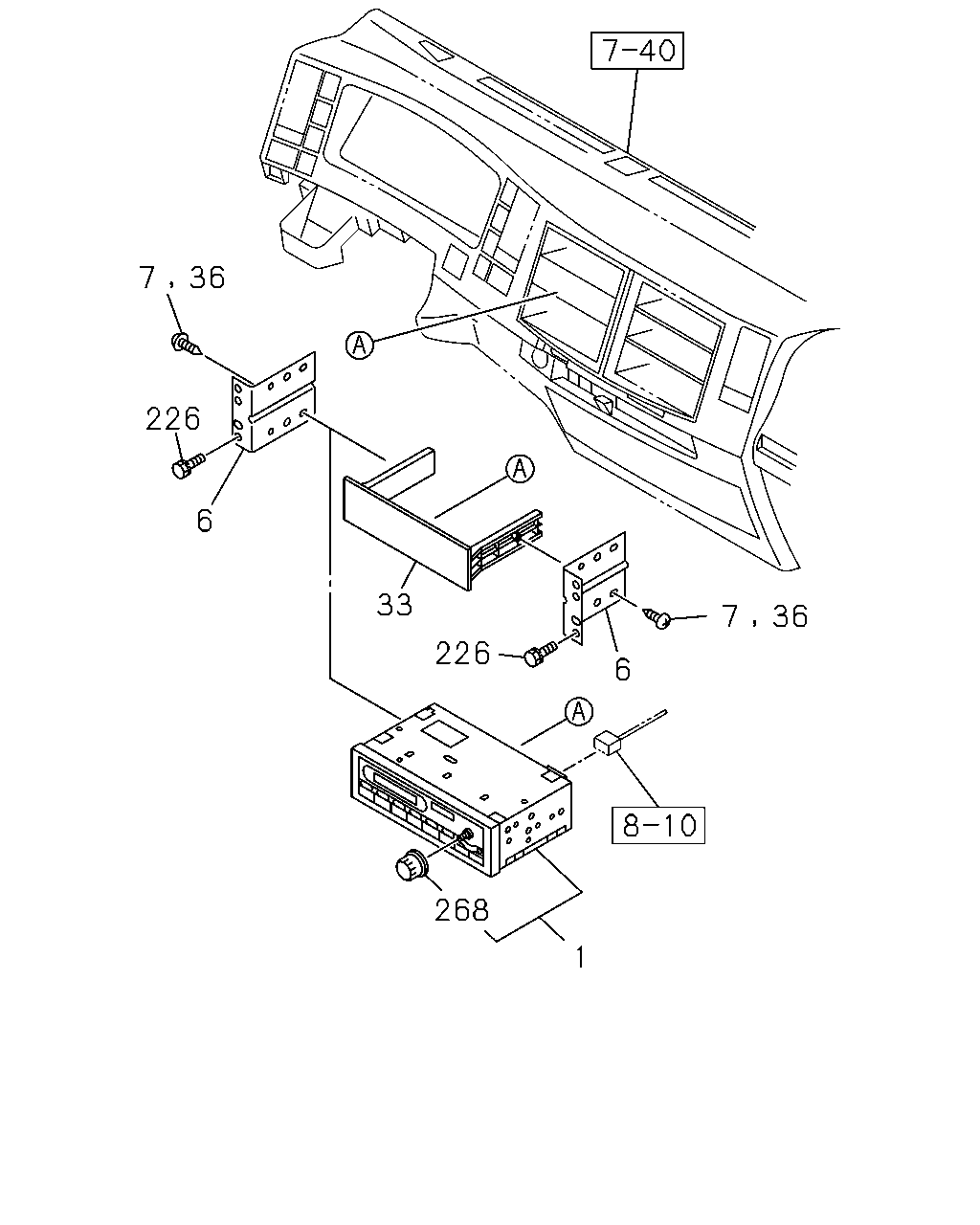

7 36 226 6 33 226 268 6 1 7 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.650 RADIO AM/FM RADIO(U69)	8-98083-559-0	01	1	1407-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1407-	●	●	●
7	09.650 SCREW; RADIO AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1407-	●	●	●
33	09.650 COVER; RADIO EXC. AM/FM RADIO(U69) BLACK	8-97407-896-2	01	1	1407-	●	●	●
36	09.779 SCREW; COVER EXC. AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1407-	●	●	●
226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1407-	●	●	●
268	09.649 KNOB; VOL AM/FM RADIO(U69) CLARION	8-97375-820-0	01	1	1407-	●	●	●

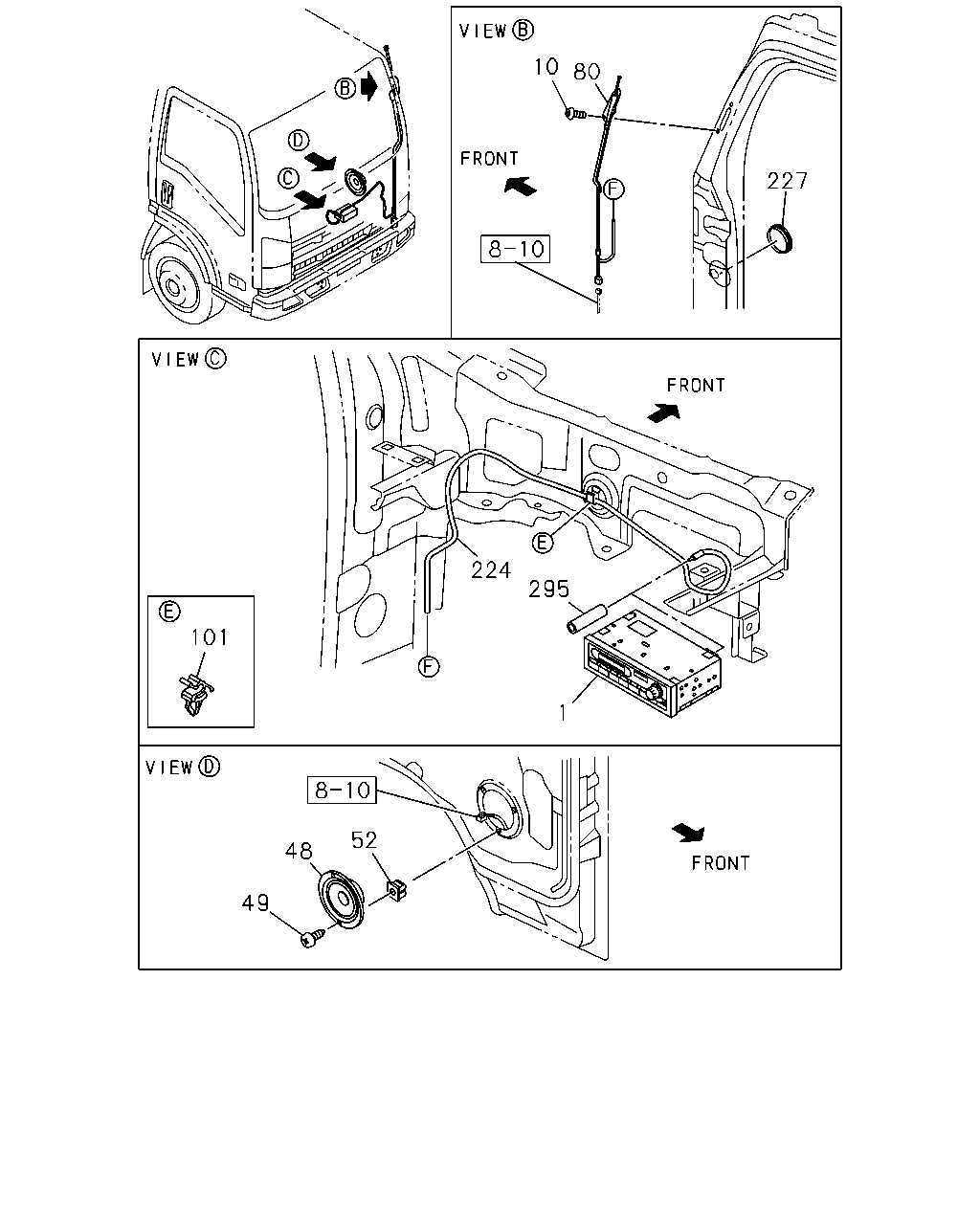

10 80 227 101 224 295 1 52 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.650 RADIO AM/FM RADIO(U69)	8-98083-559-0	01	1	1407-	●	●	●
10	09.647 SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES	8-98061-742-0	02	1	1407-	●	●	●
48	09.650 SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95>	8-97317-001-1	02	1	1407-	●	●	●
49	09.655 SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1407-	●	●	●
52	09.655 GROMMET; SCREW,SPEAKER 2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1407-	●	●	●
80	09.645 ANTENNA	8-97387-265-3	01	1	1407-	●	●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 ID=6.5	5-09709-117-0	01	1	1407-	●	●	●
224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1407-	●	●	●
227	09.647 PROTECTOR; EDGE	8-98053-117-0	01	1	1407-	●	●	●
295	09.665 INSULATOR; ANTENNA EXC. AM/FM RADIO(U69)	8-98095-617-1	01	1	1407-	●	●	●
