Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#145678) — 28 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀

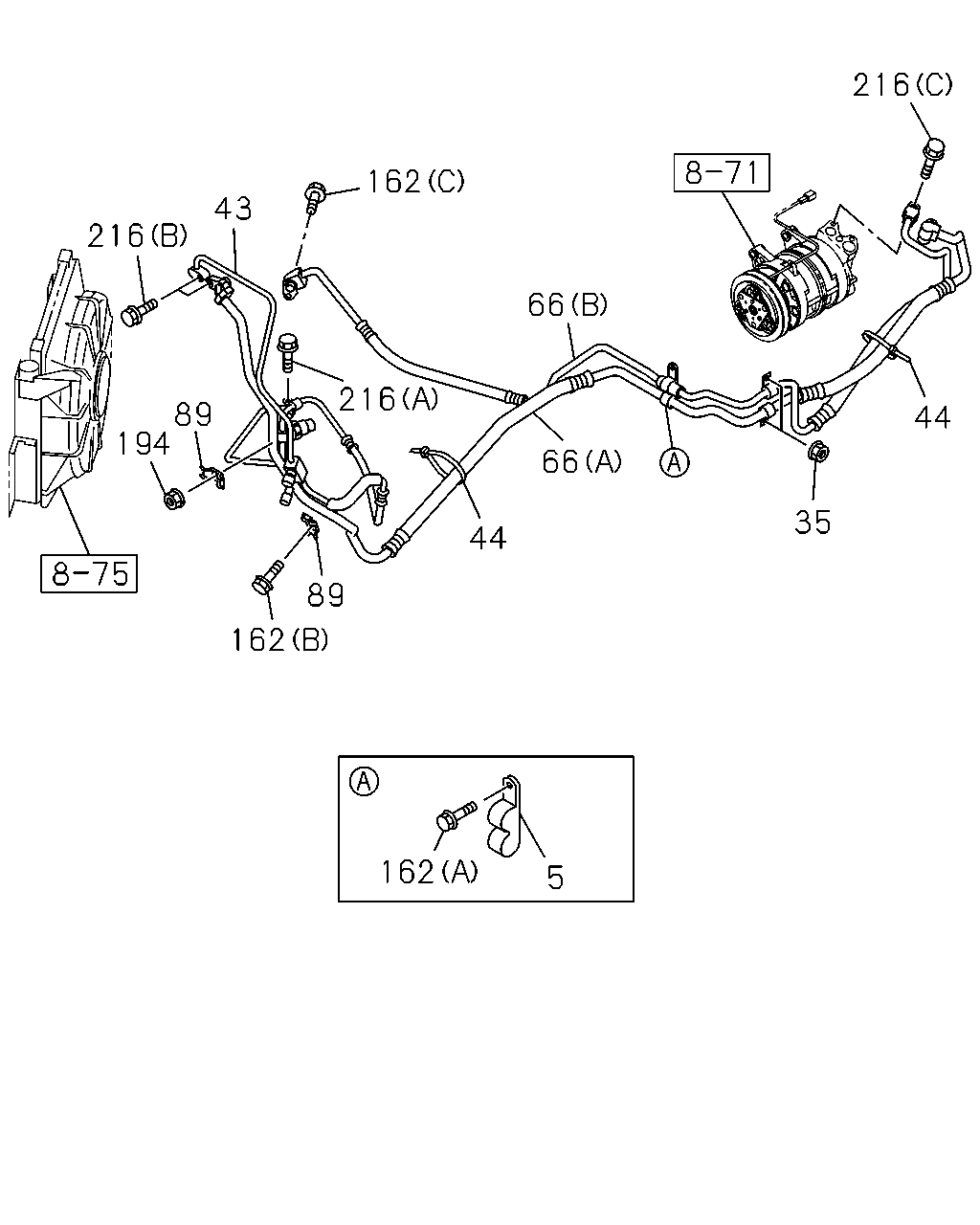

[852A] PIPING (14 parça)
[852A] COMPONENT (14 parça)
▶
216
44
35
66
66
44
162
216
89
162
194
89
216
43
162
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
09.242 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98052-857-0
01
1
1407-
●
●
●
35
09.242 NUT; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE
0-91180-106-0
02
1
1407-
●
●
●
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60)
8-98238-470-0
01
1
1407-
●
●
●
44
09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250
5-09707-030-1
02
1
1407-
●
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98216-787-0
01
1
1407-
●
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98216-788-0
01
1
1407-
●
●
●
89
09.242 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60)
8-98151-264-0
02
1
1407-
●
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE
0-28050-612-0
01
1
1407-
●
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE
0-28650-620-0
01
1
1407-
●
●
●
162
09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE
0-28650-625-0
02
1
1407-
●
●
●
194
09.242 NUT; HOSE
AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE
0-91180-106-0
01
1
1407-
●
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE
0-28650-625-0
01
1
1407-
●
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE
0-28650-630-0
02
1
1407-
●
●
●
216
09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE
0-28650-825-0
02
1
1407-
●
●
●
43
66
66
67
49
67
147
148
67
49
67
147
148
50
50
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60)
8-98238-470-0
01
1
1407-
●
●
●
49
09.242 CLAMP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98257-461-0
01
1
1407-
●
●
●
49
09.242 CLAMP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98257-462-0
01
1
1407-
●
●
●
50
09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=7.5
1-83539-316-0
02
1
1407-
●
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98216-787-0
01
1
1407-
●
●
●
66
09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98216-788-0
01
1
1407-
●
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7
8-97095-907-0
02
1
1407-
●
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5
8-97095-908-0
01
1
1407-
●
●
●
67
09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6
8-98036-895-0
01
1
1407-
●
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.226 (A) CAP MARK L
8-97095-910-0
01
1
1407-
●
●
●
147
09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H
8-97095-911-0
01
1
1407-
●
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97095-909-0
01
1
1407-
●
●
●
148
09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B)
8-98031-629-0
01
1
1407-
●
●
●
202
09.275 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60)
1-83564-392-1
01
1
1407-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
