Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#145677) — 19 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀

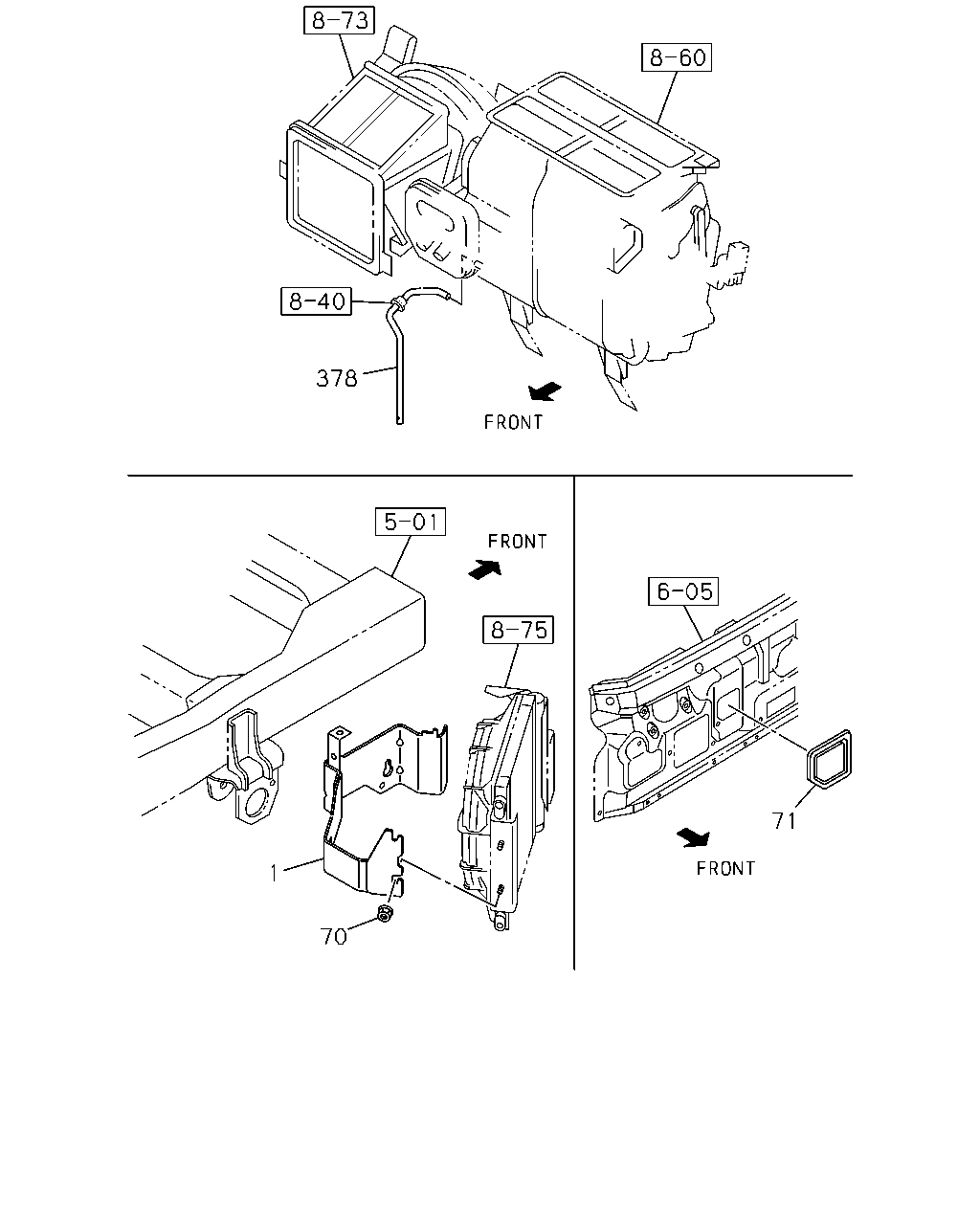

[850A] DRAIN HOSE,COVER AND A/C BRACKET (5 parça)

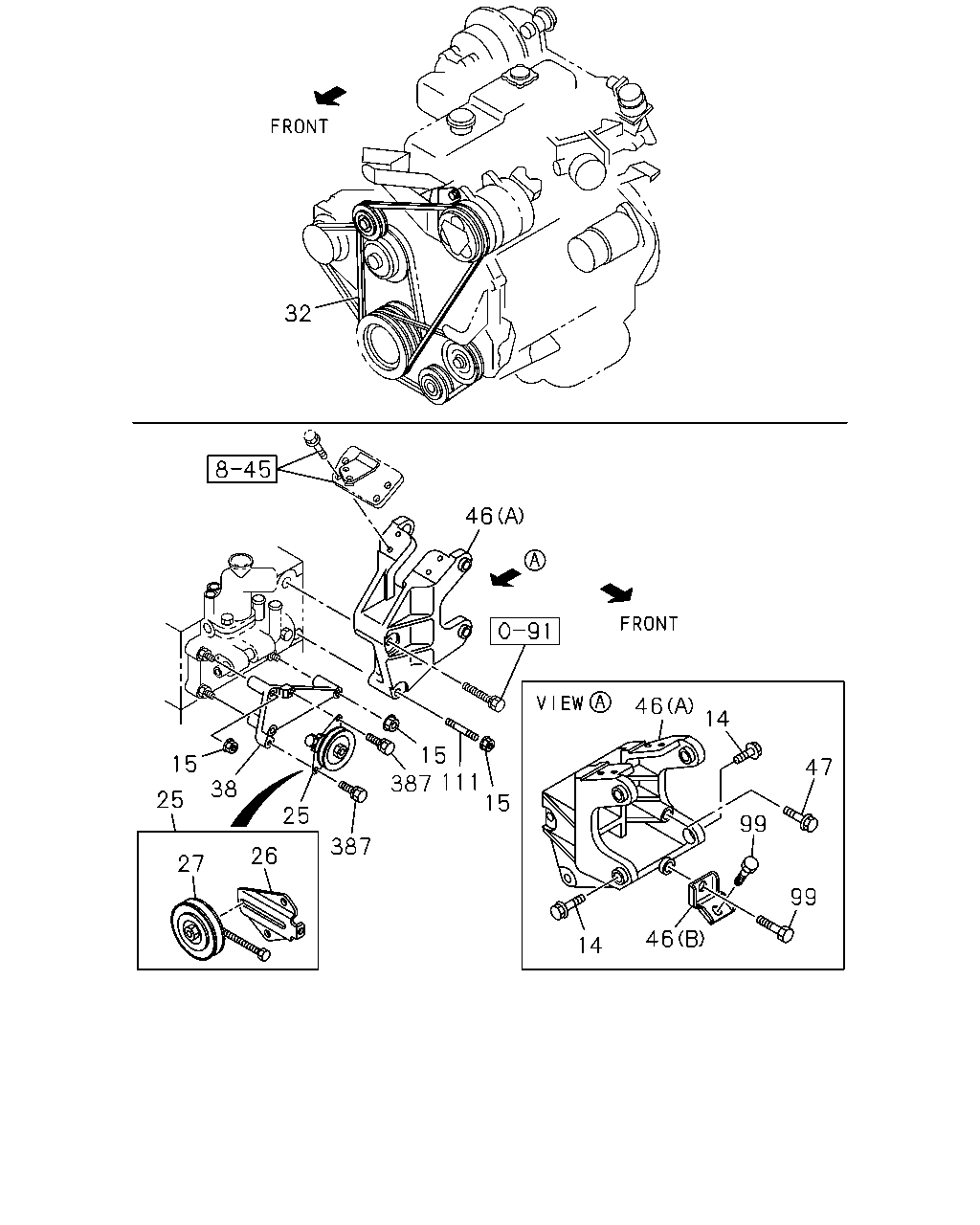

[850A] BELT AND PULLEY (14 parça)
▶
378
1
70
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98146-844-0
01
1
1407-
●
●
●
70
09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE
0-91180-108-0
02
1
1407-
●
●
●
71
09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98017-235-1
01
1
1407-
●
●
●
378
09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98105-819-0
01
1
1407-
●
●
378
09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98105-819-0
01
1
1407-
●
32
46
46
47
46
14
99
99
14
27
26
387
387
15
111
15
25
38
25
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
14
09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 03.613 M10X40 FLANGE
0-28651-040-0
04
1
1407-
●
●
●
15
09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE
0-91180-208-0
01
1
1407-
●
●
●
15
09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE
0-91180-208-0
03
1
1407-
●
●
●
25
09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60)
8-97080-947-1
01
1
1407-
●
●
●
26
09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97080-891-1
01
1
1407-
●
●
●
27
09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97126-652-0
01
1
1407-
●
●
●
32
01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1464
8-94482-166-0
01
1
1407-
●
●
●
38
09.171 BRACKET; PULLEY TO CYL HD
AIR CONDITIONER MANUAL CONT(C60)
8-97372-359-0
01
1
1407-
●
●
●
46
09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97228-378-2
01
1
1407-
●
●
●
46
09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) (A)
8-98244-751-0
01
1
1407-
●
●
●
47
09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X80 FLANGE
0-28050-880-0
01
1
1407-
●
●
●
99
09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE
0-28050-816-0
02
1
1407-
●
●
●
111
09.190 STUD; BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.413 M8X65 L=76
8-94321-032-0
01
1
1407-
●
●
●
387
09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 00.206 M8X20 W/LK WASHER
0-50540-820-0
02
1
1407-
●
●
●
