Sayfa 8-40 - Isuzu EPC

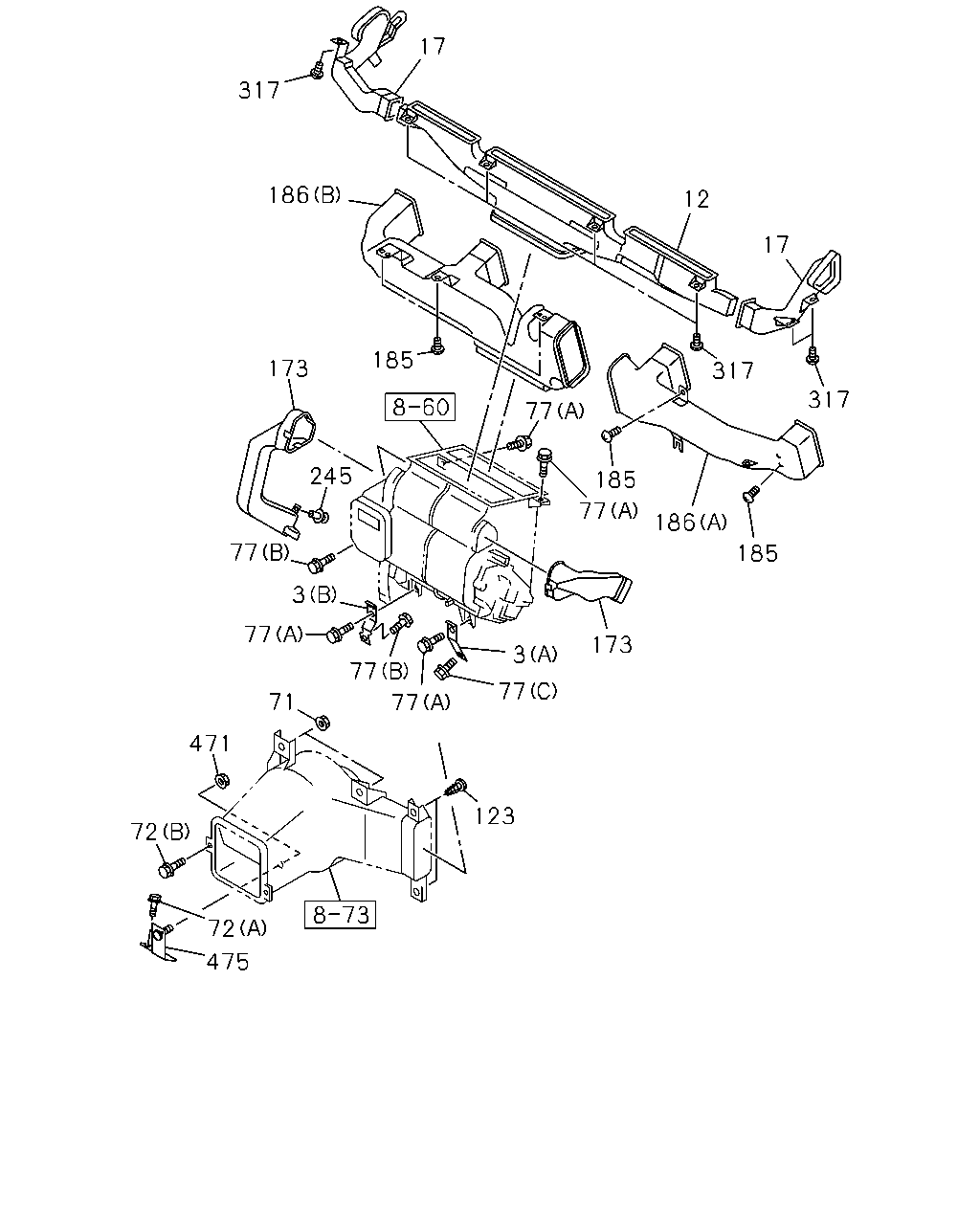

8-40 — HEATER SYSTEM (#145675) — 110 parça

317 17 12 17 317 317 185 186 185 77 77 77 77 77 77 77 186 173 185 173 3 3 245 71 471 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98082-473-1	01	1	1407-	●	●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98082-473-1	01	1	1407-			●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98082-475-1	01	1	1407-	●	●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98082-475-1	01	1	1407-			●
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	1407-	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1407-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1407-			●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1407-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1407-			●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-			●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1407-	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1407-			●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1407-	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1407-			●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1407-	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1407-	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	1407-			●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1407-	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1407-			●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1407-	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-			●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-183-0	01	1	1407-	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-183-0	01	1	1407-			●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-188-0	01	1	1407-	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-188-0	01	1	1407-			●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1407-	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1407-			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1407-1410	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1407-1410			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1407-1410	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1407-1410			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1407-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1407-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1407-			●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1407-	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	1407-			●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-			●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1407-	●	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-			●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-703-1	01	1	1407-	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-703-1	01	1	1407-			●

476 50 223 206 343 225 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	1407-	●	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	1407-			●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98019-649-0	01	1	1407-	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98019-649-0	01	1	1407-			●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1407-	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1407-	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1407-			●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	1407-	●	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1407-	●	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1407-	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1407-			●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1407-	●	●	●

317 17 12 17 317 317 66 126 66 175 66 477 126 477 186 198 198 186 198 192 66 274 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	09.779 NOZZLE; DEFROSTER	8-97585-479-0	01	1	1407-	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1407-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1407-			●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1407-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1407-			●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1407-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1407-			●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1407-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1407-			●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1407-			●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1407-	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1407-			●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-			●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-			●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98184-162-0	01	1	1407-	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98184-162-0	01	1	1407-			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1407-1410	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1407-1410			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1407-1410	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1407-1410			●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1407-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1407-			●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1407-	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1407-			●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-385-4	01	1	1407-	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-385-4	01	1	1407-			●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	1407-	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	05	1	1407-			●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-			●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1407-			●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1407-	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1407-	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1407-			●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1407-	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1407-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
