◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#145673) — 12 parça

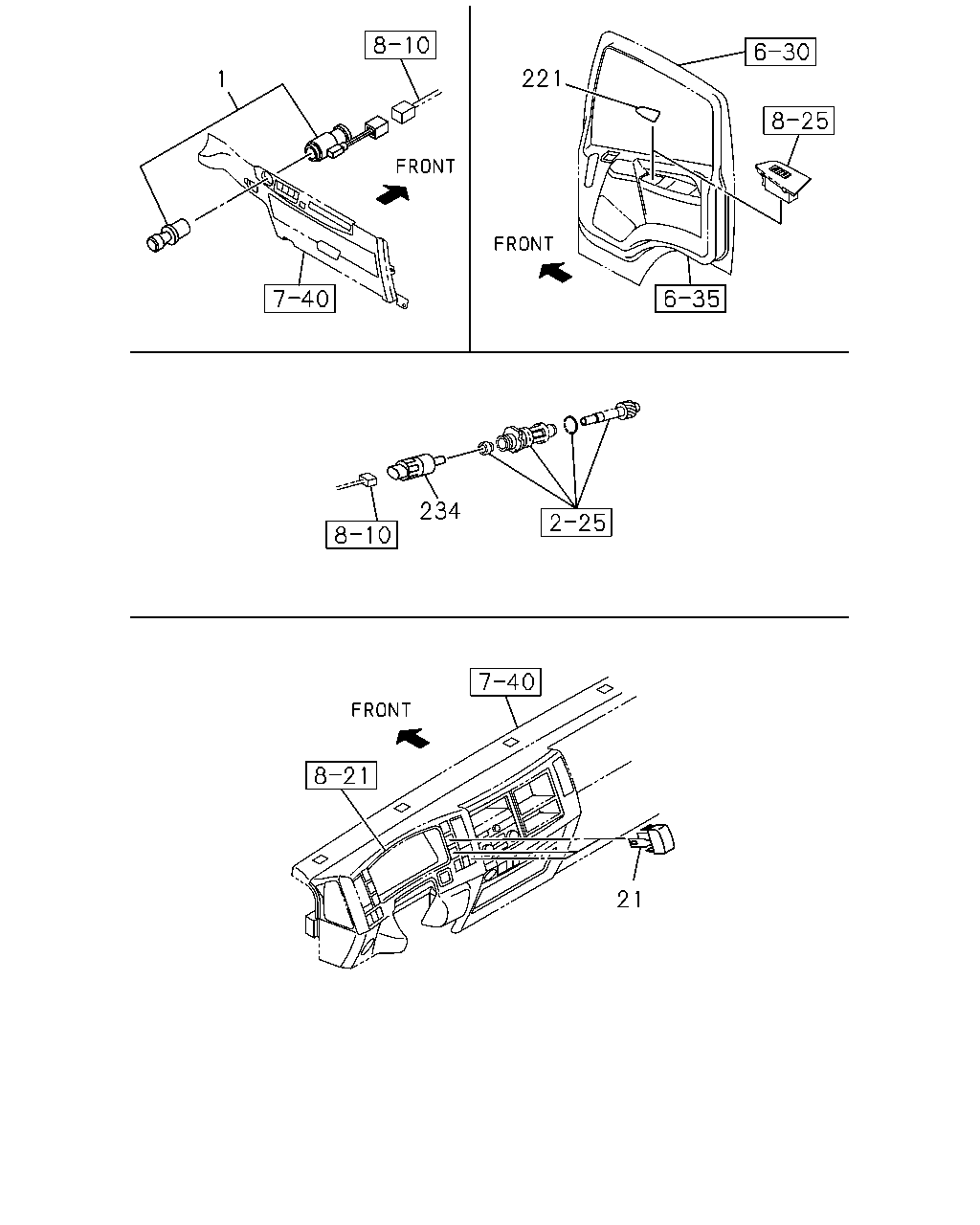

çizim 431980
1 221 234 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-97314-003-0 01 1 1407- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1407- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1407- ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1407- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1407- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1407- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1407- ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1407- ● ● ●
çizim 434488
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1407- ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1407- ● ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1407- ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1407- ● ● ●
