8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#145672) — 77 parça

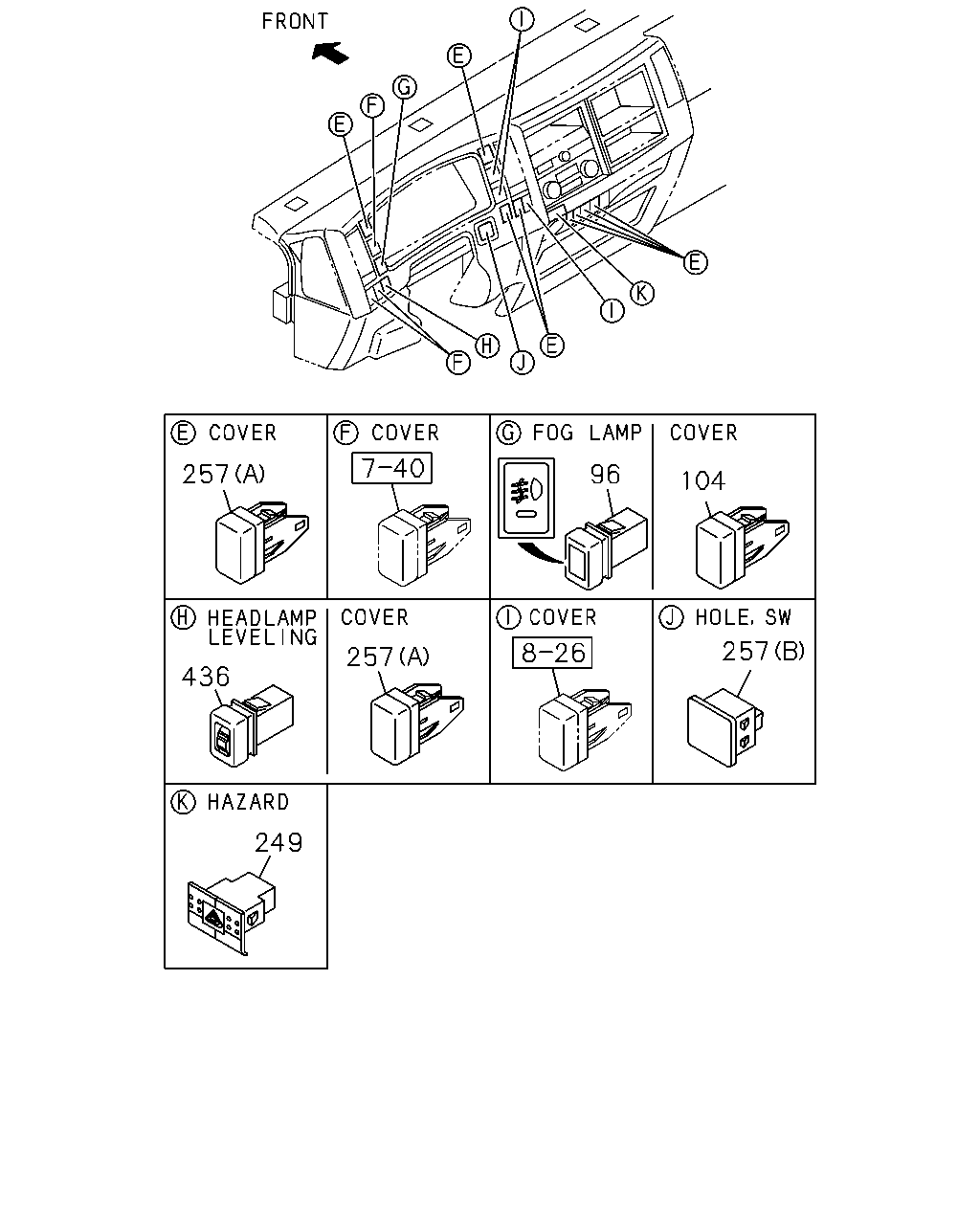

çizim 431855
257 96 104 436 257 257 249
BalonParca AdiParca NoAdetTipApplied Date A B C
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-98022-021-1 01 1 1407- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1407- ● ● ●
249 02.485 SWITCH; HAZARD 8-98011-707-2 01 1 1407- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1407- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 08 1 1407- ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1407- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1407- ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-98220-496-0 01 1 1407- ●

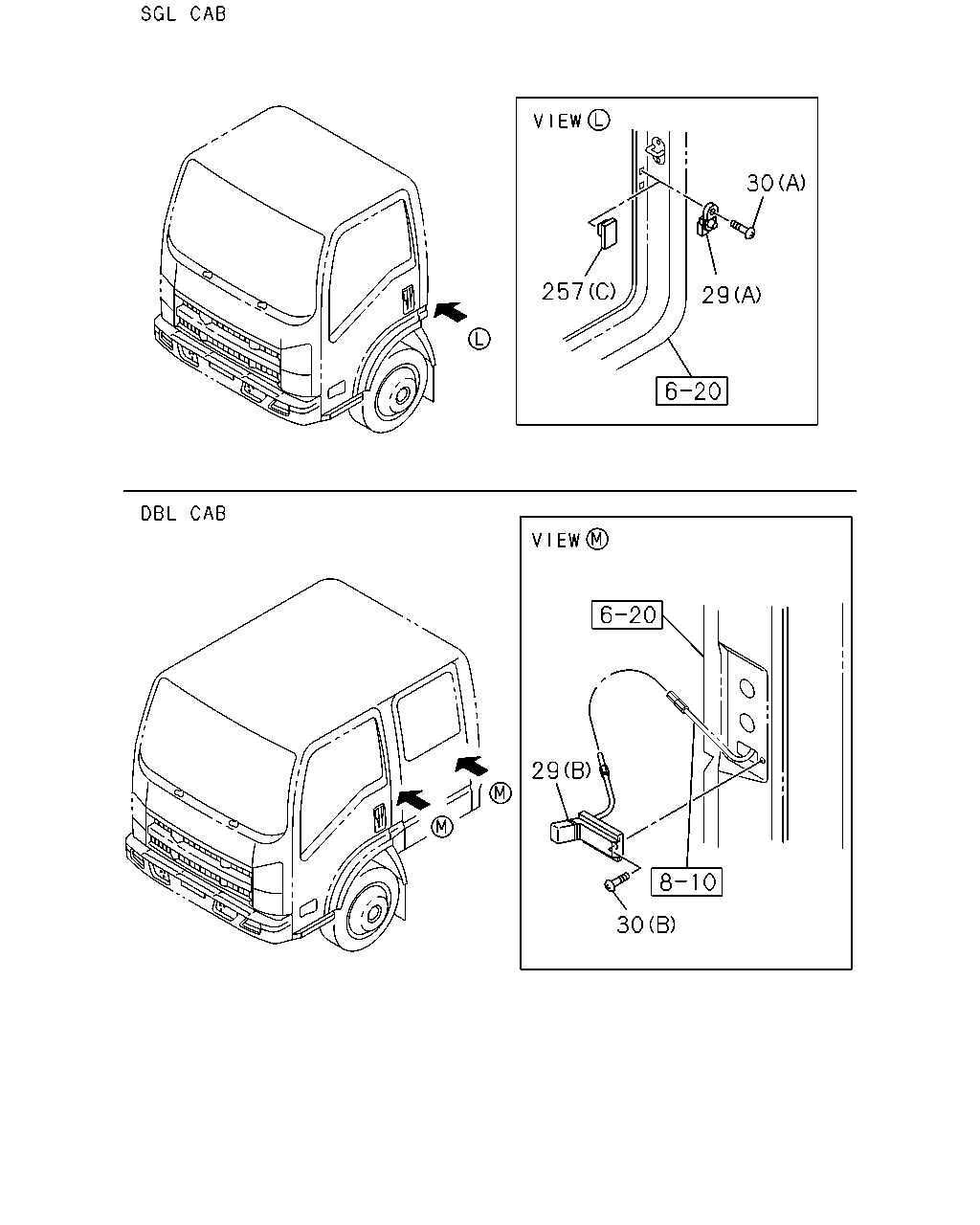

çizim 432275
29 30 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1407- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1407- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1407- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1407- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1407- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 01 1 1407- ● ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1407- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1407- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 08 1 1407- ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1407- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1407- ●

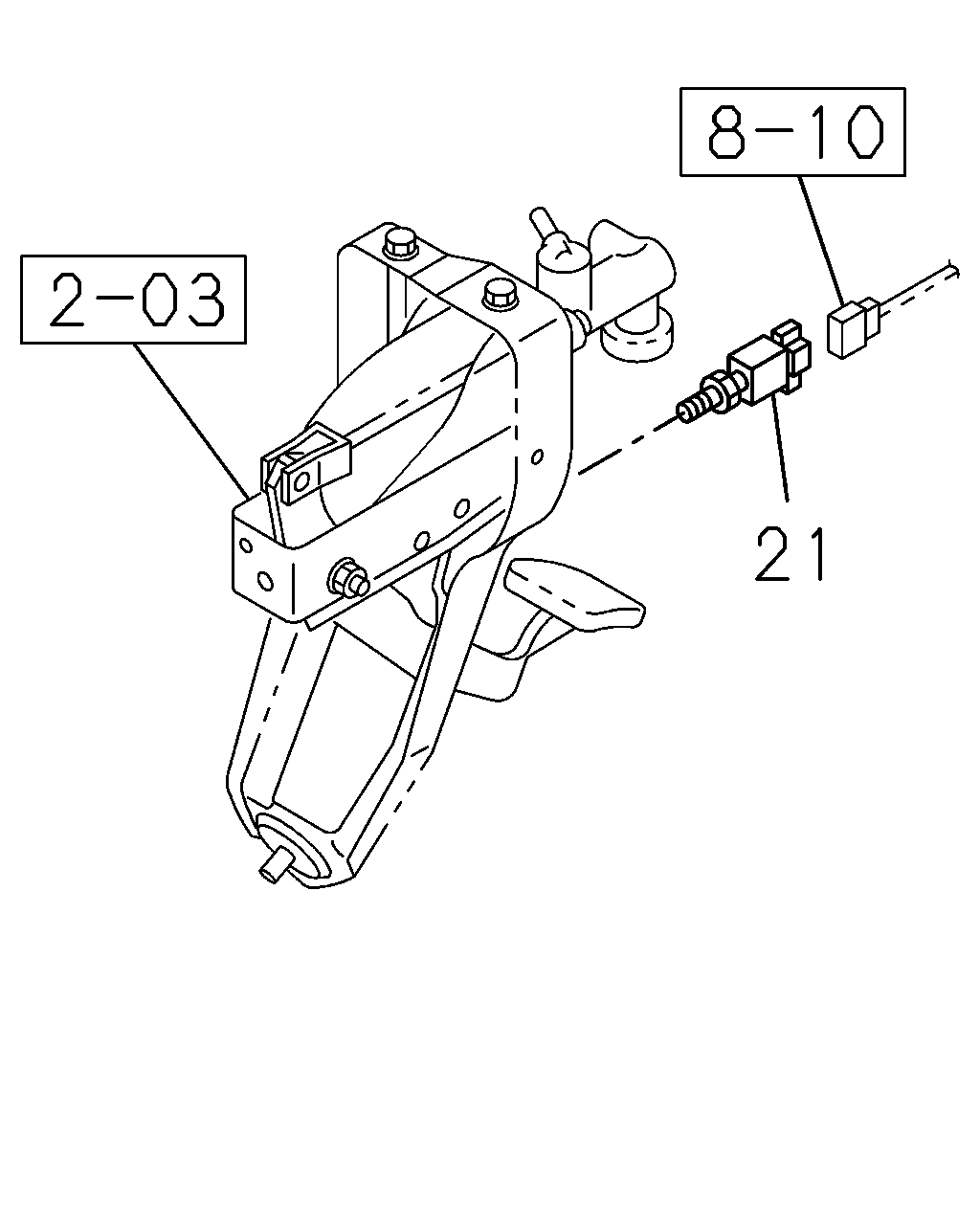

çizim 432574
21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1407- ● ● ●
çizim 432764
183 39 180 312
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 1407- ● ● ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> 		8-98247-529-2 01 1 1407- ● ● ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1407- ● ● ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1407- ● ● ●

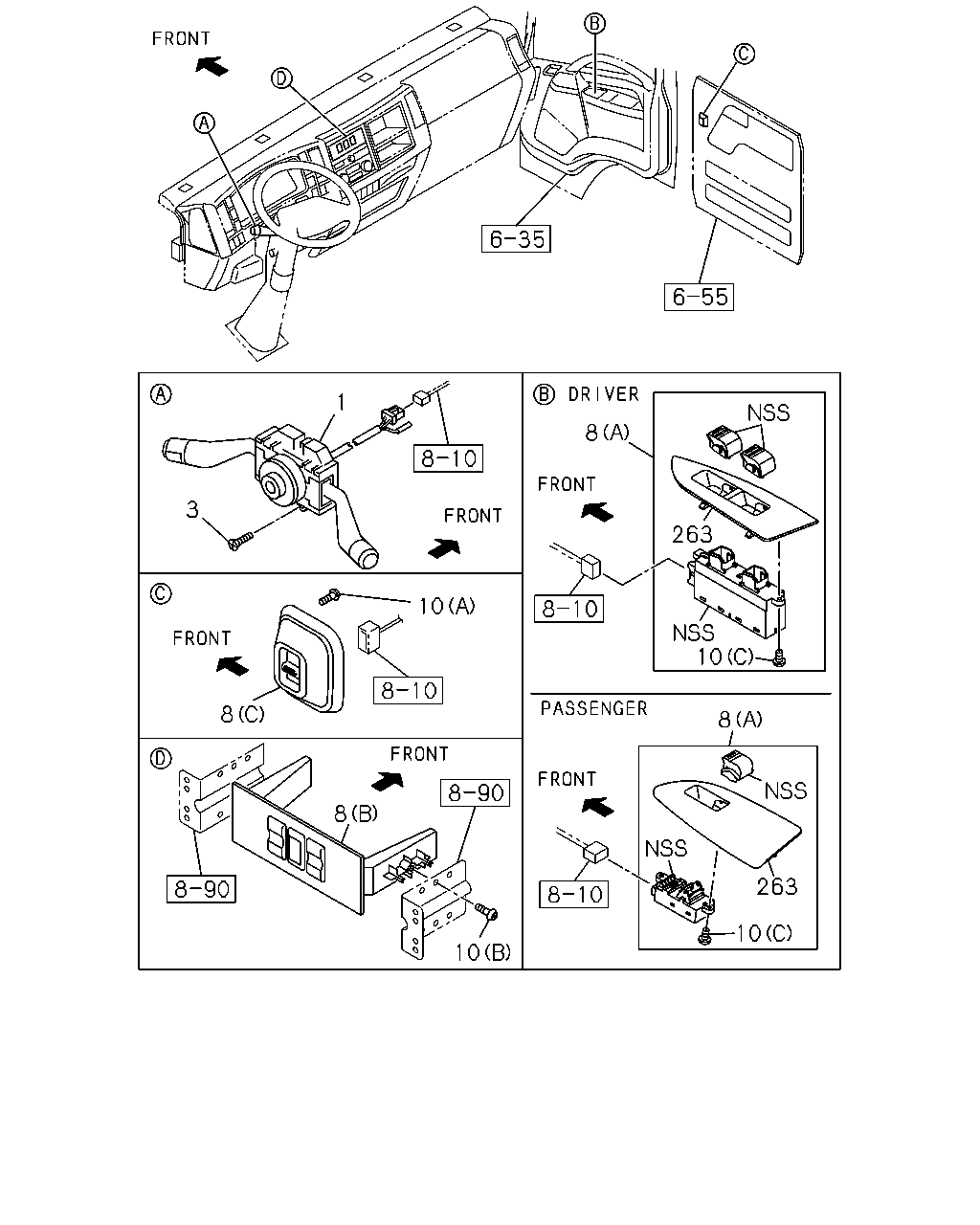

çizim 434169
1 3 10 8 8 8 263 10 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> 		8-98243-763-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-763-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. CORNERING LAMP<T87> 		8-98243-753-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-98243-753-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1407- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-751-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98243-764-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-764-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98243-754-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-754-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1407- ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-752-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-98243-755-0 01 1 1407- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. EXHAUST BRAKE<NF8> 		8-98243-762-0 01 1 1407- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13> 		8-98243-756-0 01 1 1407- ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-761-0 01 1 1407- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1407- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-546-0 01 1 1407-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-546-0 01 1 1407-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-753-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-753-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1407-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1407-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1407- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1407- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 1407- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 01 1 1407- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 1407- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 02 1 1407- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1407- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98153-838-0 01 1 1407- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> DRIVER SIDE 		8-98153-838-0 01 1 1407- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-843-0 01 1 1407- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> PASSENGER SIDE 		8-98153-843-0 01 1 1407- ●
çizim 434401
527 86 87 12 610 98 99 45 317 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 02.510 12V 20A 		8-97173-037-1 01 1 1407- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 02.510 12V 20A 		8-97173-037-1 01 1 1407- ●
45 02.252 RELAY; HORN
02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
86 02.485 RELAY; HI-BEAM
02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
87 02.485 RELAY; LOW-BEAM
02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.510 12V 20A 		8-97173-037-1 01 1 1407- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 35A 		8-97180-794-1 01 1 1407- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 35A 		8-97180-794-1 01 1 1407- ●
527 02.510 RELAY; TAIL
12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
610 02.510 RELAY; KEY ON
09.277 12V 30A 		8-97210-972-1 01 1 1407- ● ● ●
çizim 434402
151 154
BalonParca AdiParca NoAdetTipApplied Date A B C
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 30A 		8-97210-972-1 01 1 1407- ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 02.510 12V 20A 		8-97173-037-1 01 1 1407- ● ● ●
