8-21 — METER ASM (#145671) — 18 parça

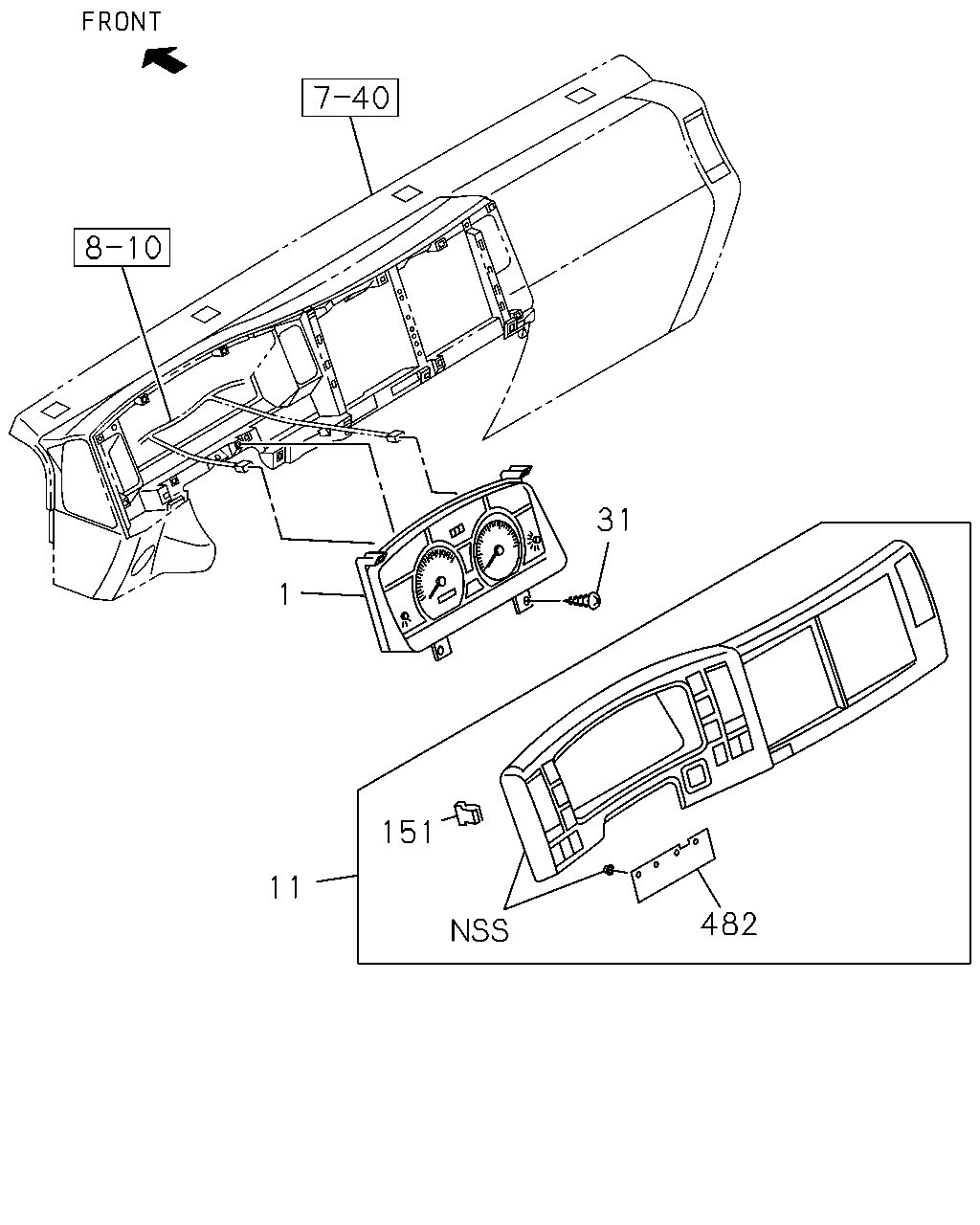

çizim 432532
1 31 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98213-839-1 01 1 1407- ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98213-830-1 01 1 1407- ● ●
1 09.735 METER COMPL; CLUSTER 8-98213-830-1 01 1 1407- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1407- ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1407- ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1407- ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1407- ● ● ●
çizim 434110
1 2 81 480 110
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98213-839-1 01 1 1407- ● ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98213-830-1 01 1 1407- ● ●
1 09.735 METER COMPL; CLUSTER 8-98213-830-1 01 1 1407- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1407- ● ● ●
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> 		8-98241-726-0 01 1 1407- ● ●
81 09.735 METER SUB ASM
EXC. SPEEDOMETER MILE<UC1> 		8-98241-724-0 01 1 1407- ● ●
81 09.735 METER SUB ASM 8-98241-724-0 01 1 1407- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1407- ● ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1407- ● ● ●

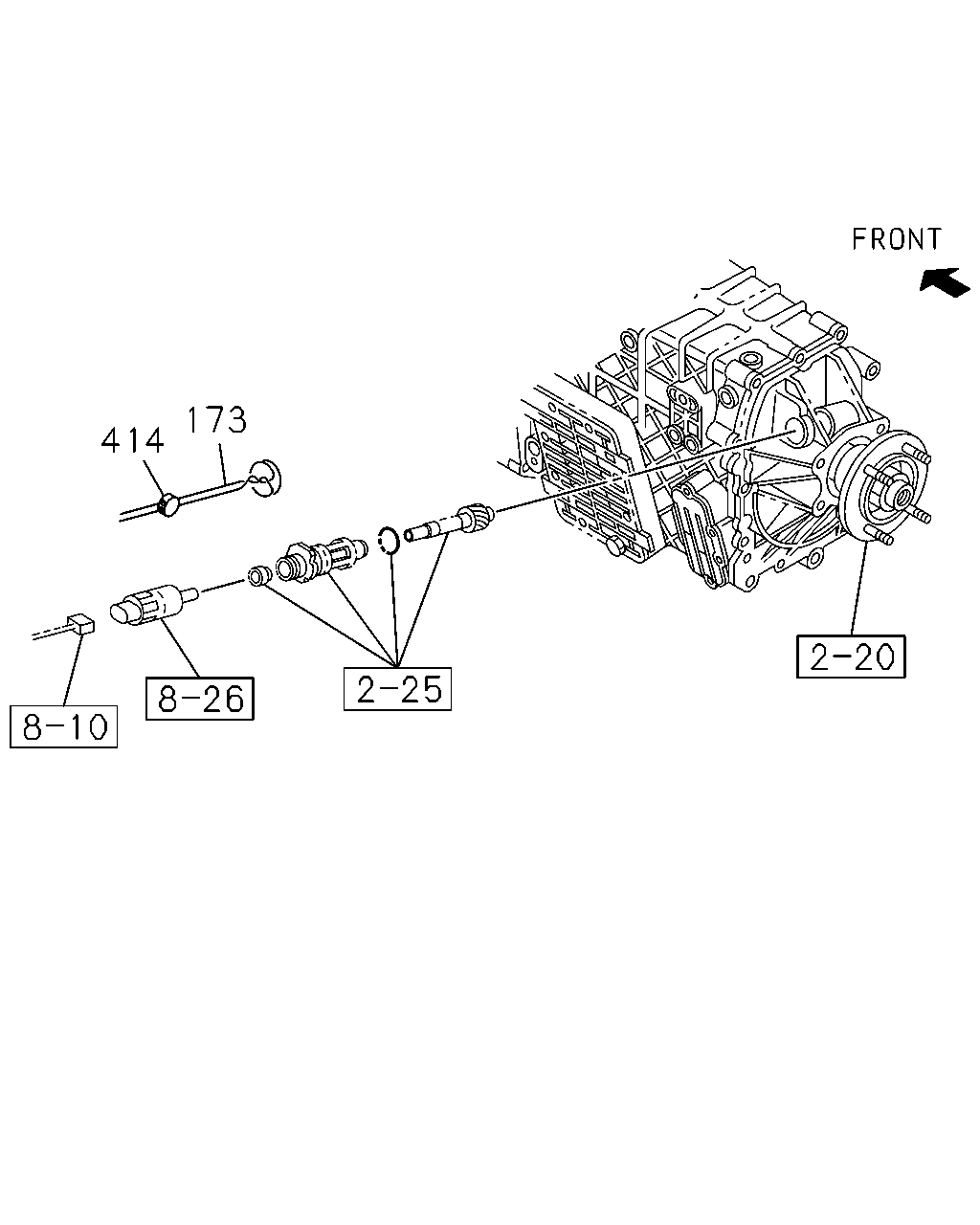

çizim 455520
414 173
BalonParca AdiParca NoAdetTipApplied Date A B C
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM<NMJ> 		1-80249-010-0 01 1 1409- ●
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM<NMJ> 		1-15739-008-0 01 1 1409- ●
