◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#145670) — 180 parça

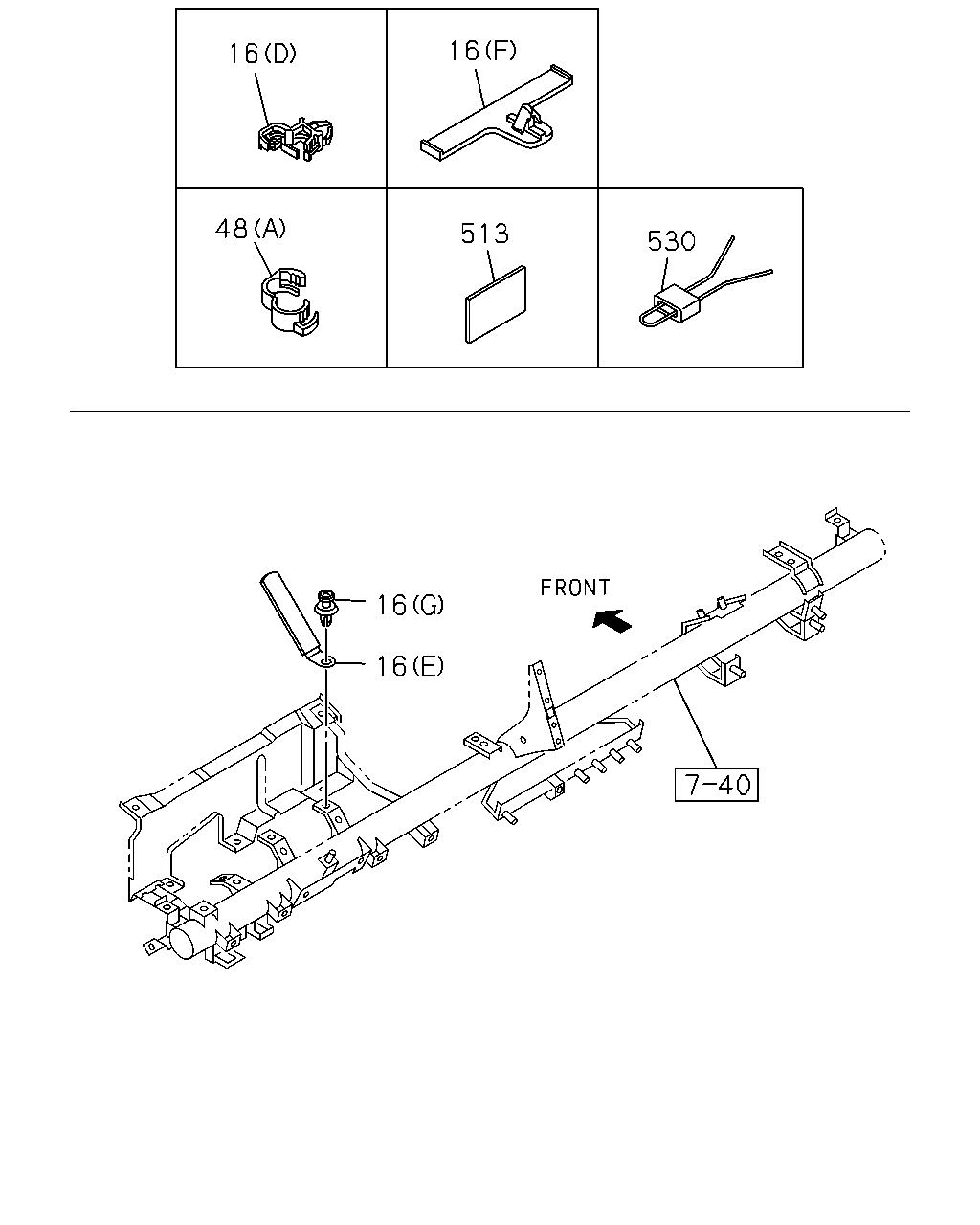

çizim 432255
16 16 48 513 530 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) CORNERING LAMP<T87> EXC. FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) EXC. FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),CORNERING LAMP<T87>, FOGLAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
CORNERING LAMP<T87> FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>, HEADLAMPLEVELING MANUAL CONTROL<TR6>,RR FOG LAM P<T79>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>,RR FOG LAMP<T79>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
HEADLAMP LEVELING MANUAL CONTROL<TR6> RR FOG LAMP<T79> FOG LAMP<T96> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),RR FOG LAMP<T79> (H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),RR FOG LAMP<T79> (H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
(B) L=40.6 		8-97229-357-0 02 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (B) L=40.6 		8-97229-357-0 02 1 1407- ●
16 02.559 CLIP; HARNESS
04.930 (E) L=91 ID=8.5 		8-94329-956-0 01 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
16.578 (G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> EXC. RR BODY FLAT BED(RS6) (H) L=250 		5-09707-030-1 04 1 1407- ●
16 02.559 CLIP; HARNESS
PERU EQUIPMENT(E07) RR BODY FLAT BED(RS6) EXC. RR FOG LAMP<T79> 02.587 (C) L=112 		8-94232-618-0 04 1 1407-1510 ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) RR BODY FLAT BED(RS6) 02.587 (C) L=112 		8-94232-618-0 04 1 1511- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (I) L=60 		8-94449-165-0 02 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (J) L=60 		8-97063-335-0 02 1 1407- ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> (A) ID=20 		8-94241-972-0 01 1 1407- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> (D) T=5.5 		8-97371-951-0 02 1 1407- ● ● ●
48 02.559 CLIP; FRAME HARNESS
09.001 (C) ID=11 H=20 L=25 		1-09700-848-0 01 1 1407- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 06 1 1407- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47 		5-09700-319-0 07 1 1407- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47 		5-09700-319-0 09 1 1407- ●
513 02.559 TAPE; SOFT,HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 1407- ● ●
513 02.559 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 1407- ●
530 02.559 SEAL; HARNESS
SPEED LIMITER 90KM<NMJ> 03.483 		8-97382-876-0 01 1 1506- ●

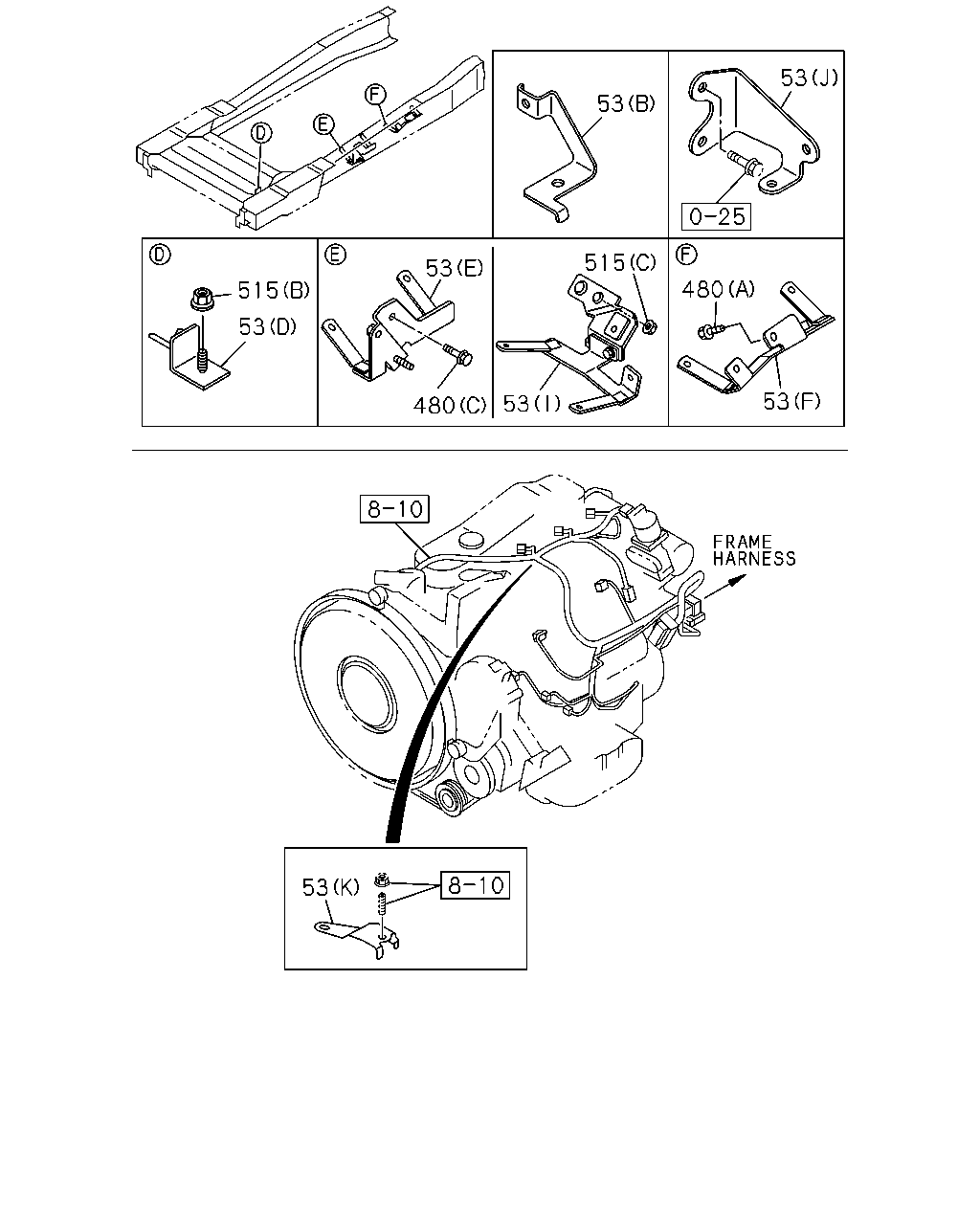

çizim 434074
515 53 53 480 53 53 515 53 480 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 02.483 BRACKET; HARNESS
(J) 		8-98214-354-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98246-250-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (F) 		8-98033-918-2 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1407- ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (E) 		8-98052-900-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1407- ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (E) 		8-98105-778-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (I) 		8-98107-111-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (B) 		8-98171-457-0 01 1 1407- ● ●
480 02.483 BOLT; BRKT
HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1407- ● ●
480 02.483 BOLT; BRKT
01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1407- ●
480 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1407- ● ● ●
480 02.483 BOLT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1407- ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●

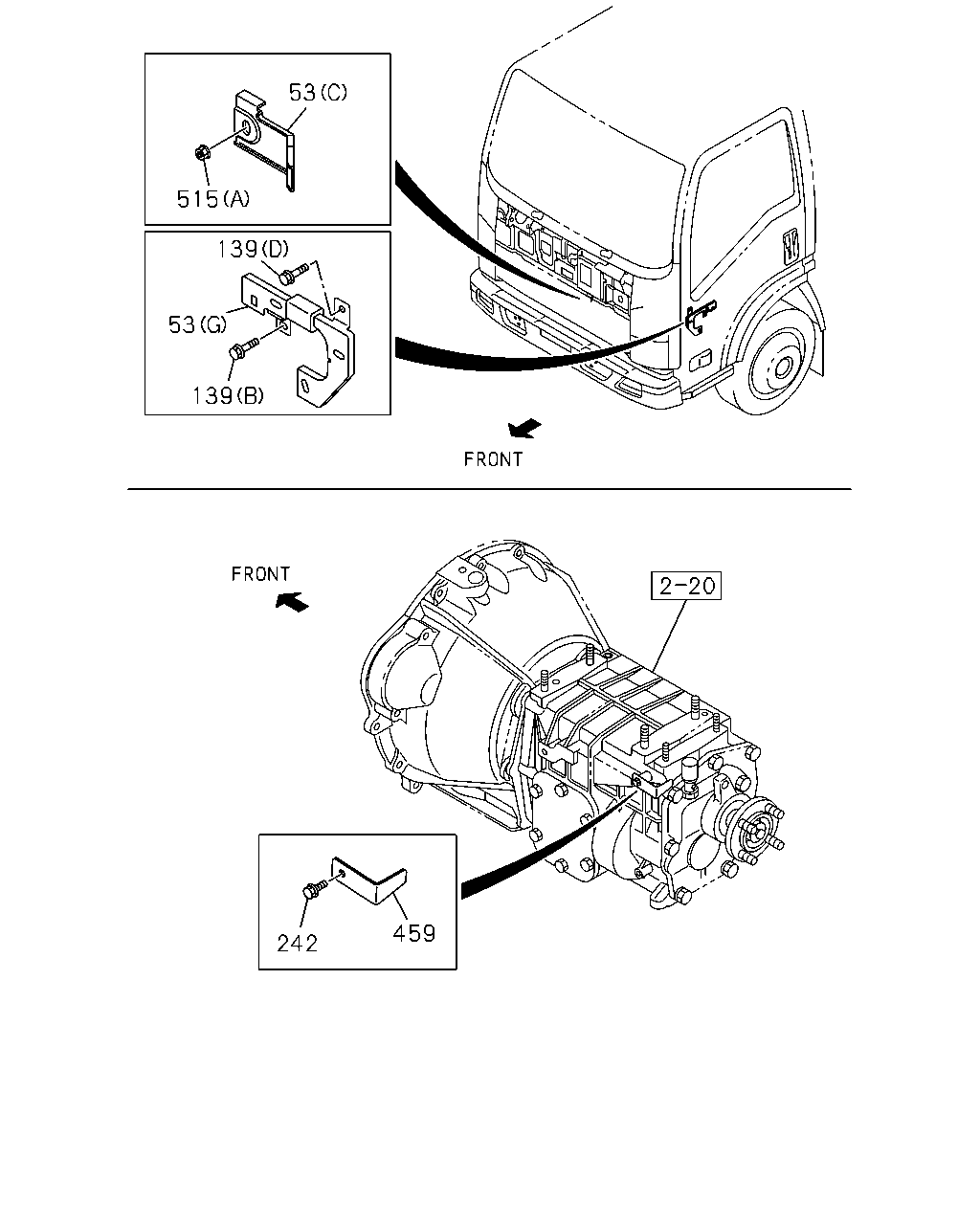

çizim 434201
53 139 515 139 53 242 459
BalonParca AdiParca NoAdetTipApplied Date A B C
53 02.483 BRACKET; HARNESS
(J) 		8-98214-354-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98246-250-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (F) 		8-98033-918-2 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1407- ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (E) 		8-98052-900-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1407- ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (E) 		8-98105-778-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (I) 		8-98107-111-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (B) 		8-98171-457-0 01 1 1407- ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
06.216 (E) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ● ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ●
242 02.483 BOLT; BRKT,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1407- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS 8-98241-277-1 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●
çizim 434400
139 313 480 139 242 480 139 529 480 377 377 386 386 577 24 515 577 219 515 524 515 519
BalonParca AdiParca NoAdetTipApplied Date A B C
24 02.559 NUT; HARNESS
01.062 M6 FLANGE 		0-91180-106-0 01 1 1407-1409 ● ● ●
24 02.559 NUT; HARNESS
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
06.216 (E) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ● ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ●
219 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ● ● ●
242 02.483 BOLT; BRKT,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1407- ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1407- ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1407- ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1407- ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1407- ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1407- ● ● ●
480 02.483 BOLT; BRKT
HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1407- ● ●
480 02.483 BOLT; BRKT
01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1407- ●
480 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1407- ● ● ●
480 02.483 BOLT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 1407- ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1407- ● ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●
515 02.559 NUT; BRKT
EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1407- ● ●
519 02.559 NUT; EARTH CABLE
04.439 M12 		0-91111-512-0 01 1 1407- ● ● ●
524 02.559 NUT; HARNESS
01.540 M8 FLANGE 		0-91180-208-0 01 1 1407- ● ● ●
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1407- ● ● ●
577 02.559 NUT; FUSE BOX
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 1407- ● ● ●
577 02.559 NUT; FUSE BOX
09.744 (B) M5 FLANGE 		5-09440-003-0 04 1 1407- ● ● ●

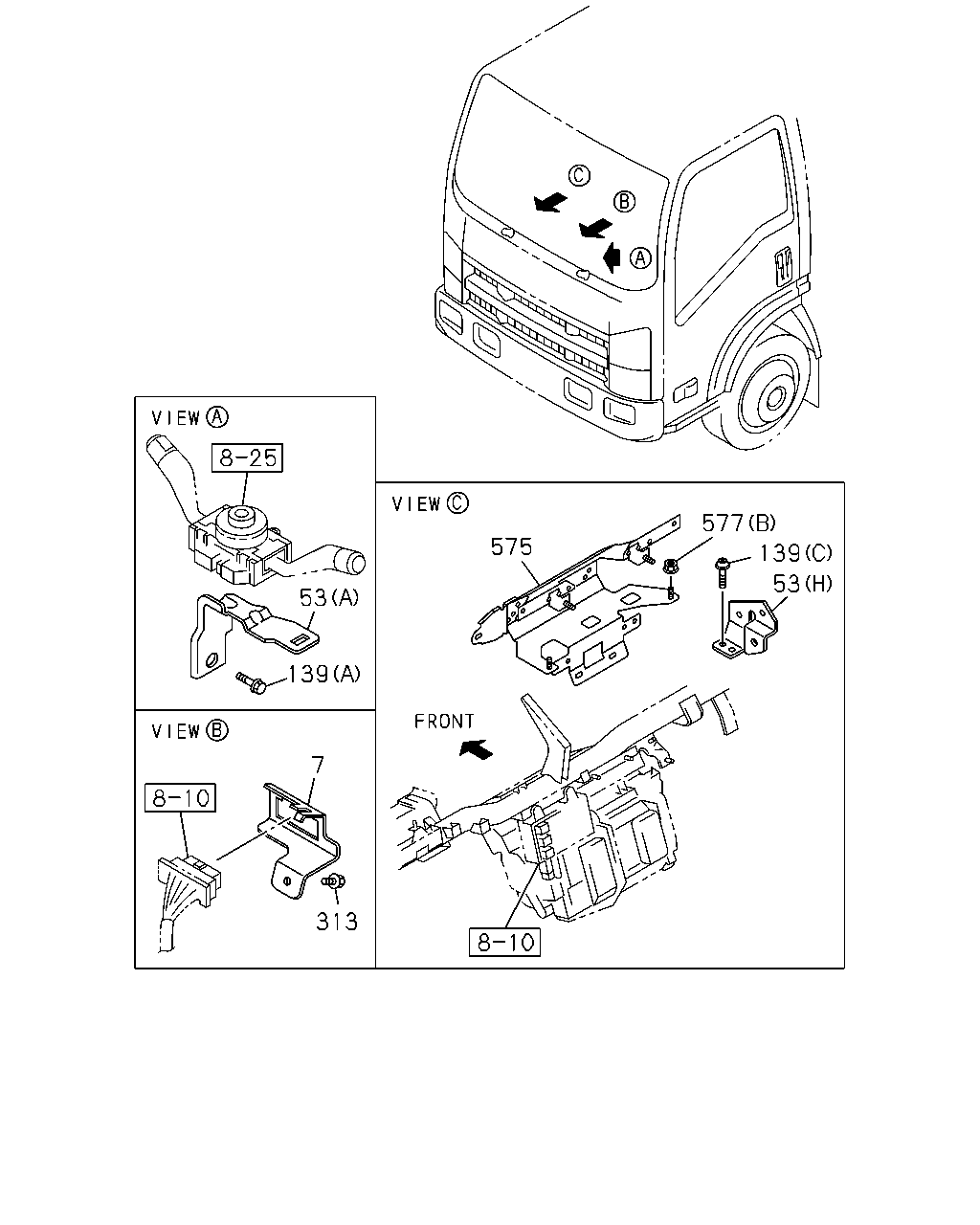

çizim 434447
53 139 7 313 575 577 139 53
BalonParca AdiParca NoAdetTipApplied Date A B C
7 02.559 BRACKET; CONNECTOR 8-98043-070-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(J) 		8-98214-354-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98246-250-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (F) 		8-98033-918-2 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(F) 		8-98033-918-2 01 1 1407- ●
53 02.483 BRACKET; HARNESS
HEAVY DUTY FRAME<6WB> (E) 		8-98052-900-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1407- ●
53 02.483 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 1407- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H) 		8-98084-699-0 01 1 1407- ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (E) 		8-98105-778-0 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (I) 		8-98107-111-1 01 1 1407- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEAVY DUTY FRAME<6WB> (B) 		8-98171-457-0 01 1 1407- ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
06.216 (E) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
03.604 (D) M6X12 FLANGE 		8-97108-669-0 01 1 1407- ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ● ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1407- ● ● ●
575 02.559 BRACKET; FUSE BOX 8-98173-145-3 01 1 1407- ● ● ●
577 02.559 NUT; FUSE BOX
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 1407- ● ● ●
577 02.559 NUT; FUSE BOX
09.744 (B) M5 FLANGE 		5-09440-003-0 04 1 1407- ● ● ●
çizim 434483
483 483 16 48 48 16 16 48 483 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) CORNERING LAMP<T87> EXC. FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) EXC. FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),CORNERING LAMP<T87>, FOGLAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
CORNERING LAMP<T87> FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>, HEADLAMPLEVELING MANUAL CONTROL<TR6>,RR FOG LAM P<T79>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>,RR FOG LAMP<T79>,FOG LAMP<T96> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
HEADLAMP LEVELING MANUAL CONTROL<TR6> RR FOG LAMP<T79> FOG LAMP<T96> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 1407- ●
16 02.559 CLIP; HARNESS
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),RR FOG LAMP<T79> (H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 1407-1510 ●
16 02.559 CLIP; HARNESS
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) (H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),RR FOG LAMP<T79> (H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 1511- ●
16 02.559 CLIP; HARNESS
(B) L=40.6 		8-97229-357-0 02 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (B) L=40.6 		8-97229-357-0 02 1 1407- ●
16 02.559 CLIP; HARNESS
04.930 (E) L=91 ID=8.5 		8-94329-956-0 01 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
16.578 (G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1407- ● ● ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> EXC. RR BODY FLAT BED(RS6) (H) L=250 		5-09707-030-1 04 1 1407- ●
16 02.559 CLIP; HARNESS
PERU EQUIPMENT(E07) RR BODY FLAT BED(RS6) EXC. RR FOG LAMP<T79> 02.587 (C) L=112 		8-94232-618-0 04 1 1407-1510 ●
16 02.559 CLIP; HARNESS
MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07) RR BODY FLAT BED(RS6) 02.587 (C) L=112 		8-94232-618-0 04 1 1511- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (I) L=60 		8-94449-165-0 02 1 1407- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (J) L=60 		8-97063-335-0 02 1 1407- ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> (A) ID=20 		8-94241-972-0 01 1 1407- ● ● ●
48 02.559 CLIP; FRAME HARNESS
EXHAUST BRAKE<NF8> (D) T=5.5 		8-97371-951-0 02 1 1407- ● ● ●
48 02.559 CLIP; FRAME HARNESS
09.001 (C) ID=11 H=20 L=25 		1-09700-848-0 01 1 1407- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 06 1 1407- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47 		5-09700-319-0 07 1 1407- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47 		5-09700-319-0 09 1 1407- ●
483 02.559 CLIP; ENG HARNESS
(C) ID=17 & 10 		8-97287-302-0 02 1 1407-1412 ● ● ●
483 02.559 CLIP; ENG HARNESS
(C) ID=17 & 10 		8-97287-302-0 01 1 1501- ● ● ●
483 02.559 CLIP; ENG HARNESS
04.342 (A) L=197 		1-83574-032-0 01 1 1407- ● ● ●
483 02.559 CLIP; ENG HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 1407- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
