8-10 — WIRING HARNESS AND FUSE (#145669) — 131 parça

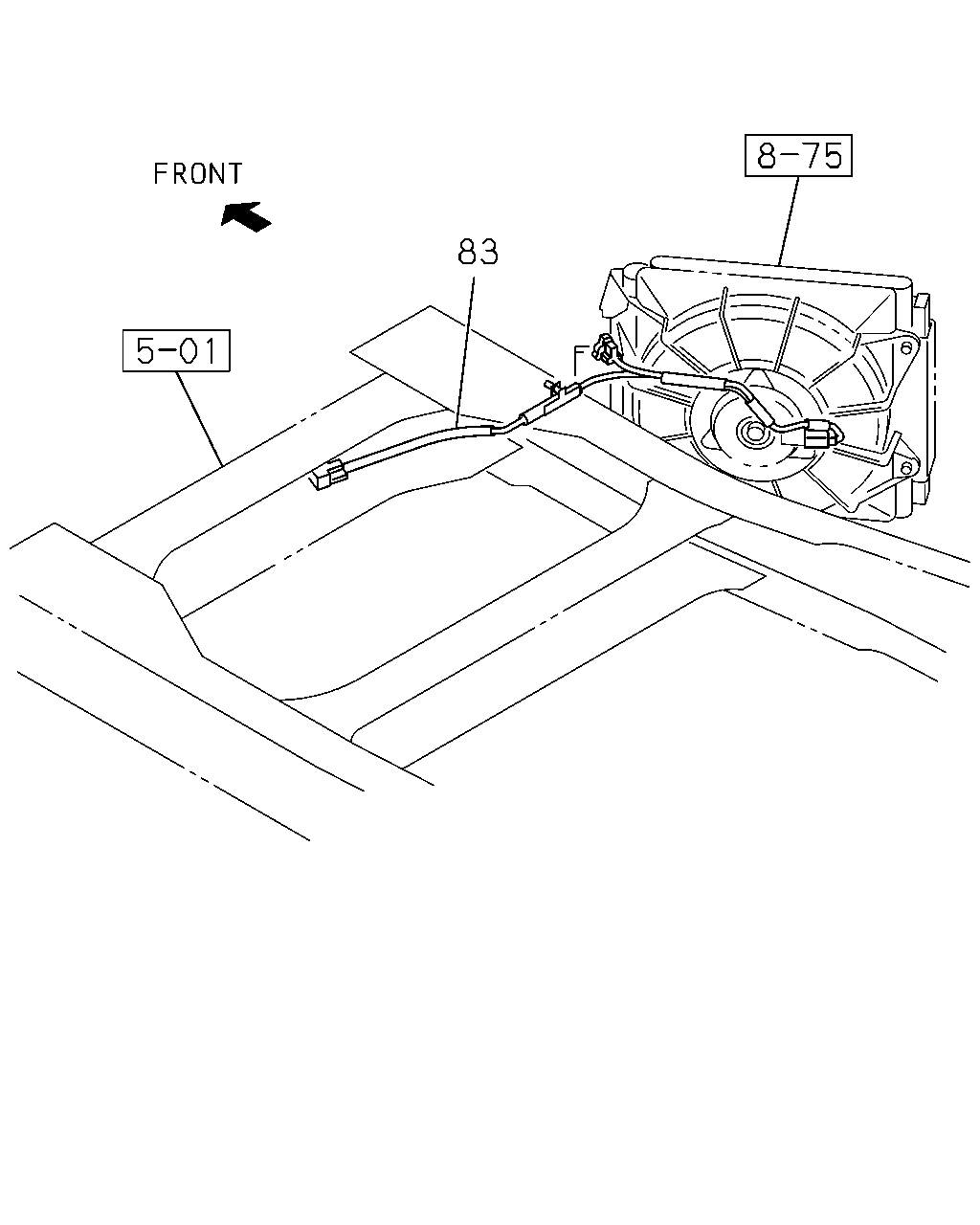

çizim 431964
83
BalonParca AdiParca NoAdetTipApplied Date A B C
83 02.480 HARNESS; AIR CONDITIONER
AIR CONDITIONER MANUAL CONT(C60) 		8-98140-371-3 01 1 1407- ● ● ●
çizim 432247
374 374
BalonParca AdiParca NoAdetTipApplied Date A B C
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 1407- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1407- ●

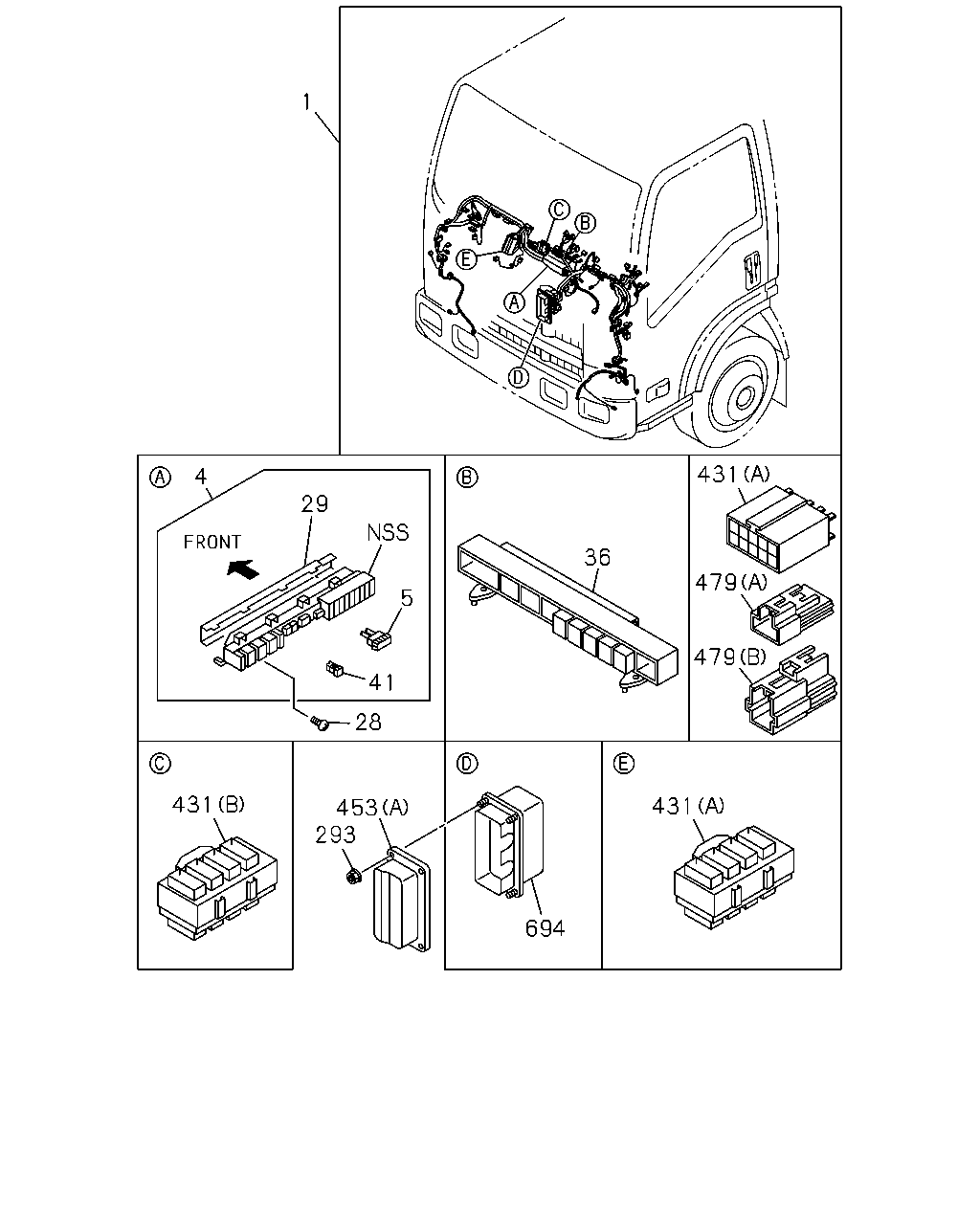

çizim 434229
1 4 29 5 41 453 293 431 694 431 479 479 431 36 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>,FOG LAMP<T96> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. FOG LAMP<T96> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
CORNERING LAMP<T87> FOG LAMP<T96> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) EXC. POWER WINDOW FRT DOOR<A32>, HEADLAMPLEVELING MANUAL CONTROL<TR6>,RR FOG LAM P<T79>,FOG LAMP<T96> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>,RR FOG LAMP<T79>,FOG LAMP<T96> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
HEADLAMP LEVELING MANUAL CONTROL<TR6> RR FOG LAMP<T79> FOG LAMP<T96> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98241-981-2 01 1 1407- ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),FOG LAMP<T96> 		8-98241-980-1 01 1 1407- ●
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),HEADLAMP LEVELING MANUAL CONTROL<TR6>,RR FOG LAMP<T79>, FOG LAMP<T96> 		8-98241-980-1 01 1 1407- ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> 		8-98241-982-2 01 1 1407- ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 1407- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1407- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1407- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 1407-1410 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR 		8-97062-025-0 AR 1 1407- ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A LIGHT BLUE 		8-97183-642-0 AR 1 1407- ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407- ● ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 1407- ● ● ●
36 02.530 BOX; RELAY 8-97187-918-1 01 1 1407- ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 1407- ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1407- ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 10P 		8-97077-943-0 02 1 1407- ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 04 1 1407-1409 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1407- ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1407- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1407- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1407- ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1407- ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1407- ● ● ●

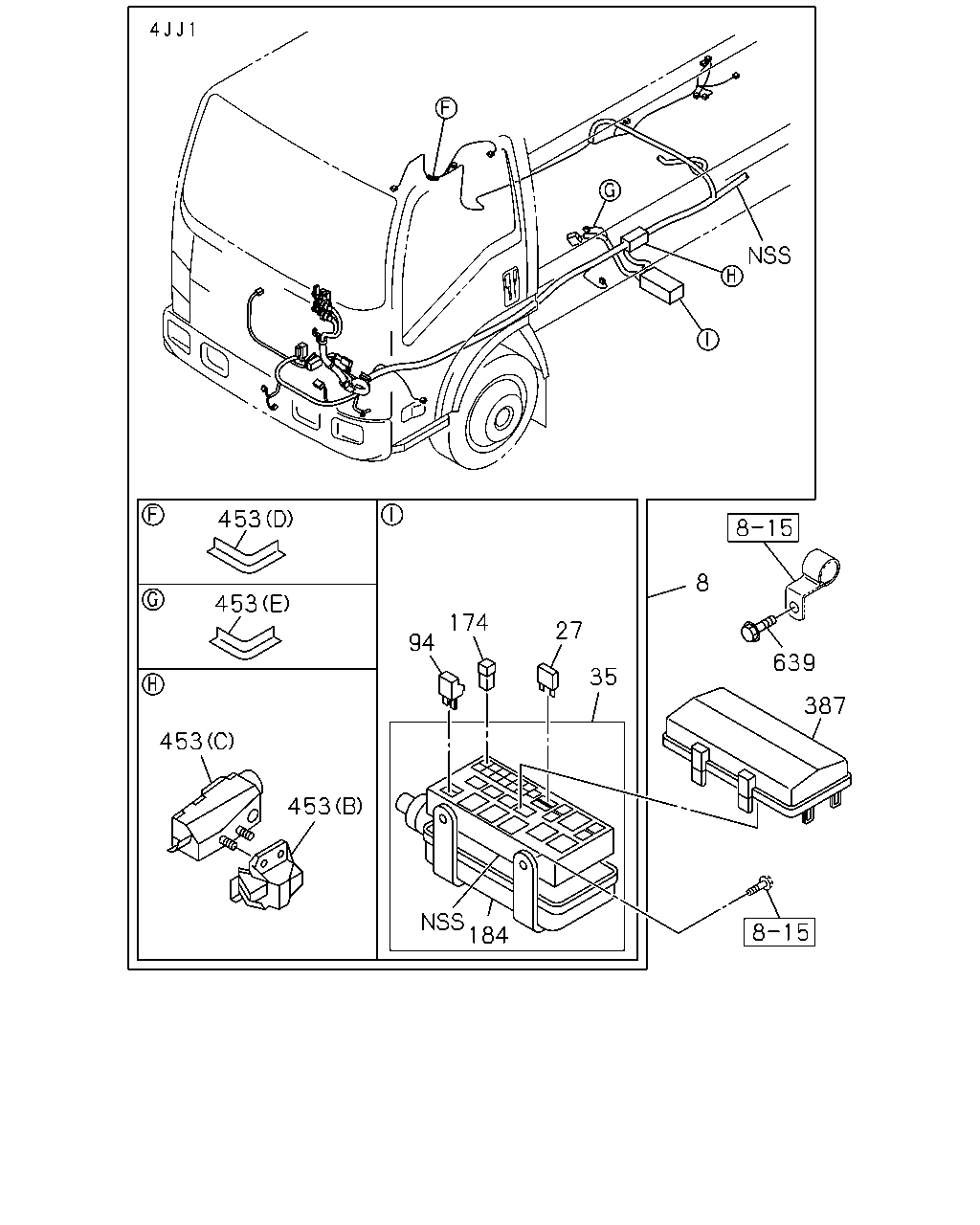

çizim 434304
453 453 453 453 184 94 27 174 35 8 639 387
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98272-189-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98272-189-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98294-130-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98294-130-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98272-183-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98294-124-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> 		8-98272-188-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> 		8-98294-129-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98272-190-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98294-131-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98272-191-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98294-132-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98272-184-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98294-125-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1407- ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1407- ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1407- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1407- ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1407- ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1407- ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1407- ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1407- ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1407- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1407- ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 02 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 04 1 1407-1409 ● ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94417-716-0 03 1 1410- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1407- ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1407- ● ● ●
639 08.900 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ●

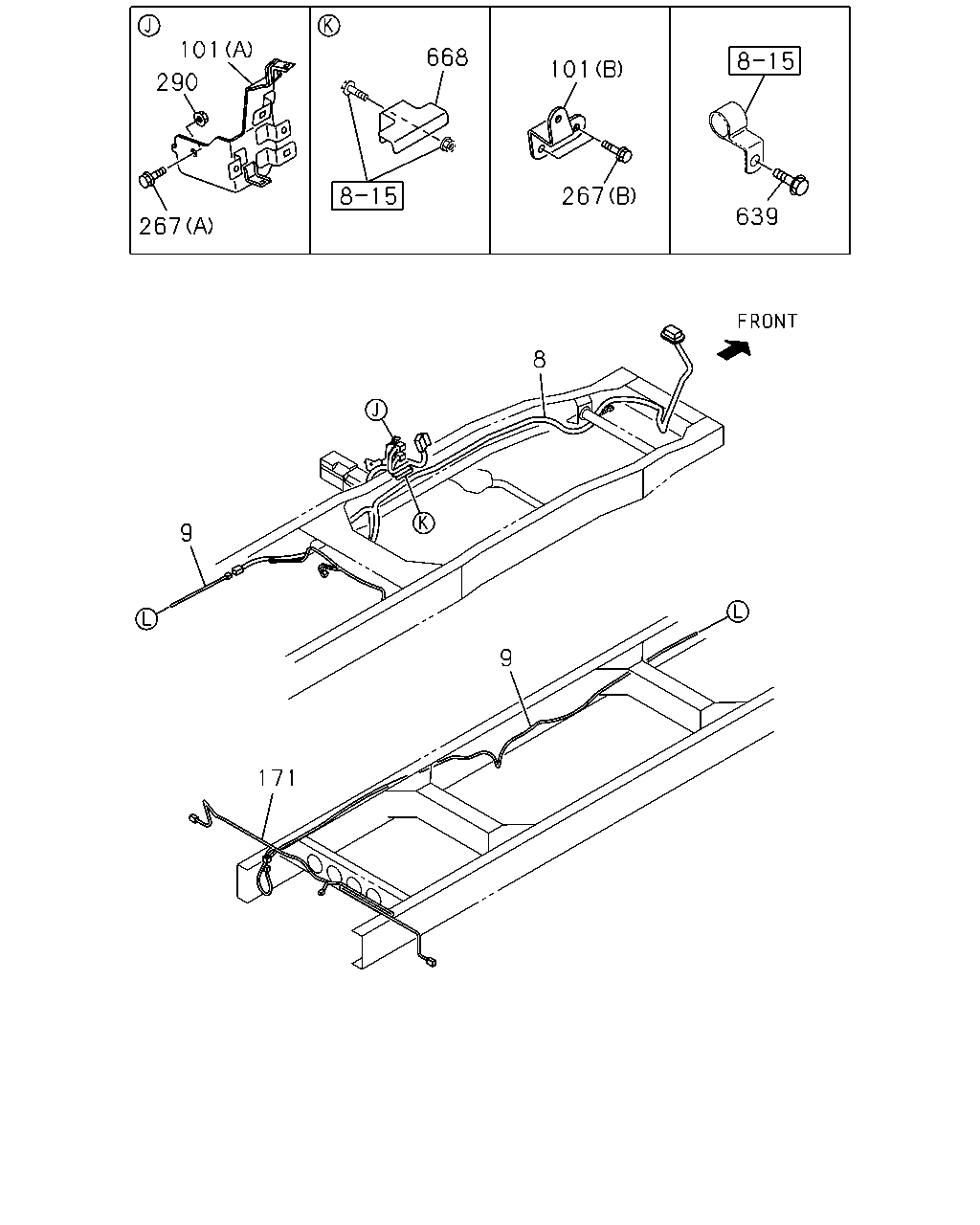

çizim 434398
101 290 267 668 101 267 639 8 9 171 9
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98272-189-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98272-189-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98294-130-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98294-130-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98272-183-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98294-124-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> 		8-98272-188-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 2400MM(24W) MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> 		8-98294-129-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98272-190-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
WHEEL BASE 3300MM(33W) EXC. MOROCCO EQUIPMENT(CGA),RR FOG LAMP<T79> 		8-98294-131-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98272-191-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
HEAVY DUTY FRAME<6WB> 		8-98294-132-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98272-184-1 01 1 1407-1409 ●
8 02.480 HARNESS; FRAME,FRT
EXC. HEAVY DUTY FRAME<6WB> 		8-98294-125-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR 8-98164-943-1 01 1 1407- ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) 		8-98164-942-1 01 1 1407- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98164-945-1 01 1 1407- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98214-353-0 01 1 1407- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98241-279-1 01 1 1407- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) 		8-98222-483-0 01 1 1407-1510 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
PERU EQUIPMENT(E07) EXC. RR FOG LAMP<T79> 		8-98222-483-0 01 1 1407-1510 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98222-483-0 01 1 1407-1510 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98222-483-0 01 1 1511- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. MOROCCO EQUIPMENT(CGA) 		8-98222-483-0 01 1 1511- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
MOROCCO EQUIPMENT(CGA) RR FOG LAMP<T79> EXC. RR BODY FLAT BED(RS6) 		8-98156-025-0 01 1 1407- ●
267 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
267 02.483 BOLT; BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1407- ● ● ●
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
639 08.900 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ●
668 02.559 BRACKET; HARNESS 8-98241-278-0 01 1 1407- ● ● ●

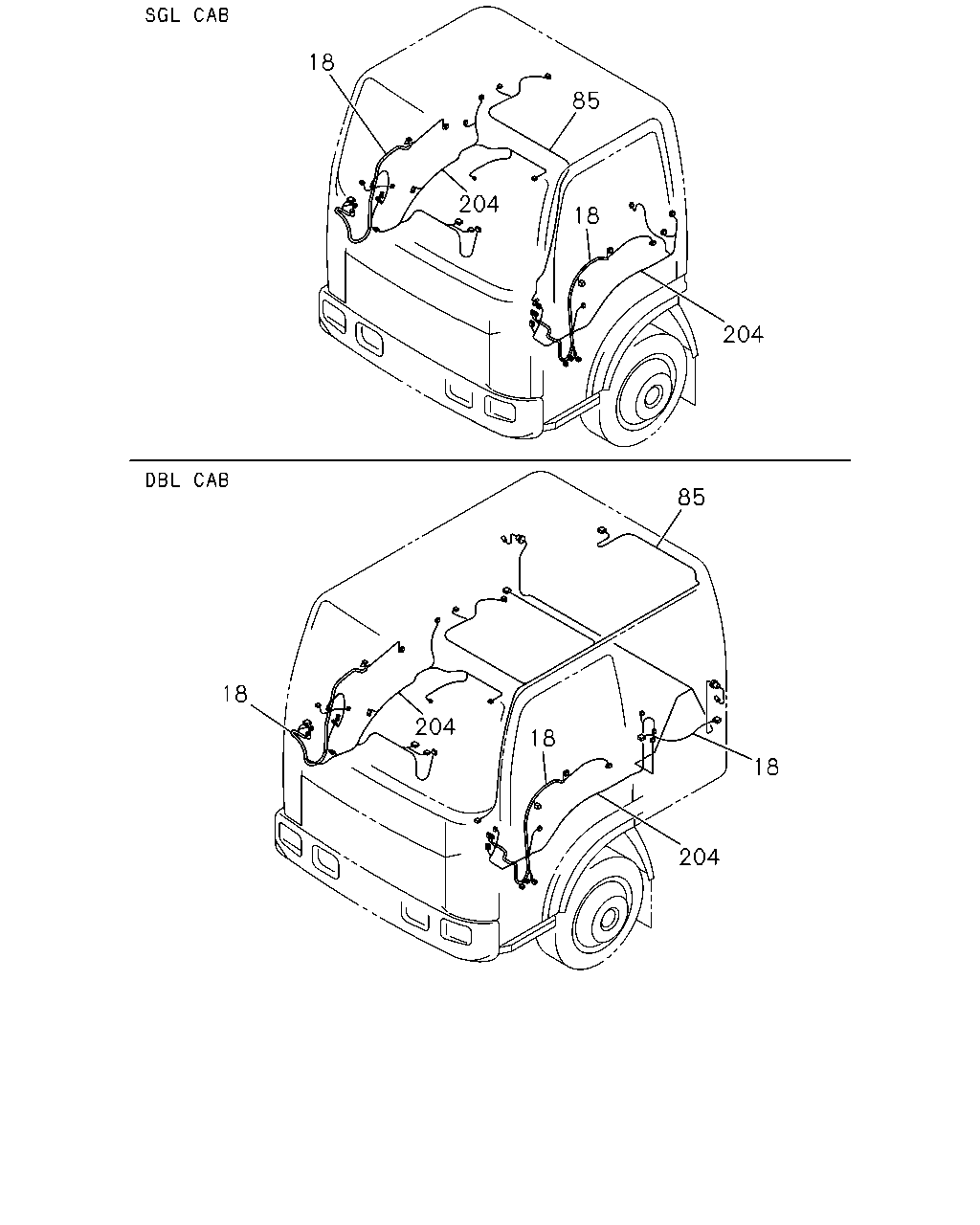

çizim 434477
204 85 18 204 18 85 18 204 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-592-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-592-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-600-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-600-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-080-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-080-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> FRONT 		8-98071-088-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-088-3 01 1 1407- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-591-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-591-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-599-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-599-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> FRONT 		8-98071-079-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-079-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> FRONT 		8-98071-087-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98071-087-2 01 1 1407- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1407- ●
85 06.495 HARNESS; ROOM LAMP 8-98072-201-2 01 1 1407- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98072-203-1 01 1 1407- ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 1407- ● ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-804-5 01 1 1407- ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-073-3 01 1 1407- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-803-5 01 1 1407- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98071-072-3 01 1 1407- ●
çizim 434508
290 299 13 329
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG 8-98221-557-2 01 1 1407- ● ● ●
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
299 02.559 STUD; BRKT
01.453 M8X16 L=28 		0-41010-816-0 01 1 1407- ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 1407- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
