◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#145667) — 121 parça

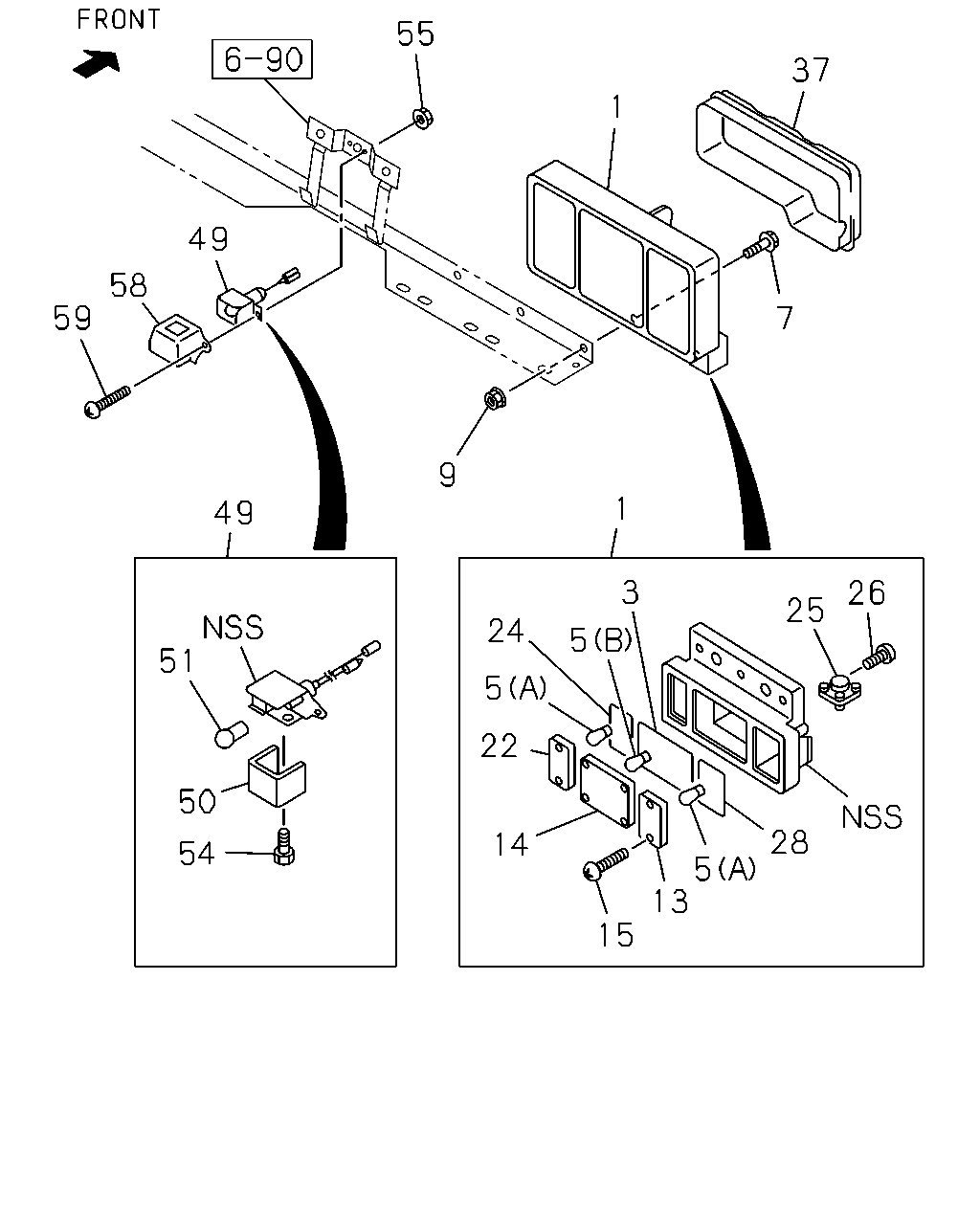

çizim 434442
59 58 49 55 49 51 50 54 1 9 37 7 1 24 5 22 14 5 3 15 13 5 28 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.679 LAMP ASM; RR COMB
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) 		8-98072-025-0 01 1 1407-1506 ●
1 02.679 LAMP ASM; RR COMB
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6) 		8-98072-025-0 01 1 1407-1506 ●
1 02.679 LAMP ASM; RR COMB 8-98072-025-0 01 1 1407-1506 ●
1 02.679 LAMP ASM; RR COMB 8-98072-025-0 01 1 1507- ● ●
1 02.679 LAMP ASM; RR COMB
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 		8-98072-025-0 01 1 1507- ●
1 02.679 LAMP ASM; RR COMB
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) BACK BUZZER<YM9> 		8-98072-020-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
PERU EQUIPMENT(E07) BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-98072-020-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98072-020-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) BACK BUZZER<YM9> 		8-98072-020-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
PERU EQUIPMENT(E07) BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-98072-020-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98072-020-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 		8-98072-024-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1407-1510 ●
1 02.679 LAMP ASM; RR COMB
PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 		8-98072-024-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1511- ●
1 02.679 LAMP ASM; RR COMB
MOROCCO EQUIPMENT(CGA) BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-98002-162-0 01 1 1407- ●
1 02.679 LAMP ASM; RR COMB
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 		8-97213-352-0 01 1 1407-1506 ●
1 02.679 LAMP ASM; RR COMB
MOROCCO EQUIPMENT(CGA) 		8-97213-352-0 01 1 1507- ●
1 02.679 LAMP ASM; RR COMB
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 		8-97213-351-0 01 1 1407- ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1407- ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1407- ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-505-0 01 1 1407- ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-505-0 01 1 1407- ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 1407- ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 1407- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) (A) 12V 21W 		8-94124-074-0 02 1 1407- ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) (A) 12V 21W 		8-94124-074-0 02 1 1407- ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 01 1 1407- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 01 1 1407- ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) (B) 12V 21/5W 		8-94125-959-0 01 1 1407- ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) (B) 12V 21/5W 		8-94125-959-0 01 1 1407- ●
7 02.664 SCREW; RR COMB LAMP
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) M6X20 		8-94402-623-0 04 1 1407-1506 ●
7 02.664 SCREW; RR COMB LAMP
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6) M6X20 		8-94402-623-0 04 1 1407-1506 ●
7 02.664 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 1407-1506 ●
7 02.664 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 1507- ● ●
7 02.664 SCREW; RR COMB LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) M6X20 		8-94402-623-0 04 1 1507- ●
7 02.664 SCREW; RR COMB LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) M6X20 		8-94402-623-0 06 1 1407-1506 ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) M6X20 		8-94402-623-0 06 1 1507- ●
7 02.664 SCREW; RR COMB LAMP
MOROCCO EQUIPMENT(CGA) M6X20 		8-94402-623-0 06 1 1507- ●
9 02.689 NUT; LAMP,RR COMB
COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1407-1506 ●
9 02.689 NUT; LAMP,RR COMB
PERU EQUIPMENT(E07) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1407-1506 ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 04 1 1407-1506 ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 04 1 1507- ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1507- ●
9 02.689 NUT; LAMP,RR COMB
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 06 1 1407-1506 ●
9 02.689 NUT; LAMP,RR COMB
MOROCCO EQUIPMENT(CGA) 07.829 M6 FLANGE 		5-09440-004-0 06 1 1507- ●
13 02.682 LENS; TURN SIGNAL
EXC. RR BODY FLAT BED(RS6) 		8-94174-638-0 01 1 1407- ● ● ●
13 02.682 LENS; TURN SIGNAL
EXC. RR BODY FLAT BED(RS6) 		8-94174-639-0 01 1 1407- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94178-624-0 01 1 1407- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94178-625-0 01 1 1407- ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1407- ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1407- ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1407- ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1407- ●
22 02.697 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1407- ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1407- ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) CLEAR 		8-94257-512-1 01 1 1407- ●
22 02.697 LENS; BACKUP,RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) CLEAR 		8-94257-512-1 01 1 1407- ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 1407- ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 1407- ● ●
24 02.697 GASKET; BACK,LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-506-0 01 1 1407- ●
24 02.697 GASKET; BACK,LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-506-0 01 1 1407- ●
25 02.810 HORN ASM; BACK
MOROCCO EQUIPMENT(CGA) BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-94257-518-0 01 1 1407- ●
26 02.812 SCREW; BACK HORN
EXC. RR BODY FLAT BED(RS6) 09.655 M4X14 TAPPING 		9-07076-414-0 01 1 1407- ● ● ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 02.688 M4X12 TAPPING 		9-07076-412-0 02 1 1407- ● ● ●
26 02.812 SCREW; BACK HORN
EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 01 1 1407- ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 1407- ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 1407- ● ●
28 02.684 GASKET; TURN,LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-507-0 01 1 1407- ●
28 02.684 GASKET; TURN,LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94257-507-0 01 1 1407- ●
37 02.680 COVER; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94128-858-4 01 1 1407-1506 ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 1507- ● ● ●
37 02.680 COVER; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) 		8-94129-274-4 01 1 1407-1506 ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 1507- ● ● ●
49 02.700 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1407- ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 12V 10W 		5-82120-020-0 01 1 1407- ●
49 02.700 LAMP; LICENSE PLATE
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 12V 5W 		8-97105-382-0 02 1 1407- ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1407- ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 		5-82125-004-0 01 1 1407- ●
50 02.709 LENS; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 		8-97108-212-0 02 1 1407- ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1407- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 12V 10W 		8-94126-494-0 01 1 1407- ●
51 08.991 BULB; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 12V 5W 		8-94124-075-0 02 1 1407- ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 1407- ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 02.709 M4X8 		8-94419-312-0 01 1 1407- ●
54 02.708 SCREW; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 02.709 M4X8 		8-94419-312-0 02 1 1407- ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1407-1510 ● ●
55 02.708 NUT; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 03.444 M5 FLANGE 		8-94153-039-0 02 1 1407-1510 ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1511- ● ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED(RS6) 03.444 M5 FLANGE 		8-94153-039-0 02 1 1511- ●
55 02.708 NUT; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 03.444 M5 FLANGE 		8-94153-039-0 02 1 1511- ●
55 02.708 NUT; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 03.444 M5 FLANGE 		8-94153-039-0 04 1 1407-1510 ●
55 02.708 NUT; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) 03.444 M5 FLANGE 		8-94153-039-0 04 1 1511- ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1407-1510 ● ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 		8-97076-590-1 01 1 1407-1510 ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1511- ● ●
58 02.705 COVER; LICENSE PLATE LAMP
RR BODY FLAT BED(RS6) 		8-97076-590-1 01 1 1511- ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 		8-97076-590-1 01 1 1511- ●
58 02.705 COVER; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 		8-97076-590-1 02 1 1407-1510 ●
58 02.705 COVER; LICENSE PLATE LAMP
MOROCCO EQUIPMENT(CGA) 		8-97076-590-1 02 1 1511- ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1407-1510 ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 14.550 M5X20 		9-93490-520-0 02 1 1407-1510 ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1511- ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 02 1 1511- ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
EXC. MOROCCO EQUIPMENT(CGA),RR BODY FLATBED(RS6) 14.550 M5X20 		9-93490-520-0 02 1 1511- ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
MOROCCO EQUIPMENT(CGA) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 04 1 1407-1510 ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
MOROCCO EQUIPMENT(CGA) 14.550 M5X20 		9-93490-520-0 04 1 1511- ●
çizim 434501
150 148 214 148 114 149 195 200 201 197 196 199 198
BalonParca AdiParca NoAdetTipApplied Date A B C
114 02.679 BRACKET; RR FOG LAMP
RR FOG LAMP<T79> 		8-97108-583-0 01 1 1407- ●
148 02.679 LAMP ASM; RR FOG
RR FOG LAMP<T79> 		8-97094-600-1 01 1 1407- ●
149 02.689 SCREW; BRKT TO LAMP BODY
RR FOG LAMP<T79> 		8-94336-372-0 02 1 1407- ●
150 02.664 NUT; RR FOG LAMP
RR FOG LAMP<T79> 07.829 M6 FLANGE 		5-09440-004-0 01 1 1407- ●
195 02.679 LAMP UNIT; RR FOG
RR FOG LAMP<T79> 		8-94336-322-0 01 1 1407- ●
196 02.679 LENS; RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-325-0 01 1 1407- ●
197 02.679 GASKET; RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-324-0 01 1 1407- ●
198 02.688 SCREW; LENS TO BODY
RR FOG LAMP<T79> 		0-71190-416-0 02 1 1407- ●
199 02.689 WASHER; LENS,RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-326-0 02 1 1407- ●
200 02.679 PLATE; SET,RR FOG LAMP
RR FOG LAMP<T79> 		8-94336-323-0 01 1 1407- ●
201 08.991 BULB; RR FOG LAMP
RR FOG LAMP<T79> 12V 21W 		8-94124-074-0 01 1 1407- ●
214 02.679 BOLT; RR FOG LAMP
RR FOG LAMP<T79> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
