◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#145658) — 99 parça
çizim 433555
2 1 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1407- ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1407- ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 1407- ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 1407- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO R DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODY COLOR SUNBELT GREEN(989),BODY COLOR Q UICK SILVER MET(998),BODY COLOR TRANS BLUE(999) GLASS BACK LIGHT DELETE<8CA> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1407- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) GLASS BACK LIGHT DELETE<8CA> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1407- ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1407- ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1407- ●

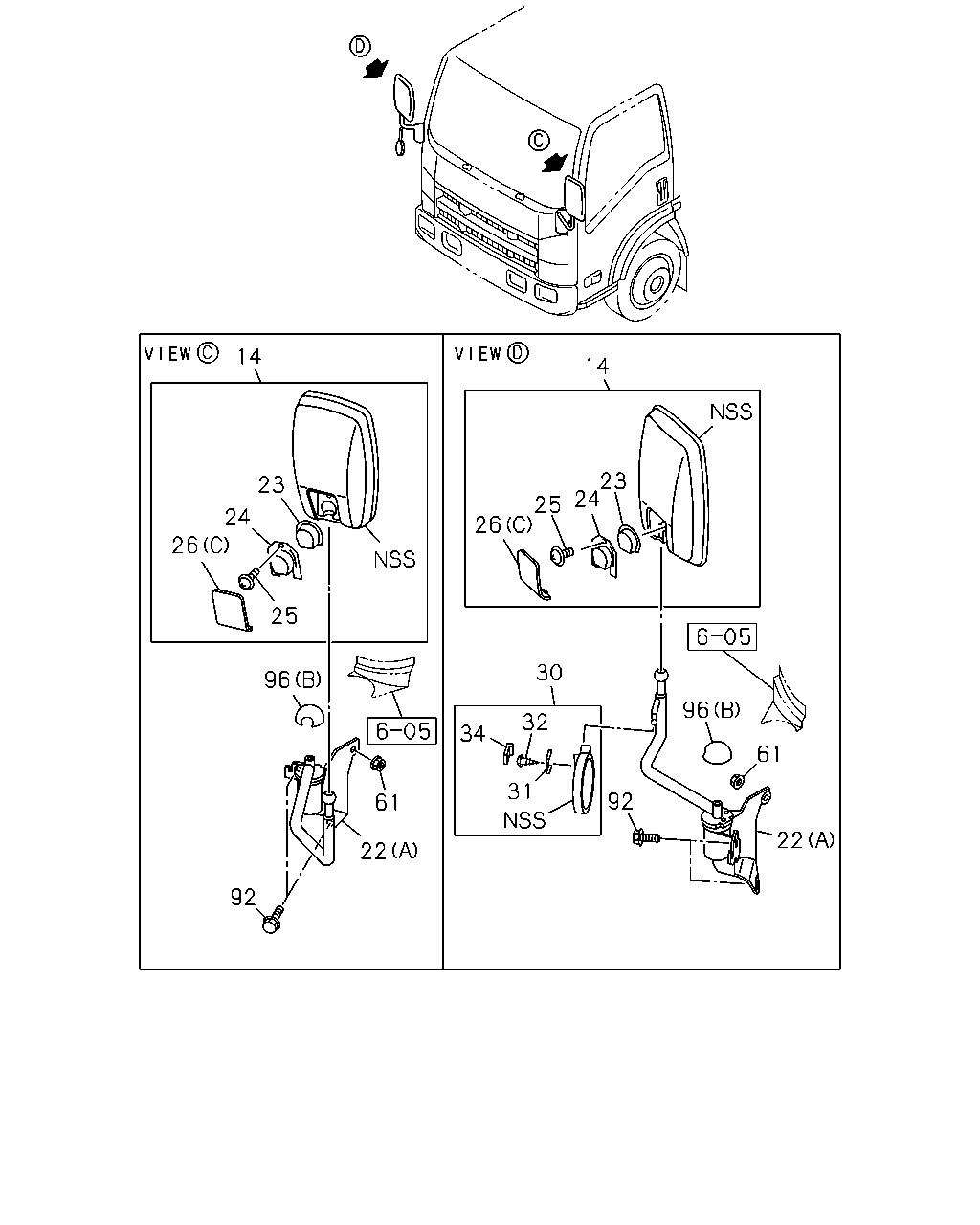

çizim 433697
23 24 26 25 14 23 24 25 26 30 34 31 92 61 96 22 61 92 96 14 22 32
BalonParca AdiParca NoAdetTipApplied Date A B C
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 1407- ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 1407- ● ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 		8-94262-542-3 01 1 1407- ●
14 16.068 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 		8-94262-542-3 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9> (A) 		8-98070-506-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> EXC. UNDER MIRROR<RR9> (A) 		8-98070-504-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98070-503-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (A) 		8-98070-503-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (A) 		8-98070-510-0 01 1 1407- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-508-0 01 1 1407- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-846-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-847-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-848-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-849-0 01 1 1407- ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 1407- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 1407- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> T=2.0 		8-94262-545-0 01 1 1407- ●
23 16.069 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> T=2.0 		8-94262-545-0 01 1 1407- ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6 		8-94262-546-1 01 1 1407- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6 		8-94262-546-1 01 1 1407- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> T=1.6 		8-94262-546-1 01 1 1407- ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> T=1.6 		8-94262-546-1 01 1 1407- ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 1407- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 1407- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> M6X30 		8-94279-365-0 01 1 1407- ●
25 16.069 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> M6X30 		8-94279-365-0 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1407- ●
30 16.068 MIRROR; UNDER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1407- ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 		8-94262-625-2 01 1 1407- ●
31 16.069 PLATE; MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1407- ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 		8-94262-631-0 01 1 1407- ●
32 16.069 SCREW; UNDER MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1407- ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> M5X18 		8-94279-372-0 02 1 1407- ●
34 16.069 CAP; MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1407- ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 		8-94262-629-0 01 1 1407- ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407- ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 1407- ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (B) 		8-98027-552-2 02 1 1407- ●
96 16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1407- ●
çizim 433763
64 312 96 69 88 88 72 71 22 88 152 87 88 69 307 88 69 7 51 26 72 26
BalonParca AdiParca NoAdetTipApplied Date A B C
7 16.068 MIRROR ASM; DOOR
MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 1407- ●
7 16.068 MIRROR ASM; DOOR
MOROCCO EQUIPMENT(CGA) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9> (A) 		8-98070-506-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> EXC. UNDER MIRROR<RR9> (A) 		8-98070-504-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 		8-98070-503-0 01 1 1407- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (A) 		8-98070-503-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (A) 		8-98070-510-0 01 1 1407- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> EXC. UNDER MIRROR<RR9> (A) 		8-98070-508-0 01 1 1407- ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-846-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (B) 		8-98158-847-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-848-0 01 1 1407- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98158-849-0 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (C) T=2.3 		8-94262-547-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 1407- ●
26 16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 1407- ●
51 16.069 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 1407- ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO R DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODY COLOR SUNBELT GREEN(989),BODY COLOR Q UICK SILVER MET(998),BODY COLOR TRANS BLUE(999) GLASS BACK LIGHT DELETE<8CA> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1407- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) GLASS BACK LIGHT DELETE<8CA> 16.570 (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1407- ● ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 1407- ●
64 16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1407- ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT 		1-09984-134-0 02 1 1407- ●
69 16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 1407- ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-793-2 01 1 1407- ●
71 16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98031-794-2 01 1 1407- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 1407- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 1407- ●
72 16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 1407- ●
87 16.069 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-789-0 02 1 1407- ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1407- ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1407- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-552-2 02 1 1407- ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> (B) 		8-98027-552-2 02 1 1407- ●
96 16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98080-173-0 02 1 1407- ●
152 16.069 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-786-0 02 1 1407- ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-784-2 01 1 1407- ●
307 16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-785-2 01 1 1407- ●
312 16.081 TAPE
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98164-812-0 02 1 1407- ●
