◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#145657) — 16 parça
çizim 433447
306 4 4 35 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98241-860-0 01 1 1407- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98241-859-0 01 1 1407- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) CAUTION SPANISH<YN1> (A) 		8-98096-198-3 01 1 1407- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) EXC. CAUTION SPANISH<YN1> (B) 		8-98096-197-3 01 1 1407- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1407- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1407- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1407- ● ● ●

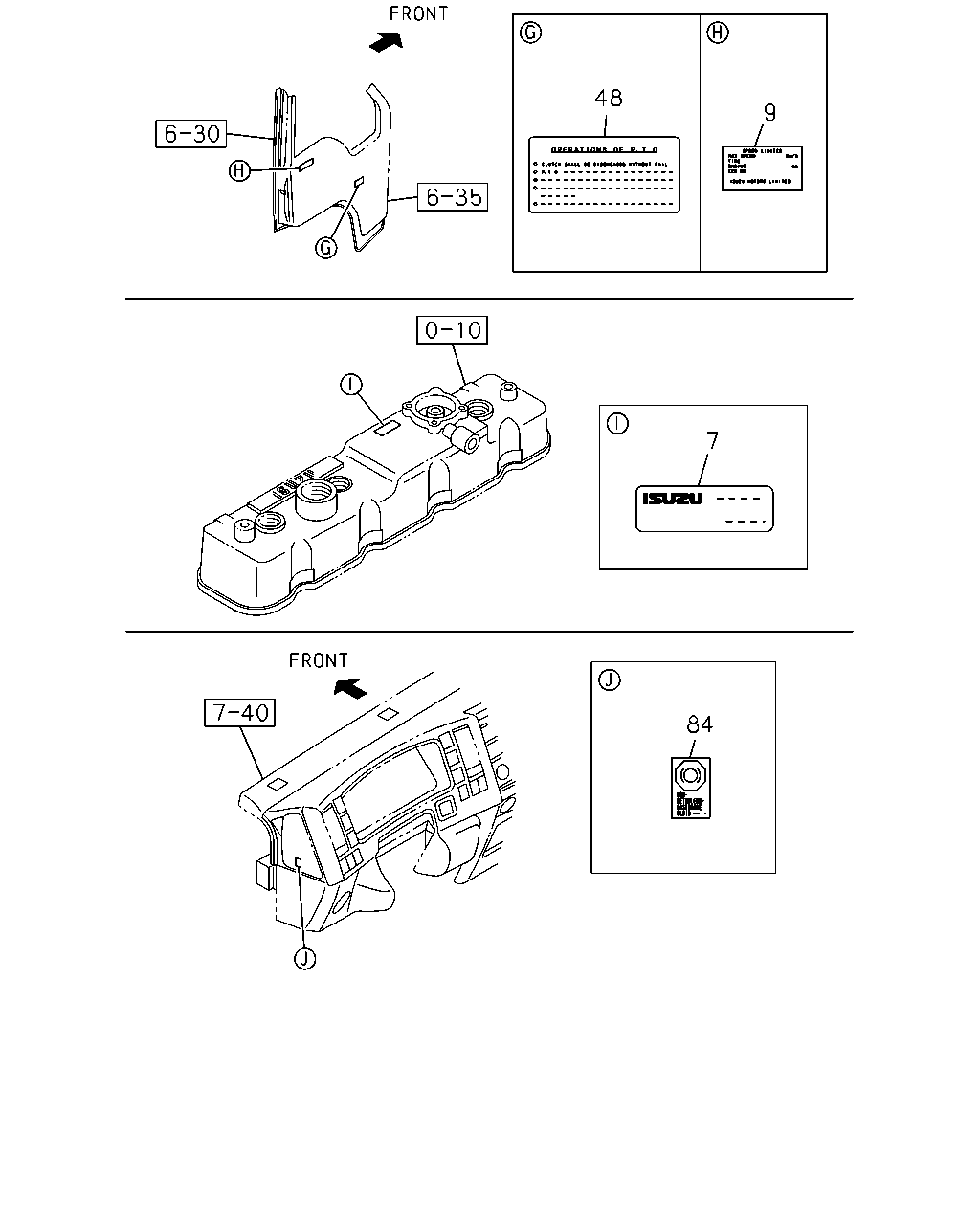

çizim 433482
48 9 7 84
BalonParca AdiParca NoAdetTipApplied Date A B C
7 03.680 LABEL; EMISSION 8-98214-047-0 01 1 1407- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
MOROCCO EQUIPMENT(CGA) 		8-98306-466-0 01 1 1501- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1407- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1407- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
MOROCCO EQUIPMENT(CGA) 		8-98022-836-1 01 1 1409- ●
çizim 433957
49 234 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.680 LABEL; FUEL CAUTION 8-97203-837-0 01 1 1407- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98241-935-0 01 1 1407- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1407- ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
