1 |

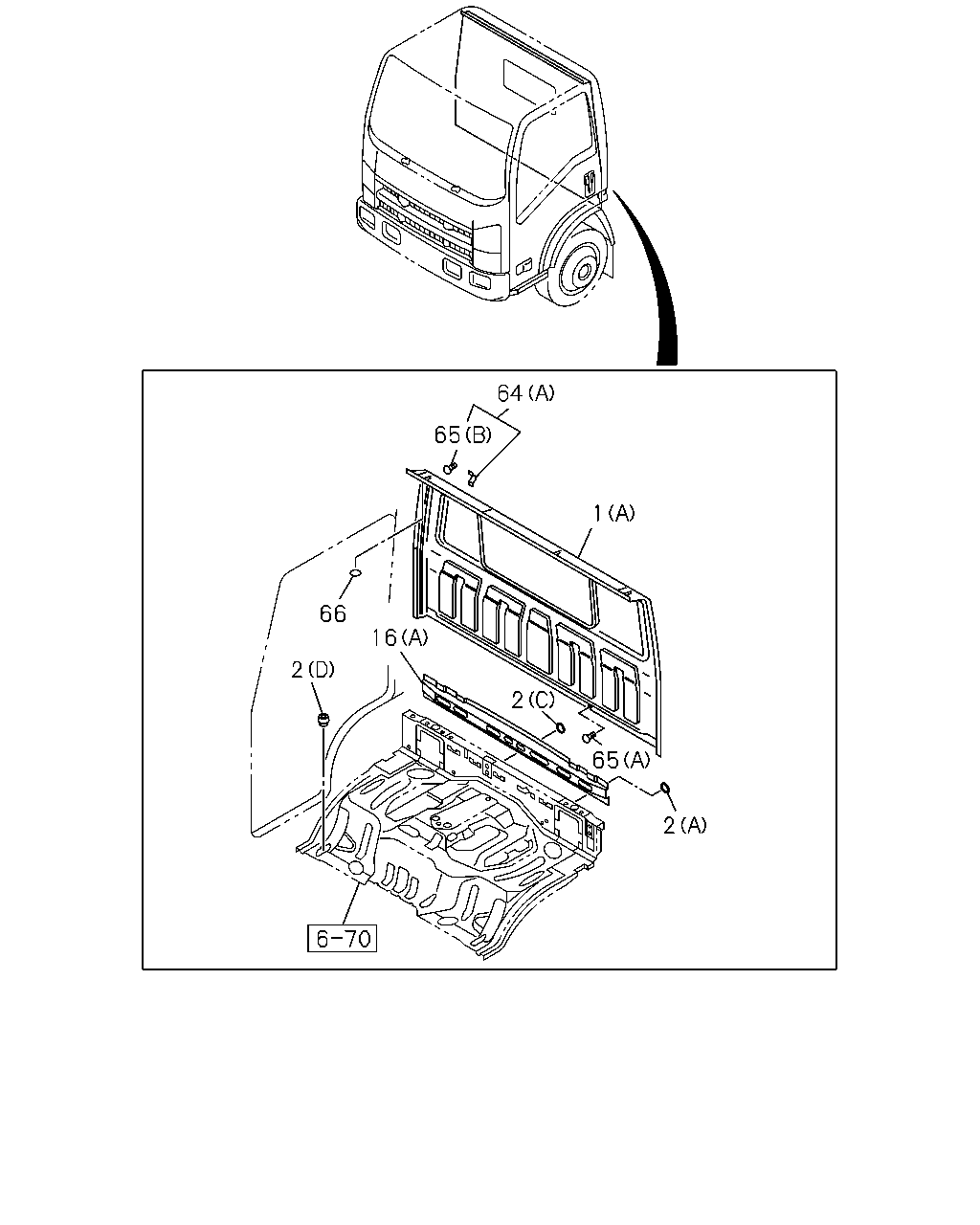

16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA>
(A)
|
8-97584-303-4 |
01 |
1 |
1407- |
● |
|
|
| |
1 |
16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA>
EXC. RR BODY FLAT BED(RS6)
(A)
|
8-97584-303-4 |
01 |
1 |
1407- |
|
● |
|
| |
1 |
16.587 PANEL; BACK OUTER
WINDOW RR<8LF>
(A)
|
8-97584-300-3 |
01 |
1 |
1407- |
● |
● |
|
| |
1 |

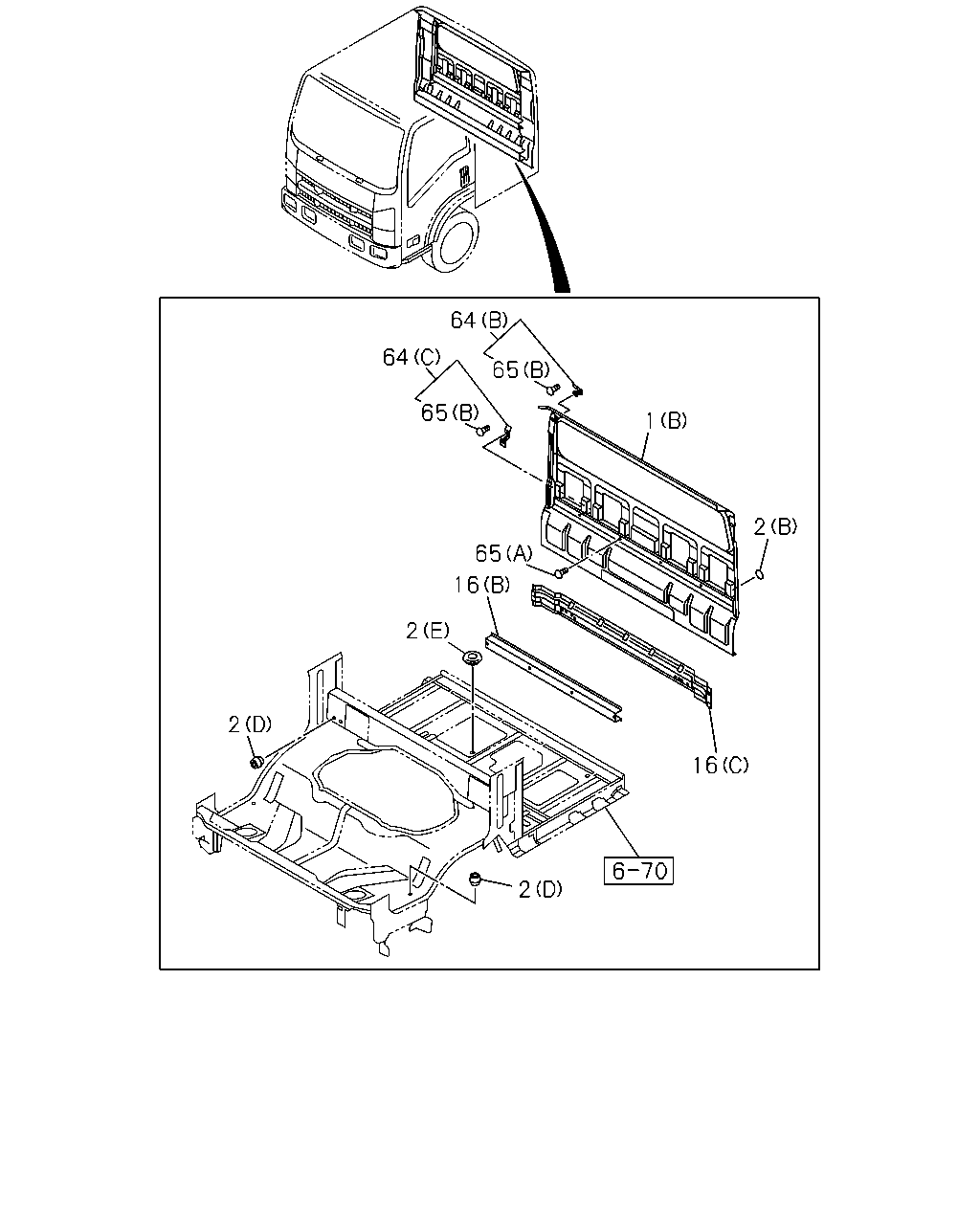

16.587 PANEL; BACK OUTER
(B)
|
8-97583-731-4 |
01 |
1 |
1407- |
|
|
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547
(D)
OD=12.1
|
8-97898-423-0 |
04 |
1 |
1407- |
● |
● |
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1407-1510 |
● |
● |
|
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1511- |
● |
● |
|
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA>
16.545
(C)
OD=32 BLACK
|
8-98031-126-0 |
08 |
1 |
1407-1510 |
● |
● |
|
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545
(C)
OD=32 BLACK
|
8-98031-126-0 |
08 |
1 |
1511- |
● |
● |
|
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222
(E)
OD=35
|
8-94122-971-0 |
04 |
1 |
1407- |
|
|
● |
| |
2 |
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547
(B)
OD=15.0
|
8-94279-040-0 |
02 |
1 |
1407- |
|
|
● |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA>
EXC. RR BODY FLAT BED(RS6)
(A)
|
8-98313-204-0 |
01 |
1 |
1505- |
● |
● |
|
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
(A)
|
8-97584-607-3 |
01 |
1 |
1407-1504 |
● |
● |
|
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF>
(A)
|
8-97584-607-3 |
01 |
1 |
1505- |
● |
● |
|
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
(C)
|
8-97410-667-0 |
01 |
1 |
1407- |
|
|
● |
| |
16 |
16.575 REINFORCEMENT; BACK OUTER PNL
(B)
|
8-98006-213-0 |
01 |
1 |
1407- |
|
|
● |
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
16.570
(A)
|
8-97584-611-1 |
01 |
1 |
1407- |
● |
● |
|
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
(B)
|
8-98054-615-0 |
01 |
1 |
1407- |
|
|
● |
| |
64 |
16.587 BRACKET; AIR INTAKE DUCT
(C)
|
8-98054-617-0 |
01 |
1 |
1407- |
|
|
● |
| |
65 |
17.198 STUD; BACK PANEL
(A)
|
8-94389-701-0 |
01 |
1 |
1407- |
● |
● |
|
| |
65 |
17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6)
WINDOW RR<8LF>
16.588
(B)
M6X12
|
8-98013-112-0 |
04 |
1 |
1407- |
|
● |
|
| |
65 |
17.198 STUD; BACK PANEL
(A)
|
8-94389-701-0 |
02 |
1 |
1407- |
|
|
● |
| |
65 |
17.198 STUD; BACK PANEL
16.588
(B)
M6X12
|
8-98013-112-0 |
03 |
1 |
1407- |
|
|
● |
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
AL GRAY(517),BODY COLOR PURPLISH
BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO
R DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BOD
Y COLOR WHEATLAND YELLOW(812),BODY
COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU
E(890),BODY COLOR HIGHWAY ORANGE(944),
BODY COLOR SUNBELT GREEN(989),BODY COLOR Q
UICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
03 |
1 |
1407- |
● |
● |
|
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR
AL GRAY(517),BODY COLOR PURPLISH
BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO
R DARK BLUE(695),BODY COLOR CARDINAL
RED(736),BODY COLOR WOODLAND GREEN(807),BOD
Y COLOR WHEATLAND YELLOW(812),BODY
COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU
E(890),BODY COLOR HIGHWAY ORANGE(944),
BODY COLOR SUNBELT GREEN(989),BODY COLOR Q
UICK SILVER MET(998),BODY COLOR TRANS
BLUE(999)
EXC. COAT HOOK<S9M>
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
04 |
1 |
1407- |
● |
● |
|
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
03 |
1 |
1407- |
● |
● |
|
| |
66 |
16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. COAT HOOK<S9M>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
04 |
1 |
1407- |
● |
● |
|
