6-75 — MAT AND CARPET (#145649) — 18 parça

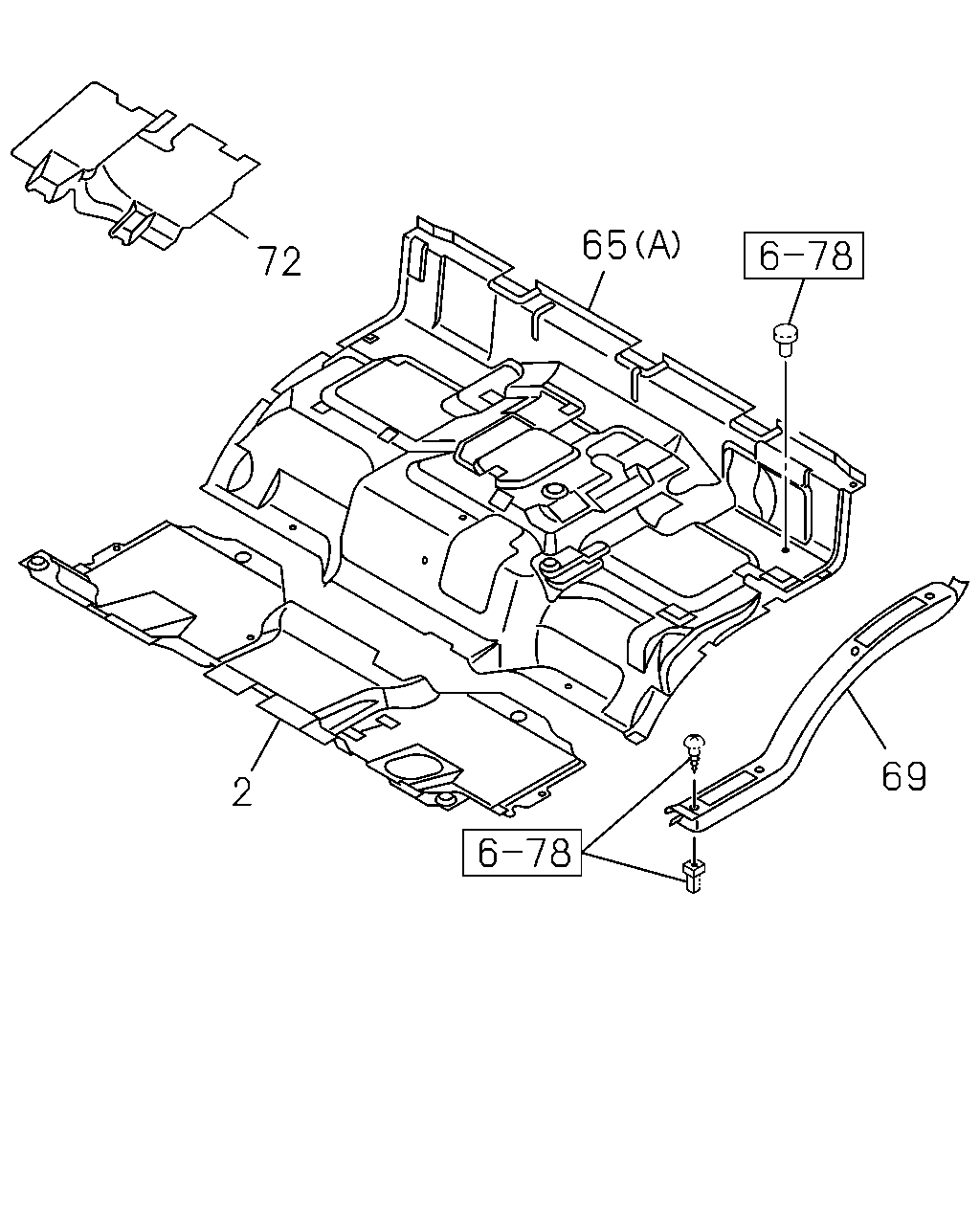

65 69 72 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR GRAY	8-97422-051-0	01	1	1407-	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-5	01	1	1407-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B)	8-97421-983-1	01	1	1407-			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1407-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1407-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1407-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1407-			●

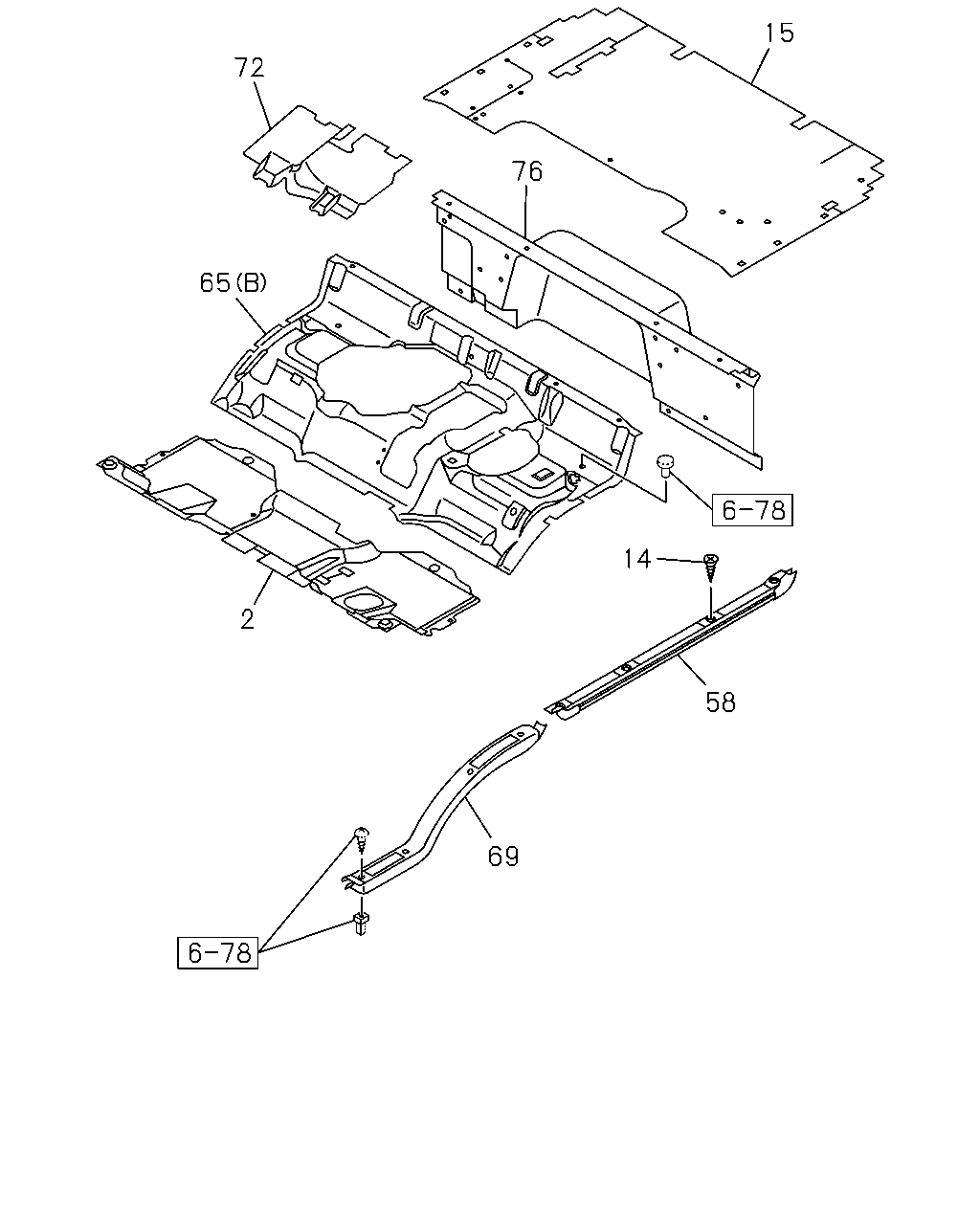

72 65 2 76 69 14 58 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	16.800 MAT; FLOOR GRAY	8-97422-051-0	01	1	1407-	●	●	●
14	16.870 SCREW; PLATE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1407-			●
15	16.800 MAT; FLOOR REAR	8-97426-608-1	01	1	1407-			●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	1407-			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-5	01	1	1407-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B)	8-97421-983-1	01	1	1407-			●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1407-	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1407-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	1407-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-598-1	01	1	1407-			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG	8-97426-585-1	01	1	1407-			●
