Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#145647) — 46 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀

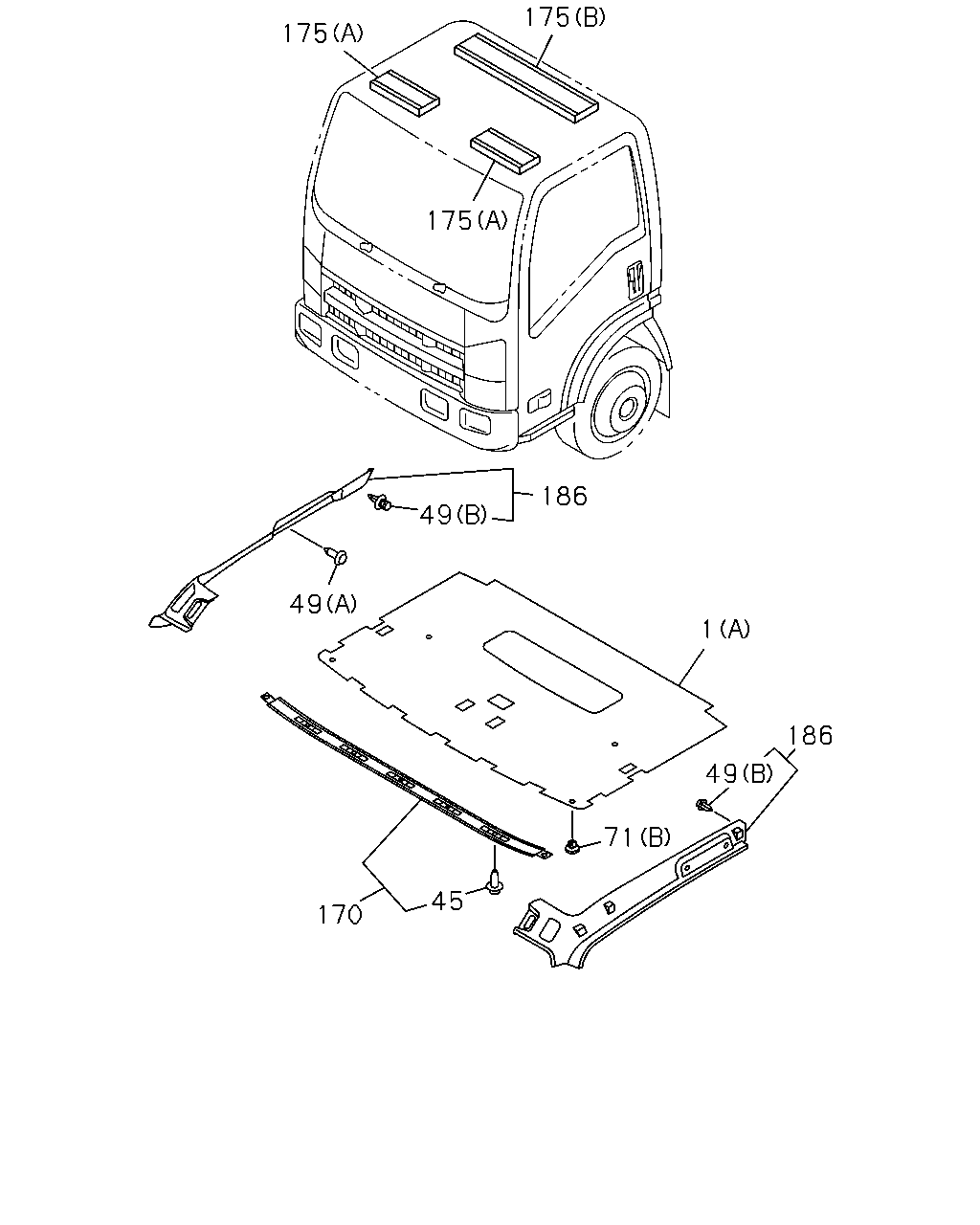

[666A] SGL CAB (21 parça)

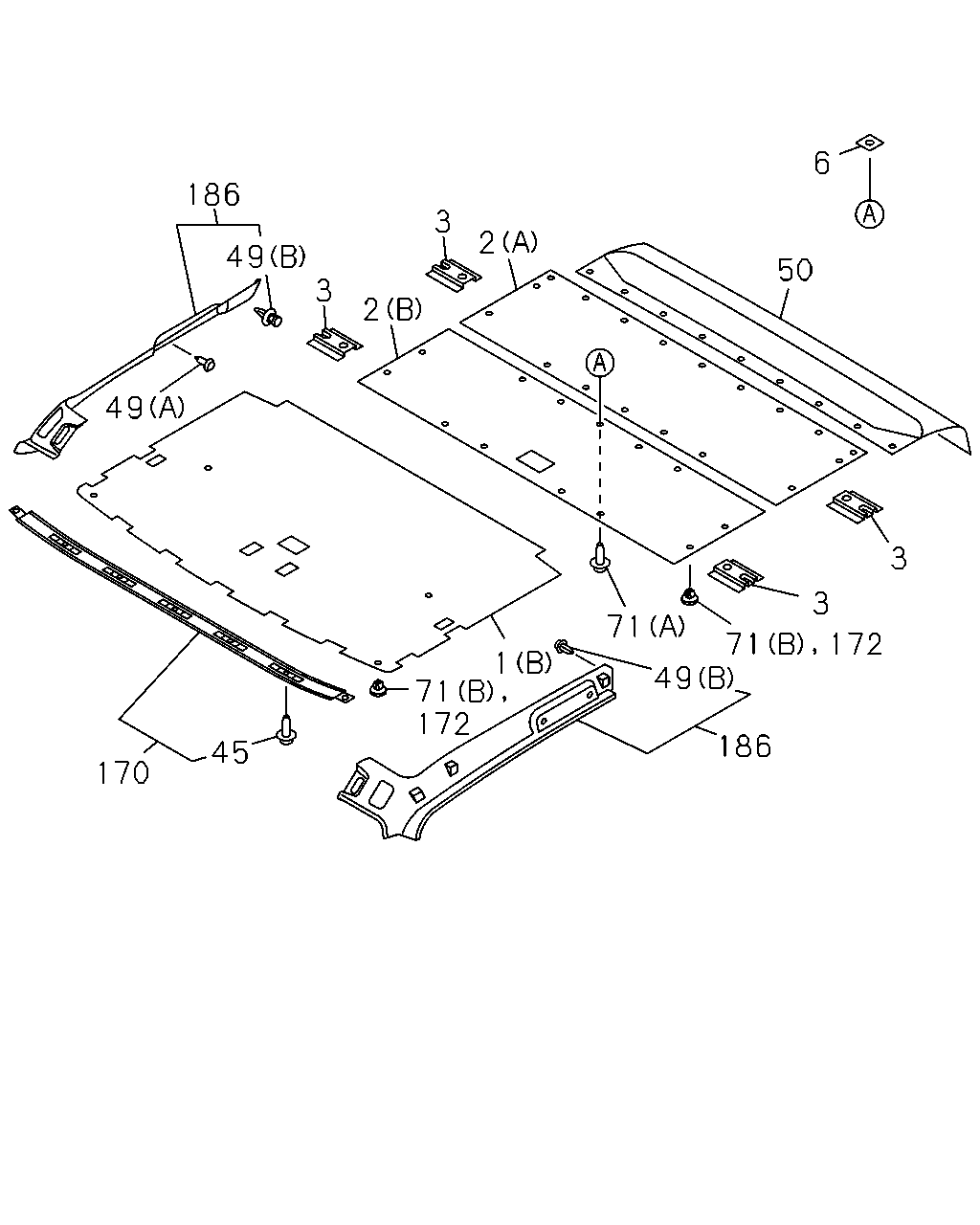

[666A] DBL CAB (25 parça)
▶
175
175
175
186
49
49
170
45
71
49
186
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY
8-97411-681-2
01
1
1407-
●
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97406-282-6
01
1
1407-
●
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97406-277-5
01
1
1407-
●
●
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY
8-97411-682-0
01
1
1407-
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-291-4
01
1
1407-
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-289-3
01
1
1407-
●
45
16.742 CLIP; FINISHER
8-98035-592-1
03
1
1407-
●
●
●
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1407-
●
●
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
03
1
1407-1410
●
●
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
02
1
1411-
●
●
●
49
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
04
1
1407-
●
●
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
06
1
1407-
●
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
34
1
1407-
●
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
01
1
1407-
●
170
16.742 FINISHER; HEAD LINING
DARK GRAY
8-97406-296-4
01
1
1407-
●
●
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98037-299-3
02
1
1407-
●
●
175
16.742 CUSHION; HEAD LINING
(B)
8-98037-300-3
01
1
1407-
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY
8-97405-263-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-251-3
01
1
1407-
●
●
●
6
50
2
3
2
3
49
186
49
170
172
71
1
71
49
186
172
71
45
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY
8-97411-681-2
01
1
1407-
●
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97406-282-6
01
1
1407-
●
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (A) DARK GRAY
8-97406-277-5
01
1
1407-
●
●
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY
8-97411-682-0
01
1
1407-
●
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-291-4
01
1
1407-
●
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (B) DARK GRAY
8-97406-289-3
01
1
1407-
●
2
16.742 LINING; HD,ROOF RR
(A) DARK GRAY
8-97406-292-2
01
1
1407-
●
2
16.742 LINING; HD,ROOF RR
(B) DARK GRAY
8-97407-331-3
01
1
1407-
●
3
16.575 COVER; TRIM,ROOF SIDE
DARK GRAY
8-97407-365-0
04
1
1407-
●
6
16.742 SPACER; HD LINING
1 SET=20 PIECE
8-98100-429-0
01
1
1407-
●
45
16.742 CLIP; FINISHER
8-98035-592-1
03
1
1407-
●
●
●
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1407-
●
●
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
03
1
1407-1410
●
●
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
02
1
1411-
●
●
●
49
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
04
1
1407-
●
●
●
50
16.742 TRIM; ROOF BACK
DARK GRAY
8-97406-295-2
01
1
1407-
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
06
1
1407-
●
●
71
16.742 FASTENER; HD LINING
(B) D=8.7X16.5 DARK GRAY
8-97405-282-0
34
1
1407-
●
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
01
1
1407-
●
170
16.742 FINISHER; HEAD LINING
DARK GRAY
8-97406-296-4
01
1
1407-
●
●
●
172
16.742 RETAINER; HEAD LINING
DARK GRAY
8-97405-282-0
19
1
1407-
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY
8-97405-263-3
01
1
1407-
●
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-251-3
01
1
1407-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
