Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#145641) — 46 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
◀

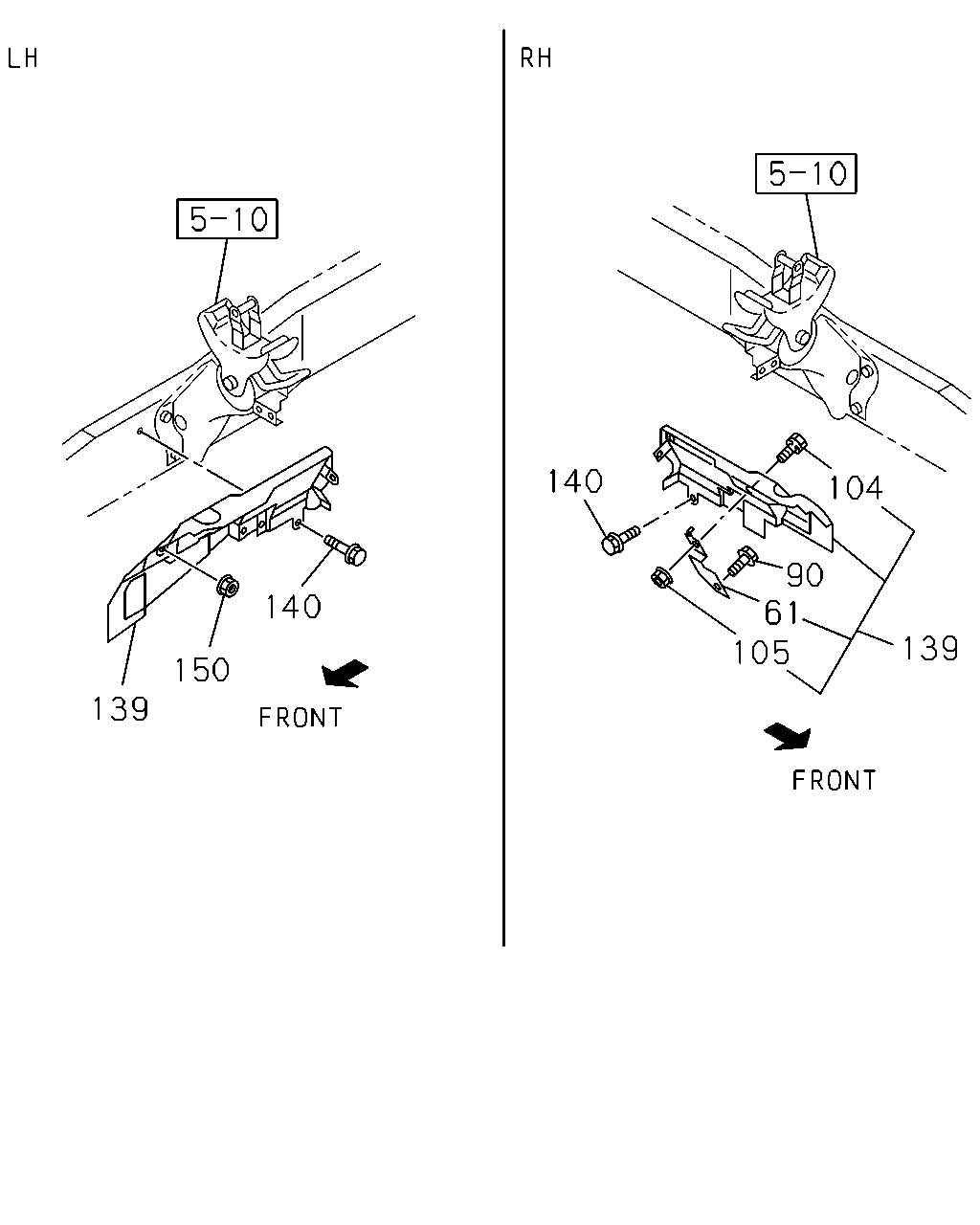

[647A] SIDE COVER (9 parça)
[647A] PROTECTOR AND OTHER PARTS (16 parça)

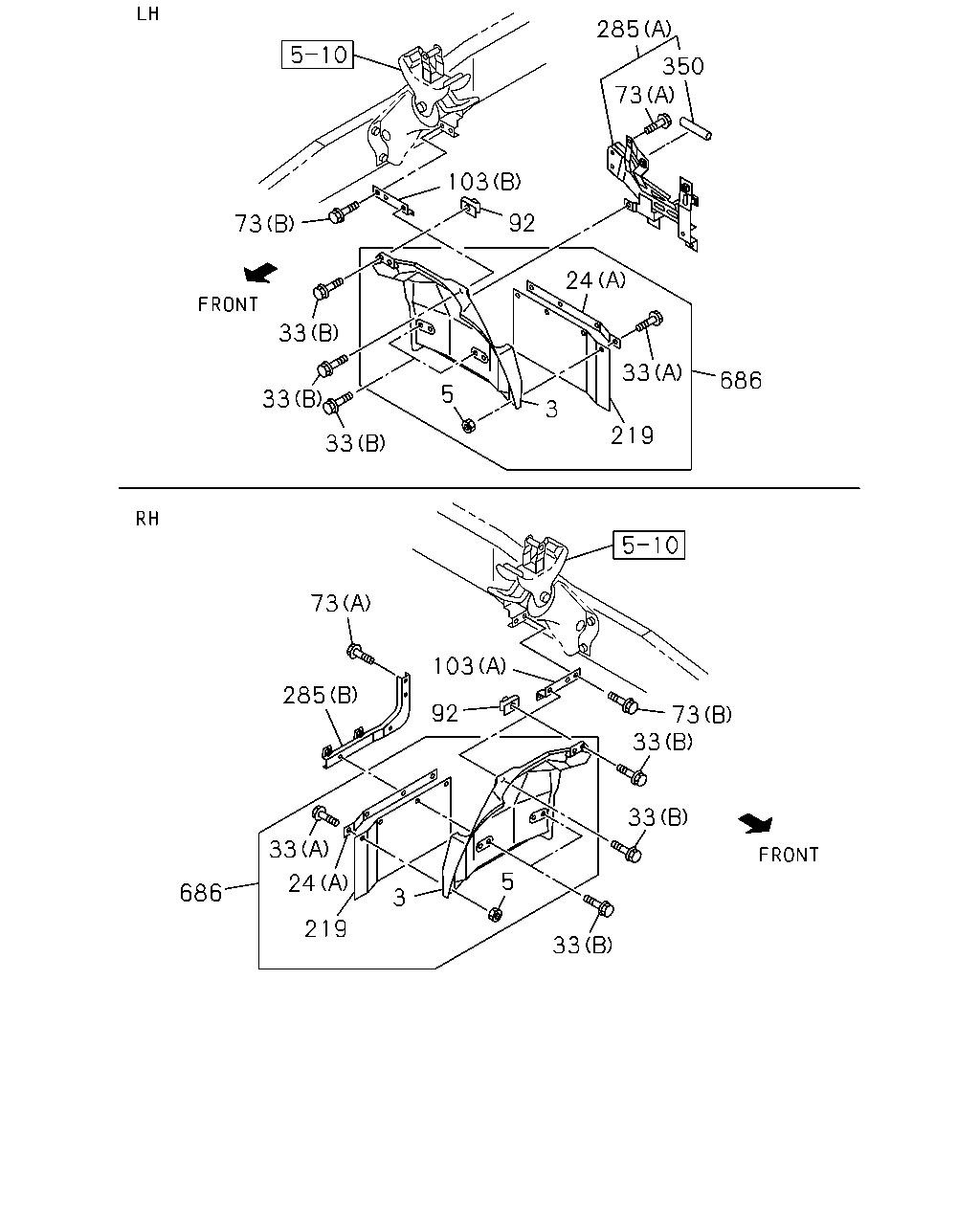

[647A] MUD GUARD FRONT (21 parça)
▶
150
139
140
140
105
61
139
90
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
61
08.155 BRACKET; COVER
8-98106-611-0
01
1
1407-
●
●
●
90
08.153 BOLT; COVER
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1407-
●
●
●
104
08.214 BOLT; BRKT
08.155 M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1407-
●
●
●
105
08.155 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1407-
●
●
●
139
08.153 PANEL; SIDE
8-98173-018-0
01
1
1407-
●
●
●
139
08.153 PANEL; SIDE
8-98218-536-1
01
1
1407-
●
●
●
140
08.155 BOLT; SIDE PANEL
M8X25 W/LK&PL WASHER
1-09030-093-0
02
1
1407-
●
●
●
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
01
1
1407-
●
●
●
150
08.155 NUT; SIDE PANEL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
1407-
●
●
●
195
107
107
192
324
23
254
33
254
24
44
192
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
08.154 FASTENER; MUD COVER
16.320 OD=8.3
8-97997-832-0
06
1
1407-
●
●
●
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
1407-
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1407-
●
●
●
44
08.154 CLIP; ANCHOR
08.155 OD=16 L=11
1-76378-155-0
06
1
1407-
●
●
●
107
08.214 NUT; HEAT PROTECTOR
RR BODY FLAT BED(RS6) 03.417 M6 FLANGE
8-94279-514-0
04
1
1407-
●
192
08.153 SEAL; MUD COVER
(A)
8-98022-755-1
01
1
1407-
●
●
●
192
08.153 SEAL; MUD COVER
(A)
8-98022-756-1
01
1
1407-
●
●
●
192
08.153 SEAL; MUD COVER
(B)
8-98192-388-0
02
1
1407-
●
●
●
195
03.602 PROTECTOR; HEAT
RR BODY FLAT BED(RS6)
8-98077-647-0
01
1
1407-
●
205
08.155 FASTENER; MUD COVER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
1407-
●
●
●
254
08.153 COVER; MUD,VALANCE
8-98115-263-0
01
1
1407-
●
●
●
254
08.153 COVER; MUD,VALANCE
8-98115-264-0
01
1
1407-
●
●
●
324
08.155 PROTECTOR; FRT FENDER
8-98022-786-2
02
1
1407-
●
●
●
73
33
33
33
103
24
92
285
73
350
686
33
219
3
5
73
285
103
92
73
33
33
33
5
3
33
24
219
686
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
08.153 GUARD; MUD,RR
8-98004-030-4
01
1
1407-
●
●
●
3
08.153 GUARD; MUD,RR
8-98055-620-2
01
1
1407-
●
●
●
5
08.155 NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1407-
●
●
●
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
1407-
●
●
●
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
1407-
●
●
●
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1407-
●
●
●
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1407-
●
●
●
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
1407-
●
●
●
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
1407-
●
●
●
103
08.214 BRACKET ASM; RR MUD FLAP
08.155 (A)
8-98059-689-0
01
1
1407-
●
●
103
08.214 BRACKET ASM; RR MUD FLAP
08.155 (B)
8-98038-865-1
01
1
1407-
●
●
●
103
08.214 BRACKET ASM; RR MUD FLAP
08.155 (A)
8-98001-313-2
01
1
1407-
●
219
08.155 FLAP; MUD GUARD
8-98010-741-1
02
1
1407-
●
●
●
285
08.155 BRACKET; MUD COVER
(B)
8-98131-079-0
01
1
1407-
●
●
285
08.155 BRACKET; MUD COVER
(A)
8-98082-272-0
01
1
1407-
●
●
●
285
08.155 BRACKET; MUD COVER
(B)
8-98001-314-2
01
1
1407-
●
350
08.155 PROTECTOR; EDGE,MUD COVER
03.008 L=80
5-22439-006-0
01
1
1407-
●
●
●
686
08.155 FLAP ASM; MUD
8-98001-302-6
01
1
1407-
●
●
●
686
08.155 FLAP ASM; MUD
8-98055-455-4
01
1
1407-
●
●
●
