◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11112 - CXZ/CYZ RHD AUST/NZ EURO5/JNLT 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#14564) — 242 parça

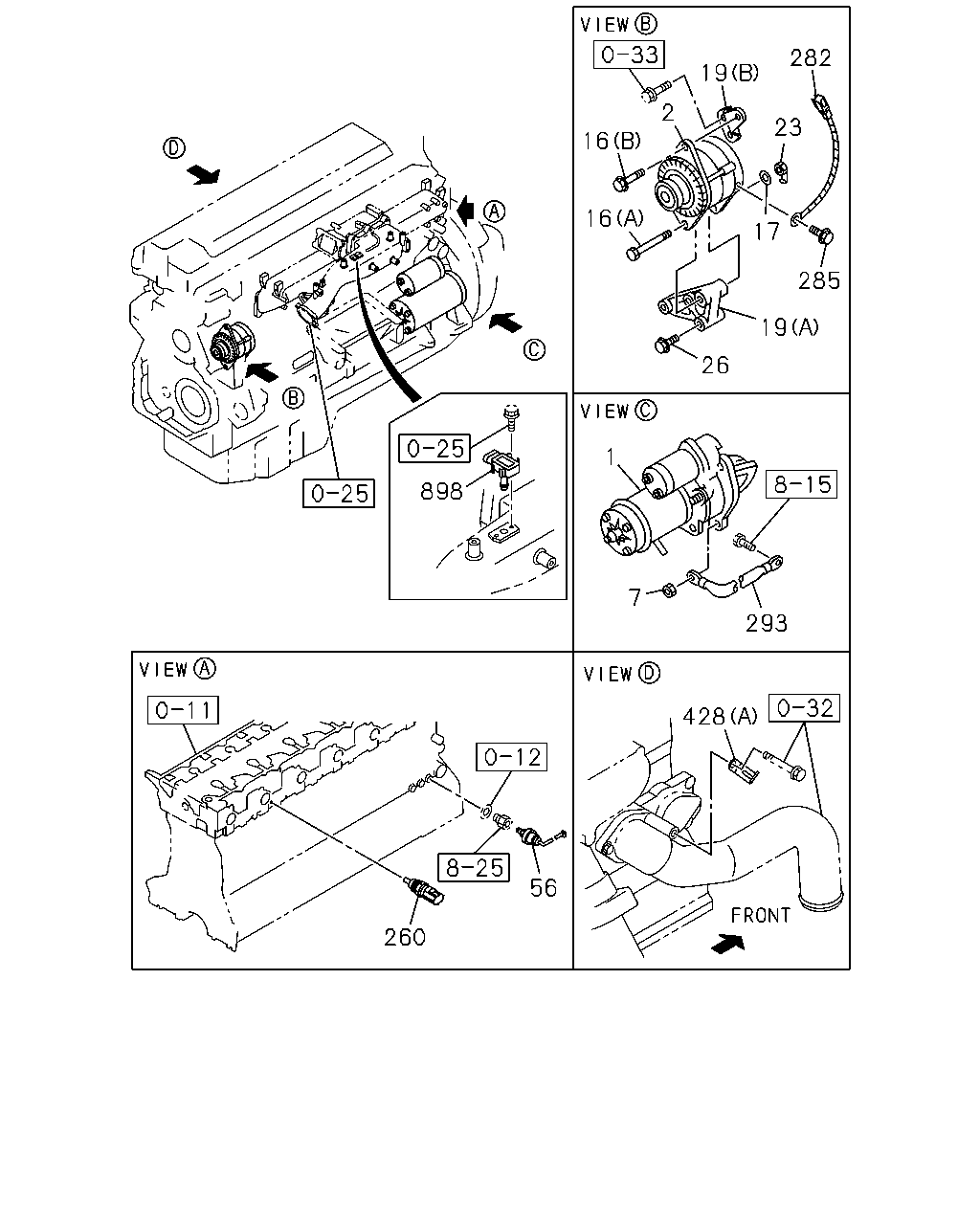

çizim 141468
898 260 56 428 293 7 1 26 19 285 17 23 282 19 2 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-2 01 1 0710-1005 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1006- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-N(71L) 24V 90A MITSUBISHI 		8-98127-496-0 01 1 1108- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		8-98013-613-4 01 1 0710-1005 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		8-98013-613-4 01 1 1006- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 0710-1005 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 1006-1107 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L) GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 1108- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		8-98013-614-3 01 1 1108- ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0710-1005 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1006- ● ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0710-1005 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1006- ● ●
16 BOLT; GEN
GENERATOR 24V-60A 1.5KW(SC8) (A) M14X123 		1-09040-105-0 01 1 0710-1005 ●
16 BOLT; GEN
GENERATOR 24V-60A 1.5KW(SC8) (A) M14X123 		1-09040-105-0 01 1 1006- ● ●
16 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M14X157 		1-09040-106-0 01 1 0710-1005 ●
16 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) M14X157 		1-09040-106-0 01 1 1006- ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0710-1005 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1006- ● ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0710-1005 ●
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1006- ● ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 0710-1005 ●
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 1006- ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0710-0910 ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-1005 ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1006- ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0710-1005 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1006- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 0710-1005 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 1006- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0710-1005 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1006-1406 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407- ● ●
282 HARNESS; EXT,GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82640-682-2 01 1 0710-1005 ●
282 HARNESS; EXT,GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82640-682-2 01 1 1006- ● ●
285 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X12 FLANGE 		0-28050-812-0 01 1 0710-1005 ●
285 BOLT; GEN
GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X12 FLANGE 		0-28050-812-0 01 1 1006- ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0710-1005 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1006- ● ●
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 1006- ● ●
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 1006- ● ●
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 0710-1005 ●
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 1006- ● ●
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 1006- ● ●
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 0710-1005 ●
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 1006- ● ●
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 0710-1005 ●
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1006- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0710-1005 ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1006-1306 ● ●
428 CLIP; HARNESS
6WG1 TC-C(72L) (A) L=36 		8-94224-891-1 01 1 1307- ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1307- ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0710-1005 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1006- ● ●

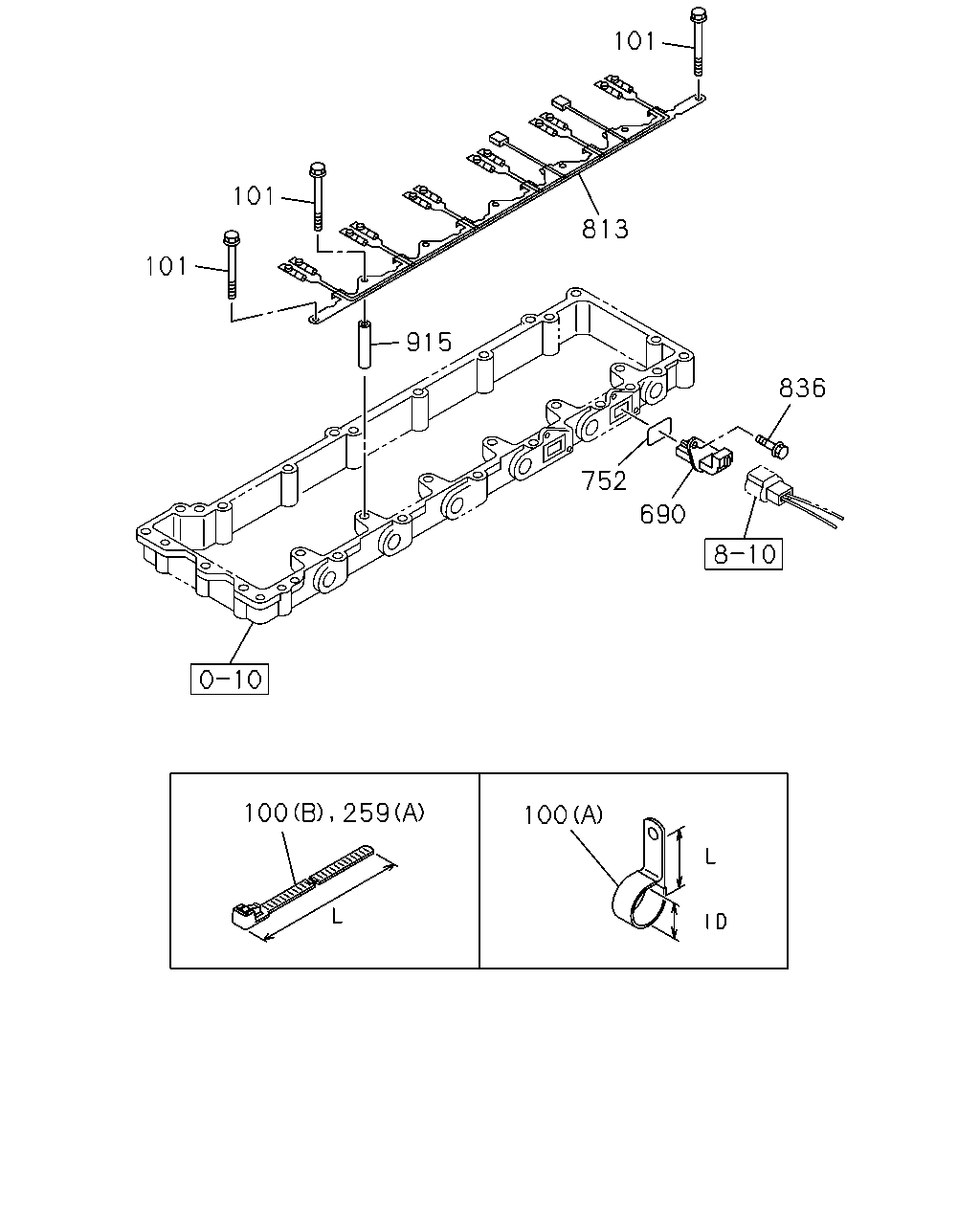

çizim 141469
101 101 813 101 915 836 752 690 100 100 259
BalonParca AdiParca NoAdetTipApplied Date A B
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 0710-1005 ●
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1006- ● ●
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0710-1005 ●
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 1006-1205 ● ●
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206- ● ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0710-1005 ●
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1006- ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-N(71L) (B) L=251 		8-97619-917-0 03 1 1108- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 0710-1005 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 1006-1107 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (A) L=140 		5-09707-031-1 06 1 1108-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 1108-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (A) L=140 		8-98216-431-0 06 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		8-98216-431-0 06 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 0710-1005 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1006-1107 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (B) L=251 		8-97619-917-0 01 1 1108- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1108- ●
690 CONNECTOR 8-94390-858-1 02 1 0710-1005 ●
690 CONNECTOR 8-94390-858-1 02 1 1006- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0710-1005 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1006- ● ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0710-1005 ●
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1006- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0710-1005 ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1006- ● ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0710-1005 ●
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1006- ● ●

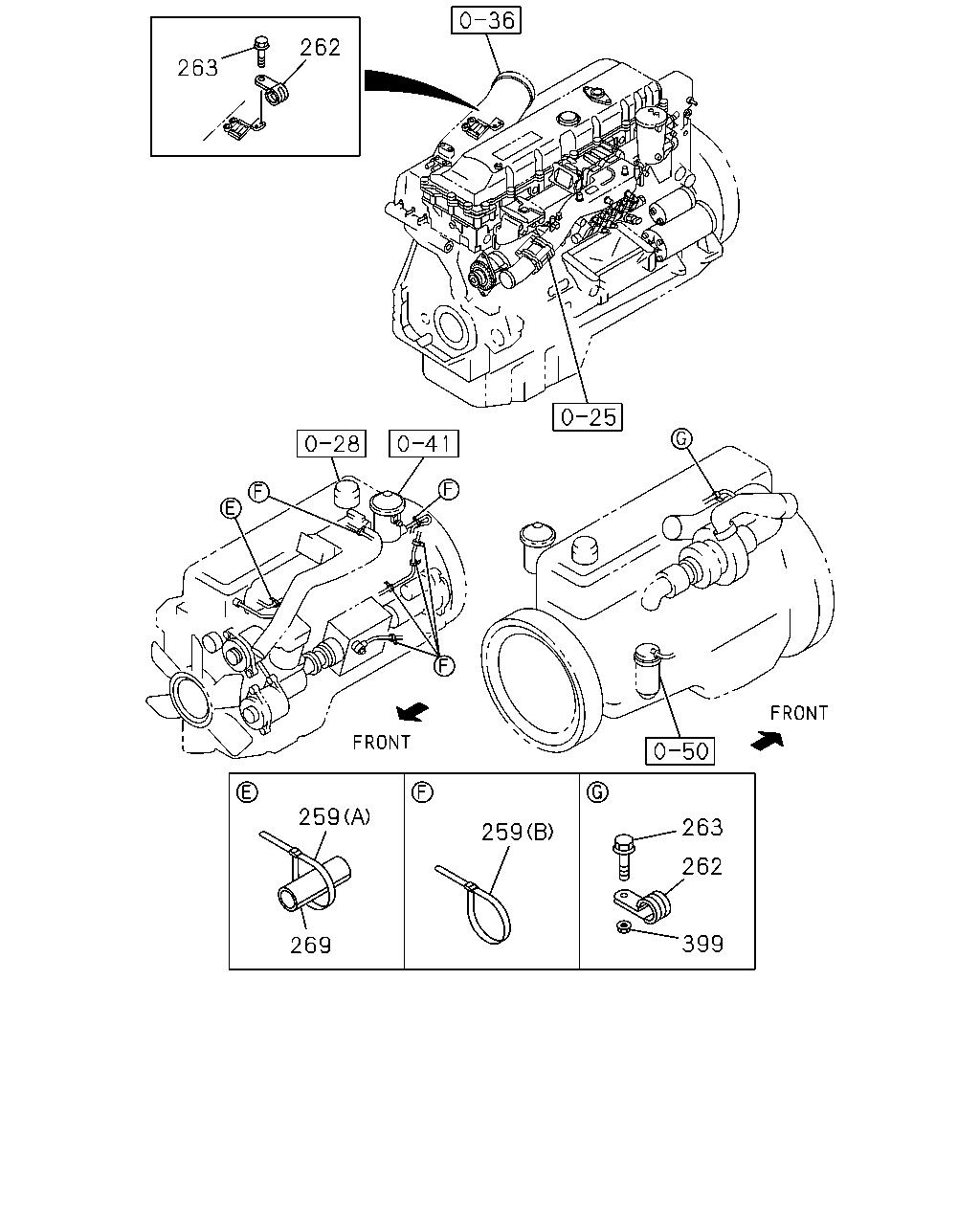

çizim 141470
262 263 259 263 259 262 399 269
BalonParca AdiParca NoAdetTipApplied Date A B
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-N(71L) (B) L=251 		8-97619-917-0 03 1 1108- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 0710-1005 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 1006-1107 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (A) L=140 		5-09707-031-1 06 1 1108-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		5-09707-031-1 06 1 1108-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (A) L=140 		8-98216-431-0 06 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(A) L=140 		8-98216-431-0 06 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 0710-1005 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1006-1107 ● ●
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L) (B) L=251 		8-97619-917-0 01 1 1108- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251 		8-97619-917-0 01 1 1108- ●
262 CLIP; HARNESS
6WG1 TC-N(71L) ID=17 L=20 		8-97619-251-0 02 1 1108- ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 0710-1005 ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 1006-1107 ● ●
262 CLIP; HARNESS
6WG1 TC-C(72L) ID=17 L=20 		8-97619-251-0 01 1 1108- ●
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 1108- ●
263 BOLT; CLIP
6WG1 TC-N(71L) M8X12 FLANGE 		0-28050-812-0 02 1 1108- ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1005 ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1006-1107 ● ●
263 BOLT; CLIP
6WG1 TC-C(72L) M8X16 FLANGE 		0-28050-816-0 01 1 1108- ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1108- ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-1005 ●
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 1006- ● ●
399 NUT; CLIP
6WG1 TC-N(71L) M8 FLANGE 		0-91180-108-0 01 1 1108- ●
çizim 141472
10 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER 1-81171-100-1 01 1 0710-1005 ●
10 RELAY; STARTER 1-81171-100-1 01 1 1006- ● ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-1005 ●
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1006- ● ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0710-1005 ●
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1006- ● ●
çizim 141473
428 428 441 441 428 428 441 441 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(B) L=350 		1-09707-183-0 01 1 1006- ● ●
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(F) ID=30X2 L=28 		1-09701-266-0 01 1 1006- ● ●
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 0710-1005 ●
428 CLIP; HARNESS
(E) ID=35X2 L=32 		1-09701-314-0 03 1 1006- ● ●
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0710-1005 ●
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 1006- ● ●
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 0710-1005 ●
428 CLIP; HARNESS
(D) 		1-82699-993-1 01 1 1006- ● ●
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 0710-1005 ●
428 CLIP; HARNESS
(G) L=250 		5-09707-030-1 03 1 1006- ● ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 0710-1005 ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1006-1306 ● ●
428 CLIP; HARNESS
6WG1 TC-C(72L) (A) L=36 		8-94224-891-1 01 1 1307- ●
428 CLIP; HARNESS
(A) L=36 		8-94224-891-1 01 1 1307- ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1005 ●
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 0710-0809 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0810-0904 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-1005 ●
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1006- ● ●

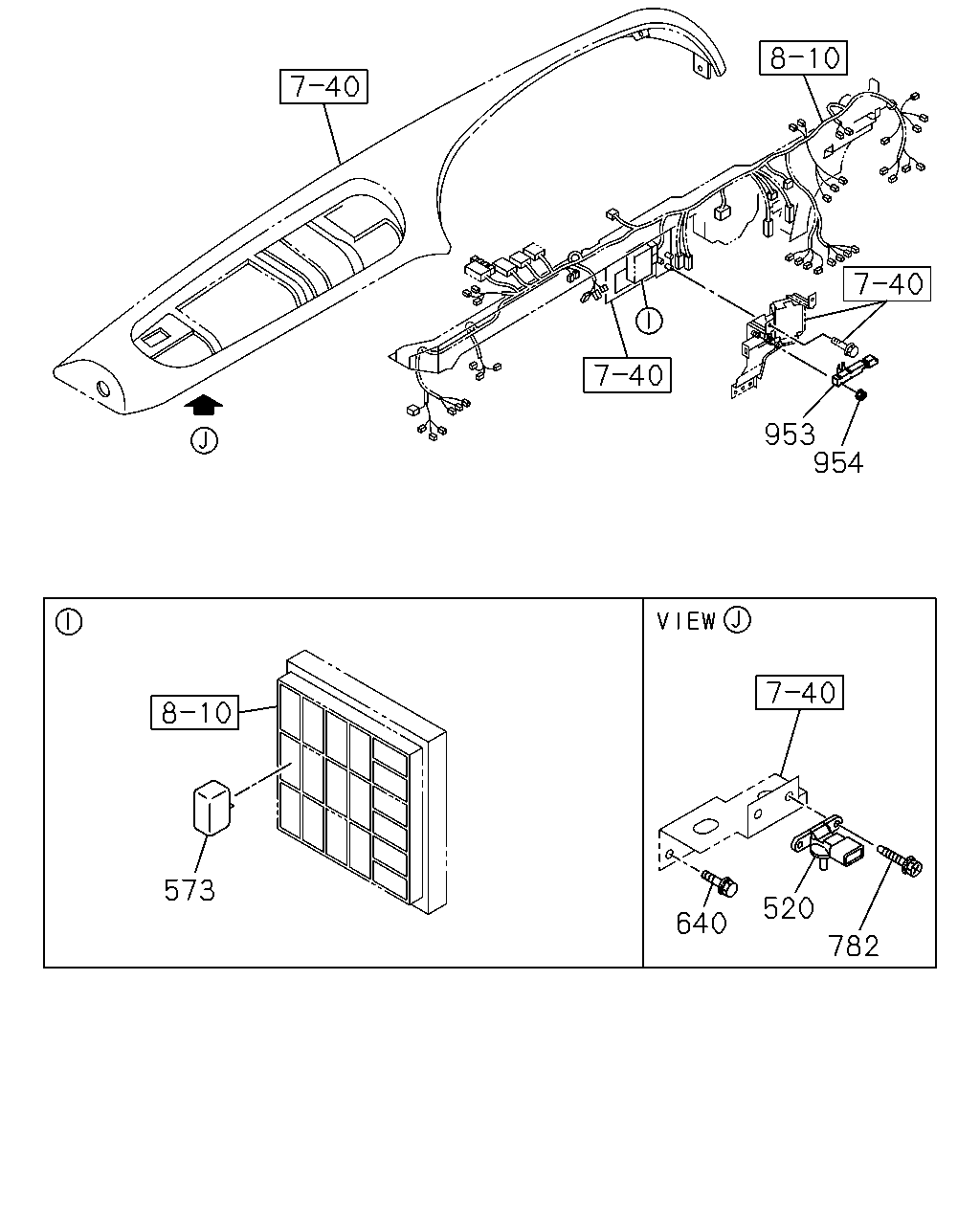

çizim 141474
953 954 573 520 640 782
BalonParca AdiParca NoAdetTipApplied Date A B
520 SENSOR; PRESSURE 8-98020-514-0 01 1 0710-1005 ●
520 SENSOR; PRESSURE 8-98020-514-0 01 1 1006- ● ●
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1005 ●
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-97173-035-1 01 1 1006- ● ●
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-1005 ●
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710-1005 ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1006- ● ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0710-1005 ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 1006- ● ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0710-1005 ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 1006- ● ●
çizim 141475
612 611
BalonParca AdiParca NoAdetTipApplied Date A B
611 BRACKET; SENSOR 8-97618-867-0 01 1 0710-1005 ●
611 BRACKET; SENSOR 8-97618-867-0 01 1 1006-1107 ● ●
611 BRACKET; SENSOR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97618-867-0 01 1 1108- ●
611 BRACKET; SENSOR 8-97618-867-0 01 1 1108- ●
612 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 0710-1005 ●
612 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 1006-1107 ● ●
612 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●
612 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 02 1 1108- ●

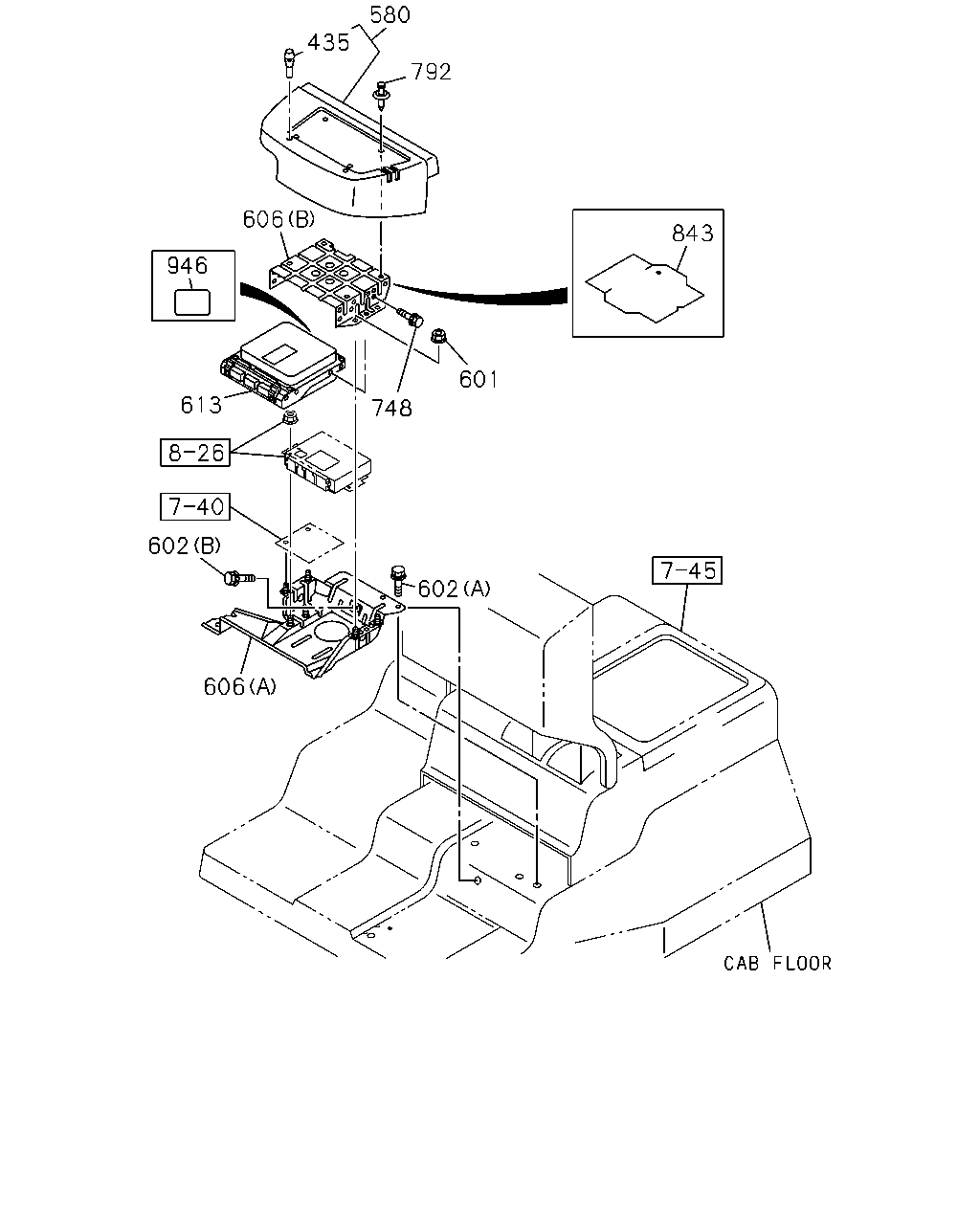

çizim 141476
580 435 792 606 843 946 601 613 748 602 602 606
BalonParca AdiParca NoAdetTipApplied Date A B
435 RUBBER; CUSHION 1-72537-138-0 02 1 0710-1005 ●
435 RUBBER; CUSHION 1-72537-138-0 02 1 1006- ● ●
580 COVER; CONT UNIT 1-72537-279-2 01 1 0710-1005 ●
580 COVER; CONT UNIT 1-72537-279-2 01 1 1006- ● ●
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-1005 ●
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 1006- ● ●
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710-1005 ●
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1006- ● ●
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-1005 ●
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1006- ● ●
606 BRACKET; CONT UNIT
(A) 		1-72537-230-1 01 1 0710-1005 ●
606 BRACKET; CONT UNIT
(A) 		1-72537-230-1 01 1 1006- ● ●
606 BRACKET; CONT UNIT
(B) 		1-72537-333-0 01 1 0710-1005 ●
606 BRACKET; CONT UNIT
(B) 		1-72537-333-0 01 1 1006- ● ●
613 CONTROL UNIT; ENG
6WG1 TC-N(71L) 		8-97985-248-0 01 1 1108- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-480-0 01 1 1006-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-456-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-235-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-488-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-889-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-468-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-241-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EXC. SPEED LIMITER 100KM(NMU),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-487-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EXC. SPEED LIMITER 100KM(NMU),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-888-0 01 1 1008-1008 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98177-888-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98184-466-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98237-240-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EXC. SPEED LIMITER 100KM(NMU),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-478-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98171-478-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98184-454-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM(8MJ) 		8-98237-234-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98173-221-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-432-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-223-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-927-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-433-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-979-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-939-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-457-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 95KM(NNT) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-991-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98177-926-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98184-431-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98238-978-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-938-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-455-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 110KM(8MJ) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-990-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-933-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-445-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 95KM(NNT) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-985-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98177-932-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98184-443-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM(8MJ) 		8-98238-984-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU) 		8-98157-590-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98157-590-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98184-430-1 01 1 1101-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98237-222-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98157-595-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-895-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-444-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-229-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU) 		8-98157-594-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU) 		8-98177-894-0 01 1 1008-1008 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98177-894-0 01 1 1008-1011 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98184-442-1 01 1 1012-1301 ●
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT),SPEED LIMITER 110KM(8MJ) 		8-98237-228-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-98089-051-2 01 1 0710-0807 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-98115-672-0 01 1 0808-0910 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-97634-918-0 01 1 0911-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SMOOTHER-G(C1W) 		8-97985-243-1 01 1 1101- ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98089-052-2 01 1 0710-0807 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98115-673-0 01 1 0808-0910 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97634-919-0 01 1 0911-1005 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97634-919-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) SPEED LIMITER 100KM(NMU) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-97634-919-0 01 1 1006-1007 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97634-919-0 01 1 1008-1012 ●
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97985-242-1 01 1 1101- ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0710-1005 ●
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1006- ● ●
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 0710-1005 ●
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 1006- ● ●
843 SEAL; BRKT 1-76770-009-2 01 1 0710-1005 ●
843 SEAL; BRKT 1-76770-009-2 01 1 1006-1101 ● ●
843 SEAL; BRKT 8-98119-974-0 01 1 1102- ● ●
946 SEAL; TAPE 1-80199-006-0 01 1 0710-1212 ●
946 SEAL; TAPE 8-98166-639-0 01 1 1301- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
