5-30 — SPARE TIRE CARRIER AND COVER (#145629) — 31 parça

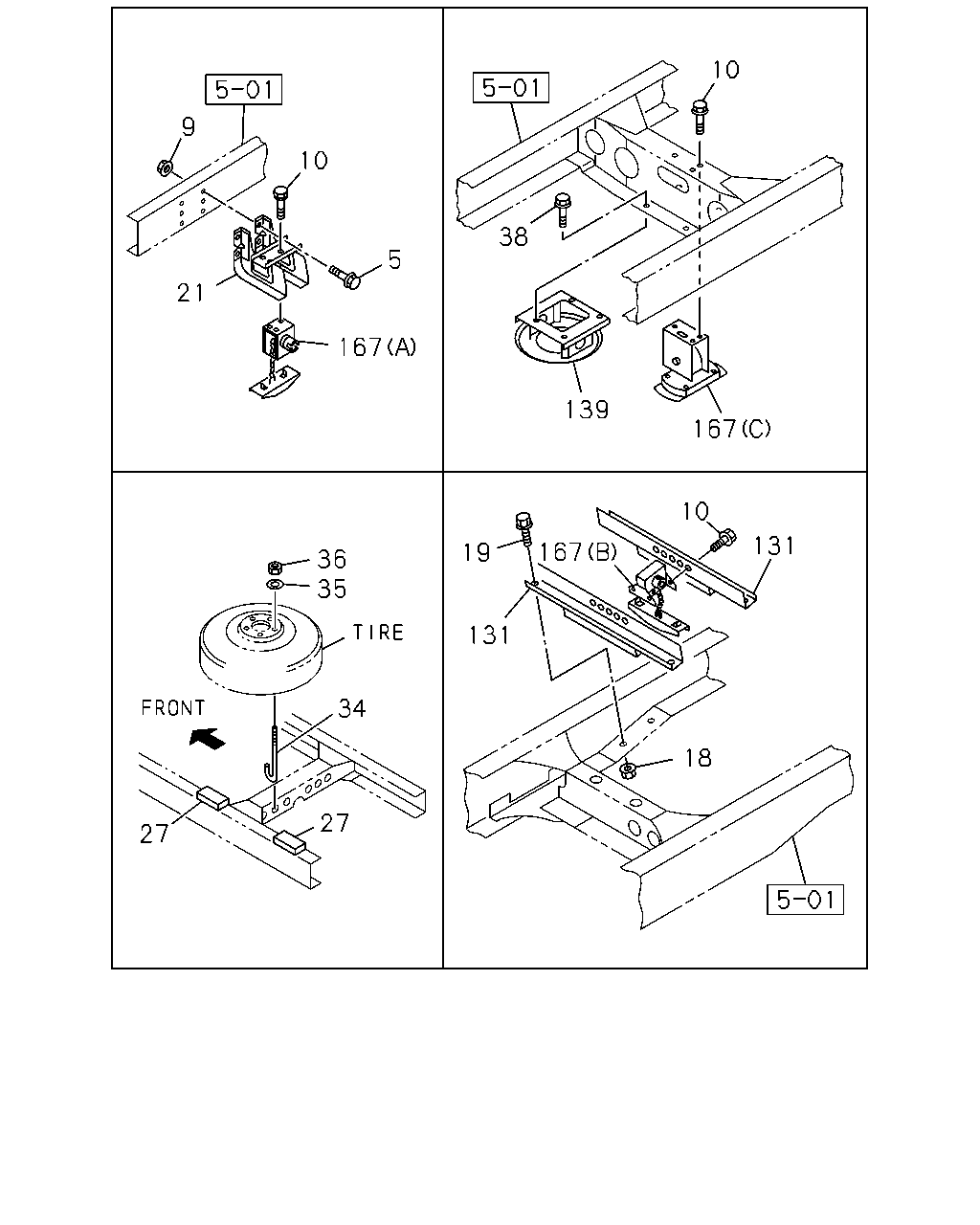

çizim 434006
10 167 139 38 10 5 9 21 167 36 35 34 27 27 19 167 131 10 18 131
BalonParca AdiParca NoAdetTipApplied Date A B C
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1407-1510 ●
5 07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 09.171 M10X25 FLANGE 		0-28051-025-0 04 1 1511- ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1407-1510 ●
9 07.633 NUT; BRKT TO FRAME
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1511- ●
10 07.632 BOLT; TIRE HANGER
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50 FX16-25(CUU) 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1407-1510 ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1407-1510 ●
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1511- ● ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1511- ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407-1510 ●
10 07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10>,SPARE TIRE CARRIER INSIDE MOUNTED<P15> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1511- ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1407-1510 ●
18 07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10>,SPARE TIRE CARRIER INSIDE MOUNTED<P15> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1511- ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1407-1510 ●
19 07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10>,SPARE TIRE CARRIER INSIDE MOUNTED<P15> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1511- ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 		8-98036-085-2 01 1 1407-1510 ●
21 07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 		8-98036-085-2 01 1 1511- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 03 1 1407-1510 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
EXC. SPARE WHEEL CARRIER<P10> 125X50X10 		8-94341-284-0 03 1 1511- ●
34 07.629 BOLT; SPARE TIRE
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330 		8-98226-501-0 01 1 1407-1510 ●
34 07.629 BOLT; SPARE TIRE
EXC. SPARE WHEEL CARRIER<P10> M12X330 		8-98226-501-0 01 1 1511- ●
35 07.629 WASHER; PL,SPARE TIRE
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 1407-1510 ●
35 07.629 WASHER; PL,SPARE TIRE
EXC. SPARE WHEEL CARRIER<P10> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 1511- ●
36 07.629 NUT; SPARE TIRE
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12 		0-91110-512-0 01 1 1407-1510 ●
36 07.629 NUT; SPARE TIRE
EXC. SPARE WHEEL CARRIER<P10> 05.002 M12 		0-91110-512-0 01 1 1511- ●
38 07.629 BOLT; STOPPER
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50 FX16-25(CUU) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1407- ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> 		8-98035-825-3 02 1 1407-1510 ●
131 07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10>,SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-98035-825-3 02 1 1511- ●
139 07.629 STOPPER; SPARE TIRE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50 FX16-25(CUU) 		8-98107-563-2 01 1 1407- ● ●
167 07.629 HANGER; TIRE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50 FX16-25(CUU) (C) 		8-94380-175-1 01 1 1407- ● ●
167 07.629 HANGER; TIRE
WHEEL BASE 2400MM(24W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> (A) 		8-94382-875-1 01 1 1407- ●
167 07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT &RR 7R-15-10 5.5FX15-115(58H) SPARE WHEEL CARRIER<P10> (B) 		8-98036-384-0 01 1 1407- ●
