5-15 — CAB MOUNTING; CAB SIDE (#145627) — 78 parça

133 212 136 141 335 335 142 335 143 139 335 335 335 335 335 141 141 335 141 139 137 138 136 212 138 148 143 136 212 212 133 311 150 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

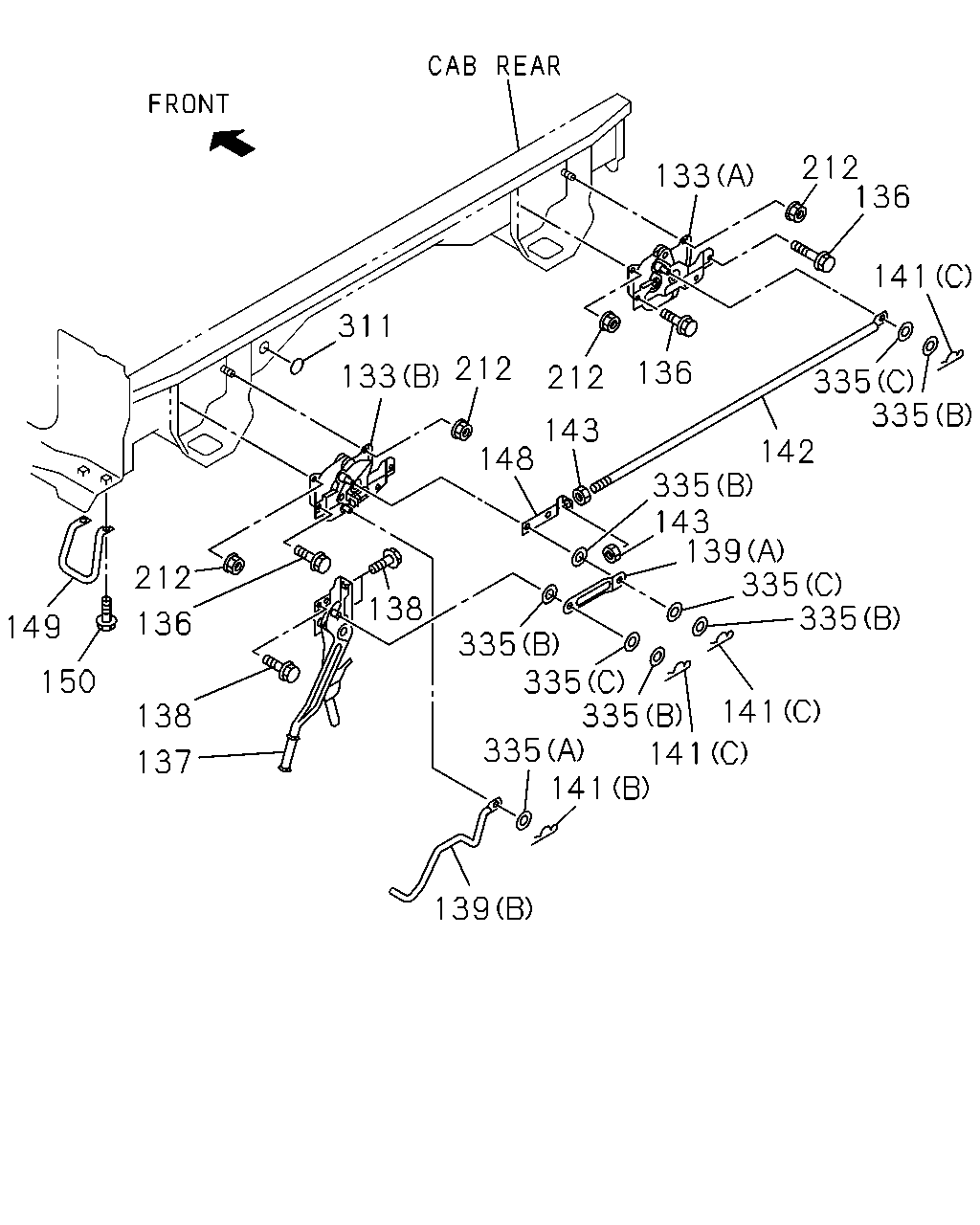

133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1407-1510	●	●
133	09.005 LOCK ASM; CAB (B)	8-97410-270-2	01	1	1511-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1407-1510	●	●
133	09.005 LOCK ASM; CAB (A)	8-98182-353-0	01	1	1511-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1407-1510	●	●
136	09.005 BOLT; CAB LK 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1511-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	1407-1510	●	●
137	09.005 CONTROL UNIT; CAB LOCK	8-97411-004-3	01	1	1511-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1407-1510	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1511-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1407-1510	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	1511-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	1407-1510	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-201-0	01	1	1511-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1407-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1407-1510	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1407-1510	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1511-	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	1407-1510	●	●
142	09.005 ROD; HOOK TO HOOK	8-97410-272-0	01	1	1511-	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1407-1510	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 00.833 M10	0-91110-510-0	02	1	1511-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1407-1510	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1511-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1407-1510	●	●
149	16.450 HANDLE; TILT	8-98067-938-0	01	1	1511-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1407-1510	●	●
150	16.450 BOLT; TILT HANDLE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-1510	●	●
212	09.005 NUT; BRKT,CAB LOCK 01.062 M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1407-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1407-1510	●	●
335	09.005 WASHER; CAB LOCK ROD 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1511-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1407-1510	●	●
335	09.005 WASHER; CAB LOCK ROD 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1511-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1407-1510	●	●
335	09.005 WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	1511-	●	●

14 14 308 308 14 14 145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C

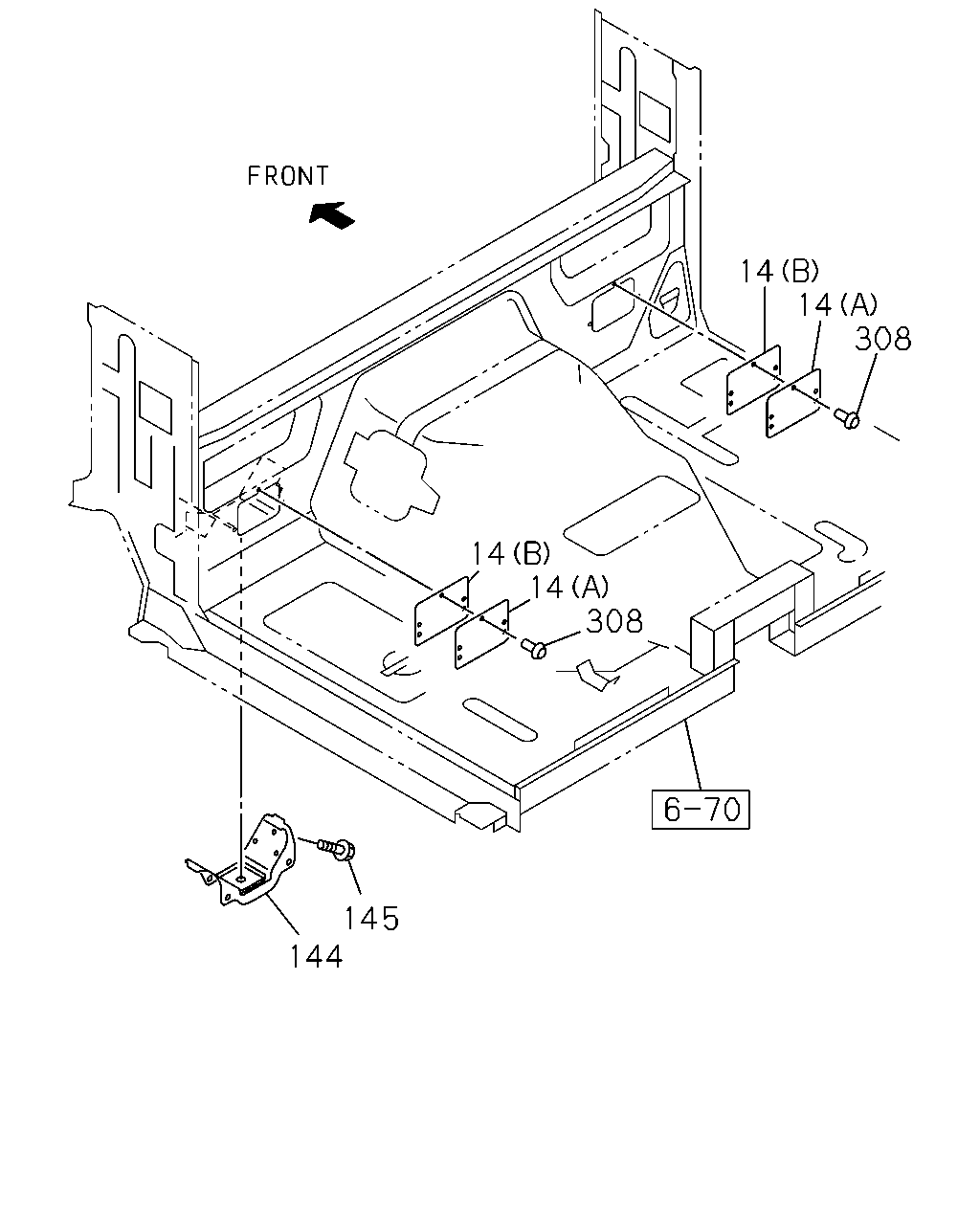

14	09.009 COVER; MTG,CAB (A)	8-98034-059-0	02	1	1407-	●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1407-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1407-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1407-	●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	1407-	●

324 38 3 1 3 12 15 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

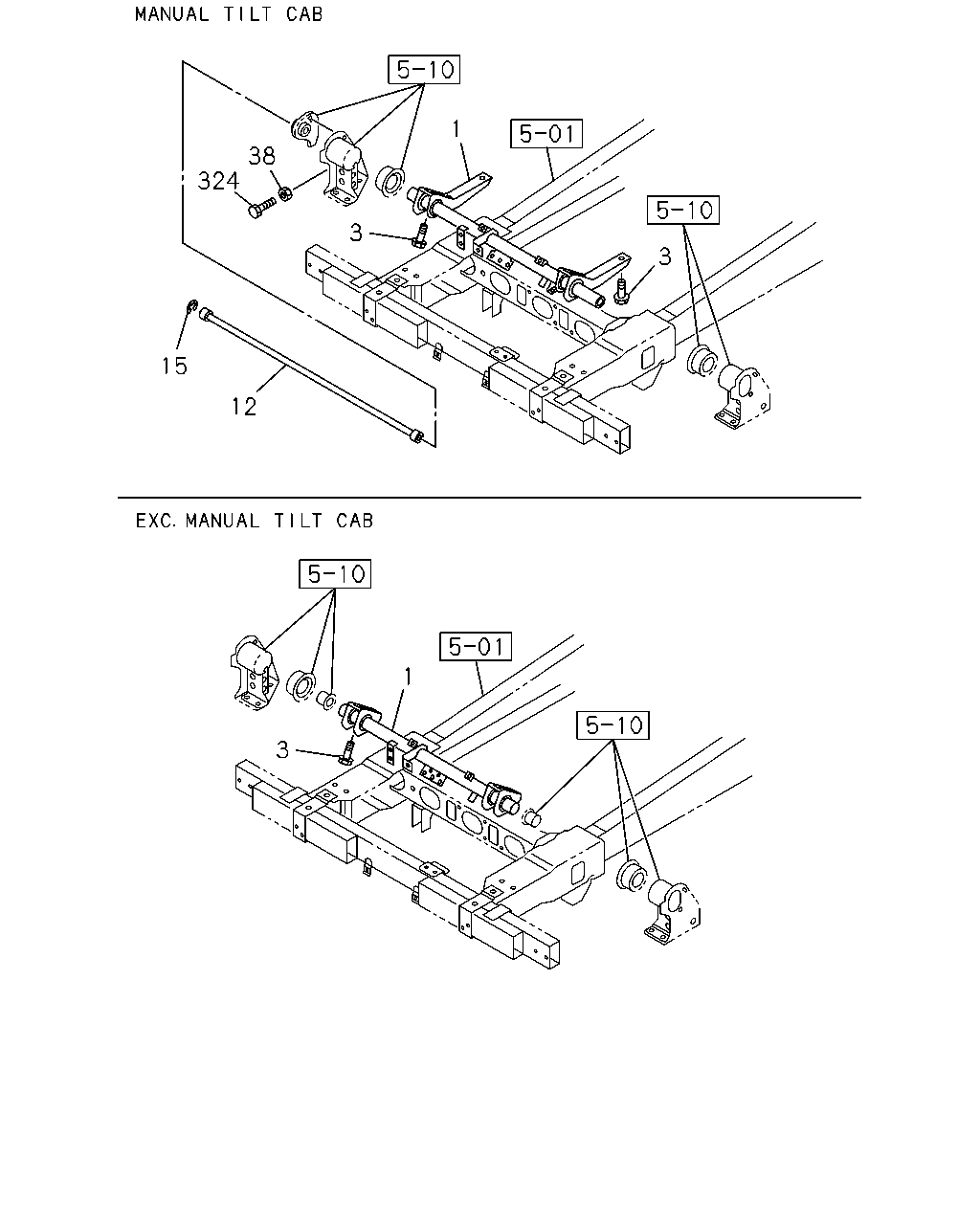

1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98020-095-4	01	1	1407-	●	●
1	09.003 LEVER; TORSION BAR	8-98021-413-2	01	1	1407-			●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1407-	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1407-			●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	1407-	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1407-	●	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1407-	●	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1407-	●	●

320 20

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

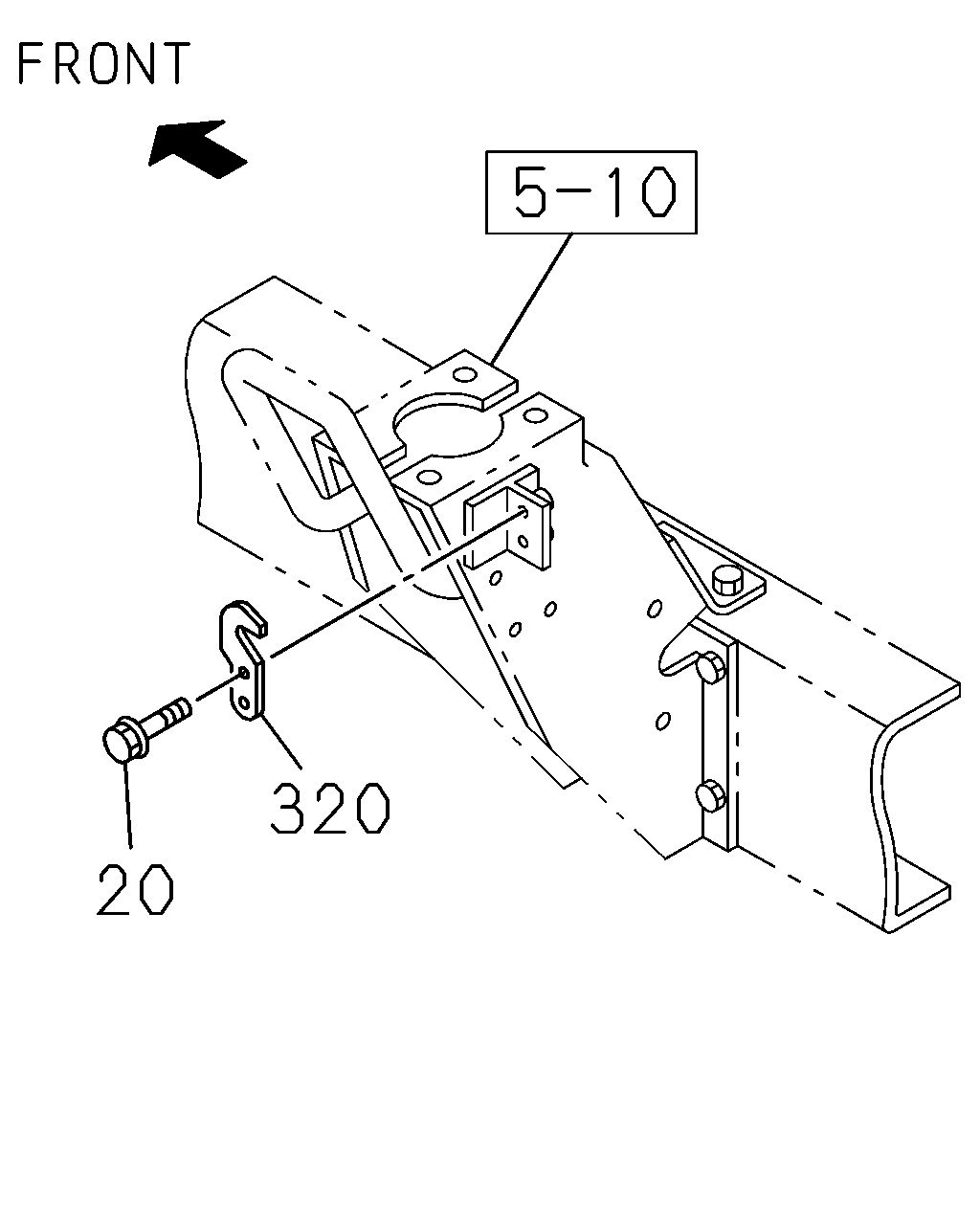

	20	09.003 BOLT MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1407-		●
	320	09.001 ANCHOR; CAB RR MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1407-		●

146 104 103 98 141 81 83 245 245 83 96 85 97 86 245 88 87 88 95 245 92 105 91 102 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

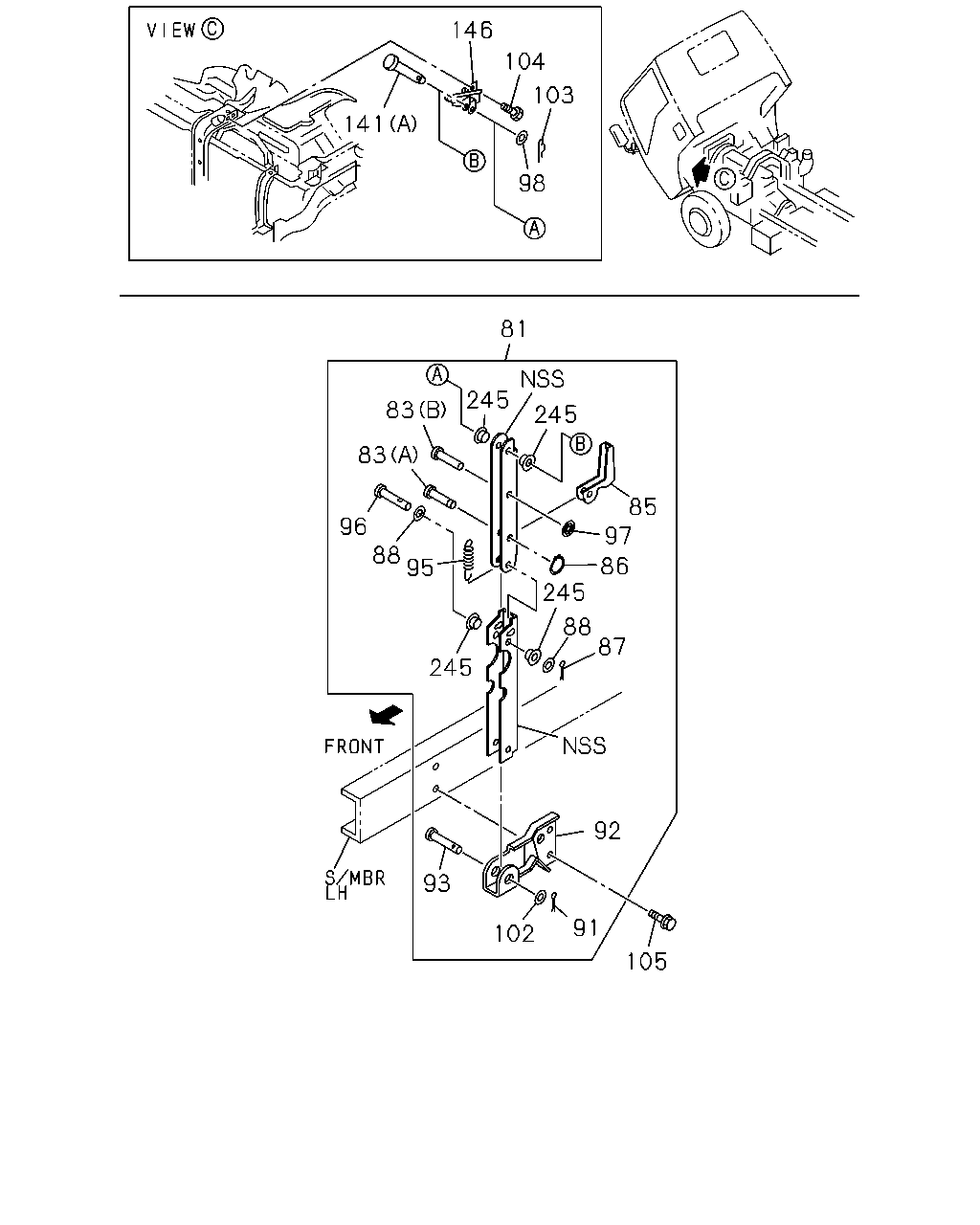

81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ>	8-98141-229-2	01	1	1407-	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	1407-	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	1407-	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	1407-	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1407-	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1407-	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1407-	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1407-	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	1407-	●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1407-	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1407-	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1407-	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	1407-	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1407-	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1407-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1407-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1407-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1407-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1407-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1407-1510	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1511-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1407-1510	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1511-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	1407-	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1407-	●	●
