5-10 — CAB MOUNTING; FRAME SIDE (#145626) — 105 parça

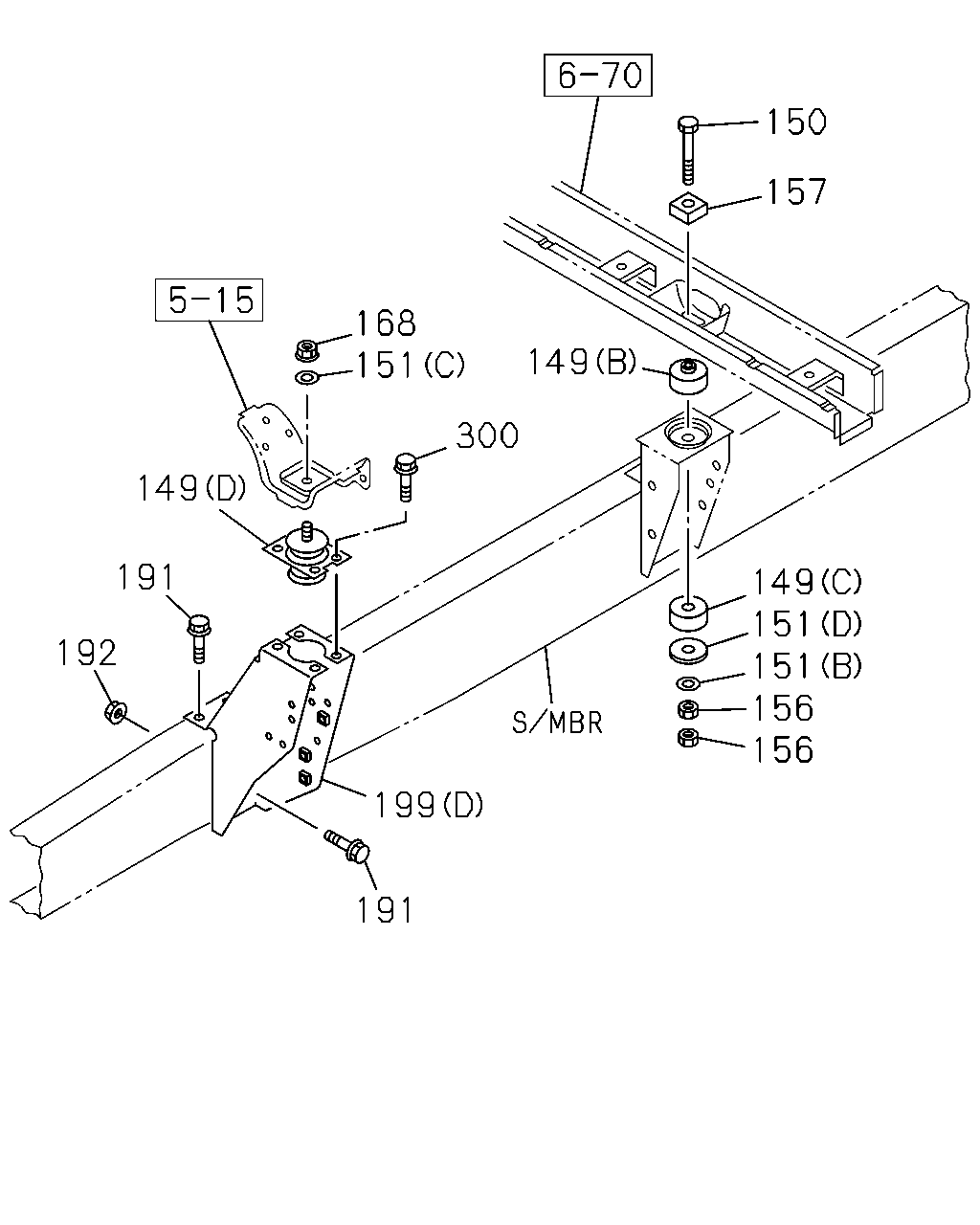

150 157 149 149 151 151 156 156 199 191 192 191 149 168 151 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1407-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	1407-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	1407-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=94	8-98038-868-0	02	1	1407-			●
150	09.011 BOLT; CAB MTG RR M10X105	8-98004-320-0	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1407-	●	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR (B) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	1407-			●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	1407-	●	●
156	07.529 NUT; CAB MTG RR 00.833 M10	0-91110-510-0	04	1	1407-			●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	1407-			●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 07.529 M14 FLANGE	0-91180-114-0	02	1	1407-			●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X35 FLANGE	0-28651-235-0	08	1	1407-1510	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1407-1510			●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1511-	●	●	●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1407-1510	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1407-1510			●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1511-	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1407-	●	●
199	09.003 BRACKET; CAB RR MTG COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1407-1510	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1407-1510		●
199	09.003 BRACKET; CAB RR MTG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1511-	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1511-		●
199	09.003 BRACKET; CAB RR MTG COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	01	1	1407-1510	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	01	1	1407-1510		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1407-1510			●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1407-1510			●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1511-	●		●
199	09.003 BRACKET; CAB RR MTG EXC. MOROCCO EQUIPMENT(CGA) (D)	8-98001-443-4	01	1	1511-		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1511-			●
199	09.003 BRACKET; CAB RR MTG MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	1407-		●
199	09.003 BRACKET; CAB RR MTG MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	1407-		●
300	09.003 BOLT; MTG RUBBER MANUAL TILT CAB<RWZ> 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1407-1510	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1407-1510			●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1511-	●	●	●

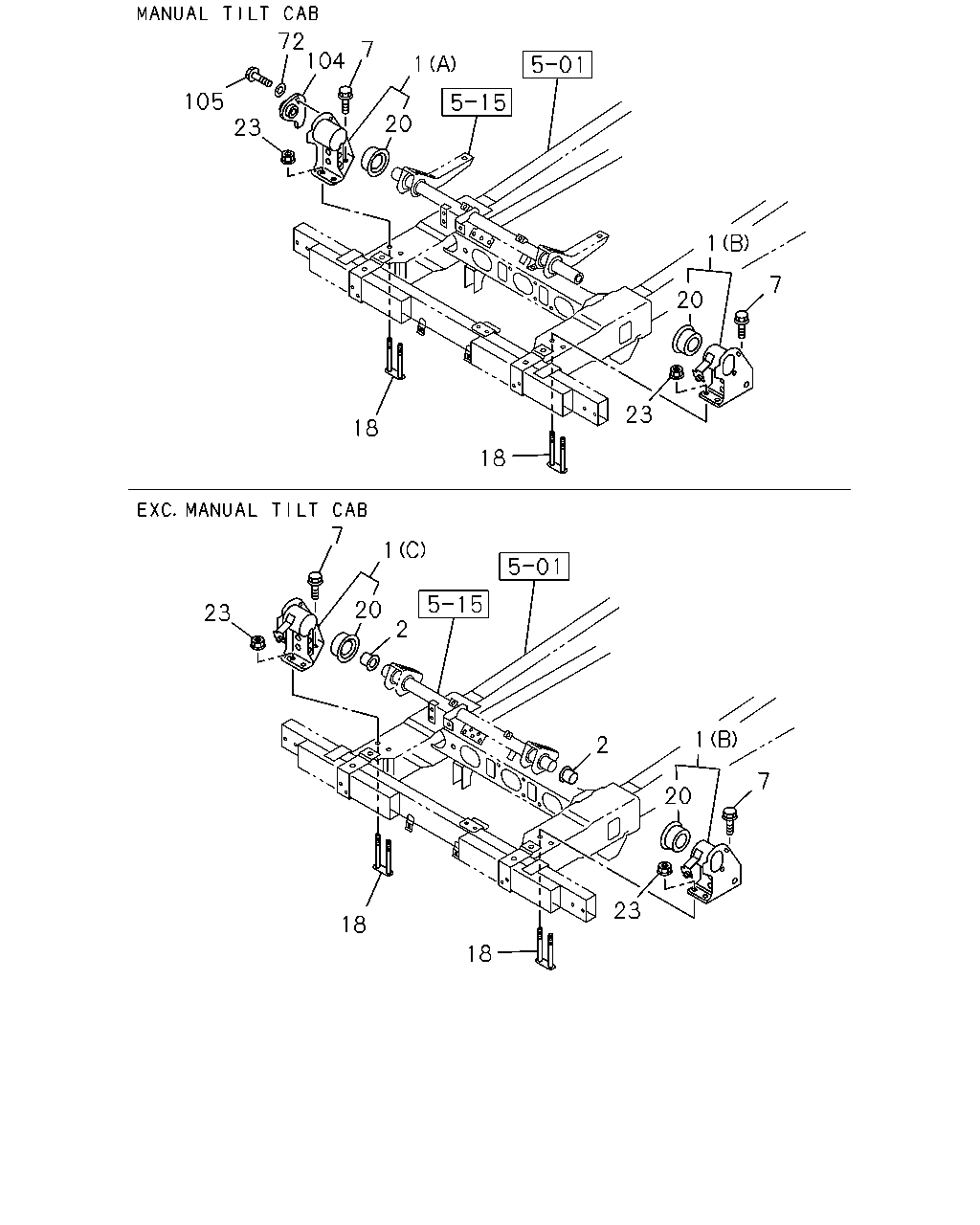

105 72 104 7 20 23 18 18 23 20 7 1 1 7 23 20 2 18 18 23 20 7 1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (A)	8-98021-409-5	01	1	1407-	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (B)	8-98021-408-5	01	1	1407-	●	●
1	09.003 BRACKET; CAB MTG (B)	8-98021-408-5	01	1	1407-			●
1	09.003 BRACKET; CAB MTG 16.545 (C)	8-98021-407-6	01	1	1407-			●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	1407-			●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M14X40 FLANGE	0-28661-440-0	02	1	1407-1510	●	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1407-1510			●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1511-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ>	8-98029-285-1	02	1	1407-1510	●	●
18	09.003 PLATE; MTG BRKT FIX	8-98029-285-1	02	1	1407-1510			●
18	09.003 PLATE; MTG BRKT FIX	8-98029-285-1	02	1	1511-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	1407-1510	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	1407-1510	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1407-1510			●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1407-1510			●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1511-	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-98007-037-1	01	1	1511-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1511-			●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> M14	8-98039-989-0	04	1	1407-1510	●	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1407-1510			●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1511-	●	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1407-	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	1407-	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1407-	●	●

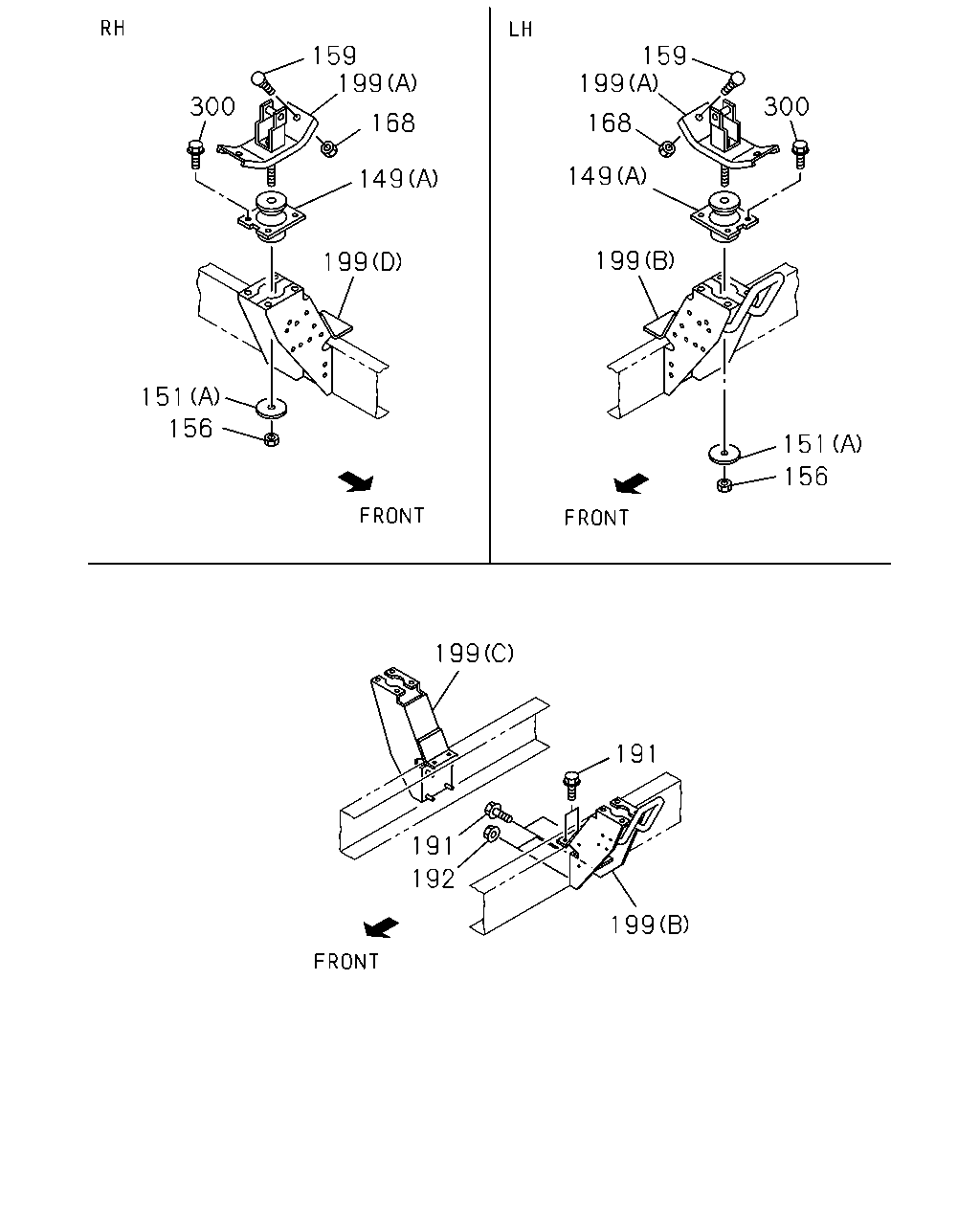

159 199 168 149 199 151 156 300 199 168 149 199 300 159 151 156 199 191 192 191 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1407-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	1407-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (B) H=30.6	8-94128-501-0	02	1	1407-			●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=94	8-98038-868-0	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1407-	●	●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=16.5 OD=58	8-97359-040-1	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR (B) OD=33 ID=10.2 T=3.2	8-98004-321-0	02	1	1407-			●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=14 OD=60	8-98004-322-0	02	1	1407-			●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	1407-	●	●
156	07.529 NUT; CAB MTG RR 00.833 M10	0-91110-510-0	04	1	1407-			●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1407-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 07.529 M14 FLANGE	0-91180-114-0	02	1	1407-			●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X35 FLANGE	0-28651-235-0	08	1	1407-1510	●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1407-1510			●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	1511-	●	●	●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1407-1510	●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1407-1510			●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1511-	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98036-883-0	02	1	1407-	●	●
199	09.003 BRACKET; CAB RR MTG COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1407-1510	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1407-1510		●
199	09.003 BRACKET; CAB RR MTG PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1511-	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (B)	8-98001-444-2	01	1	1511-		●
199	09.003 BRACKET; CAB RR MTG COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	01	1	1407-1510	●
199	09.003 BRACKET; CAB RR MTG PERU EQUIPMENT(E07) MANUAL TILT CAB<RWZ> (D)	8-98001-443-4	01	1	1407-1510		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1407-1510			●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1407-1510			●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1511-	●		●
199	09.003 BRACKET; CAB RR MTG EXC. MOROCCO EQUIPMENT(CGA) (D)	8-98001-443-4	01	1	1511-		●
199	09.003 BRACKET; CAB RR MTG (D)	8-98001-443-4	01	1	1511-			●
199	09.003 BRACKET; CAB RR MTG MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> (C)	8-98021-568-2	01	1	1407-		●
199	09.003 BRACKET; CAB RR MTG MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> (B)	8-98021-569-2	01	1	1407-		●
300	09.003 BOLT; MTG RUBBER MANUAL TILT CAB<RWZ> 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1407-1510	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1407-1510			●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1511-	●	●	●

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
140	09.003 NUT; BRKT MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1409-1510	●
140	09.003 NUT; BRKT MOROCCO EQUIPMENT(CGA) 01.062 M8 FLANGE	0-91180-108-0	04	1	1511-	●
141	09.003 BOLT; BRKT MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1510	●
141	09.003 BOLT; BRKT MOROCCO EQUIPMENT(CGA) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1511-	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ>	8-97857-422-4	01	1	1409-1510	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR MOROCCO EQUIPMENT(CGA)	8-97857-422-4	01	1	1511-	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR MOROCCO EQUIPMENT(CGA) MANUAL TILT CAB<RWZ>	8-97857-423-4	01	1	1409-1510	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR MOROCCO EQUIPMENT(CGA)	8-97857-423-4	01	1	1511-	●
