◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#145624) — 90 parça

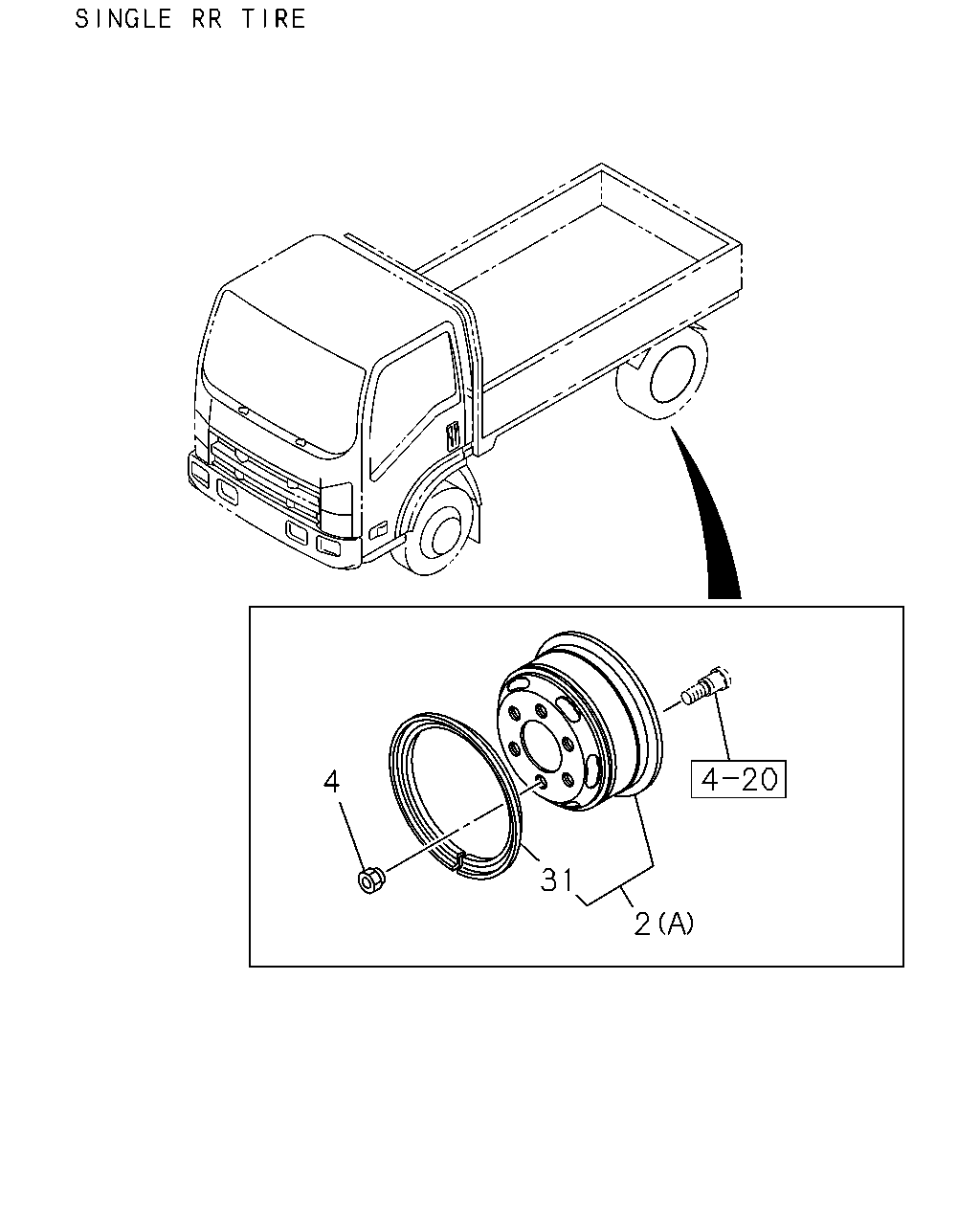

çizim 432658
4 31 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1407- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 1407- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 1407- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1407- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1407- ●

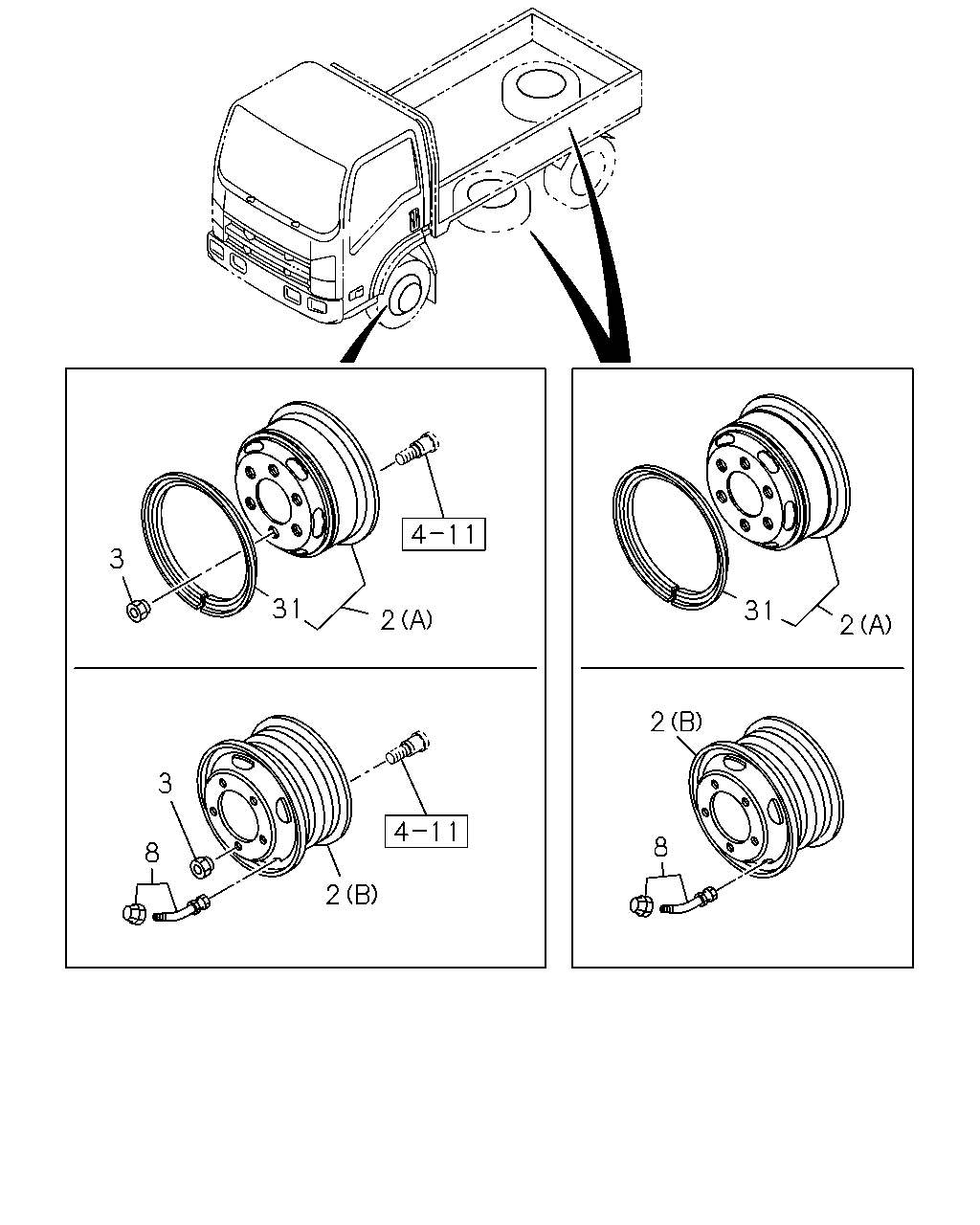

çizim 433010
2 31 3 8 3 2 8 2 31 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1407- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 1407- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 1407- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1407- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1407- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) 		8-98221-106-0 01 1 1407- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) 		8-98221-106-0 06 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1407- ●

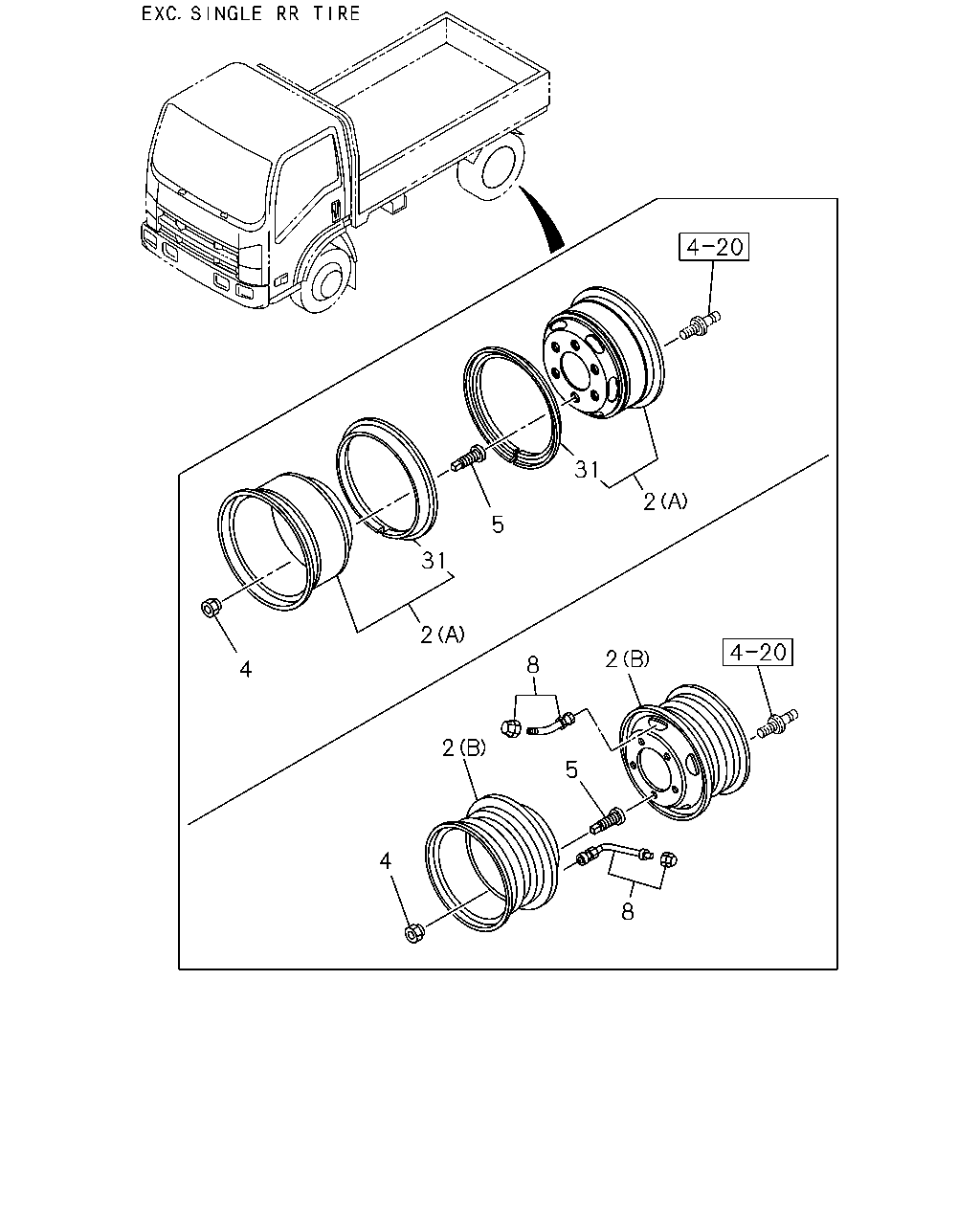

çizim 433219
4 2 31 5 31 2 2 5 8 2 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1407- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1407- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 1407- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 1407- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1407- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1407- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1407- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1407- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) 		8-98221-106-0 01 1 1407- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) 		8-98221-106-0 06 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1407- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1407- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1407- ●
