Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

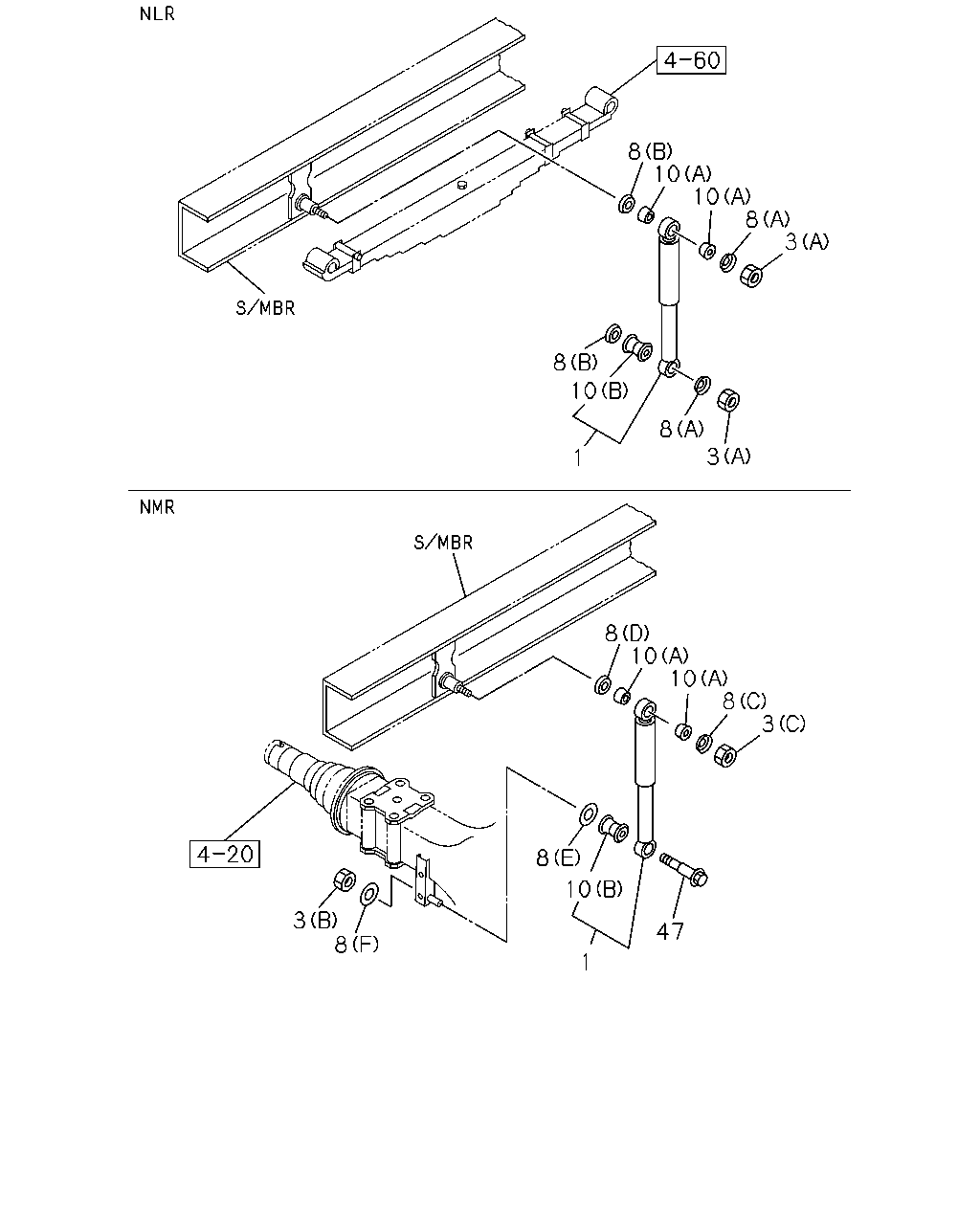

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#145621) — 19 parça
Tümü
A - NMR6SE
B - NMR6WE
C - NMR6SN
8
10
10
8
3
8
10
1
8
3
8
10
10
8
3
47
1
10
8
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
07.395 ABSORBER ASM; SHOCK,RR
8-98018-780-1
02
1
1407-1506
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
8-98316-232-0
02
1
1507-
●
●
1
07.395 ABSORBER ASM; SHOCK,RR
8-97253-651-2
02
1
1407-1506
●
1
07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
5-87610-132-0
02
1
1407-1506
●
1
07.395 ABSORBER ASM; SHOCK,RR
8-98316-233-0
02
1
1507-
●
3
07.347 NUT; S/ABS
05.002 (A) M12
0-91110-512-0
04
1
1407-
●
●
3
07.347 NUT; S/ABS
07.833 (C) M14
0-91110-514-0
02
1
1407-
●
3
07.347 NUT; S/ABS
00.785 (B) M16
0-91111-516-0
02
1
1407-
●
8
07.347 WASHER; S/ABS
(B) ID=16.5
9-51679-021-0
04
1
1407-
●
●
8
07.347 WASHER; S/ABS
(A) ID=12.5
9-51679-022-0
04
1
1407-
●
●
8
07.347 WASHER; S/ABS
(C) ID=15
8-97360-056-0
02
1
1407-
●
8
07.347 WASHER; S/ABS
(D) ID=20.0
8-97360-057-0
02
1
1407-
●
8
07.347 WASHER; S/ABS
07.516 (E) ID=16.4
8-97360-118-0
02
1
1407-
●
8
07.347 WASHER; S/ABS
07.427 (F) ID=16.5
8-98011-489-0
02
1
1407-
●
10
07.388 BUSHING; RUBBER,S/ABS
07.347 (B) TOKICO
8-94224-694-0
02
1
1407-
●
●
10
07.388 BUSHING; RUBBER,S/ABS
07.347 (A) KYB
8-94132-727-1
04
1
1407-
●
●
10
07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO
8-94382-149-0
02
1
1407-
●
10
07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO
9-51631-014-0
04
1
1407-
●
47
07.347 PIN; S/ABS SETTING
8-97316-972-0
02
1
1407-
●
