◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#145617) — 12 parça

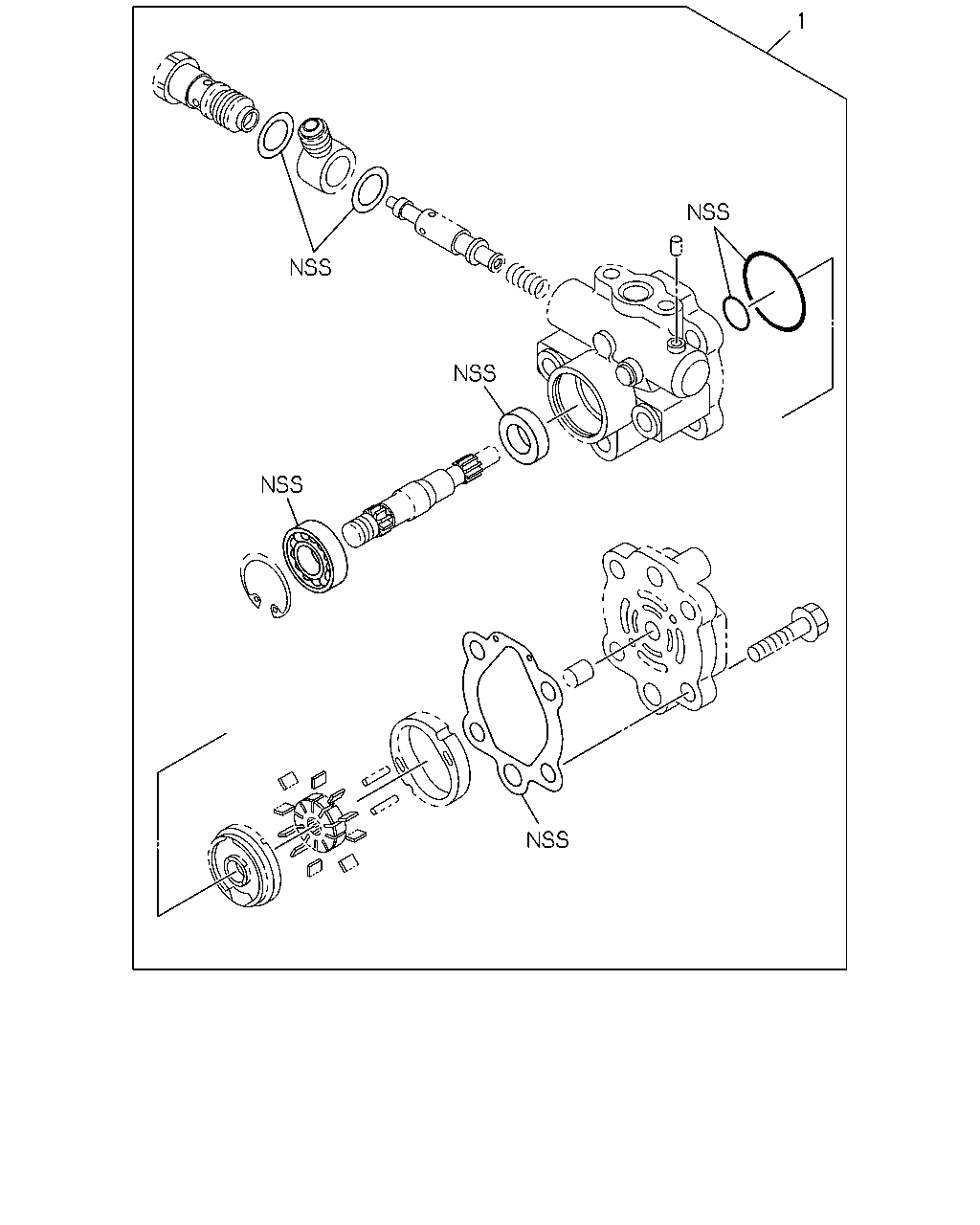

çizim 431905
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-98219-134-0 01 1 -

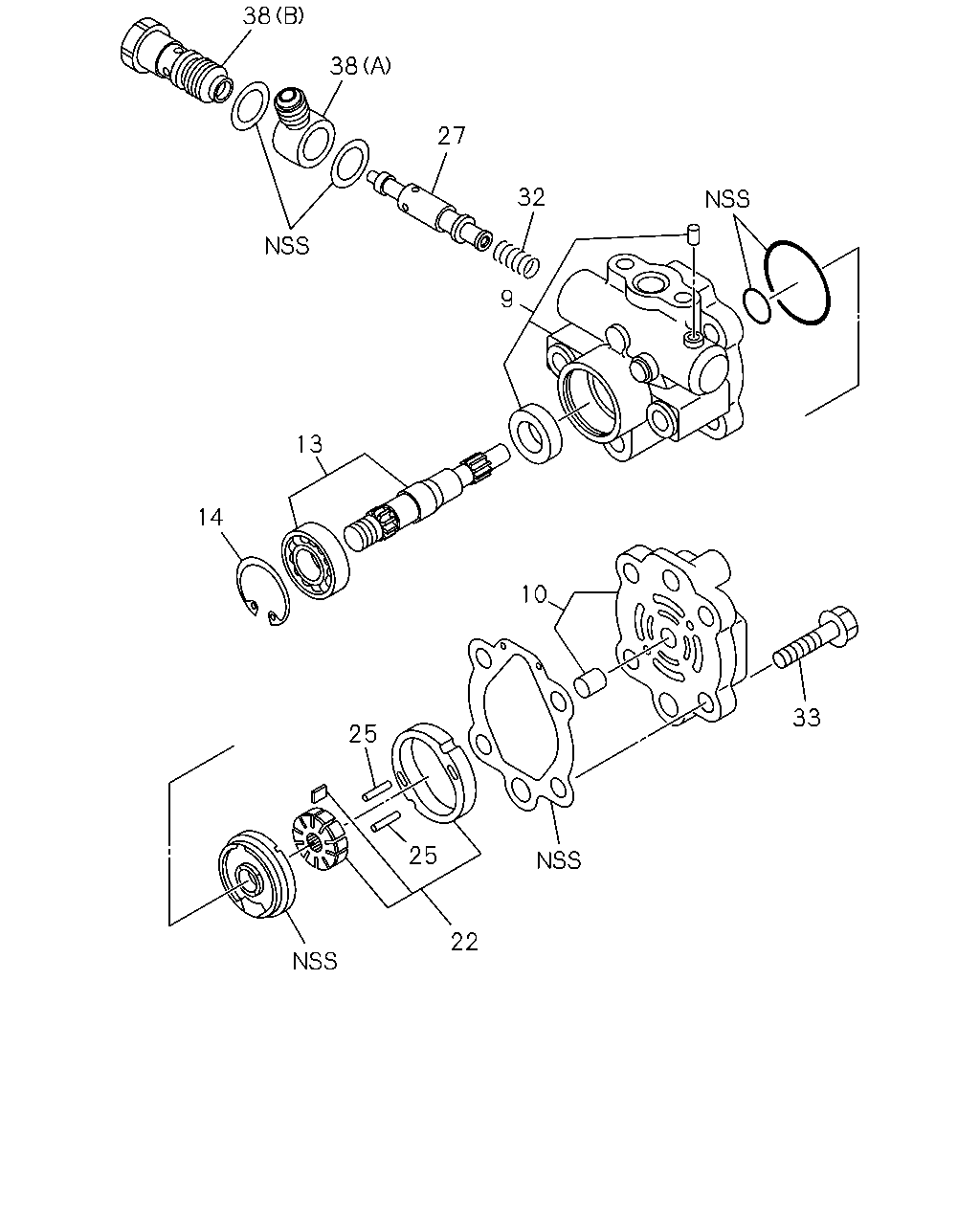

çizim 433149
38 38 27 32 9 13 14 10 33 25 25 22
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-98219-140-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-98219-142-0 01 1 -
13 06.605 SHAFT KIT; RET
ASM PART: A = 8-98217-772-0, 98217772 		8-98219-139-0 01 1 -
14 06.616 RING; RET,OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-97064-620-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-97357-499-0 01 1 -
25 06.608 PIN; HSG,P/S
ASM PART: A = 8-98217-772-0, 98217772 		8-97081-859-0 02 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-98219-136-0 01 1 -
32 06.606 SPRING; OIL PUMP
ASM PART: A = 8-98217-772-0, 98217772 		8-97064-987-0 01 1 -
33 06.606 BOLT; COVER
ASM PART: A = 8-98217-772-0, 98217772 		8-97081-847-0 04 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-98217-772-0, 98217772 		8-98219-135-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-98217-772-0, 98217772 		8-98219-137-0 01 1 -
