4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#145614) — 62 parça

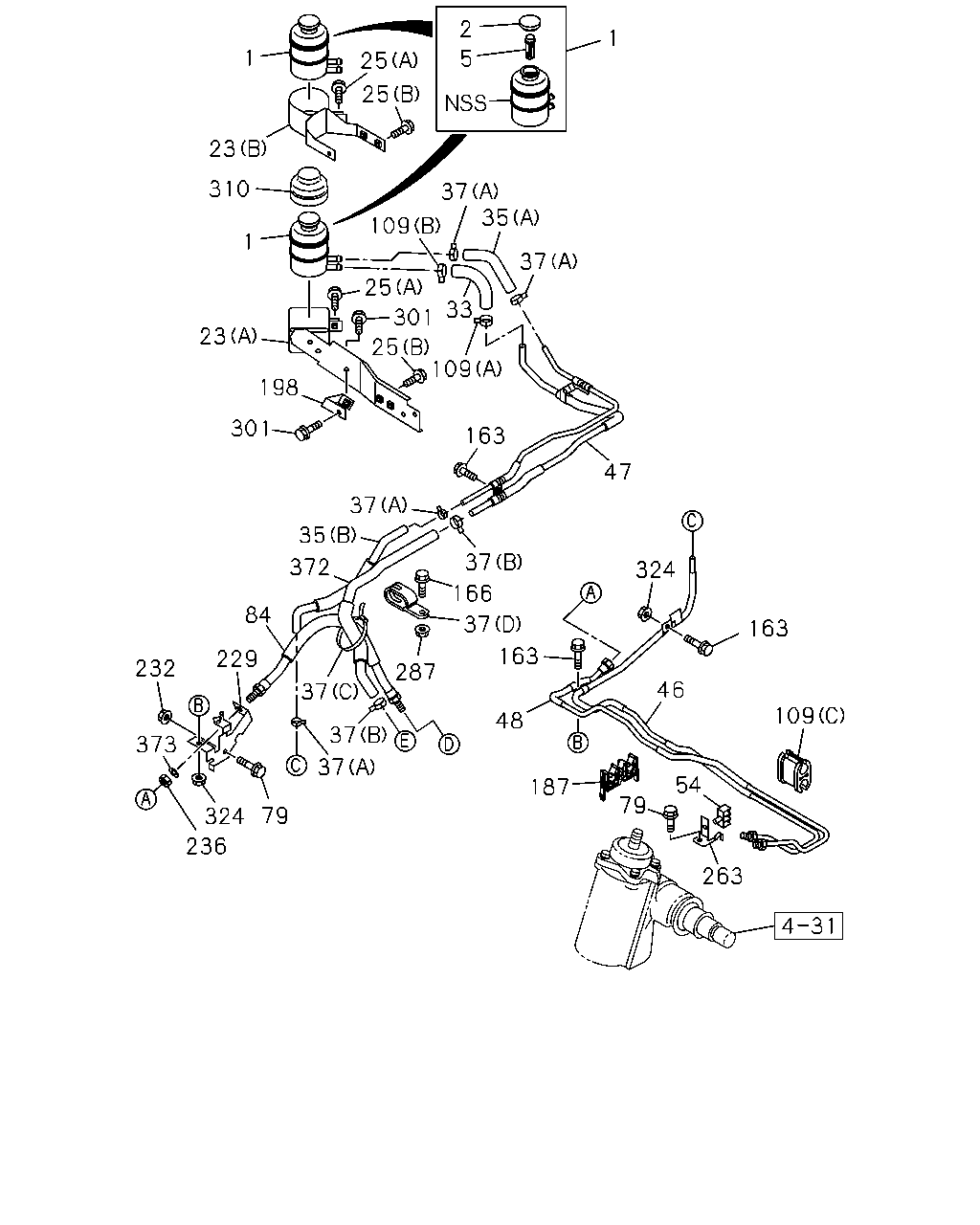

çizim 432477
2 1 5 1 23 310 1 25 25 109 37 37 35 33 301 25 23 25 163 301 198 109 37 35 372 84 229 232 373 236 37 79 37 37 287 48 187 163 37 37 166 324 163 46 109 263 54 79 47 324
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.635 TANK ASM; OIL,P/S 8-97107-987-0 01 1 1407- ● ● ●
2 06.672 CAP; OIL TANK,P/S
06.635 		8-94146-153-2 01 1 1407- ● ● ●
5 06.600 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 1407- ● ● ●
23 06.672 BRACKET; OIL TANK,P/S
(A) 		8-98053-625-2 01 1 1407- ● ●
23 06.672 BRACKET; OIL TANK,P/S
(B) 		8-98001-427-3 01 1 1407- ●
25 06.635 BOLT; OIL TANK BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1407- ● ●
25 06.635 BOLT; OIL TANK BRKT
00.785 (A) M6X20 FLANGE 		0-28450-620-0 01 1 1407- ● ● ●
25 06.635 BOLT; OIL TANK BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1407- ●
33 06.672 HOSE; RUBBER,POWER STRG 8-98054-267-0 01 1 1407- ● ●
33 06.672 HOSE; RUBBER,POWER STRG 8-97389-811-0 01 1 1407- ●
35 06.671 HOSE; RETURN,P/S TANK
(B) 		8-98252-438-0 01 1 1407- ● ● ●
35 06.671 HOSE; RETURN,P/S TANK
(A) 		8-98054-265-0 01 1 1407- ● ● ●
37 01.762 CLIP; HOSE,P/S
03.162 (A) ID=16 		8-98008-098-0 02 1 1407- ● ● ●
37 01.762 CLIP; HOSE,P/S
03.162 (A) ID=16 		8-98008-098-0 02 1 1407- ● ● ●
37 01.762 CLIP; HOSE,P/S
08.846 (D) ID=24X2 L=25 		1-09700-710-0 01 1 1407- ● ● ●
37 01.762 CLIP; HOSE,P/S
02.559 (C) L=250 		5-09707-030-1 01 1 1407- ● ● ●
37 01.762 CLIP; HOSE,P/S
04.681 (B) ID=21 		8-98150-355-0 02 1 1407- ● ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
L=1645 		8-98139-948-0 01 1 1407- ● ● ●
47 06.671 PIPE; RETURN 8-98252-321-0 01 1 1407- ● ●
47 06.671 PIPE; RETURN 8-98252-324-0 01 1 1407- ●
48 06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98063-666-1 01 1 1407- ● ● ●
54 06.672 CLIP; OIL PIPE
04.128 ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1407- ● ● ●
79 06.672 BOLT; BRKT
00.206 M8X20 W/LK WASHER 		0-50540-820-0 02 1 1407- ● ● ●
79 06.672 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
79 06.672 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
84 06.670 HOSE; FLEX,P/S 8-97358-341-0 01 1 1407- ● ● ●
109 06.672 CLIP; RUBBER HOSE
(C) ID=10X2 H=22 		8-94252-455-2 01 1 1407- ● ● ●
109 06.672 CLIP; RUBBER HOSE
03.278 (B) ID=22 		8-97359-141-0 01 1 1407- ● ● ●
109 06.672 CLIP; RUBBER HOSE
04.681 (A) ID=21 		8-98150-355-0 01 1 1407- ● ● ●
163 06.671 BOLT; OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1407- ● ● ●
166 06.672 BOLT; CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
187 03.162 CLIP; P/S OIL PIPE
04.930 ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 1407- ● ● ●
198 06.672 STAY; OIL TANK,POWER STEERING 8-98011-885-1 01 1 1407- ● ●
229 06.606 BRACKET; HOSE,POWER STRG 8-98063-795-1 01 1 1407- ● ● ●
232 06.672 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
236 06.672 NUT; FLEX HOSE,P/S PIPING
06.897 M16 		8-94370-339-0 01 1 1407- ● ● ●
263 06.672 BRACKET; P/S PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98063-136-0 01 1 1407- ● ● ●
287 06.672 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ● ●
301 06.672 BOLT; STAY,OIL TANK
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1407- ● ●
310 06.672 COVER; OIL TANK 8-97103-394-0 01 1 1407- ● ●
324 06.660 NUT; OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ● ● ●
372 06.673 HOSE; RUBBER 8-98252-437-1 01 1 1407- ● ● ●
373 06.673 WASHER; HOSE,P/S
06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 1407- ● ● ●
373 06.673 WASHER; HOSE,P/S
06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 1407- ● ● ●

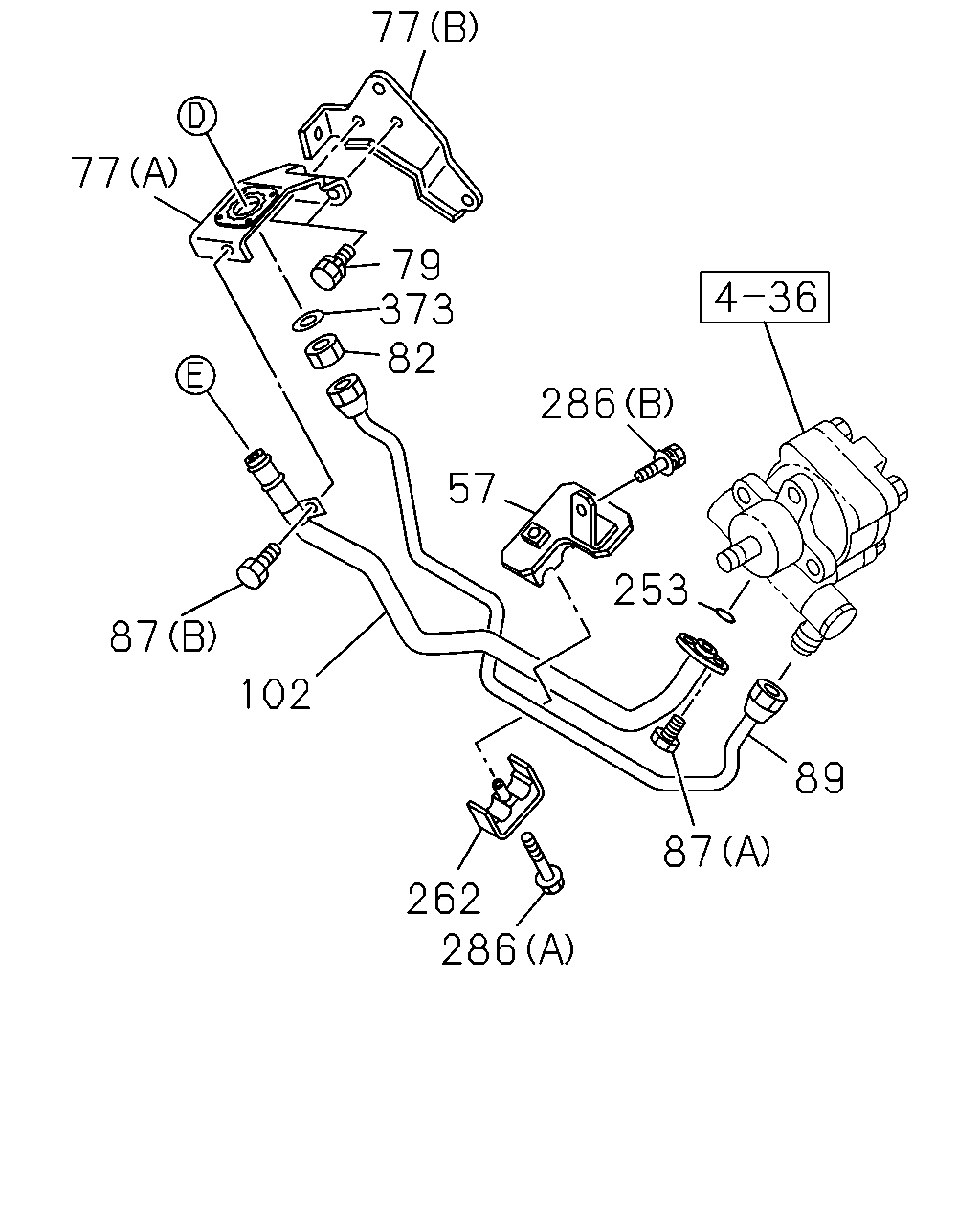

çizim 433176
77 77 79 373 82 286 253 89 87 262 286 102 87 57
BalonParca AdiParca NoAdetTipApplied Date A B C
57 06.672 BRACKET; POWER STRG PIPE 8-98274-177-0 01 1 1407-1412 ● ● ●
57 06.672 BRACKET; POWER STRG PIPE 8-97312-558-3 01 1 1501- ● ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(A) 		8-97208-424-0 01 1 1407- ● ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(B) 		8-97240-137-0 01 1 1407- ● ● ●
79 06.672 BOLT; BRKT
00.206 M8X20 W/LK WASHER 		0-50540-820-0 02 1 1407- ● ● ●
79 06.672 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
79 06.672 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ● ●
82 06.672 NUT; FLEX HOSE,P/S
06.897 M16 		8-94370-339-0 01 1 1407- ● ● ●
87 06.672 BOLT; POWER STRG PIPE
00.206 (B) M6X20 		8-94279-112-0 01 1 1407- ● ● ●
87 06.672 BOLT; POWER STRG PIPE
(A) M8X14 FLANGE 		8-98219-171-0 02 1 1407- ● ● ●
89 06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 8-98218-675-0 01 1 1407- ● ● ●
102 06.671 PIPE; SUCTION,P/S 8-98218-669-0 01 1 1407- ● ● ●
253 06.673 GASKET; OIL PIPE
06.609 ID=11.0 		9-09561-111-0 01 1 1407- ● ● ●
262 06.672 CLIP; P/S PIPE 8-97300-961-1 01 1 1407- ● ● ●
286 06.672 BOLT; CLIP,P/S HOSE
00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1407- ● ● ●
286 06.672 BOLT; CLIP,P/S HOSE
00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 1407- ● ● ●
373 06.673 WASHER; HOSE,P/S
06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 1407- ● ● ●
373 06.673 WASHER; HOSE,P/S
06.672 ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 1407- ● ● ●
