4-25 — REAR FINAL DRIVE (#145610) — 124 parça

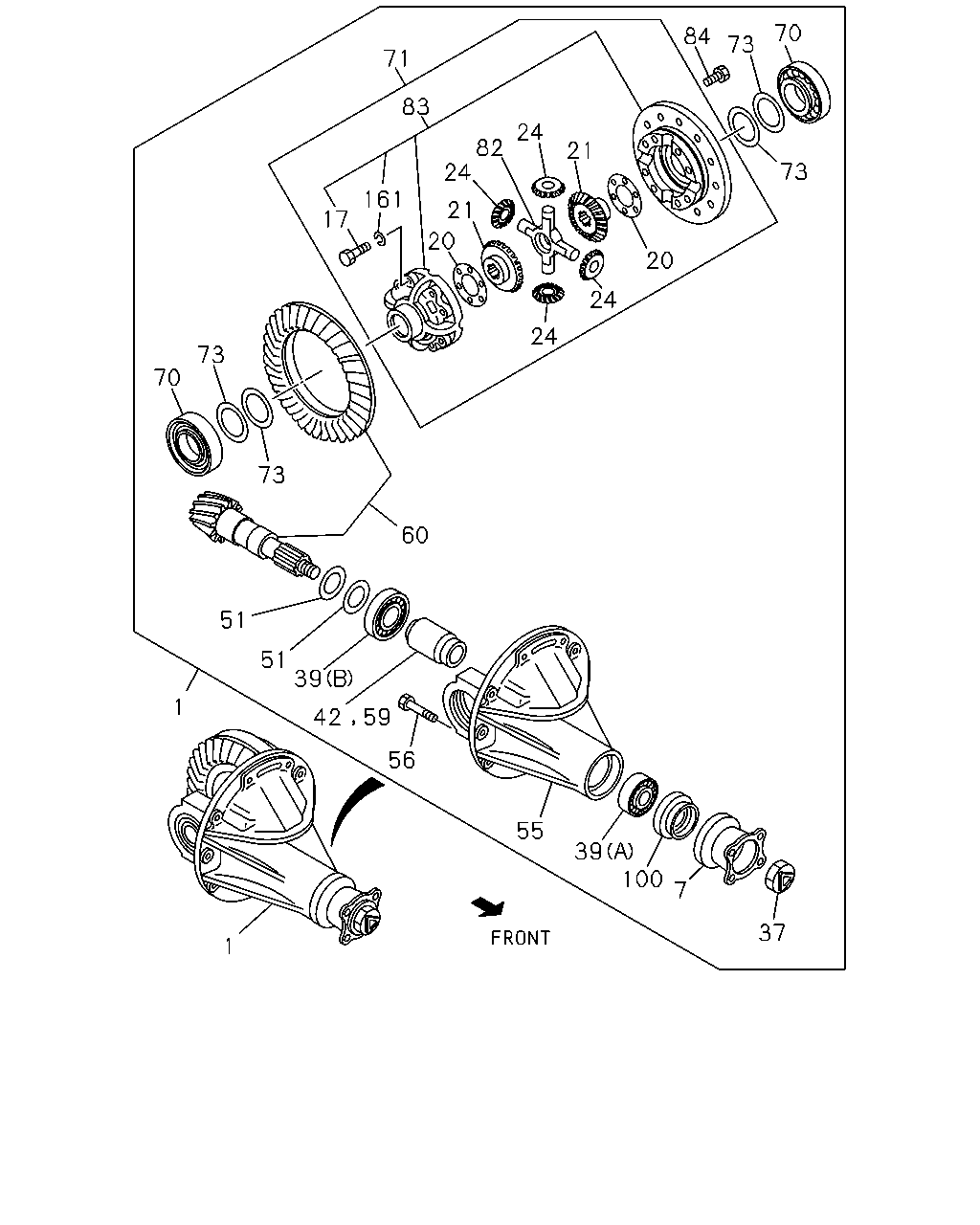

1 1 51 51 39 42 59 56 55 39 100 7 37 60 73 70 73 17 161 71 83 24 21 20 24 24 20 21 24 82 84 73 70 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97080-668-0	01	1	1407-1412	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97080-668-0	01	1	1501-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97367-499-0	01	1	1407-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98242-817-0	01	1	1407-			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-146-0	01	1	1407-			●
7	05.545 FLANGE; FINAL	8-97075-216-3	01	1	1407-	●	●
7	05.545 FLANGE; FINAL	8-94426-787-4	01	1	1407-			●
17	05.510 BOLT; DIFF CAGE SETTING 05.650 M12X58	8-97314-497-0	08	1	1407-	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1407-			●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1407-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1407-			●
21	05.528 GEAR; SIDE,DIFF Z=18	8-98190-383-1	02	1	1407-	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1407-			●
24	05.526 GEAR; PINION,DIFF Z=10	8-98186-829-0	04	1	1407-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1407-			●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1407-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1407-			●
39	05.484 BEARING; FINAL PINION (A) NSK	9-00093-078-0	01	1	1407-	●	●
39	05.484 BEARING; FINAL PINION 05.447 (B) JTEKT	9-00093-079-1	01	1	1407-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/8(RV9) L=53.35	9-41219-634-1	01	1	1407-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1407-			●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.12	9-41219-608-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.16	9-41219-610-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.20	9-41219-612-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.24	9-41219-614-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.28	9-41219-616-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.32	9-41219-618-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.36	9-41219-620-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.40	9-41219-622-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.44	9-41219-624-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.48	9-41219-626-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.52	9-41219-628-0	01	1	1407-	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.56	9-41219-630-0	01	1	1407-	●	●
55	05.505 CARRIER; DIFF	8-94376-227-3	01	1	1407-	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1407-			●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1407-	●	●	●
59	05.422 SPACER; FINAL PINION FINAL GEAR RATIO 41/8(RU1) 05.453 L=53.35	9-41219-634-1	01	1	1407-1412	●
59	05.422 SPACER; FINAL PINION FINAL GEAR RATIO 41/8(RU1) 05.453 L=53.35	9-41219-634-1	01	1	1501-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1407-1412	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1501-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	1407-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1407-			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1407-			●
70	05.536 BEARING; DIFF CAGE JTEKT	8-98003-043-0	02	1	1407-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	1407-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1407-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 05.453	8-98191-996-1	01	1	1407-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1407-			●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	9-41519-009-0	AR	1	1407-	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	9-41519-010-0	AR	1	1407-	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	9-41519-601-0	AR	1	1407-	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.35	9-41519-602-0	AR	1	1407-	●	●
82	05.517 SPIDER; DIFF PINION	9-41521-611-0	01	1	1407-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1407-			●
83	05.510 CAGE ASM; DIFF	9-41510-610-0	01	1	1407-	●	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1407-			●
84	05.531 BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	1407-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1407-			●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1407-	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1407-			●
161	05.506 WASHER; LK 00.002 ID=12.2	0-91510-612-0	08	1	1407-	●	●

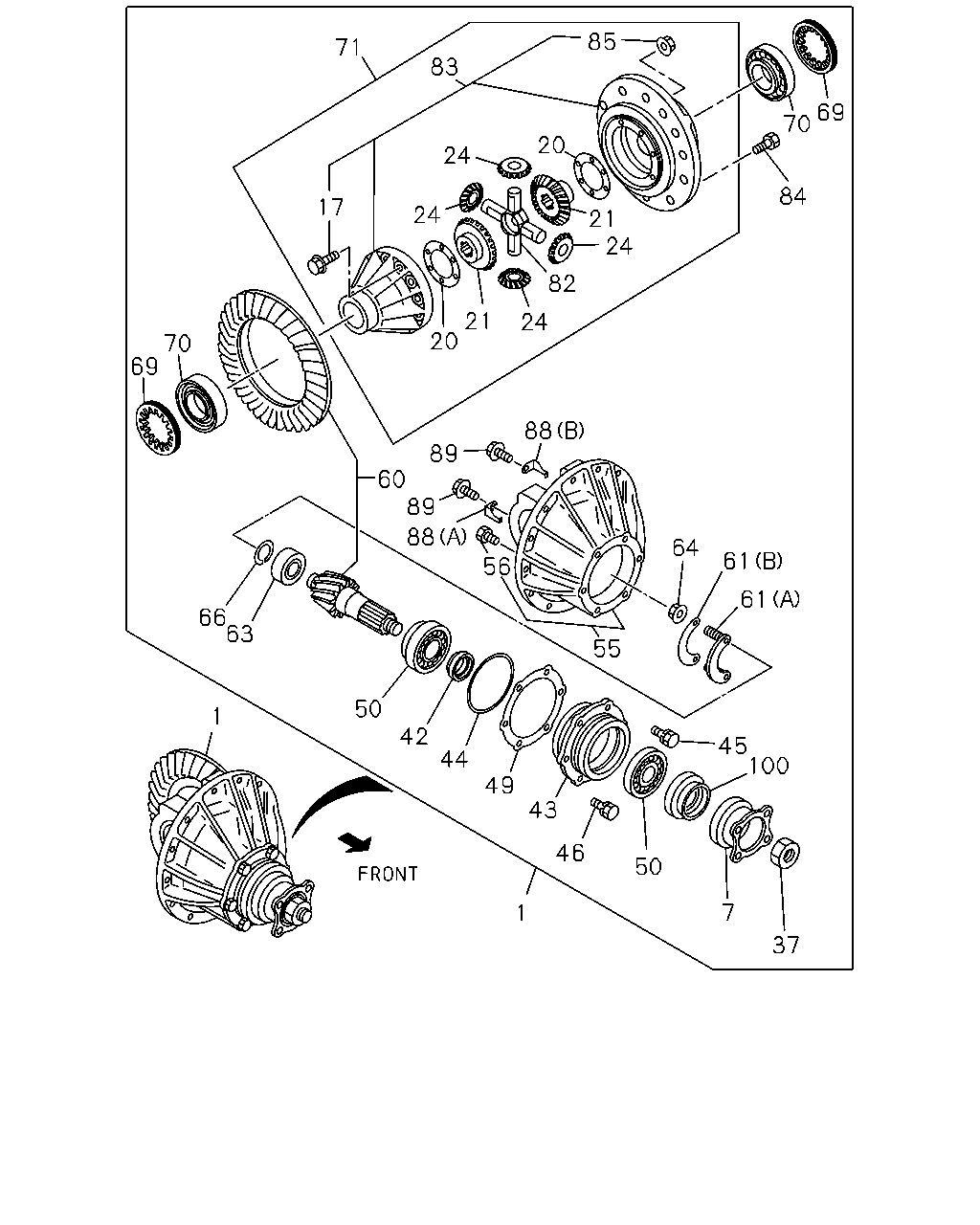

1 1 66 63 50 42 44 49 43 46 50 7 37 100 45 55 61 61 64 88 89 60 89 88 56 69 70 17 20 21 24 82 24 21 84 70 69 85 20 83 24 24 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97080-668-0	01	1	1407-1412	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97080-668-0	01	1	1501-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97367-499-0	01	1	1407-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98242-817-0	01	1	1407-			●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-146-0	01	1	1407-			●
7	05.545 FLANGE; FINAL	8-97075-216-3	01	1	1407-	●	●
7	05.545 FLANGE; FINAL	8-94426-787-4	01	1	1407-			●
17	05.510 BOLT; DIFF CAGE SETTING 05.650 M12X58	8-97314-497-0	08	1	1407-	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1407-			●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1407-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1407-			●
21	05.528 GEAR; SIDE,DIFF Z=18	8-98190-383-1	02	1	1407-	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1407-			●
24	05.526 GEAR; PINION,DIFF Z=10	8-98186-829-0	04	1	1407-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1407-			●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1407-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1407-			●
42	05.453 COLLAR; DIST,COLLAPSIBLE FINAL GEAR RATIO 39/8(RV9) L=53.35	9-41219-634-1	01	1	1407-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1407-			●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1407-			●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1407-			●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1407-			●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1407-			●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1407-			●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1407-			●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1407-			●
55	05.505 CARRIER; DIFF	8-94376-227-3	01	1	1407-	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1407-			●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1407-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1407-1412	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1501-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	1407-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1407-			●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1407-			●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1407-			●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1407-			●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1407-			●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1407-			●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1407-			●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1407-			●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1407-			●
70	05.536 BEARING; DIFF CAGE JTEKT	8-98003-043-0	02	1	1407-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	1407-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1407-			●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 05.453	8-98191-996-1	01	1	1407-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1407-			●
82	05.517 SPIDER; DIFF PINION	9-41521-611-0	01	1	1407-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1407-			●
83	05.510 CAGE ASM; DIFF	9-41510-610-0	01	1	1407-	●	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1407-			●
84	05.531 BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	1407-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1407-			●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1407-			●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1407-			●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1407-			●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1407-			●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1407-	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1407-			●
