0-51 — OIL PUMP AND OIL STRAINER (#14561) — 65 parça

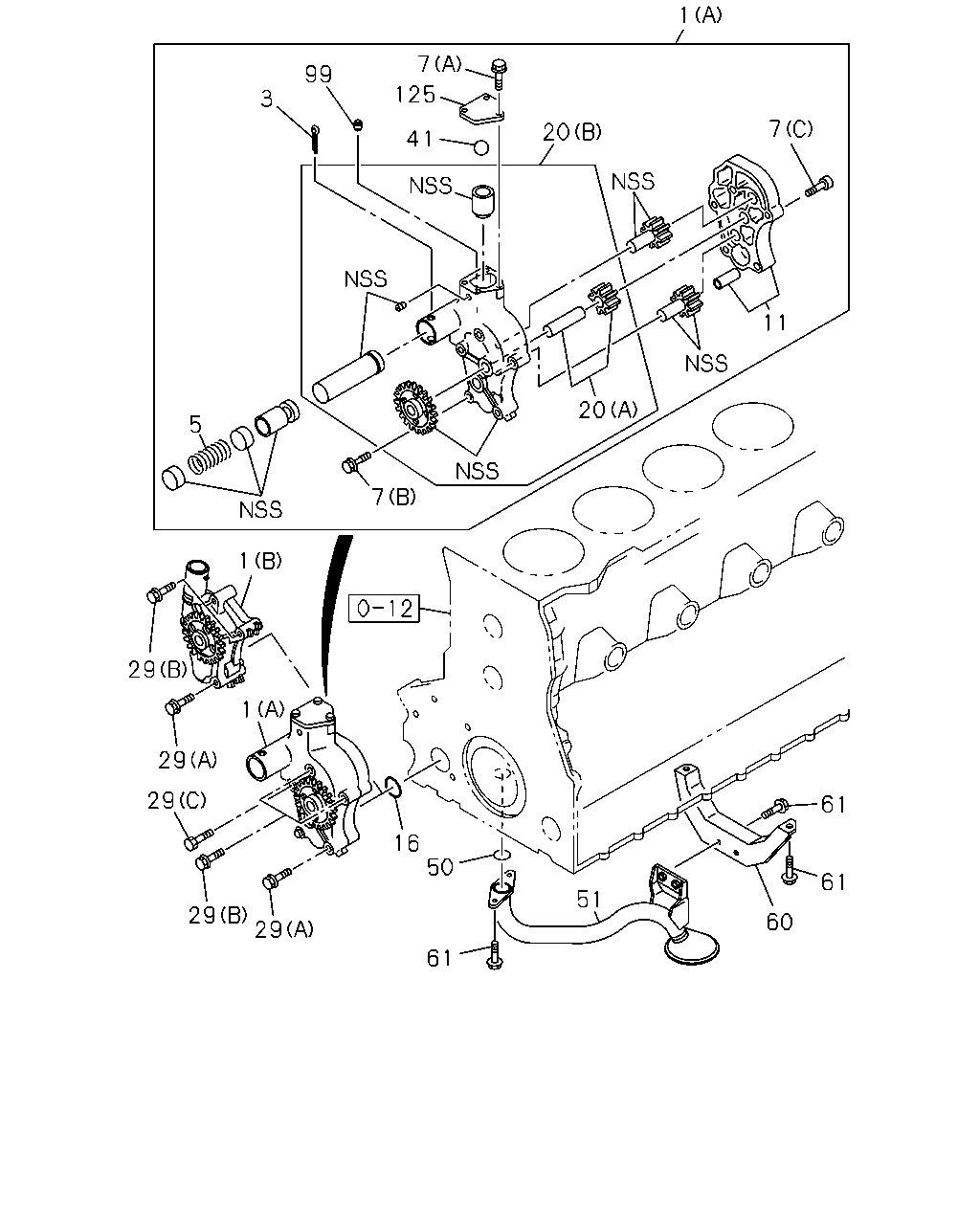

çizim 141463
1 7 20 41 125 7 99 3 5 1 7 1 29 29 29 29 29 61 50 16 51 60 61 61 11 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL
(A) 		1-13100-312-1 01 1 0710-1005 ●
1 PUMP ASM; OIL
(A) 		1-13100-312-1 01 1 1006-1107 ● ●
1 PUMP ASM; OIL
(A) 		1-13100-312-2 01 1 1108-1410 ● ● ●
1 PUMP ASM; OIL
(B) 		8-98276-988-0 01 1 1411- ● ● ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 0710-1005 ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 1006-1107 ● ●
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 1108-1410 ● ● ●
5 SPRING; COIL 1-09580-534-0 01 1 0710-1005 ●
5 SPRING; COIL 1-09580-534-0 01 1 1006-1107 ● ●
5 SPRING; COIL 1-09580-534-0 01 1 1108-1410 ● ● ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58310-835-0 02 1 0710-0805 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 0806-1005 ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 1006-1107 ● ●
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58330-835-0 02 1 1108-1410 ● ● ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 0710-1005 ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 1006-1107 ● ●
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 1108-1410 ● ● ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0710-1005 ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1006-1107 ● ●
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1108-1410 ● ● ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 0710-1005 ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 1006-1107 ● ●
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 1108-1410 ● ● ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0710-1005 ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 1006-1107 ● ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 1108- ● ● ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-080-0 01 1 0710-1005 ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-080-0 01 1 1006-1107 ● ●
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-080-0 01 1 1108-1410 ● ● ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-089-0 01 1 0710-1005 ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-089-0 01 1 1006-1107 ● ●
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-089-0 01 1 1108-1410 ● ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0710-1005 ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 1006-1107 ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 1108-1410 ● ● ●
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 02 1 1411- ● ● ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 0710-1005 ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 1006-1107 ● ●
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 1108-1410 ● ● ●
29 BOLT; OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 02 1 1411- ● ● ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 0710-1005 ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 1006-1107 ● ●
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 1108-1410 ● ● ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 0710-1005 ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 1006-1107 ● ●
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 1108-1410 ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 0710-1005 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 1006-1107 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=41.7 		1-09623-529-0 01 1 1108- ● ● ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 0710-1005 ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 1006-1107 ● ●
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 1108-1405 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-98260-260-0 01 1 1406- ● ● ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 0710-1005 ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 1006-1107 ● ●
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 1108- ● ● ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 0710-1005 ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 1006-1107 ● ●
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 1108- ● ● ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 0710-1005 ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 1006-1107 ● ●
99 PLUG; OIL PUMP 1-13163-002-0 01 1 1108-1410 ● ● ●
125 COVER; BALL 1-13163-004-0 01 1 0710-1005 ●
125 COVER; BALL 1-13163-004-0 01 1 1006-1107 ● ●
125 COVER; BALL 1-13163-004-0 01 1 1108-1410 ● ● ●
