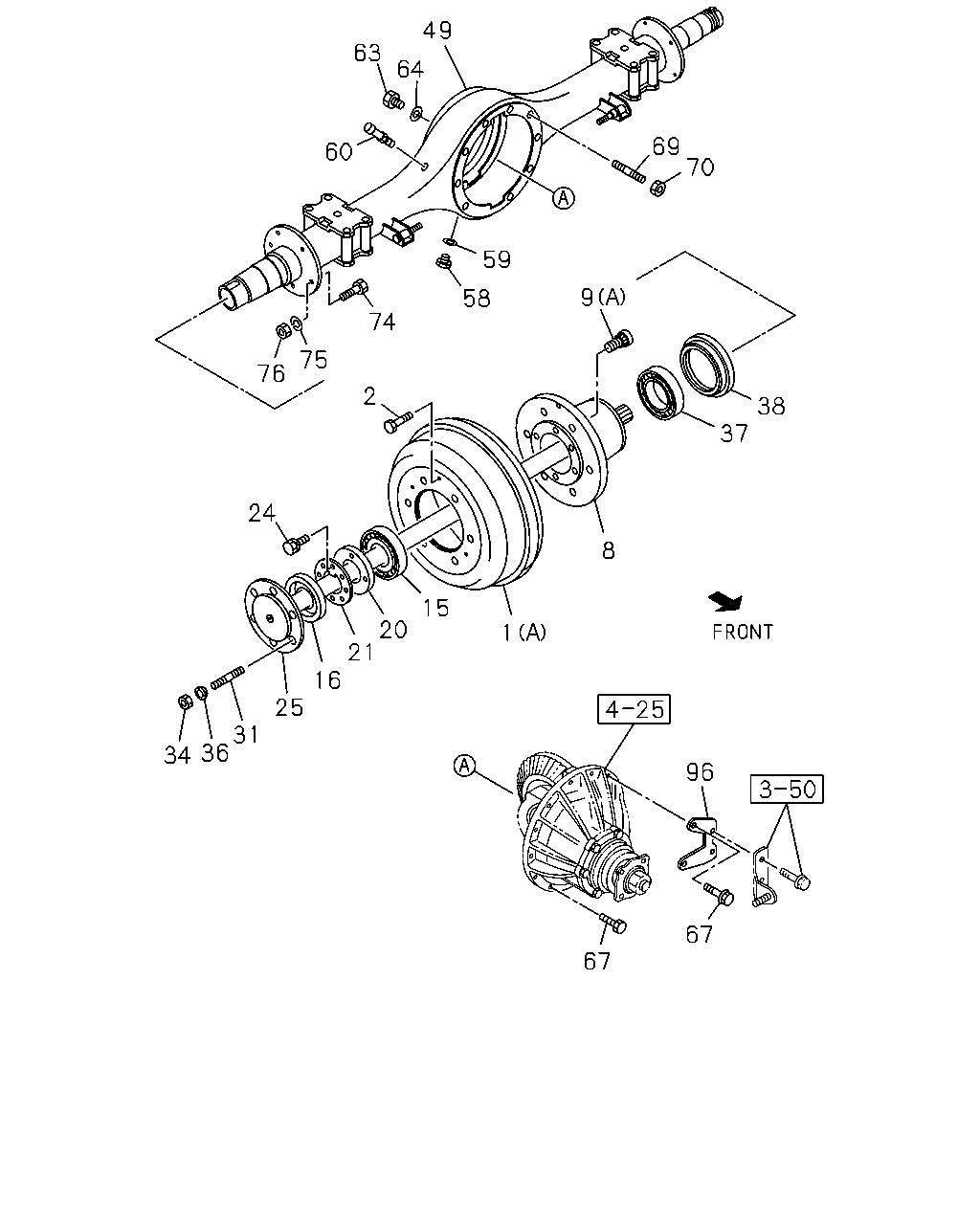

4-20 — REAR AXLE CASE AND SHAFT (#145609) — 94 parça

63 64 49 60 76 75 74 58 59 69 70 9 8 37 38 1 15 20 21 16 25 31 36 34 96 67 67 2 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR (A)	8-94455-285-2	02	1	1407-	●	●
1	05.809 DRUM; BRK,RR (B)	8-94382-884-4	02	1	1407-			●
2	05.812 BOLT; BRK DRUM 04.012 M6X18	0-20800-618-0	02	1	1407-	●	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1407-	●	●
8	05.809 HUB; RR AXLE	8-97026-139-3	02	1	1407-			●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1407-	●	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1407-	●	●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1407-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1407-			●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1407-	●	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1407-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1407-	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1407-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1407-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1407-1508	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1407-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1407-			●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1407-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1407-			●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1407-	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1407-			●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1407-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1407-			●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1407-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1407-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1407-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1407-	●	●	●
49	05.387 CASE; RR AXLE	8-97205-144-1	01	1	1407-	●	●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1407-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1407-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1407-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1407-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1407-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1407-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1407-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1407-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1407-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1407-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1407-	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1407-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1407-	●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1407-			●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1407-	●	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1407-			●
96	04.730 BRACKET; LSPV,AXLE CASE FINAL GEAR RATIO 41/8(RU1)	8-98030-957-0	01	1	1408-			●
96	04.730 BRACKET; LSPV,AXLE CASE	8-94368-449-2	01	1	1407-	●	●

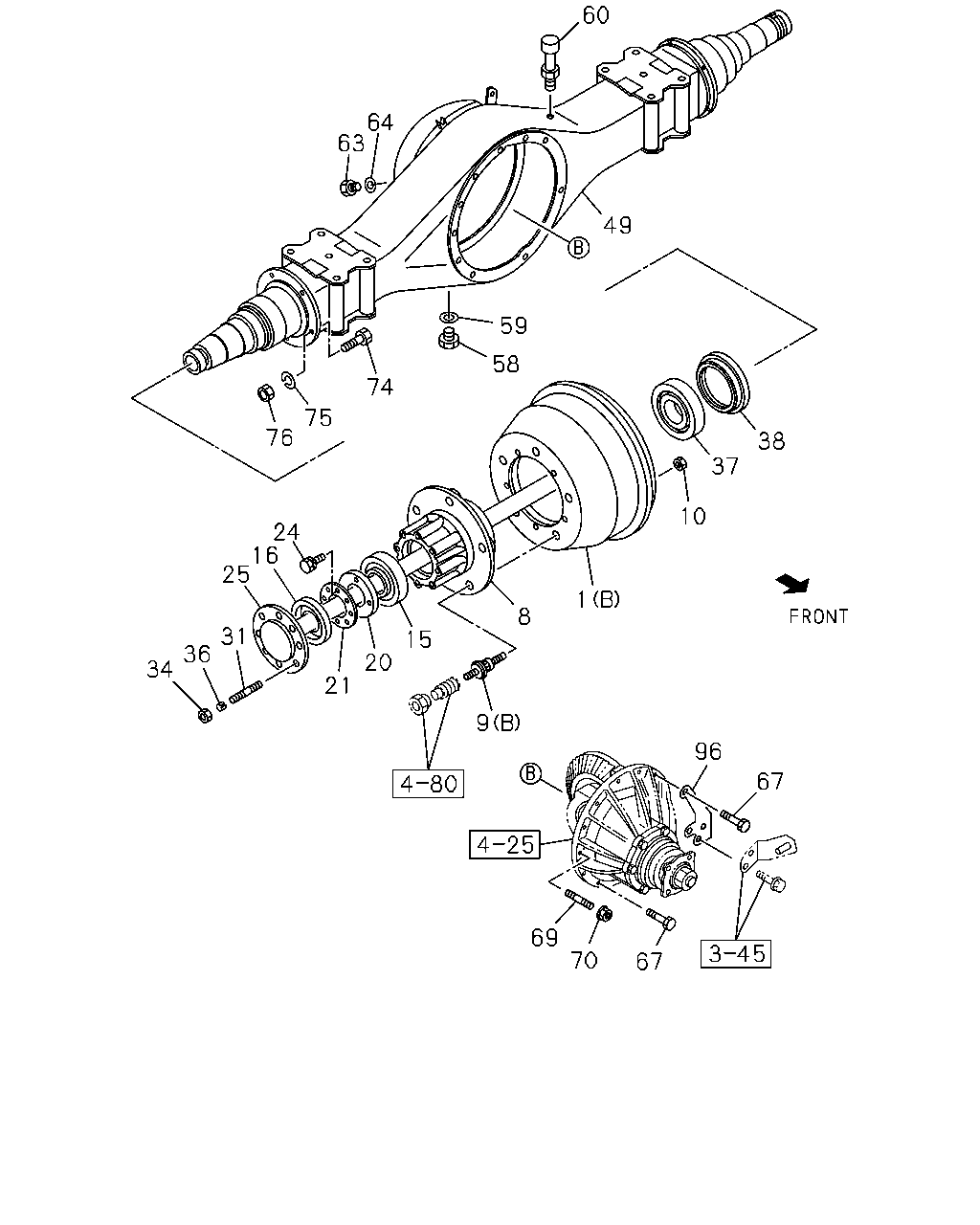

67 70 69 67 96 9 1 8 15 20 21 10 37 38 49 59 58 74 75 76 24 16 25 31 36 34 60 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR (A)	8-94455-285-2	02	1	1407-	●	●
1	05.809 DRUM; BRK,RR (B)	8-94382-884-4	02	1	1407-			●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1407-	●	●
8	05.809 HUB; RR AXLE	8-97026-139-3	02	1	1407-			●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1407-	●	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1407-	●	●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1407-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1407-			●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	1407-			●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1407-	●	●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1407-	●	●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1407-	●	●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1407-	●	●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1407-	●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1407-1508	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1407-	●	●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1407-			●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1407-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1407-			●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1407-	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1407-			●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1407-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1407-			●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1407-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1407-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1407-	●	●	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1407-	●	●	●
49	05.387 CASE; RR AXLE	8-97205-144-1	01	1	1407-	●	●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1407-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1407-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1407-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1407-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1407-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1407-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1407-	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1407-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1407-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1407-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1407-	●	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1407-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1407-	●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1407-			●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1407-	●	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1407-			●
96	04.730 BRACKET; LSPV,AXLE CASE FINAL GEAR RATIO 41/8(RU1)	8-98030-957-0	01	1	1408-			●
96	04.730 BRACKET; LSPV,AXLE CASE	8-94368-449-2	01	1	1407-	●	●
