4-11 — FRONT HUB AND DRUM OR ROTOR (#145608) — 23 parça

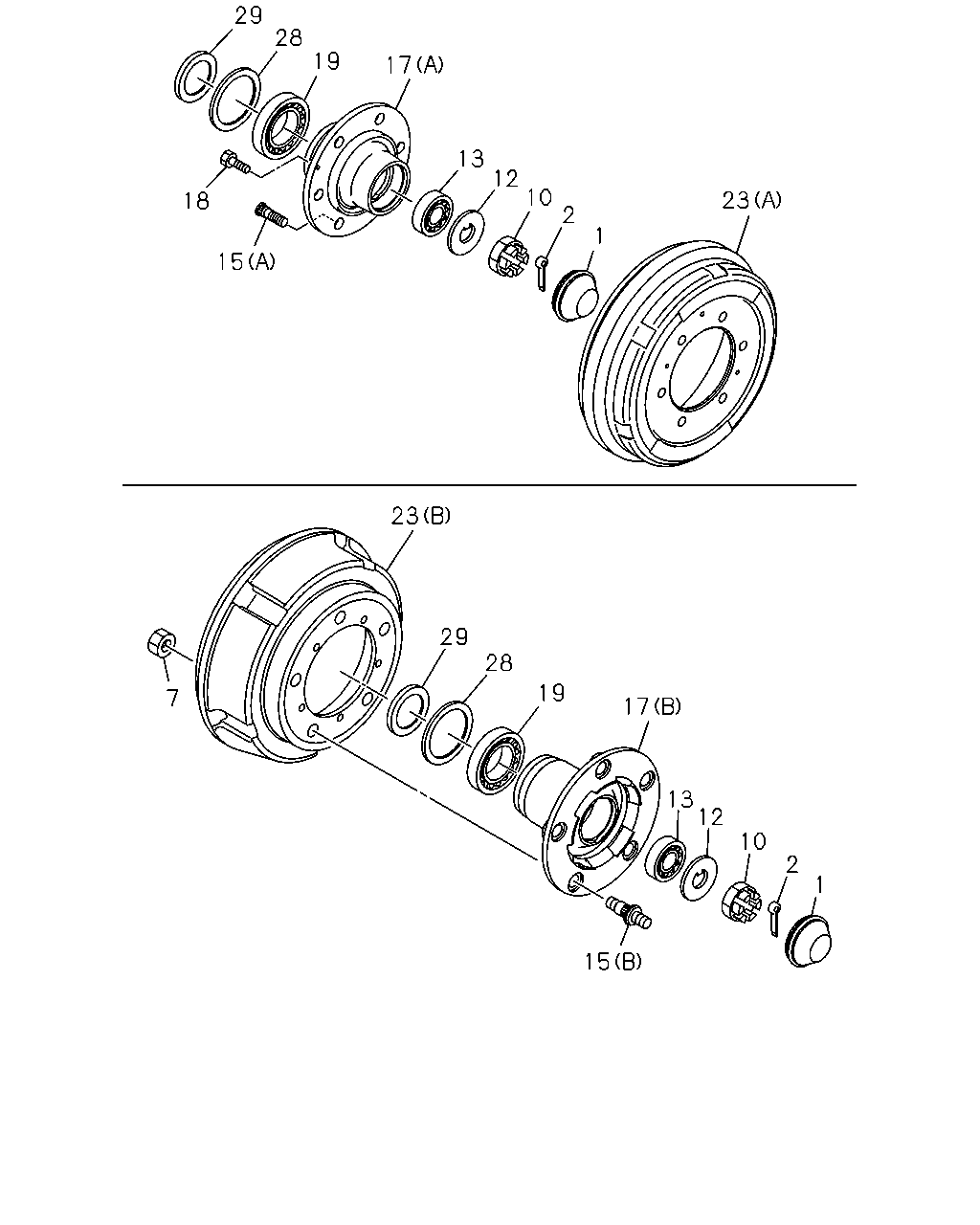

çizim 433319
1 2 10 12 13 17 19 28 29 18 15 23 29 28 19 17 13 12 10 2 1 7 15 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 1407-1407 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408-1511 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98331-242-0 02 1 1512- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 1407- ● ● ●
7 05.812 NUT; FRT HUB
M20 		0-91110-520-0 10 1 1407- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 1407- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 1407-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 1407- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 1407- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 RH THREAD 		9-42331-605-5 06 1 1407- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M14X50 LH THREAD 		9-42332-605-5 06 1 1407- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1407- ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1407- ●
17 06.307 HUB; FRT AXLE
(A) 		8-94420-597-1 02 1 1407- ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94365-459-0 02 1 1407- ●
18 06.022 BOLT; DRUM TO HUB
04.012 M6X18 		0-20800-618-0 02 1 1407- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1407- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1407- ● ● ●
23 05.809 DRUM; BRK,FRT
(A) 		8-98242-348-0 02 1 1407- ● ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97094-434-2 02 1 1407- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 1407- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 1407- ● ● ●
