◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#145607) — 51 parça

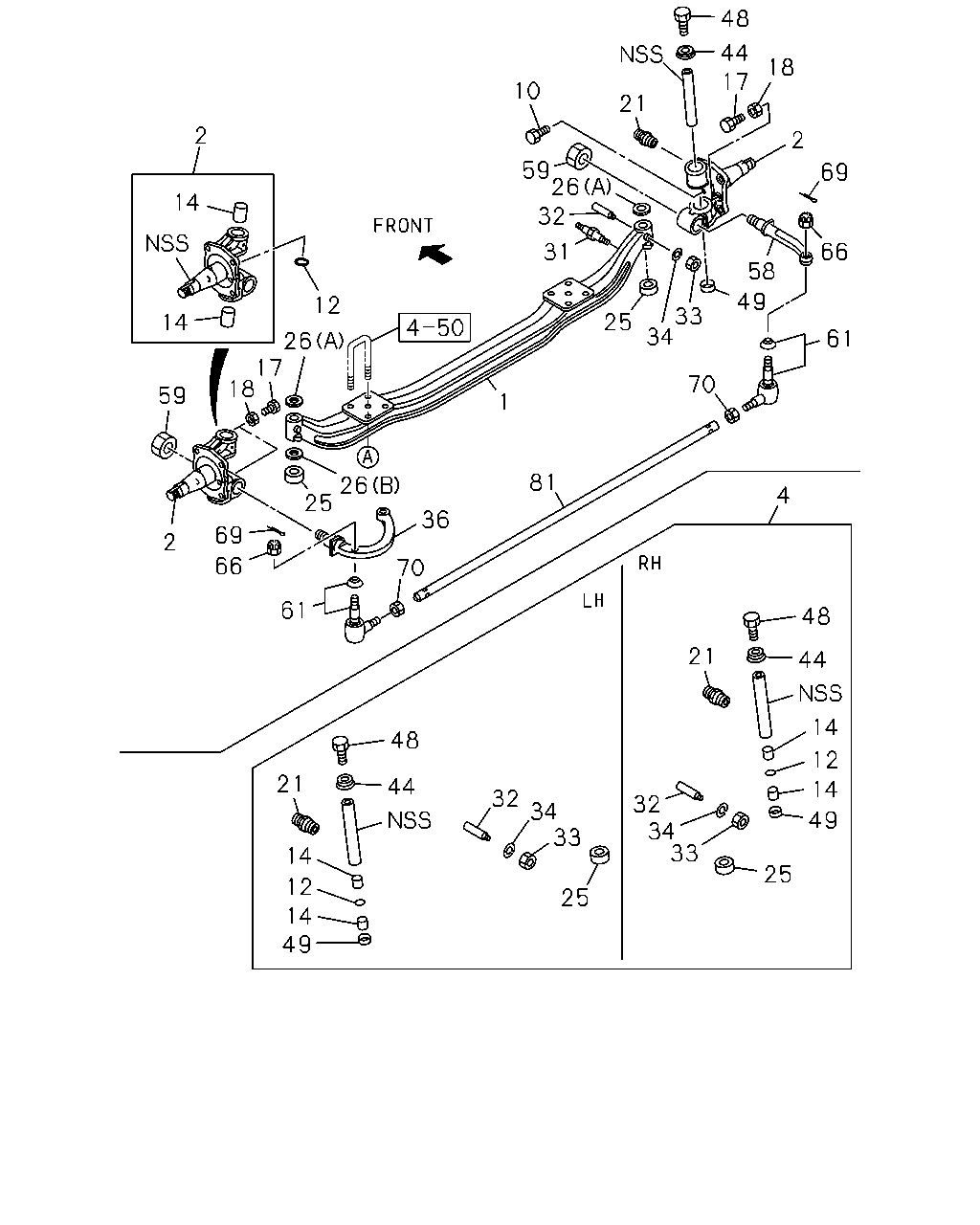

çizim 432583
2 14 14 12 26 17 18 59 2 66 61 69 70 25 26 36 81 1 34 33 70 4 61 49 58 66 69 2 18 17 44 48 21 10 59 31 21 48 44 14 12 14 49 25 33 34 32 21 48 44 14 12 14 49 25 33 34 32 26 32 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.008 AXLE; FRT 8-97262-000-4 01 1 1407- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 1407- ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 1407- ● ● ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1407- ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1407- ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1407- ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1407- ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1407- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-15-8 5.5FX15-115(57H), FRT&RR 7R-15-10 5.5FX15-115(58H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1407- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) M12X27.5 		8-98016-968-0 03 1 1407- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) M12X27.5 		8-98016-968-0 03 1 1407- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1407- ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1407- ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1407- ● ● ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1407- ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1407- ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 1407- ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1407- ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1407- ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1407- ● ● ●
36 06.103 ARM; KNUCKLE 8-97168-291-5 01 1 1407- ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1407- ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1407- ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1407- ● ● ●
58 06.103 ARM; TIE ROD 8-97168-292-1 01 1 1407- ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1407- ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1407- ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1407- ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1407- ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1407- ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1407- ● ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1407- ● ● ●
81 06.230 ROD; TIE 8-97142-024-0 01 1 1407- ● ● ●

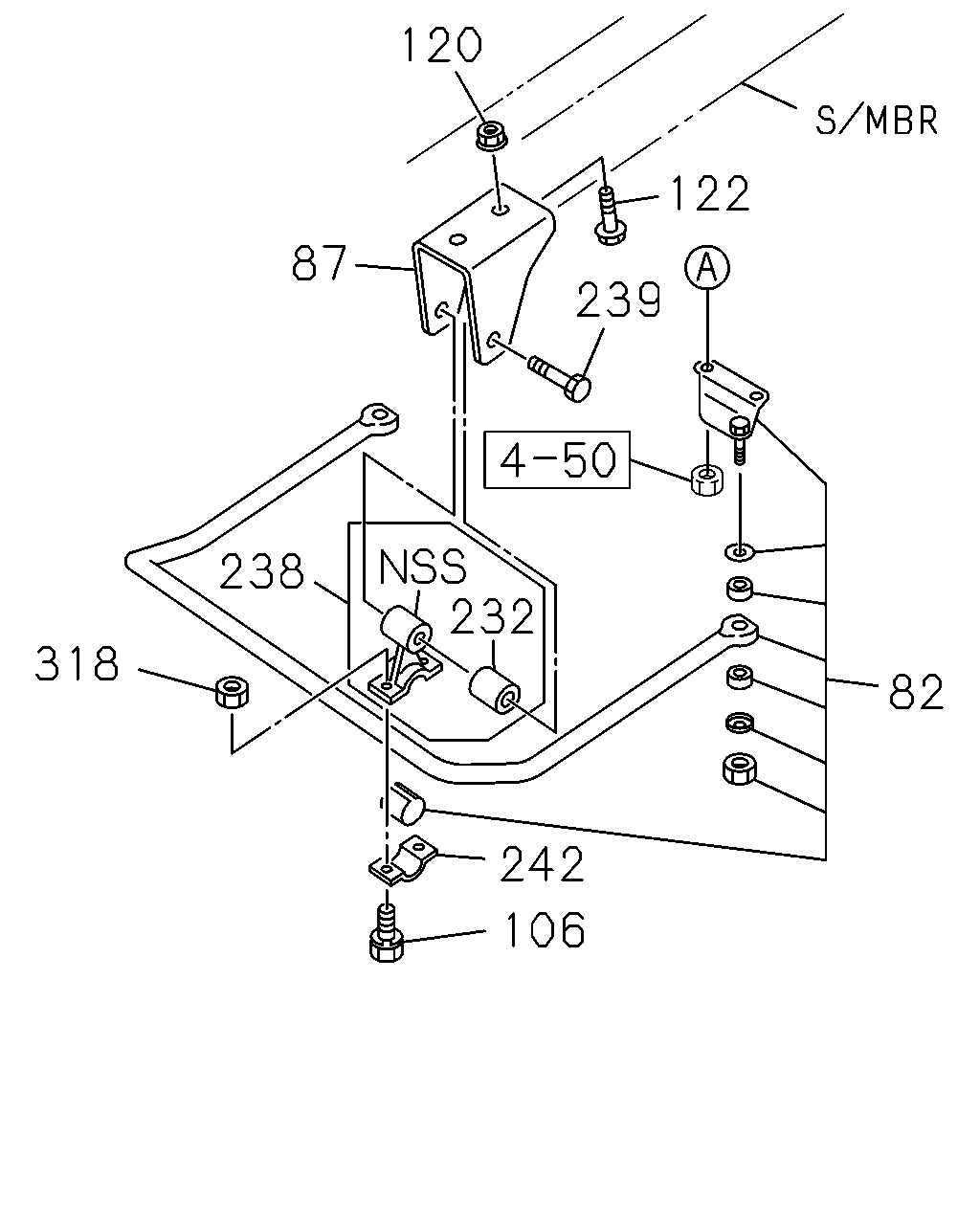

çizim 433206
122 239 120 87 238 318 242 106 82 232
BalonParca AdiParca NoAdetTipApplied Date A B C
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98002-084-2 01 1 1407- ● ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-506-0 01 1 1407- ● ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-507-0 01 1 1407- ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1407- ● ●
120 06.308 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> 05.816 M12 FLANGE 		0-91180-212-0 04 1 1407- ● ●
122 07.242 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> 06.509 M12X30 FLANGE 		0-28661-230-0 04 1 1407- ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1407- ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-908-0 02 1 1407- ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1407- ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1407- ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1407- ● ●
