4-01 — PROPELLER SHAFT (#145606) — 47 parça

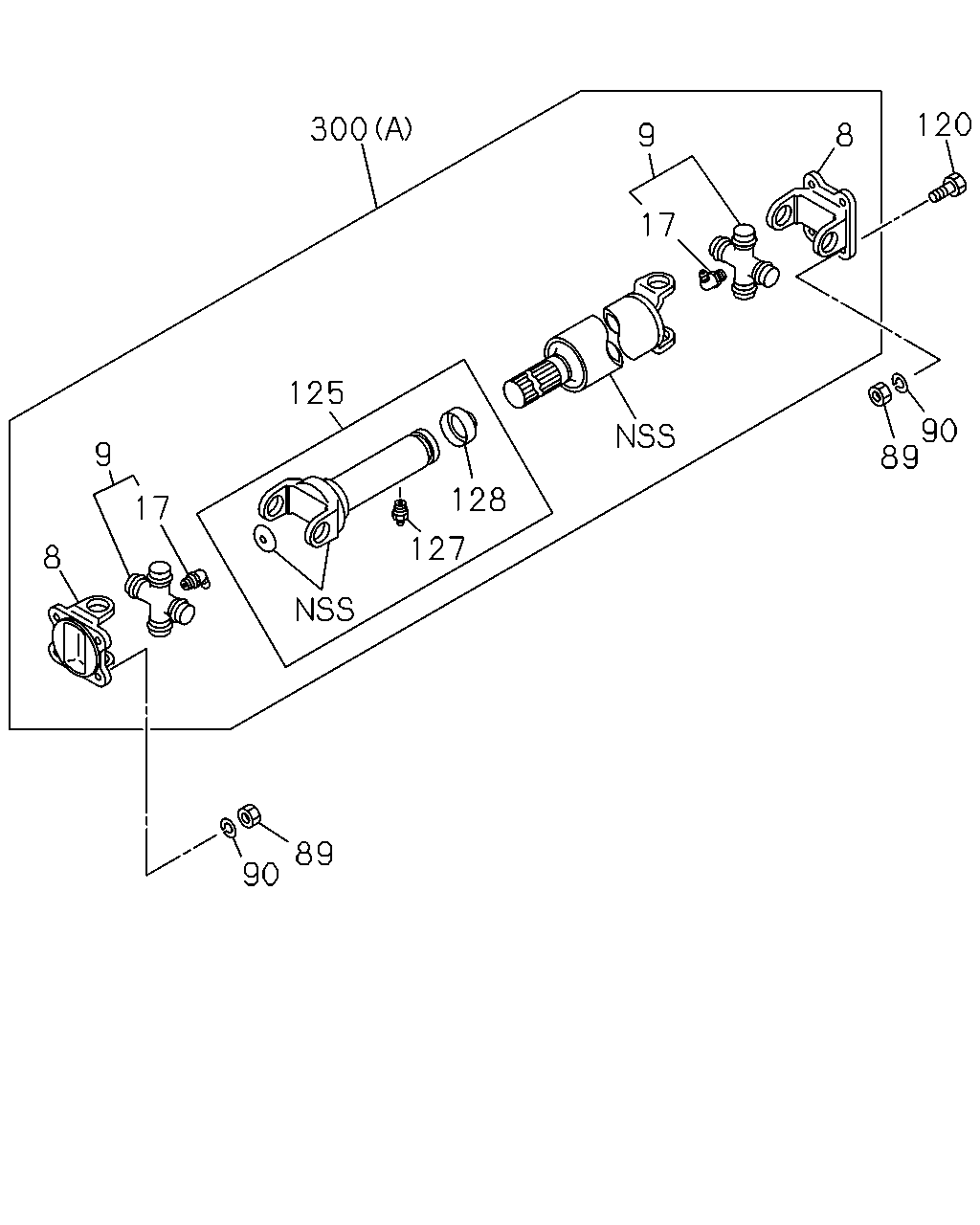

120 90 89 17 9 8 300 125 128 127 89 90 17 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	1407-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	8-97211-116-0	01	1	1407-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	1407-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-97211-135-0	01	1	1407-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1407-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10	8-98056-949-0	04	1	1407-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1407-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	04	1	1407-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1407-	●		●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2400MM(24W) M10X29	8-98056-948-0	04	1	1407-		●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	08	1	1407-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	1407-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1407-	●	●	●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	1407-	●	●	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-98002-490-0	01	1	1407-	●		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1407-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=914	8-97211-669-0	01	1	1407-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1044	8-98002-488-0	01	1	1407-		●

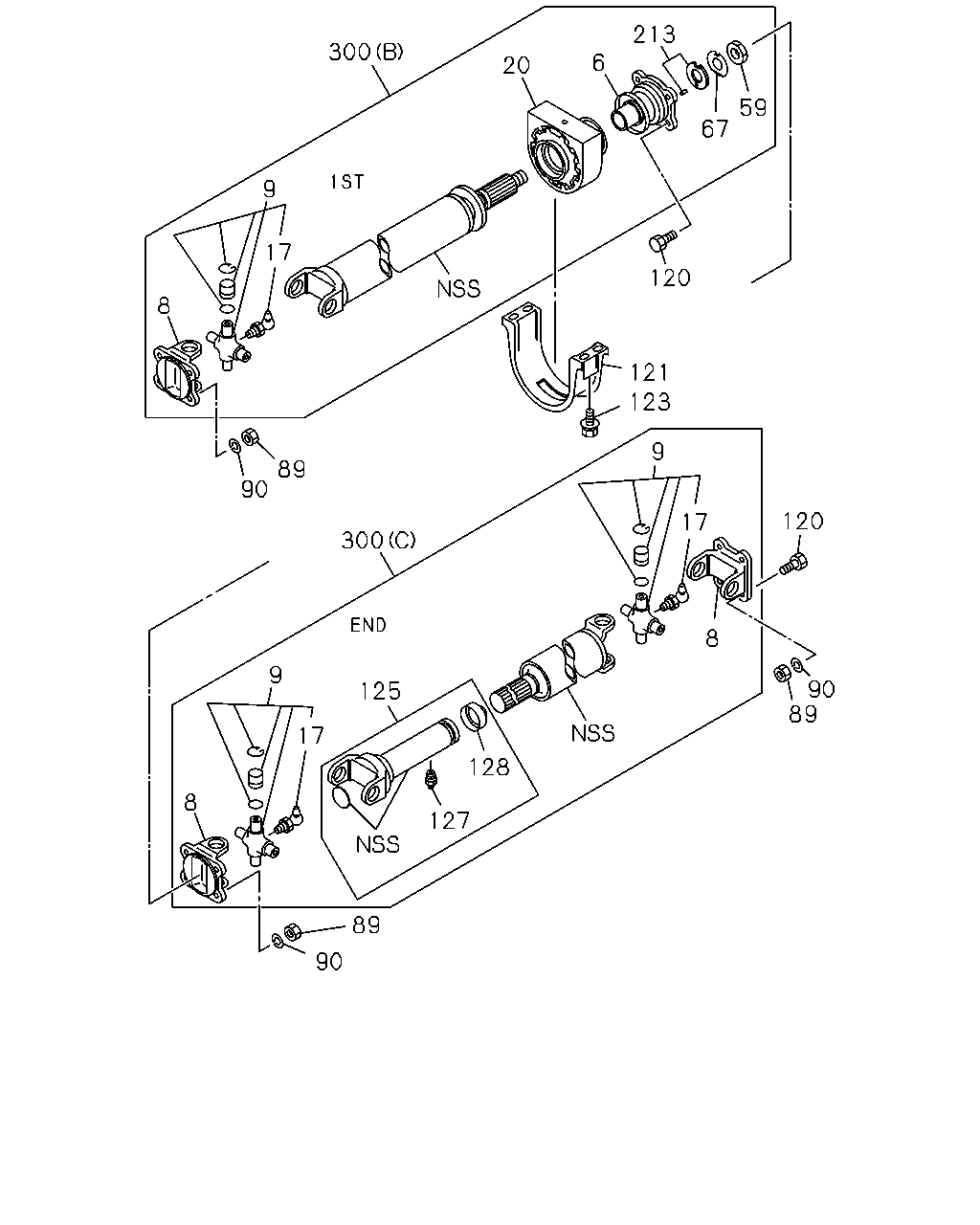

90 89 120 9 17 8 125 128 127 89 90 9 17 8 300 89 90 123 121 120 59 67 213 6 20 300 17 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT WHEEL BASE 3300MM(33W)	8-94258-907-1	01	1	1407-		●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	1407-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W)	8-97211-116-0	01	1	1407-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	1407-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-97211-135-0	01	1	1407-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1407-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) M6 STRAIGHT	0-90301-406-0	02	1	1407-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	1407-		●
59	05.586 NUT; RET TO SUPPORT WHEEL BASE 3300MM(33W) ID=20	9-09841-038-0	01	1	1407-		●
67	05.586 WASHER; PROP SHAFT TO COUPLING D WHEEL BASE 3300MM(33W) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	1407-		●
89	05.586 NUT; YOKE TO RR AXLE M10	8-98056-949-0	08	1	1407-	●	●	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10	8-98056-949-0	04	1	1407-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	0-91510-610-0	08	1	1407-	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	04	1	1407-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-98056-948-0	04	1	1407-	●		●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2400MM(24W) M10X29	8-98056-948-0	04	1	1407-		●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	08	1	1407-		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1407-		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1407-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=177	8-97211-131-0	01	1	1407-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1407-	●	●	●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	1407-	●	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI WHEEL BASE 3300MM(33W)	9-09855-212-0	01	1	1407-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-98002-490-0	01	1	1407-	●		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1407-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=914	8-97211-669-0	01	1	1407-		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1044	8-98002-488-0	01	1	1407-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
