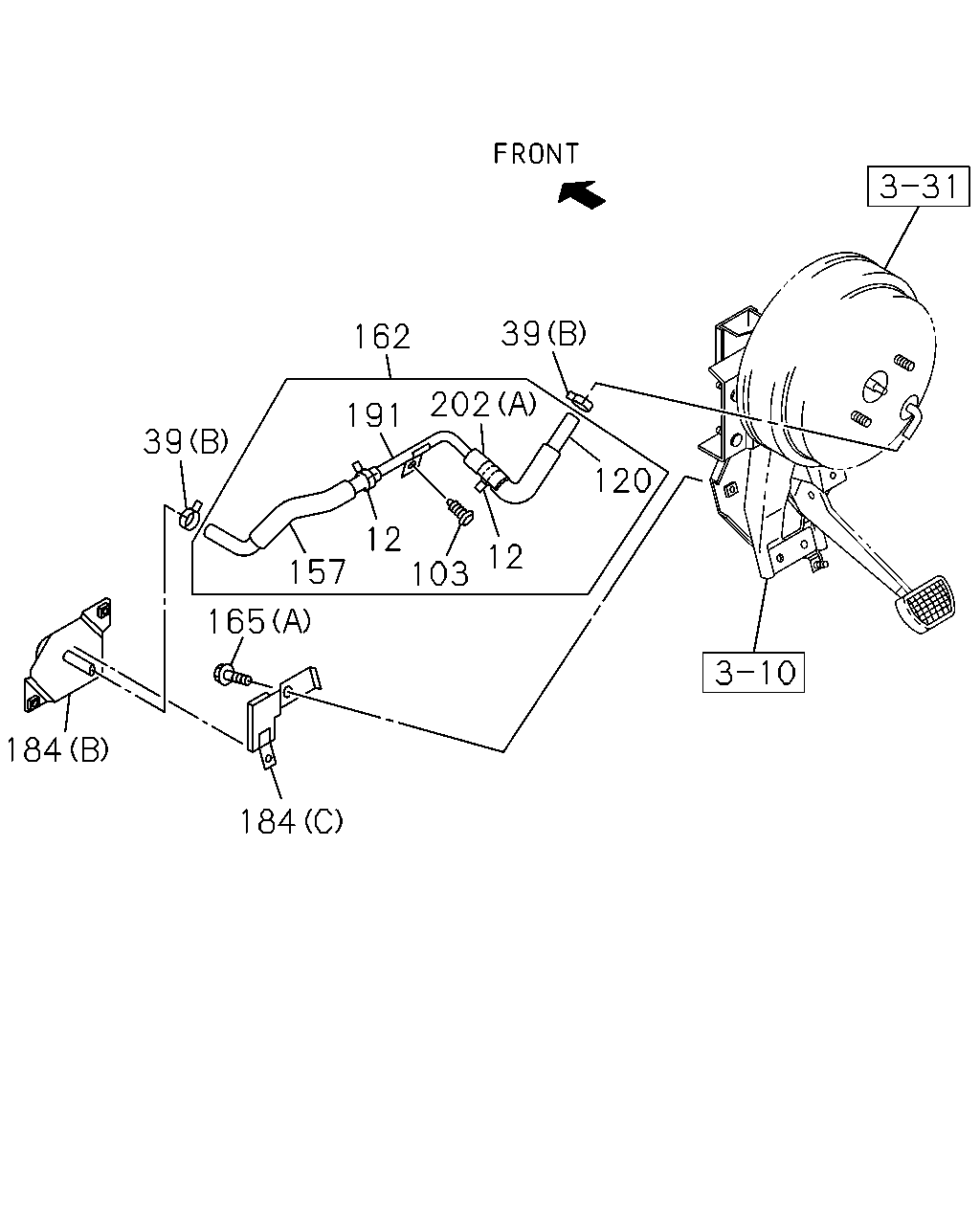

3-60 — BRAKE PIPING; VACUUM (#145605) — 85 parça

39 162 191 202 120 12 103 12 157 165 39 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	04	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1407-	●	●	●
103	04.930 CLIP; VAC PIPE	8-98194-958-0	01	1	1407-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE	8-98191-454-0	01	1	1407-	●	●	●
157	04.931 HOSE; JOINT	8-98191-466-0	01	1	1407-	●	●	●
162	04.931 HOSE; VAC	8-98191-465-1	01	1	1407-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1407-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-469-1	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1407-	●	●	●
191	04.685 PIPE; VAC	8-98192-099-0	01	1	1407-	●	●	●
202	04.686 SEAL (A)	1-72447-923-0	01	1	1407-	●	●	●
202	04.686 SEAL 08.845 (B)	8-97856-616-0	02	1	1407-	●	●	●

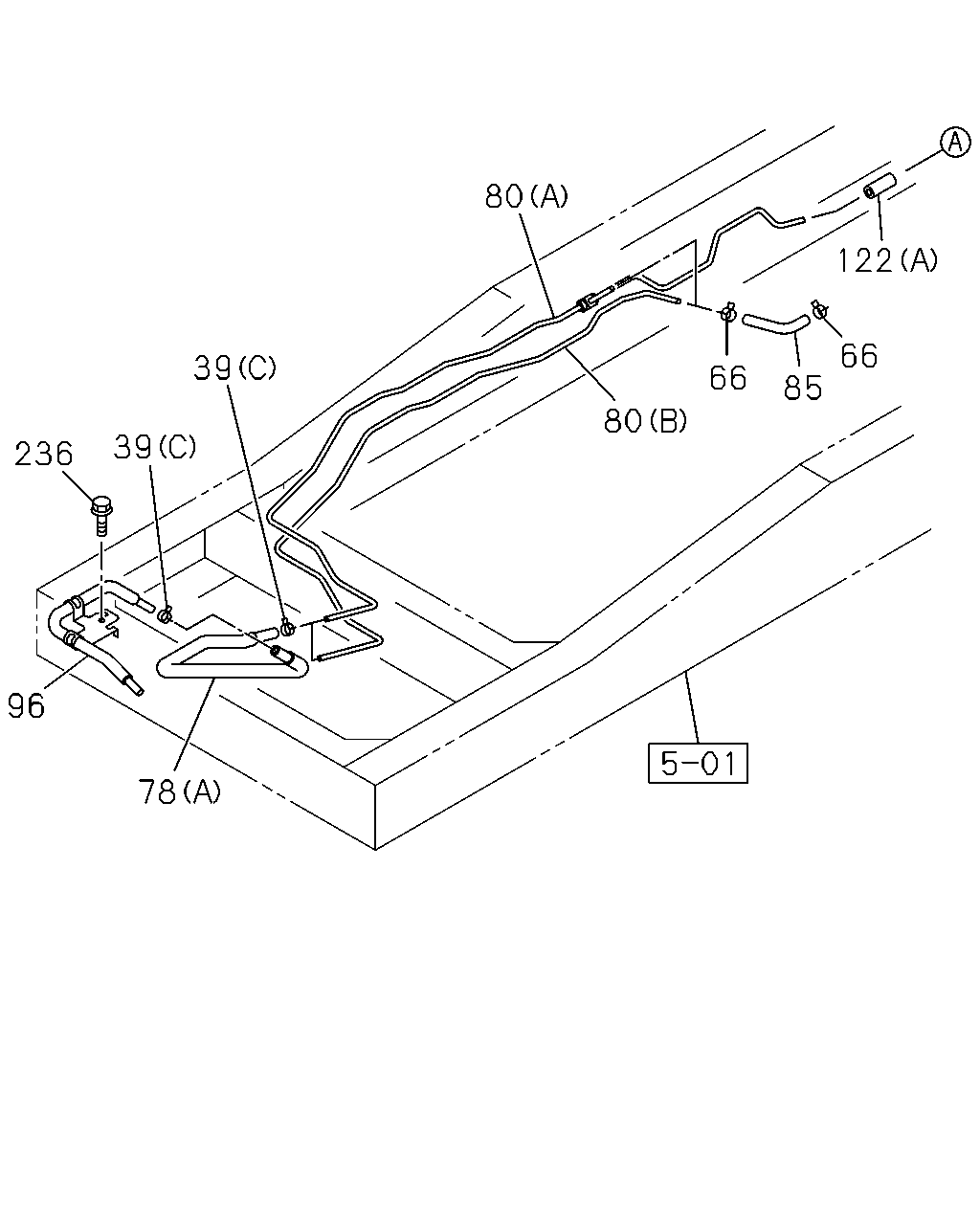

184 20 116 234 234 13 12 234 173 39 165 202 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	04	1	1407-	●	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	1407-	●	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1407-	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-98113-003-1	01	1	1407-	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1407-	●	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1407-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-98031-774-1	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-469-1	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-537-0	01	1	1407-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1407-	●	●	●
202	04.686 SEAL (A)	1-72447-923-0	01	1	1407-	●	●	●
202	04.686 SEAL 08.845 (B)	8-97856-616-0	02	1	1407-	●	●	●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	03	1	1407-	●	●	●

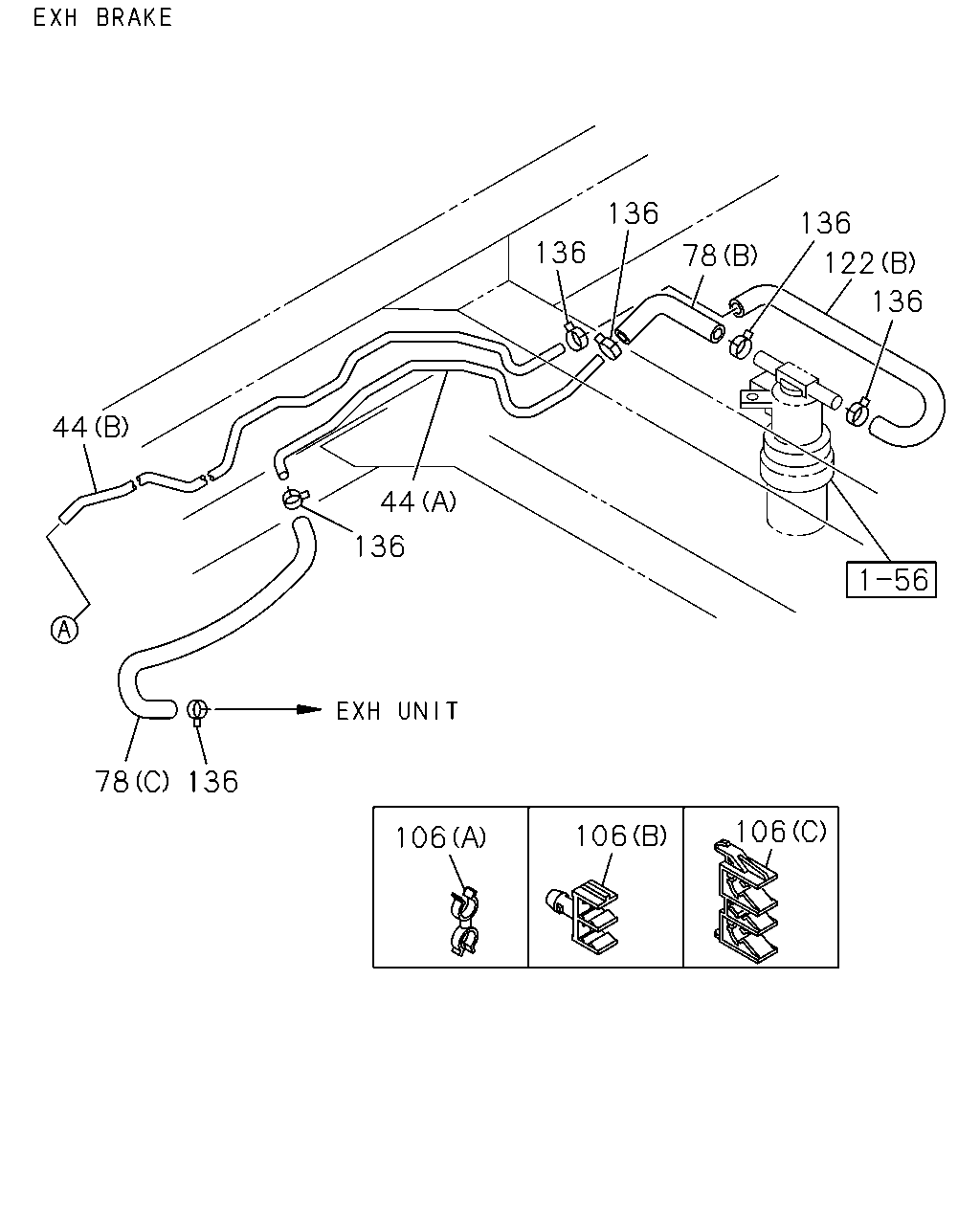

80 39 39 236 96 78 80 66 85 66 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	1407-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1407-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1407-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98225-336-0	01	1	1407-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98039-790-0	01	1	1407-	●		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-98039-790-0	01	1	1407-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1407-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-98116-951-0	01	1	1407-		●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> (A)	8-98259-765-1	01	1	1407-	●		●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-98259-765-1	01	1	1407-		●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98224-894-1	01	1	1407-	●		●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1407-	●		●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1407-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> (B)	8-98226-502-1	01	1	1407-	●		●
85	04.931 HOSE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB>	8-98255-708-0	01	1	1407-	●		●
85	04.931 HOSE; VAC,ENG SIDE	8-98255-708-0	01	1	1407-		●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEAVY DUTY FRAME<6WB> L=130	8-94438-246-0	01	1	1407-	●		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1407-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1407-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> (B)	8-97371-687-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-97371-687-0	01	1	1407-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98064-718-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-98063-388-0	01	1	1407-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1407-	●	●	●

136 136 78 136 122 136 44 136 44 78 136 106 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> (A)	8-98245-067-0	01	1	1407-	●		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-98245-067-0	01	1	1407-		●
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> (B)	8-98259-766-1	01	1	1407-	●		●
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (B)	8-98230-486-2	01	1	1407-	●		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-98257-998-1	01	1	1407-1511		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (B)	8-98257-998-1	01	1	1512-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A)	8-98245-066-1	01	1	1407-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-98259-767-1	01	1	1407-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (C)	8-98225-336-0	01	1	1407-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-98039-790-0	01	1	1407-	●		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-98039-790-0	01	1	1407-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1407-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-98116-951-0	01	1	1407-		●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	1407-	●	●	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	1407-	●	●	●
106	04.930 CLIP; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1407-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1407-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> (B)	8-97371-687-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B)	8-97371-687-0	01	1	1407-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98064-718-0	01	1	1407-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (B)	8-98063-388-0	01	1	1407-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1407-	●	●	●
