3-58 — FIXING PARTS; OIL PIPING (#145604) — 58 parça
çizim 432995
19 4 67 68
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407- ● ● ●
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1407- ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 03 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-98178-046-0 01 1 1407- ● ● ●

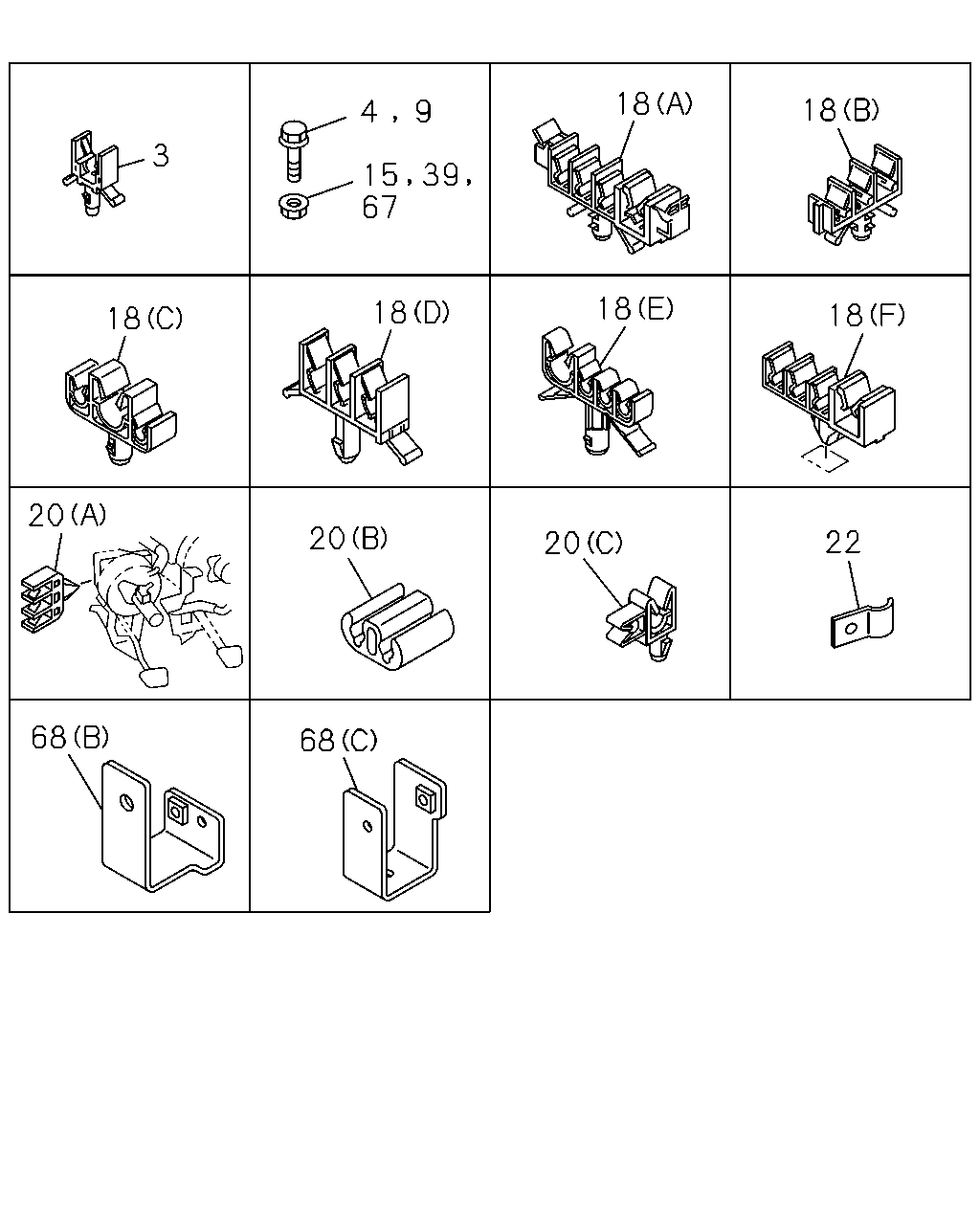

çizim 433048
3 18 20 68 68 20 18 15 4 9 39 67 18 18 20 22 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
3 04.685 CLIP; BRK PIPE
EXC. EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1407- ● ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1407- ● ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1407- ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1407-1407 ●
9 04.686 BOLT; BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1408-1408 ●
9 04.686 BOLT; BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1409- ●
9 04.686 BOLT; BRKT
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1409- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 06 1 1407- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 06 1 1407- ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1407-1407 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1407-1407 ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1408-1408 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1408-1408 ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1409- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1409- ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1407-1407 ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1408-1408 ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1408-1408 ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1409-1511 ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1409-1511 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1409-1511 ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1512- ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1407-1407 ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1408-1408 ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1408-1408 ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1409-1511 ● ●
18 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1409-1511 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1409-1511 ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 1512- ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1407- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 05 1 1407- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 04 1 1407-1407 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=10 & 4.76X3 		8-97326-158-1 04 1 1408-1511 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 04 1 1512- ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1407- ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 02 1 1407- ● ● ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1407- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1407- ● ● ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1407- ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 1407-1407 ●
39 04.686 NUT; BRKT FIX
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1408-1408 ●
39 04.686 NUT; BRKT FIX
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
39 04.686 NUT; BRKT FIX
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1409- ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 03 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 1407- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-98178-046-0 01 1 1407- ● ● ●
