Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

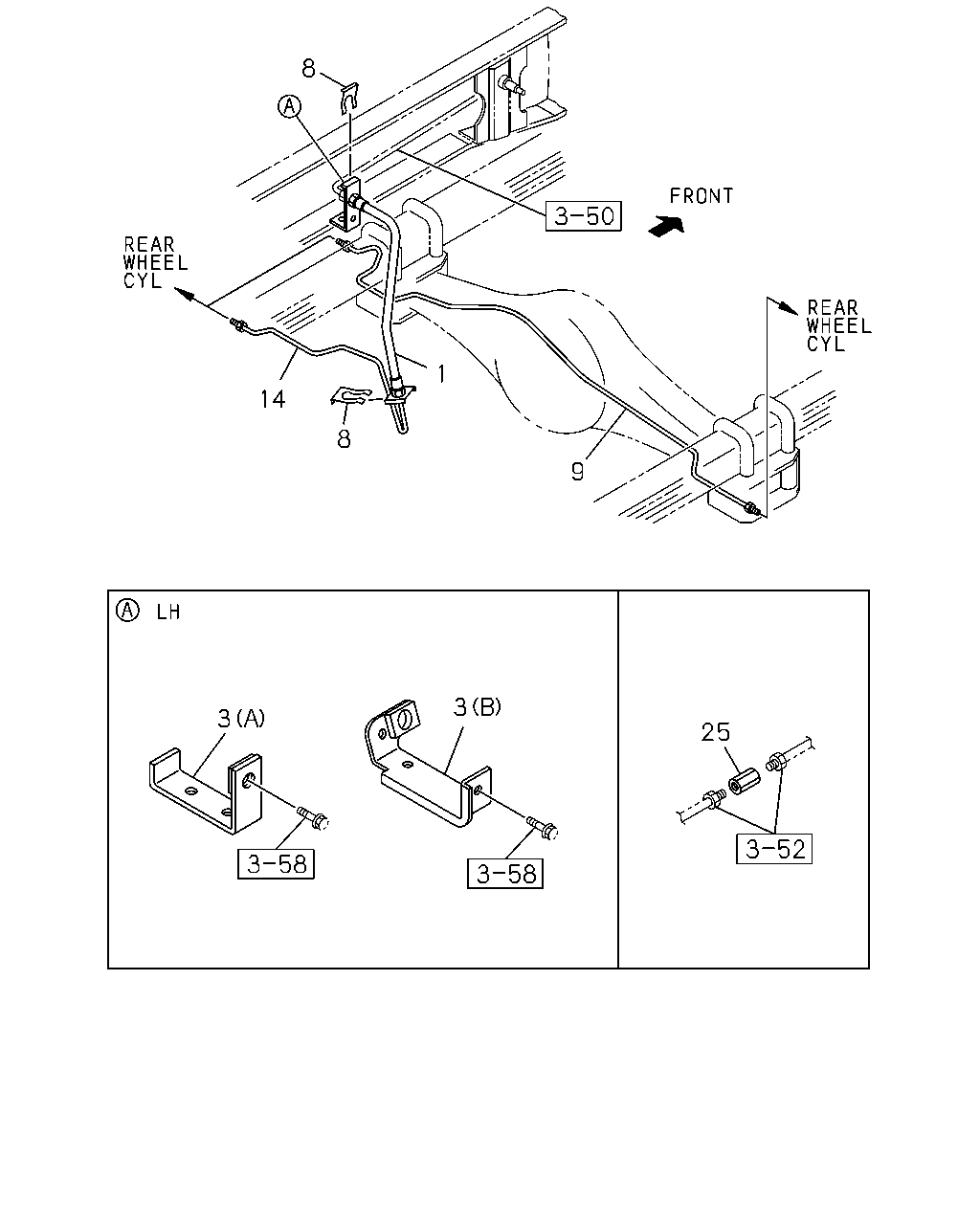

3-55 — BRAKE PIPING; OIL,REAR
(#145603) — 16 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
14
8
1
9
25
3
3
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.680 HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
1407-
●
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
(B)
8-97251-436-0
01
1
1407-
●
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
(A)
8-97205-198-0
01
1
1407-1407
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A)
8-97205-198-0
01
1
1408-1408
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH> (A)
8-97205-198-0
01
1
1409-
●
3
04.681 BRACKET; FLEX HOSE,RR BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> (A)
8-97205-198-0
01
1
1409-
●
8
04.686 CLIP; RR BRK
8-97360-054-0
02
1
1407-
●
●
●
9
04.685 PIPE; BRK,RR AXLE
8-97089-922-0
01
1
1407-
●
●
9
04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T)
8-98067-256-0
01
1
1407-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-98039-608-0
01
1
1407-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T)
8-98021-869-0
01
1
1407-
●
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
02
1
1407-1407
●
●
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
02
1
1408-
●
●
25
04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
02
1
1408-
●
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1407-1407
●
25
04.686 CONNECTOR
EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT
0-92107-005-0
01
1
1408-
●
