3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#145601) — 54 parça

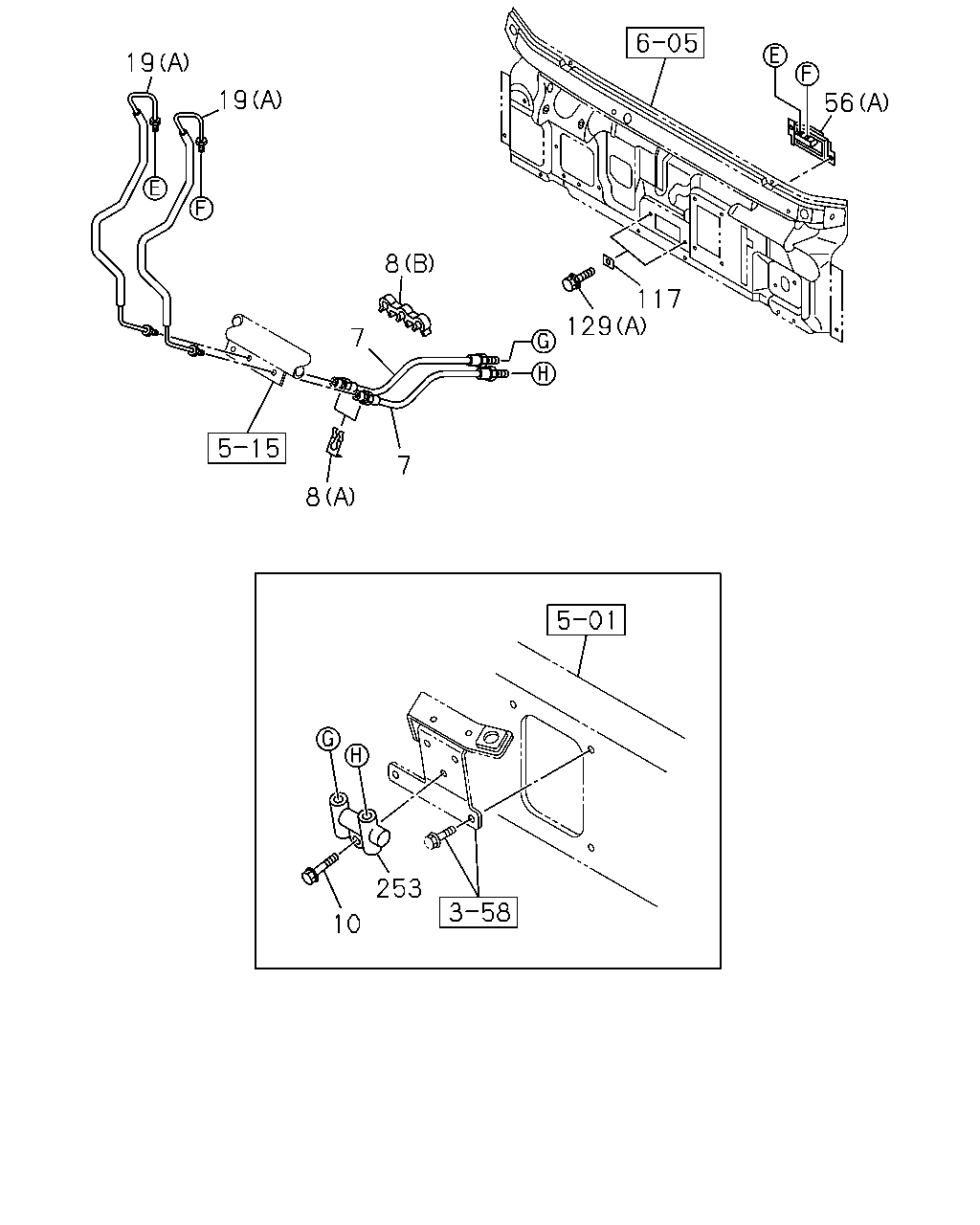

çizim 432131
19 19 56 8 117 129 7 7 8 10 253
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 1407- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1407- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1407- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1407- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98047-210-2 02 1 1407- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98197-655-2 01 1 1407- ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1407- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1407- ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1407- ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1407- ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1407- ● ● ●
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 1407-1407 ● ●
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 1408- ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> 04.686 		8-97120-033-2 01 1 1408- ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 1407-1407 ●
253 04.840 JOINT
EXC. BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 1408- ●

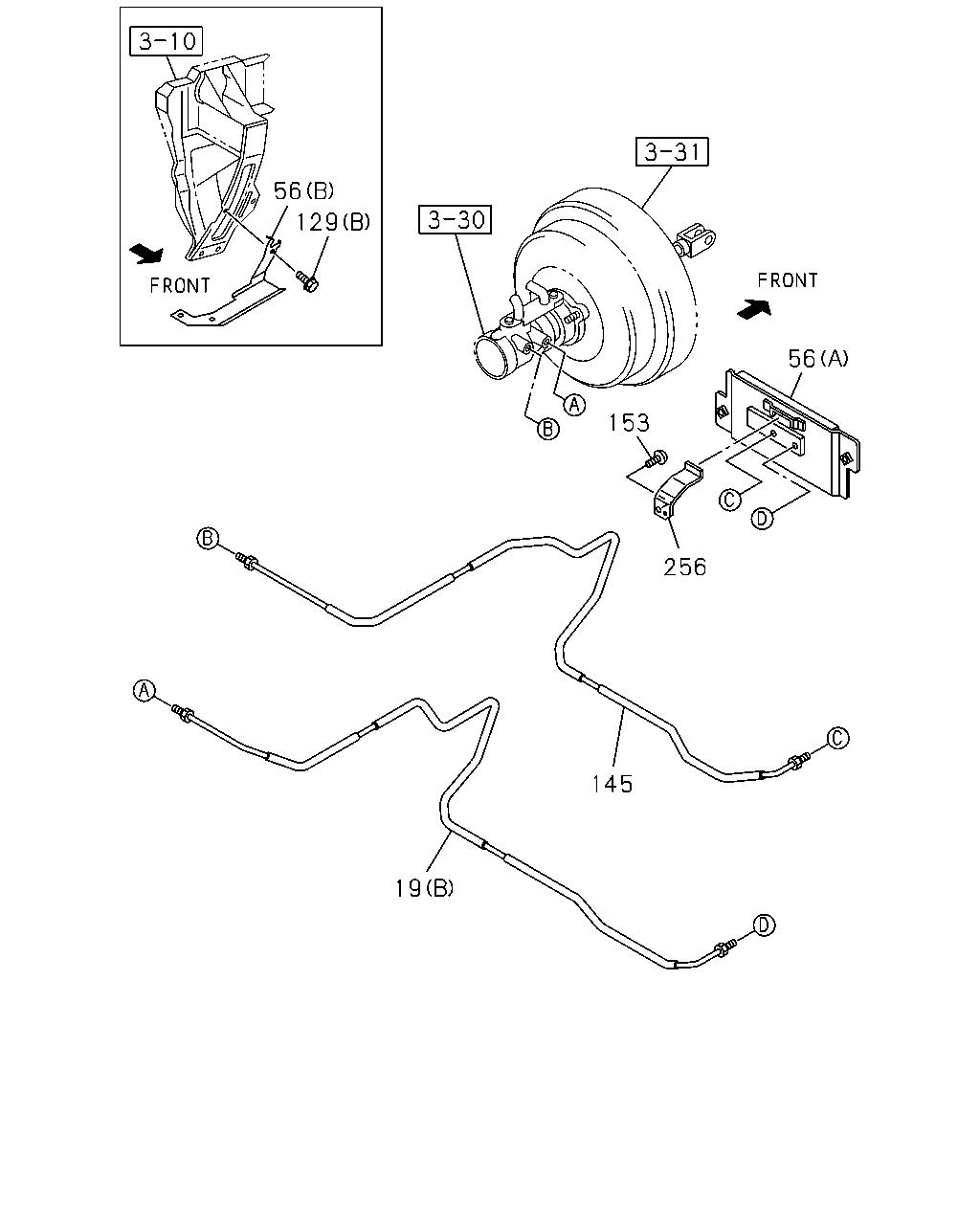

çizim 432510
35
BalonParca AdiParca NoAdetTipApplied Date A B C
35 04.685 PIPE; BRK,VLV TO RR AXLE
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> 		8-97389-540-0 01 1 1409- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1407- ● ●
çizim 433077
56 129 56 153 256 145 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98047-210-2 02 1 1407- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98197-655-2 01 1 1407- ● ● ●
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1407- ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1407- ● ● ●
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1407- ● ● ●
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1407- ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98197-658-1 01 1 1407- ● ● ●
153 04.730 SCREW; BRKT FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1407- ● ● ●
256 04.840 BRACKET; BRK PIPE
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1407- ● ● ●

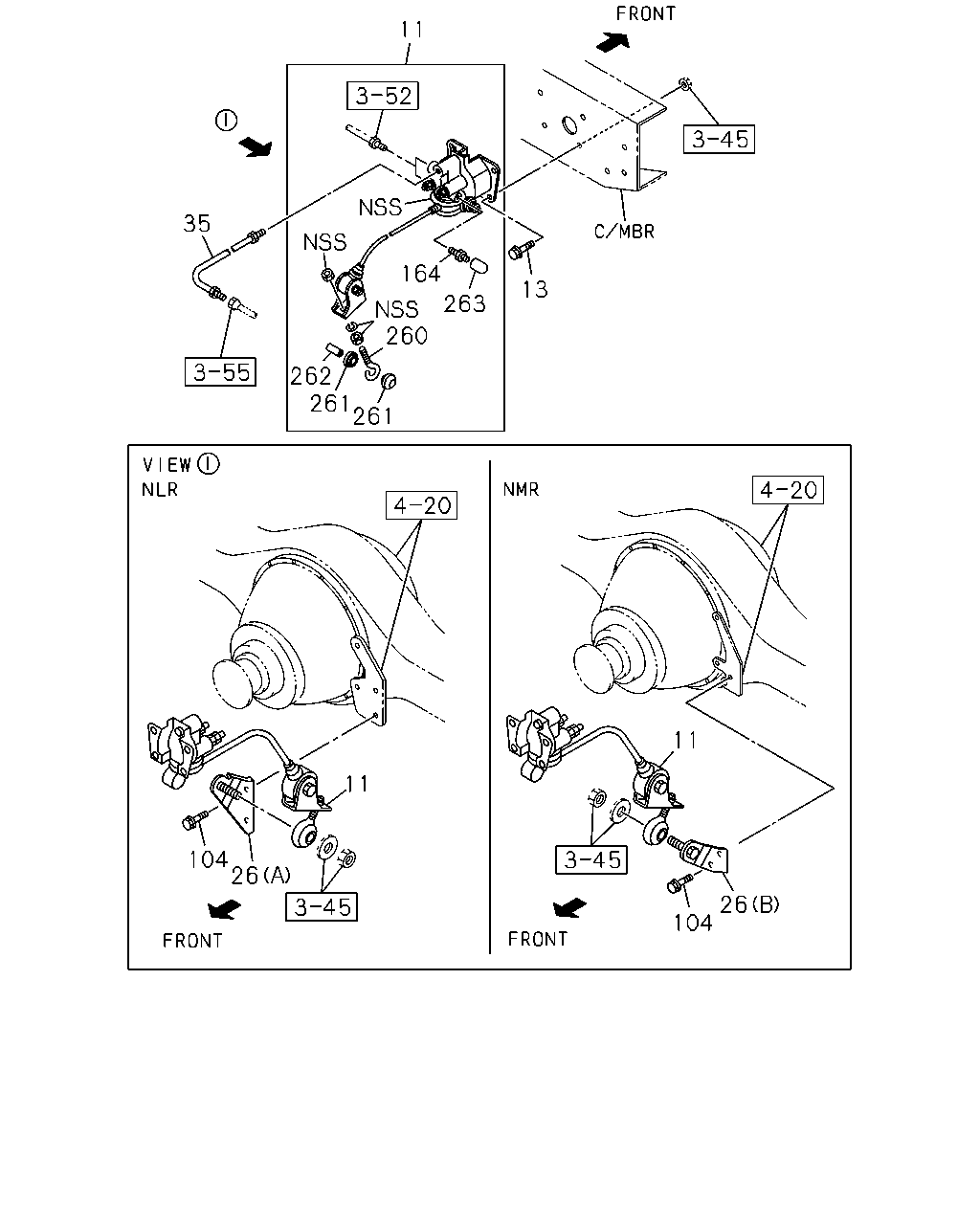

çizim 433162
11 164 263 260 261 261 262 35 1 13 1 11 104 26 11 104 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-97070-721-0 01 1 1409- ●
11 04.686 VALVE; BRK CONT
04.730 		8-94368-455-2 01 1 1407- ● ●
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1407-1408 ● ●
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1409- ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1409- ●
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> (B) 		8-98029-821-0 01 1 1409- ●
26 04.730 BRACKET; PROPORTIONING VLV
(A) 		8-98029-822-0 01 1 1407- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> 		8-97389-540-0 01 1 1409- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1407- ● ●
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1407-1408 ● ●
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1409- ● ●
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1409- ●
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 1407-1408 ● ●
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 1409- ● ●
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 1409- ●
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 1407-1408 ● ●
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 1409- ● ●
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 1409- ●
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 1407-1408 ● ●
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 1409- ● ●
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 1409- ●
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 1407-1408 ● ●
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 1409- ● ●
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 1409- ●
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 1407-1408 ● ●
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 1409- ● ●
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 1409- ●
