3-11 — PARKING BRAKE CONTROL
(#145596) — 40 parça
Tümü
A - NMR6SE
B - NMR6WE
C - NMR6SN
◀

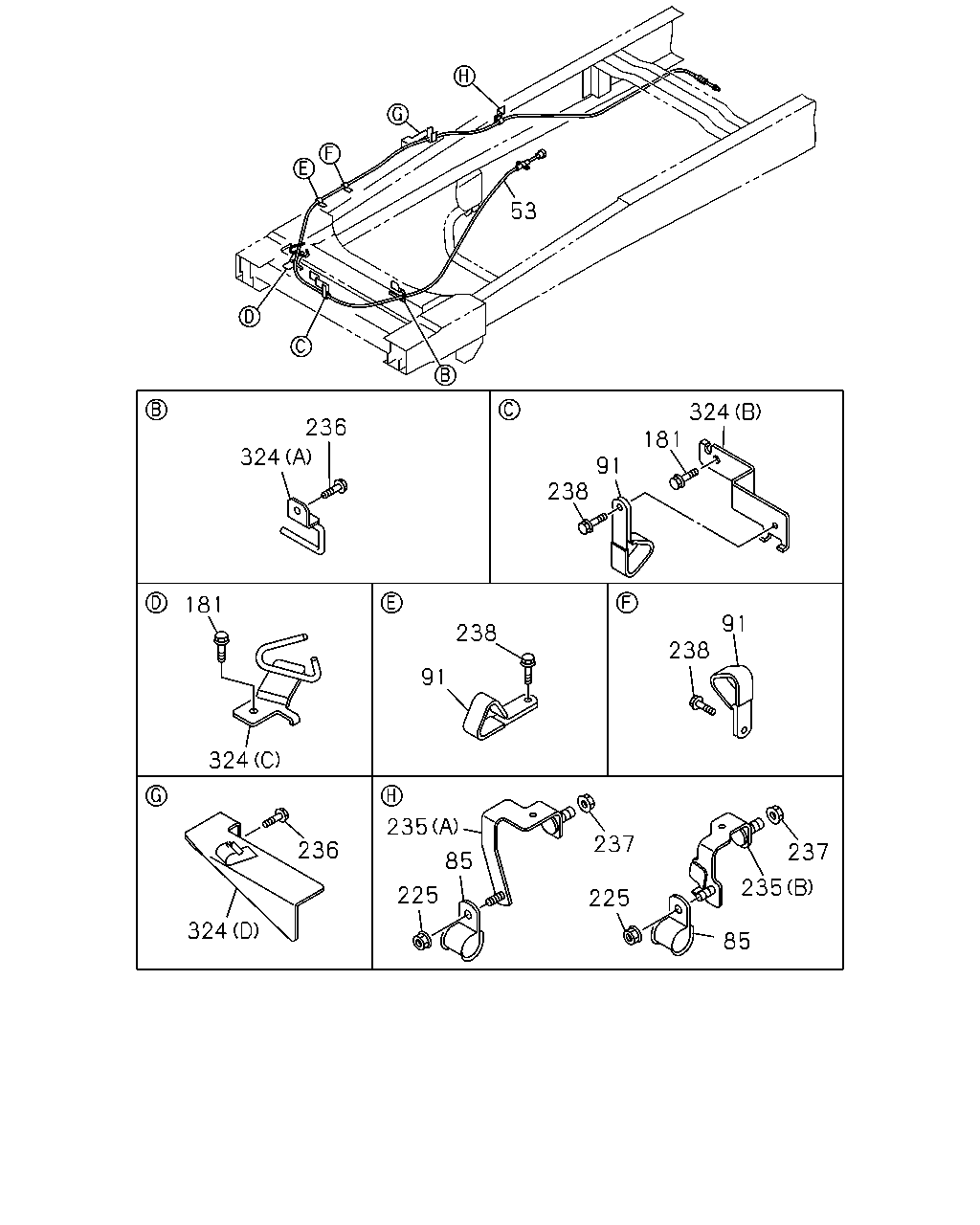

[311A] FIXING PARTS (23 parça)

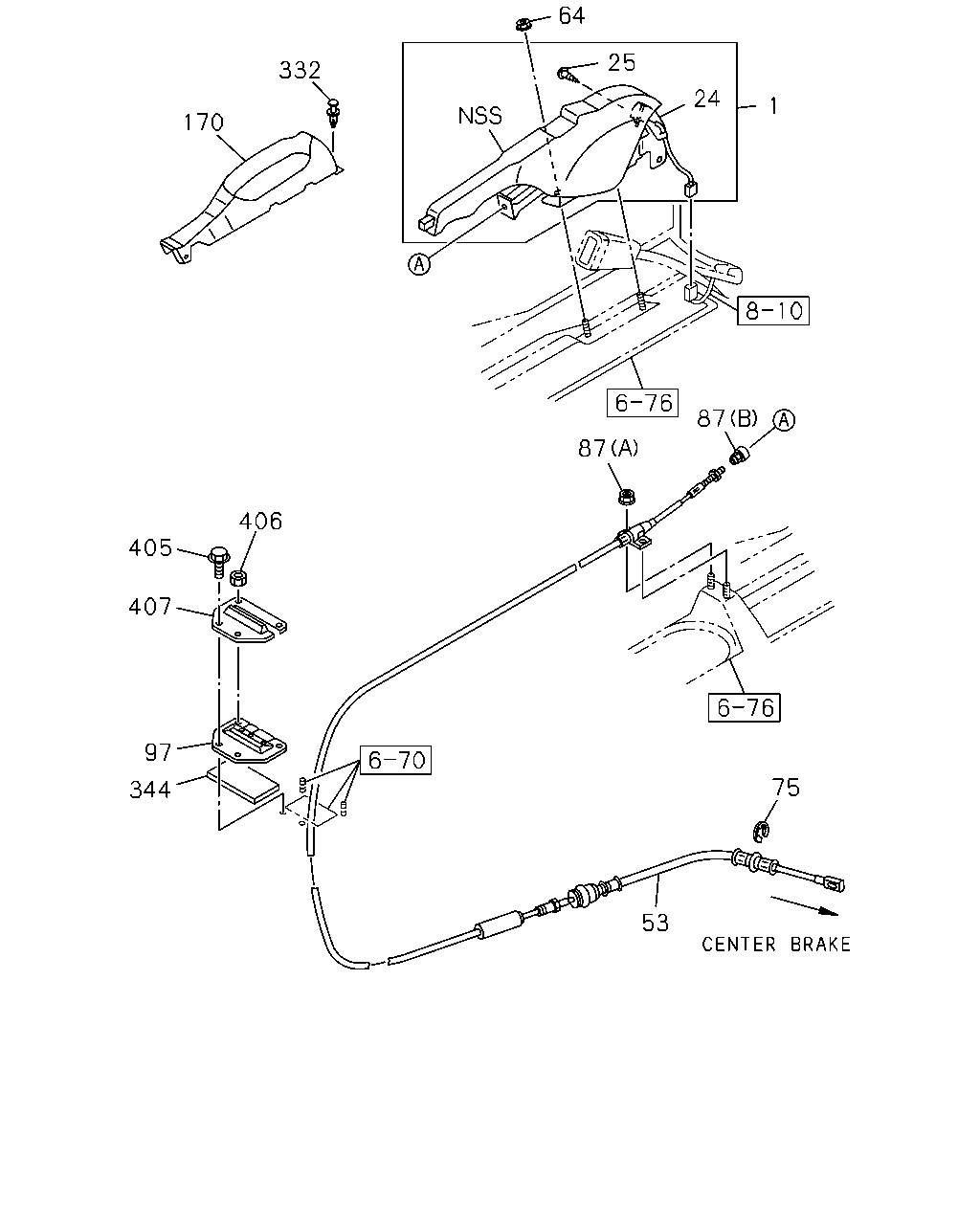

[311A] STEM AND CABLE (17 parça)
▶
324
181
91
238
236
324
53
91
238
238
91
181
324
236
324
235
225
85
237
225
235
237
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
53
04.779 CABLE; PARK BRK,FRT LWR
HEAVY DUTY FRAME<6WB>
8-98259-191-1
01
1
1407-
●
●
53
04.779 CABLE; PARK BRK,FRT LWR
8-98259-191-1
01
1
1407-
●
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. HEAVY DUTY FRAME<6WB>
8-98219-293-2
01
1
1407-
●
●
85
04.785 CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
1407-
●
●
●
91
04.785 CLIP; PARKING BRK CABLE
04.047
8-97036-333-1
01
1
1407-
●
●
●
91
04.785 CLIP; PARKING BRK CABLE
04.047
8-97036-333-1
02
1
1407-
●
●
●
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1407-
●
●
●
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1407-
●
●
●
235
04.785 BRACKET; CONT CABLE TO FRAME
HEAVY DUTY FRAME<6WB> (B)
8-98269-446-1
01
1
1407-
●
●
235
04.785 BRACKET; CONT CABLE TO FRAME
(B)
8-98269-446-1
01
1
1407-
●
235
04.785 BRACKET; CONT CABLE TO FRAME
EXC. HEAVY DUTY FRAME<6WB> (A)
8-98259-192-0
01
1
1407-
●
●
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1407-
●
●
●
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1407-
●
●
●
237
04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
01
1
1407-
●
●
●
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1407-1408
●
●
●
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1409-
●
●
●
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1409-
●
●
●
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1409-
●
●
●
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1407-1408
●
●
●
324
04.785 BRACKET
(C)
8-98047-573-0
01
1
1407-
●
●
●
324
04.785 BRACKET
(B)
8-98047-575-1
01
1
1407-
●
●
●
324
04.785 BRACKET
(A)
8-98116-060-0
01
1
1407-
●
●
●
324
04.785 BRACKET
(D)
8-98219-298-1
01
1
1407-
●
●
●
64
25
24
1
332
170
87
87
75
53
344
97
407
405
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-514-0
01
1
1407-
●
●
●
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1407-
●
●
●
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
1407-
●
●
●
53
04.779 CABLE; PARK BRK,FRT LWR
HEAVY DUTY FRAME<6WB>
8-98259-191-1
01
1
1407-
●
●
53
04.779 CABLE; PARK BRK,FRT LWR
8-98259-191-1
01
1
1407-
●
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. HEAVY DUTY FRAME<6WB>
8-98219-293-2
01
1
1407-
●
●
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
1407-
●
●
●
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
1407-
●
●
●
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1407-
●
●
●
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
1407-
●
●
●
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97091-890-0
01
1
1407-
●
●
●
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97411-674-1
01
1
1407-
●
●
●
332
04.785 CLIP; COVER
GRAY
8-97406-171-0
01
1
1407-
●
●
●
344
04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047
8-97096-753-0
01
1
1407-
●
●
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
1407-
●
●
●
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
1407-
●
●
●
407
04.785 RETAINER; GROMMET
04.047
1-33657-674-0
01
1
1407-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
