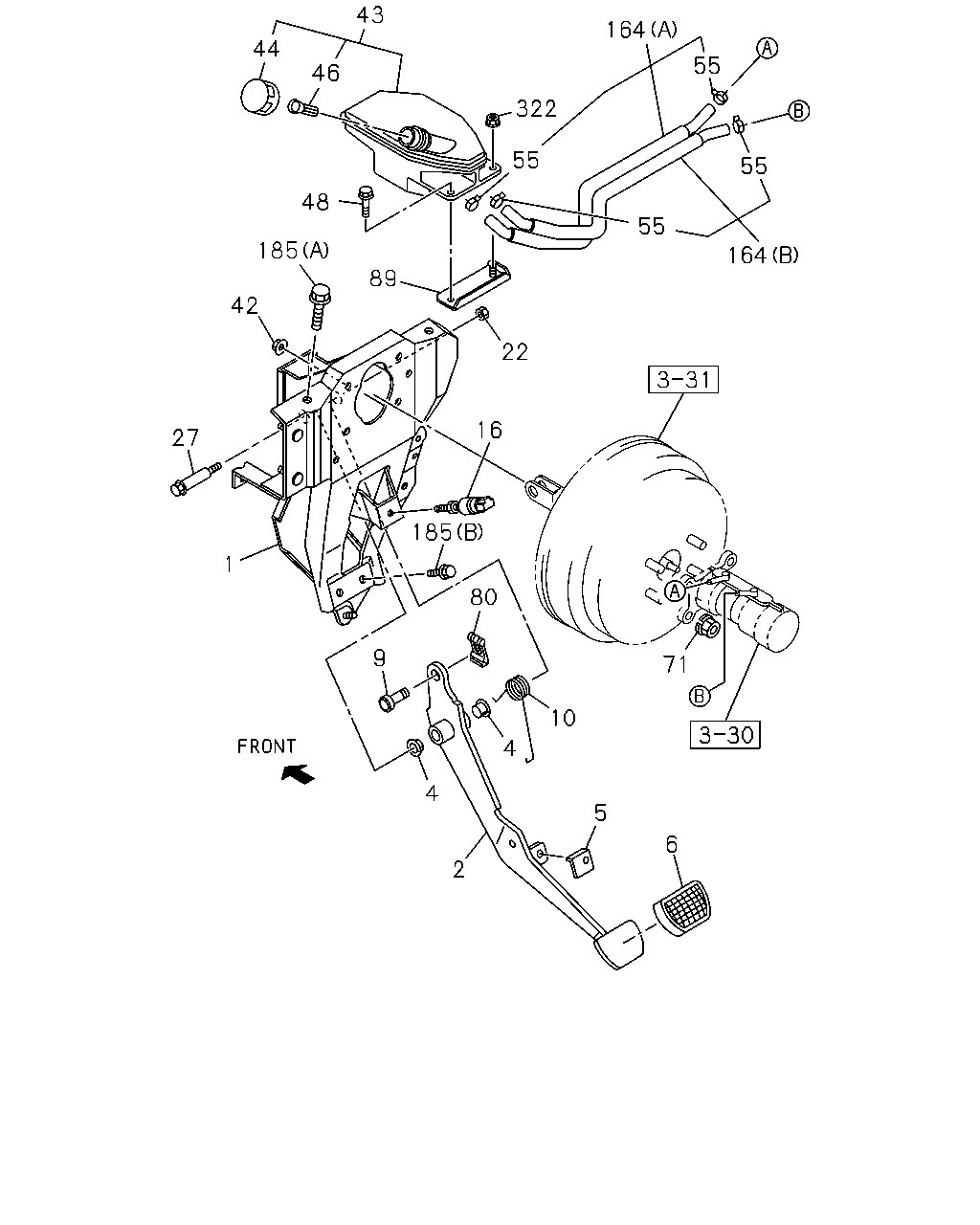

3-10 — BRAKE PEDAL AND CONTROL
(#145595) — 24 parça
Tümü
A - NMR6SE
B - NMR6SN
C - NMR6WE
55
55
55
164
43
46
44
48
89
22
16
185
42
27
1
80
185
10
4
4
2
5
6
71
164
55
322
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.634 BRACKET ASM; PEDAL
8-98003-148-5
01
1
1407-
●
●
●
2
04.625 PEDAL; BRK
8-98003-156-0
01
1
1407-
●
●
●
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
1407-
●
●
●
5
04.634 STOPPER; BRK PEDAL
03.459
8-97302-305-0
01
1
1407-
●
●
●
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
1407-
●
●
●
9
04.634 PIN; JAW JOINT
8-98147-657-0
01
1
1407-
●
●
●
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
1407-
●
●
●
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
1407-
●
●
●
22
04.634 NUT; SHAFT
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1407-
●
●
●
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
1407-
●
●
●
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
1407-
●
●
●
43
04.651 TANK ASM; OIL
8-97387-219-3
01
1
1407-
●
●
●
44
04.651 CAP; OIL TANK
8-98022-268-0
01
1
1407-
●
●
●
46
04.651 FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
1407-
●
●
●
48
04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER
8-97370-668-0
01
1
1407-
●
●
●
55
04.681 CLIP; RUBBER HOSE
8-98031-178-0
04
1
1407-
●
●
●
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
1407-
●
●
●
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1407-
●
●
●
89
04.901 BRACKET; M/CYL
8-98005-493-1
01
1
1407-
●
●
●
164
04.681 HOSE; RUBBER,OIL TANK
(A)
8-98194-304-1
01
1
1407-
●
●
●
164
04.681 HOSE; RUBBER,OIL TANK
(B)
8-98194-305-1
01
1
1407-
●
●
●
185
04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
02
1
1407-
●
●
●
185
04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
02
1
1407-
●
●
●
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE
0-91180-106-0
01
1
1407-
●
●
●
