3-05 — REAR WHEEL BRAKE (#145593) — 27 parça

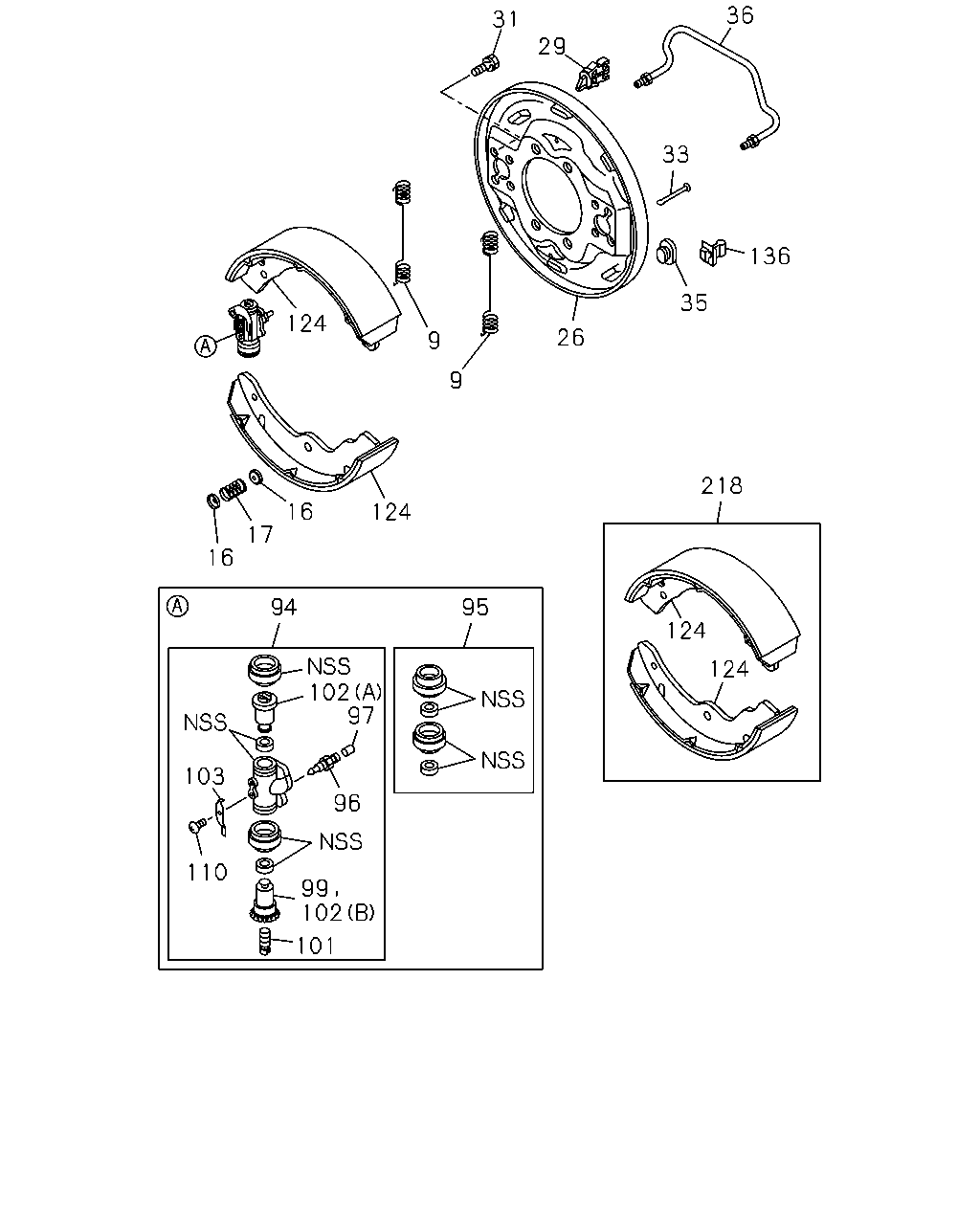

çizim 433429
36 29 31 33 136 35 26 9 9 124 124 16 17 16 94 102 95 97 96 99 102 101 110 103 124 124 218
BalonParca AdiParca NoAdetTipApplied Date A B C
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 1407- ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1407- ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 1407- ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97093-934-0 01 1 1407- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97093-935-0 01 1 1407- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97078-679-0 01 1 1407- ●
26 05.001 PLATE; BACK,RR BRK 8-97078-680-0 01 1 1407- ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 1407- ● ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 1407- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 1407- ● ● ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 1407- ● ● ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 1407- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-840-0 01 1 1407- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-841-0 01 1 1407- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-842-0 02 1 1407- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 1407- ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1407- ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1407- ● ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 1407- ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 1407- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 1407- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 1407- ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1407- ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1407- ● ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 1407- ● ● ●
136 05.002 GROMMET 9-09956-640-0 04 1 1407- ● ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 1407- ● ● ●
