◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#145592) — 33 parça

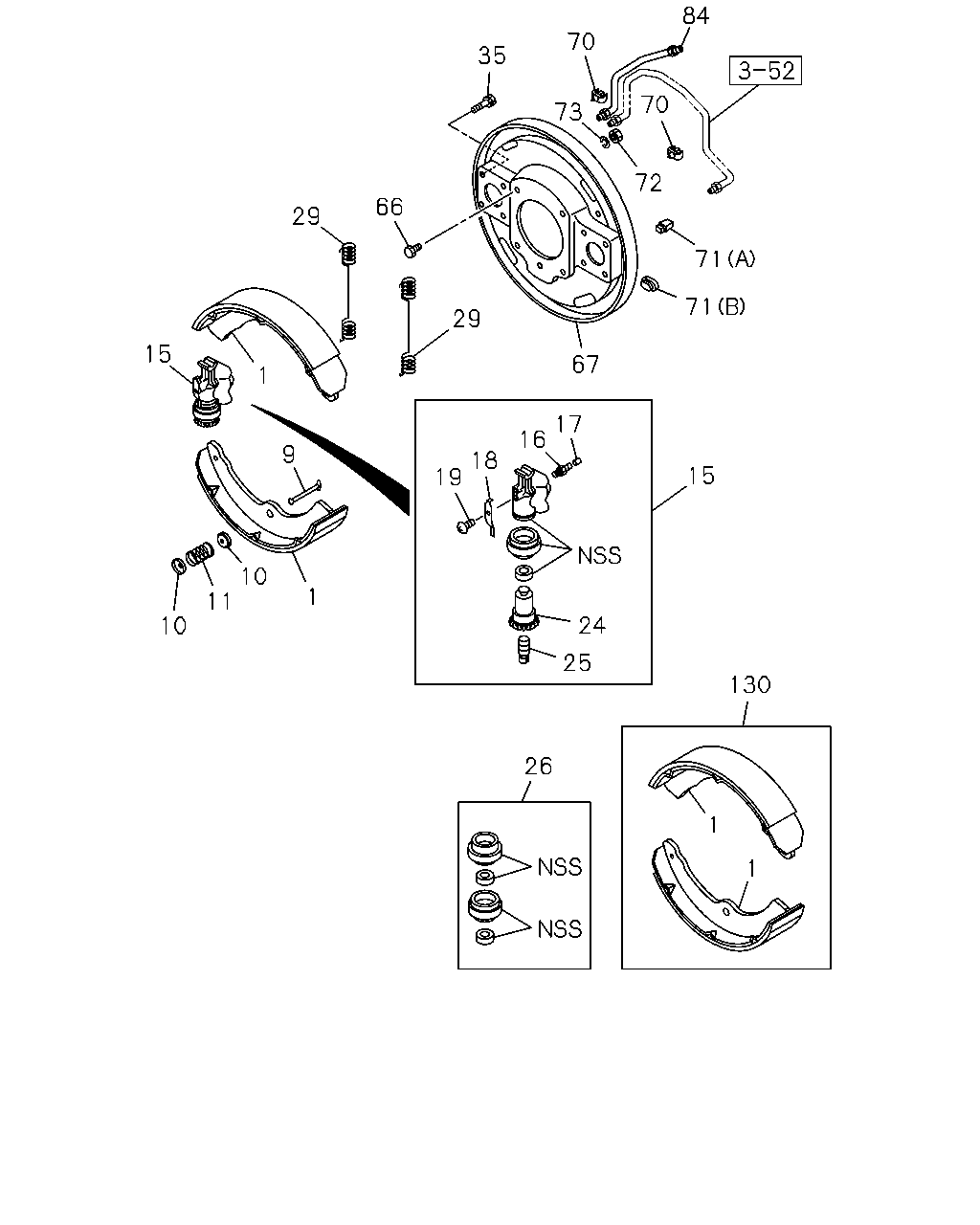

çizim 432870
130 1 1 26 25 24 15 17 16 18 19 29 67 71 71 72 73 70 84 70 35 66 29 15 1 9 1 10 11 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.017 SHOE; BRK,FRT 8-97035-085-1 04 1 1407- ● ● ●
1 05.017 SHOE; BRK,FRT
BEST VALUE PARTS 		5-87610-123-0 04 1 1407- ● ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		9-47162-607-0 04 1 1407- ● ●
9 05.026 PIN; SHOE HOLDER 8-97019-207-0 04 1 1407- ●
10 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1407- ● ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		9-09940-989-1 04 1 1407- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 1407- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 1407- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 1407- ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 1407- ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1407- ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1407- ● ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1407- ● ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1407- ● ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 1407- ● ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 1407- ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 1407- ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97078-739-0 04 1 1407- ● ● ●
35 04.665 BOLT; FRT WHEEL CYL 5-09030-036-1 16 1 1407- ● ●
35 04.665 BOLT; FRT WHEEL CYL 8-97025-734-0 16 1 1407- ●
66 05.815 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 1407- ● ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-584-0 01 1 1407- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-585-0 01 1 1407- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-586-0 01 1 1407- ●
67 05.001 PLATE; BACK,FRT BRK 8-97302-587-0 01 1 1407- ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 04 1 1407- ● ● ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 02 1 1407- ● ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		9-09756-034-0 04 1 1407- ● ● ●
72 05.815 NUT; OIL SHIELD COVER
05.002 M12 		0-91110-512-0 08 1 1407- ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
07.347 ID=12.2 		0-91510-812-0 08 1 1407- ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-224-0 01 1 1407- ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-225-0 01 1 1407- ● ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 1407- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
