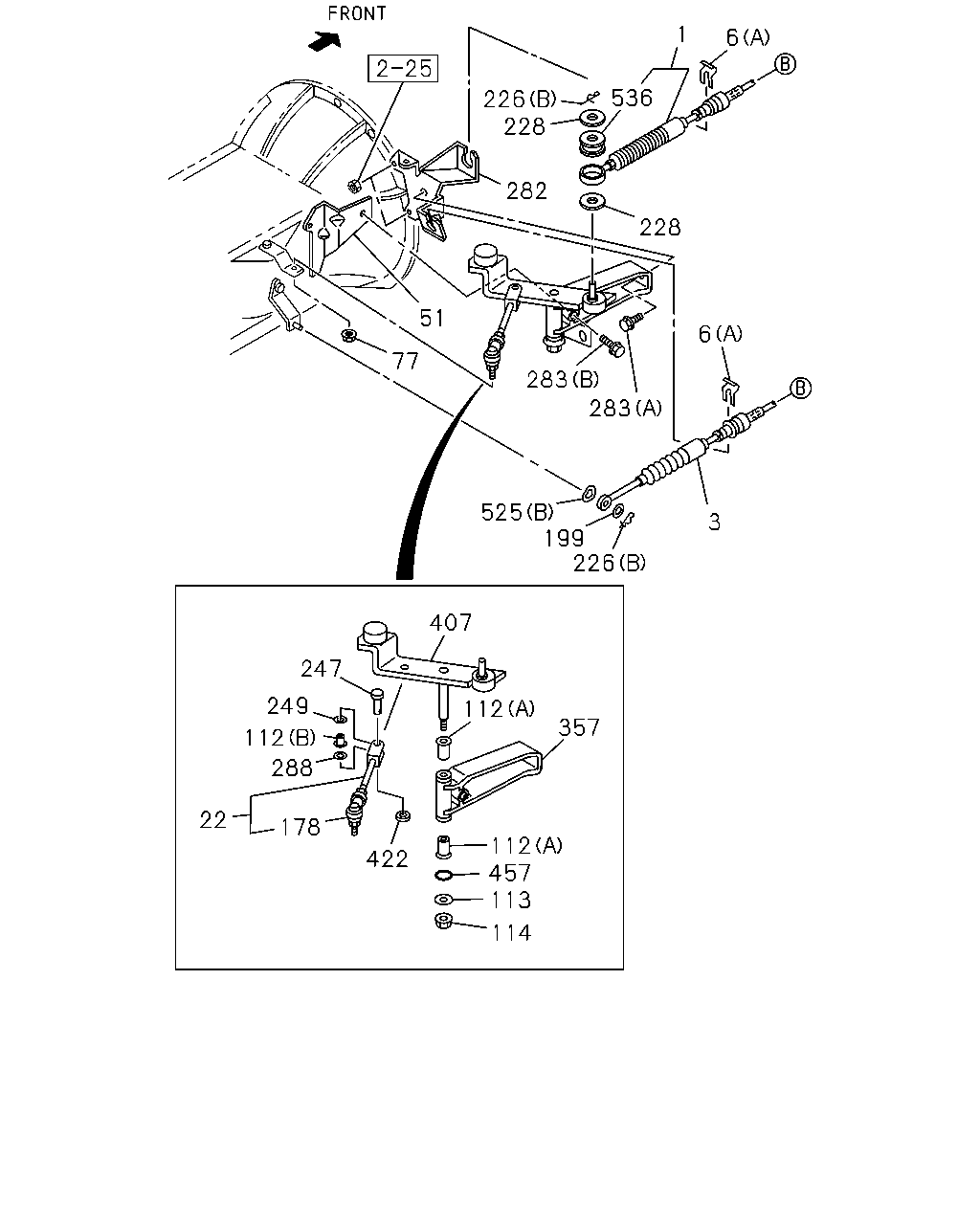

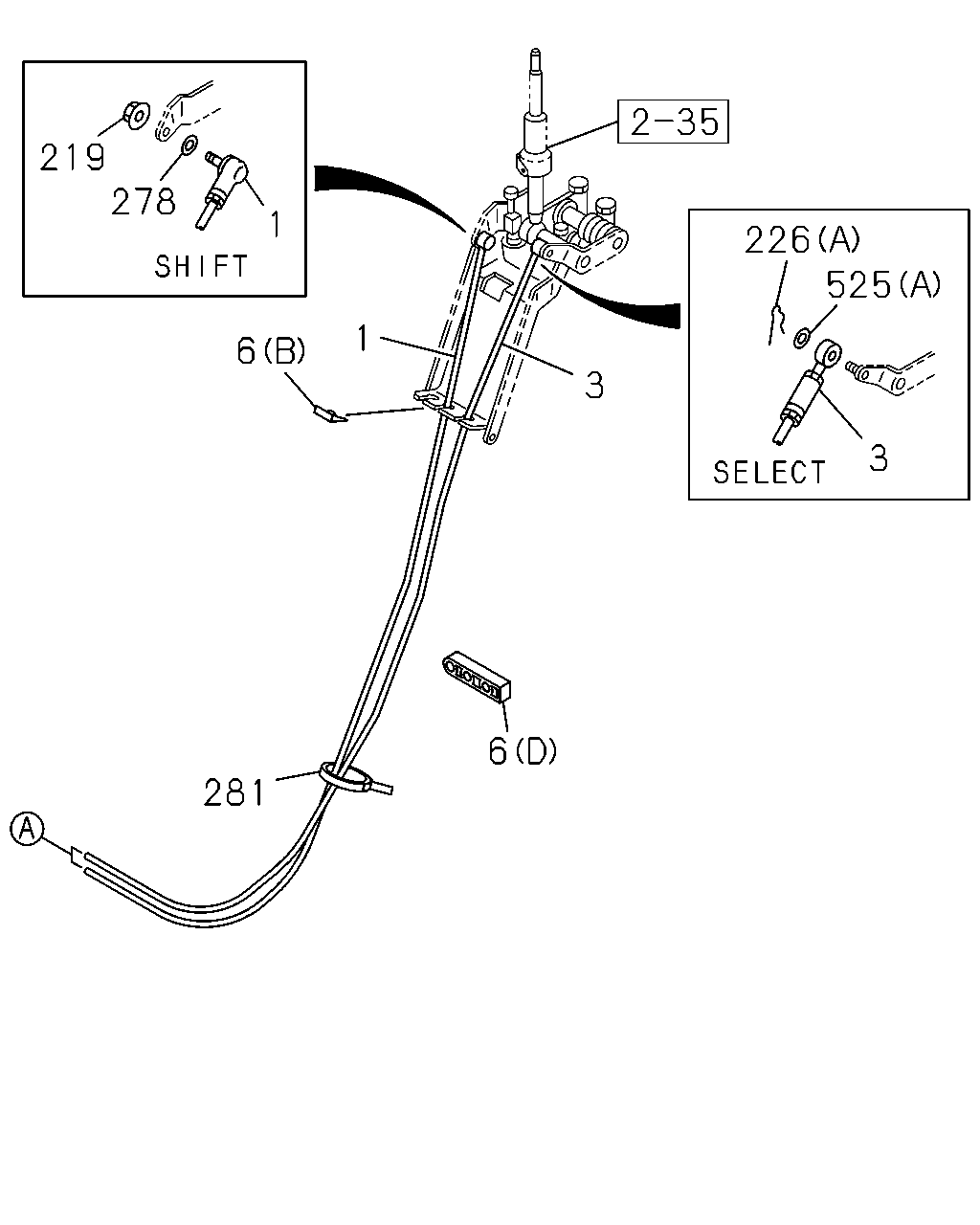

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#145589) — 52 parça

3 1 6 1 278 219 226 525 3 6 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT	8-98250-439-0	01	1	1407-
3	00.852 CABLE; SELECT,TRANS CONT	8-98223-582-1	01	1	1407-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1407-
6	04.047 CLIP; CABLE (C)	8-98164-341-0	01	1	1407-
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (D)	8-97093-491-1	01	1	1407-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1407-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1407-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1407-
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1407-
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	1407-
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1407-
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1407-

275 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1407-
6	04.047 CLIP; CABLE (C)	8-98164-341-0	01	1	1407-
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (D)	8-97093-491-1	01	1	1407-
275	04.047 BOLT; CONT CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1407-

1 6 536 228 6 3 226 199 525 283 283 77 51 282 228 226 112 357 112 457 113 114 422 407 247 249 112 288 178 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT	8-98250-439-0	01	1	1407-
3	00.852 CABLE; SELECT,TRANS CONT	8-98223-582-1	01	1	1407-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	1407-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1407-
6	04.047 CLIP; CABLE (C)	8-98164-341-0	01	1	1407-
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (D)	8-97093-491-1	01	1	1407-
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	1407-
51	04.010 BRACKET; GEAR CONT	8-98189-335-1	01	1	1407-
77	04.037 NUT; LK,BALL JOINT,CONT ROD	8-97358-973-0	01	1	1407-
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	1407-
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	1407-
113	04.046 WASHER; RELAY LEVER ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1407-
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE	0-91180-110-0	01	1	1407-
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	1407-
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1407-
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1407-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1407-
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1407-
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	1407-
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	1407-
282	04.010 BRACKET; TRANS SIDE	8-98223-576-1	01	1	1407-
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1407-
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1407-
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	1407-
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	1407-
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	1407-
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	1407-
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	1407-
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1407-
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1407-
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1407-
