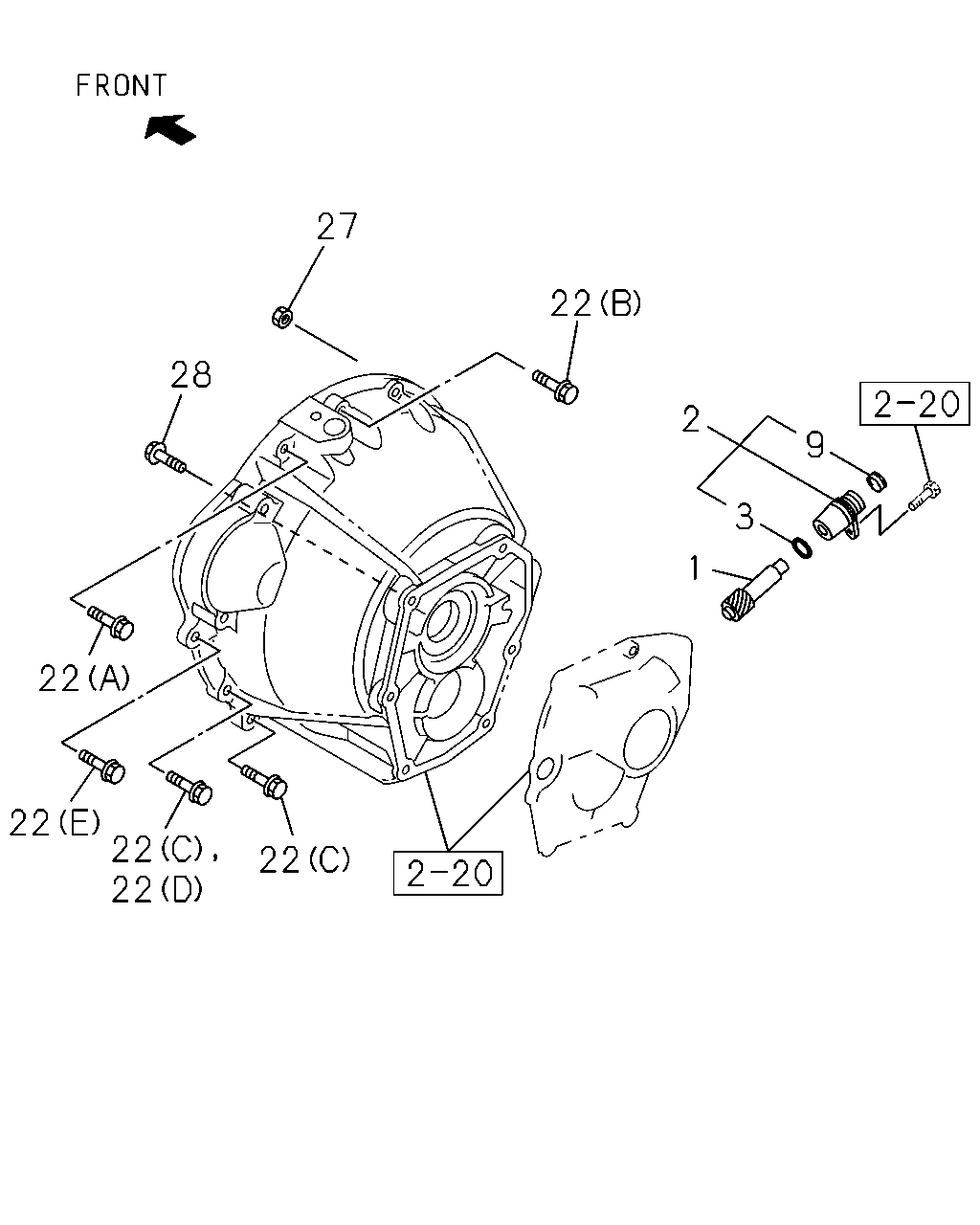

2-25 — SPEEDOMETER DRIVEN GEAR (#145585) — 57 parça

27 22 28 2 9 3 1 22 22 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) Z=11	8-98189-996-0	01	1	1511-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13	8-98189-999-0	01	1	1407-1408	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13	8-98189-999-0	01	1	1407-1408	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=13	8-98189-999-0	01	1	1407-1408		●
1	04.337 GEAR; DRIVEN,SPD FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13	8-98189-999-0	01	1	1407-1408			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13	8-98189-999-0	01	1	1409-1412	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13	8-98189-999-0	01	1	1409-1412	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW) Z=13	8-98189-999-0	01	1	1409-1412		●
1	04.337 GEAR; DRIVEN,SPD FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13	8-98189-999-0	01	1	1409-1412			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13	8-98189-999-0	01	1	1501-	●		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13	8-98189-999-0	01	1	1501-	●		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW) Z=13	8-98189-999-0	01	1	1501-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12	8-98189-997-0	01	1	1407-1412	●
1	04.337 GEAR; DRIVEN,SPD FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12	8-98189-997-0	01	1	1407-1412			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12	8-98189-997-0	01	1	1501-1510	●		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12	8-98189-997-0	01	1	1511-	●		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12	8-98189-997-0	01	1	1511-	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-15-8 5.5FX15-115(57H), FRT&RR 7R-15-10 5.5FX15-115(58H) Z=14	8-98190-000-0	01	1	1407-1408		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=14	8-98190-000-0	01	1	1409-1412		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=14	8-98190-000-0	01	1	1501-	●		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=14	8-98190-000-0	01	1	1501-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-15-8 5.5FX15-115(57H), FRT&RR 7R-15-10 5.5FX15-115(58H) Z=16	8-98190-002-0	01	1	1407-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/7(R41) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=15	8-98190-001-0	01	1	1407-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9(HC6) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ) Z=11 MARK "1"	8-98190-368-0	01	1	1511-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13 MARK "3"	8-98190-370-0	01	1	1407-1408	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13 MARK "3"	8-98190-370-0	01	1	1407-1408	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=13 MARK "3"	8-98190-370-0	01	1	1407-1408		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13 MARK "3"	8-98190-370-0	01	1	1407-1408			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13 MARK "3"	8-98190-370-0	01	1	1409-1412	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13 MARK "3"	8-98190-370-0	01	1	1409-1412	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW) Z=13 MARK "3"	8-98190-370-0	01	1	1409-1412		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13 MARK "3"	8-98190-370-0	01	1	1409-1412			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=13 MARK "3"	8-98190-370-0	01	1	1501-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=13 MARK "3"	8-98190-370-0	01	1	1501-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW) Z=13 MARK "3"	8-98190-370-0	01	1	1501-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12 MARK "2"	8-98190-369-0	01	1	1407-1412	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12 MARK "2"	8-98190-369-0	01	1	1407-1412			●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12 MARK "2"	8-98190-369-0	01	1	1501-1510	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 39/8(RV9) FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12 MARK "2"	8-98190-369-0	01	1	1511-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) Z=12 MARK "2"	8-98190-369-0	01	1	1511-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-15-8 5.5FX15-115(57H), FRT&RR 7R-15-10 5.5FX15-115(58H) Z=14 MARK "4"	8-98190-371-0	01	1	1407-1408		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=14 MARK "4"	8-98190-371-0	01	1	1409-1412		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) Z=14 MARK "4"	8-98190-371-0	01	1	1501-	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=14 MARK "4"	8-98190-371-0	01	1	1501-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA),FRT&RR 7R-15-8 5.5FX15-115(57H), FRT&RR 7R-15-10 5.5FX15-115(58H) Z=16 MARK "6"	8-98190-372-0	01	1	1407-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FINAL GEAR RATIO 41/7(R41) FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115 (CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) Z=15 MARK "5"	8-98190-431-0	01	1	1407-		●
3	04.338 GASKET; BUSHING 03.278	9-09567-220-0	01	1	1407-	●	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR NOK	8-98189-455-0	01	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG 04.510 (A) M10X35 FLANGE	0-28051-035-0	03	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG (B) M10X40 FLANGE	0-28051-040-0	01	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C) M12X35 FLANGE	0-28051-235-0	03	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (D) M12X40 FLANGE	0-28051-240-0	01	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 01.060 (E) M8X35 FLANGE	0-28650-835-0	01	1	1407-	●	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) M12X35 FLANGE	0-28051-235-0	04	1	1407-	●	●	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	1407-	●	●	●
27	00.685 NUT; CLU HSG TO TRANS PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●	●	●
28	00.685 BOLT; TRANS CASE TO HSG M12X35 FLANGE	0-28161-235-0	06	1	1407-	●	●	●
