Isuzu WW
▶
TRUCKS
▶
NLR
▶
51514 - NLR/NMR(77) LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

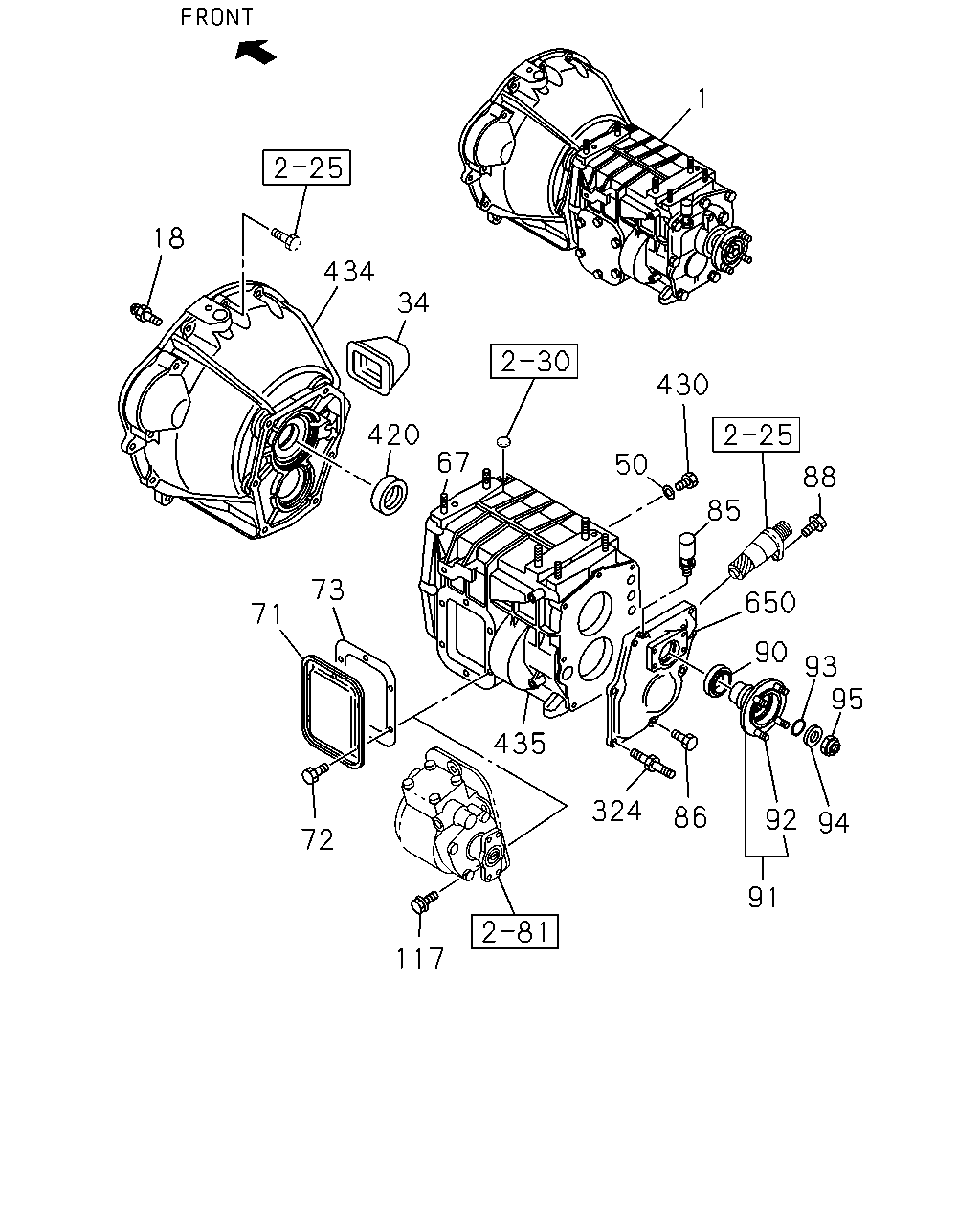

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#145584) — 25 parça
1
430
50
85
88
650
90
93
95
94
92
91
86
324
435
117
72
71
73
420
34
434
18
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.003 TRANSMISSION ASM; MANUAL
8-98214-130-0
01
1
1407-
18
00.683 SUPPORT; DRAW LEVER
L=47.5
8-98189-389-0
01
1
1407-
34
00.686 COVER; DUST,SHIFT FORK
8-98190-416-0
01
1
1407-
50
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.5
8-98189-969-0
01
1
1407-
67
04.105 STUD; CASE TRANS
8-98189-390-0
06
1
1407-
71
04.439 COVER; SIDE,TRANS CASE
8-98189-244-0
01
1
1407-
72
04.439 BOLT; SIDE COVER
06.225 M10X12 FLANGE
0-28051-012-0
06
1
1407-
73
04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
8-98189-272-0
01
1
1407-
85
04.104 BREATHER; RR COVER
8-98189-454-0
01
1
1407-
86
04.317 BOLT; RR COVER
03.275 M8X25 FLANGE
0-28050-825-0
04
1
1407-
88
04.338 SCREW; SPEEDOMETER BUSHING
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1407-
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-98189-443-0
01
1
1407-
91
05.605 DRIVER; COUPLING
8-98190-298-0
01
1
1407-
92
05.605 BOLT; COUPLING DRIVER
M10X33
8-98189-989-0
04
1
1407-
93
05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
8-98189-967-0
01
1
1407-
94
05.595 WASHER; COUPLING DRIVER
8-98189-951-0
01
1
1407-
95
05.595 NUT; MAINSHAFT
M24 FLANGE
8-98189-932-0
01
1
1407-
117
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M10X25 W/LK&PL WASHER
0-50641-025-0
04
1
1407-
117
04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 17.208 M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
1407-
324
04.319 STUD; RR COVER
8-98189-391-0
03
1
1407-
420
04.354 SEAL; OIL,FRT COVER,T/M
NOK
8-98189-424-0
01
1
1407-
430
04.105 PLUG; OIL DRAIN
8-98190-430-0
01
1
1407-
434
00.683 HOUSING; CLU
8-98188-568-0
01
1
1407-
435
04.103 CASE; TRANS
8-97373-564-0
01
1
1407-
650
04.317 COVER; RR
8-97174-087-0
01
1
1407-
