◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51514 - NLR/NMR(77) LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#145580) — 17 parça

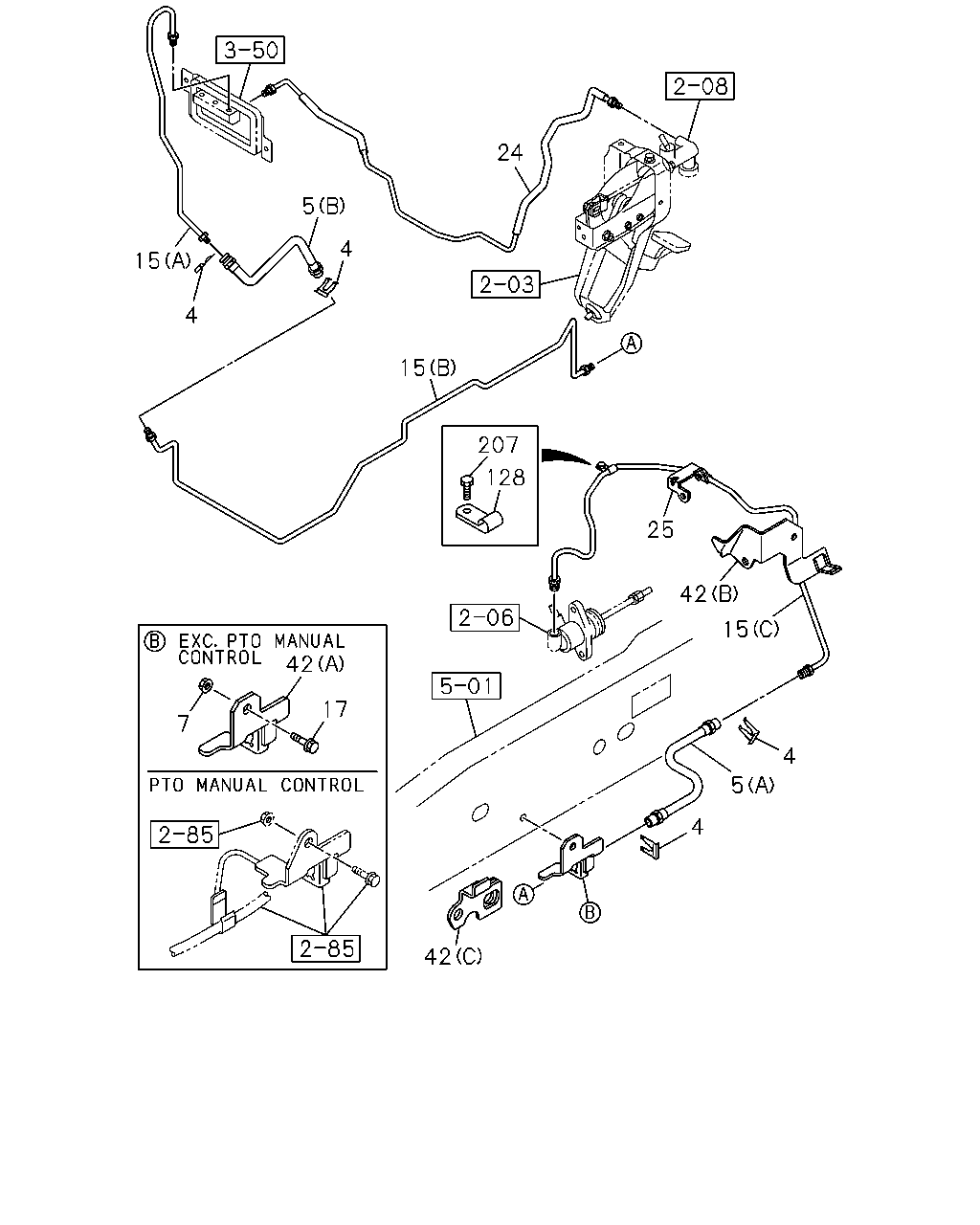

çizim 431503
24 15 5 4 4 15 207 128 25 42 15 4 5 4 42 17 42 7
BalonParca AdiParca NoAdetTipApplied Date
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 1407-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 03 1 1407-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1407-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98227-954-1 01 1 1407-
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. PTO MANUAL CONTROL(6WC) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1407-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98047-211-1 01 1 1407-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98219-338-0 01 1 1407-
15 00.785 PIPE; CLU,FLEX HOSE
(C) 		8-98272-493-0 01 1 1407-
17 00.785 BOLT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1407-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-98097-187-1 01 1 1407-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-98250-071-0 01 1 1505-
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 1407-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98246-414-1 01 1 1407-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98272-480-0 01 1 1407-
42 00.785 BRACKET; FLEX HOSE,CLU CONT
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98094-498-0 01 1 1407-
128 00.785 CLIP; AIR PIPE
ID=7 L=16 		0-95234-622-0 03 1 1407-
207 00.785 BOLT; CLIP
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1407-
