0-41 — FUEL FILTER AND BRACKET (#14558) — 136 parça

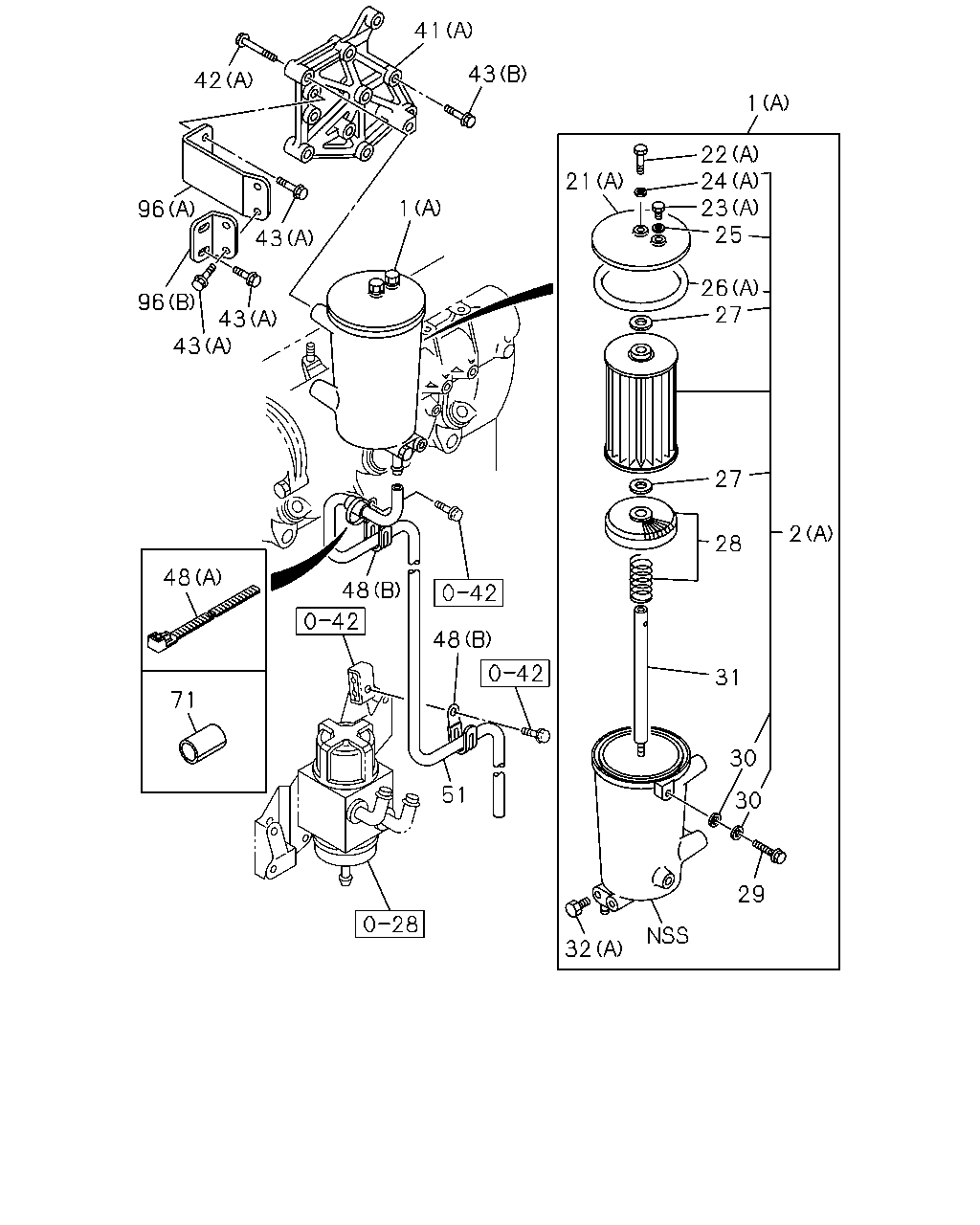

41 43 42 1 22 24 23 25 21 1 96 43 26 27 96 43 43 27 2 28 48 48 48 31 71 30 51 30 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (B)	8-98167-975-1	01	1	1108-1402	●
1	FILTER ASM; FUEL (B)	8-98258-016-0	01	1	1403-	●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	0710-1005		●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	1006-1106		●	●
1	FILTER ASM; FUEL (A)	8-98175-164-0	01	1	1107-		●	●
2	ELEMENT KIT; FUEL FILTER (B)	8-98116-662-0	01	1	1108-	●
2	ELEMENT KIT; FUEL FILTER (A)	1-87810-976-0	01	1	0710-1005		●
2	ELEMENT KIT; FUEL FILTER (A)	1-87810-976-0	01	1	1006-1106		●	●
2	ELEMENT KIT; FUEL FILTER (A)	8-98174-903-0	01	1	1107-		●	●
2	ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-152-0	01	1	1107-		●	●
21	COVER; UPR,FUEL FILTER (B)	8-98116-653-0	01	1	1108-	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-049-1	01	1	0710-1005		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-049-1	01	1	1006-		●	●
22	BOLT; CENTER TUBE,COVER (B)	8-98117-014-0	01	1	1108-	●
22	BOLT; CENTER TUBE,COVER (A)	1-13219-045-0	01	1	0710-1005		●
22	BOLT; CENTER TUBE,COVER (A)	1-13219-045-0	01	1	1006-		●	●
23	PLUG; COVER (B)	8-98116-652-0	01	1	1108-	●
23	PLUG; COVER (A)	1-13219-074-0	01	1	0710-1005		●
23	PLUG; COVER (A)	1-13219-074-0	01	1	1006-		●	●
24	GASKET; CENTER TUBE BOLT (B)	8-98116-655-0	01	1	1108-	●
24	GASKET; CENTER TUBE BOLT (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-1005		●
24	GASKET; CENTER TUBE BOLT (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1006-		●	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-1005		●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	1006-		●	●
26	GASKET; COVER TO BODY (B)	8-98116-661-0	01	1	1108-	●
26	GASKET; COVER TO BODY (A)	9-09720-797-0	01	1	0710-1005		●
26	GASKET; COVER TO BODY (A)	9-09720-797-0	01	1	1006-		●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0710-1005		●
27	GASKET; ELEMENT	1-09630-007-0	02	1	1006-		●	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0710-1005		●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	1006-		●	●
29	VALVE; OVERFLOW	1-13260-116-0	01	1	0710-1005		●
29	VALVE; OVERFLOW	1-13260-116-0	01	1	1006-		●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1005		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1006-		●	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0710-1005		●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	1006-		●	●
32	BOLT; DRAIN,FUEL FILTER (B)	8-98116-652-0	01	1	1108-	●
32	BOLT; DRAIN,FUEL FILTER (A)	1-13219-030-0	01	1	0710-1005		●
32	BOLT; DRAIN,FUEL FILTER (A)	1-13219-030-0	01	1	1006-		●	●
41	BRACKET; FUEL FILTER (B)	8-97628-208-0	01	1	1108-	●
41	BRACKET; FUEL FILTER (A)	8-97608-898-1	01	1	0710-1005		●
41	BRACKET; FUEL FILTER (A)	8-97608-898-1	01	1	1006-		●	●
42	BOLT; FUEL FILTER (B) M12X100 FLANGE	0-28151-200-0	02	1	1108-	●
42	BOLT; FUEL FILTER (A) M10X45 FLANGE	0-28051-045-0	04	1	0710-1005		●
42	BOLT; FUEL FILTER (A) M10X45 FLANGE	0-28051-045-0	04	1	1006-		●	●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	0710-1005		●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	1006-		●	●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	0710-1005		●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1006-1107		●	●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1108-	●	●	●
48	CLIP; VINYL PIPE (D) L=250	5-09707-030-1	01	1	1108-1205	●
48	CLIP; VINYL PIPE (D) L=250	8-98216-430-0	01	1	1206-	●
48	CLIP; VINYL PIPE (C) ID=11 L=40	8-94123-171-1	01	1	1108-	●
48	CLIP; VINYL PIPE (A) L=140	5-09707-031-1	01	1	0710-1005		●
48	CLIP; VINYL PIPE (A) L=140	5-09707-031-1	01	1	1006-1205		●	●
48	CLIP; VINYL PIPE (A) L=140	8-98216-431-0	01	1	1206-		●	●
48	CLIP; VINYL PIPE (B) ID=21 L=47.5	8-94178-108-0	02	1	0710-1005		●
48	CLIP; VINYL PIPE (B) ID=21 L=47.5	8-94178-108-0	02	1	1006-		●	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0710-1005		●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1006-1107		●	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1108-	●	●	●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0710-1005		●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1006-1107		●	●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1108-	●	●	●
96	STAY; FUEL FILTER (A)	8-97613-183-0	01	1	0710-1005		●
96	STAY; FUEL FILTER (A)	8-97613-183-0	01	1	1006-		●	●
96	STAY; FUEL FILTER (B)	8-97613-237-1	01	1	0710-1005		●
96	STAY; FUEL FILTER (B)	8-97613-237-1	01	1	1006-		●	●

1 22 24 21 23 26 14 61 2 24 26 146 32 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (B)	8-98167-975-1	01	1	1108-1402	●
1	FILTER ASM; FUEL (B)	8-98258-016-0	01	1	1403-	●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	0710-1005		●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	1006-1106		●	●
1	FILTER ASM; FUEL (A)	8-98175-164-0	01	1	1107-		●	●
2	ELEMENT KIT; FUEL FILTER (B)	8-98116-662-0	01	1	1108-	●
2	ELEMENT KIT; FUEL FILTER (A)	1-87810-976-0	01	1	0710-1005		●
2	ELEMENT KIT; FUEL FILTER (A)	1-87810-976-0	01	1	1006-1106		●	●
2	ELEMENT KIT; FUEL FILTER (A)	8-98174-903-0	01	1	1107-		●	●
2	ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-152-0	01	1	1107-		●	●
14	SPRING; ELEMENT SUPPORT,FUEL FILTER	8-98116-657-0	01	1	1108-	●
21	COVER; UPR,FUEL FILTER (B)	8-98116-653-0	01	1	1108-	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-049-1	01	1	0710-1005		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-049-1	01	1	1006-		●	●
22	BOLT; CENTER TUBE,COVER (B)	8-98117-014-0	01	1	1108-	●
22	BOLT; CENTER TUBE,COVER (A)	1-13219-045-0	01	1	0710-1005		●
22	BOLT; CENTER TUBE,COVER (A)	1-13219-045-0	01	1	1006-		●	●
23	PLUG; COVER (B)	8-98116-652-0	01	1	1108-	●
23	PLUG; COVER (A)	1-13219-074-0	01	1	0710-1005		●
23	PLUG; COVER (A)	1-13219-074-0	01	1	1006-		●	●
24	GASKET; CENTER TUBE BOLT (B)	8-98116-655-0	01	1	1108-	●
24	GASKET; CENTER TUBE BOLT (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-1005		●
24	GASKET; CENTER TUBE BOLT (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1006-		●	●
26	GASKET; COVER TO BODY (B)	8-98116-661-0	01	1	1108-	●
26	GASKET; COVER TO BODY (A)	9-09720-797-0	01	1	0710-1005		●
26	GASKET; COVER TO BODY (A)	9-09720-797-0	01	1	1006-		●	●
32	BOLT; DRAIN,FUEL FILTER (B)	8-98116-652-0	01	1	1108-	●
32	BOLT; DRAIN,FUEL FILTER (A)	1-13219-030-0	01	1	0710-1005		●
32	BOLT; DRAIN,FUEL FILTER (A)	1-13219-030-0	01	1	1006-		●	●
61	SEAT; SPR ELEMENT	8-98116-658-0	01	1	1108-	●
144	PLUG; BODY	8-98153-286-0	01	1	1108-	●
146	PLUG KIT; BODY	8-98195-093-0	01	1	1108-	●

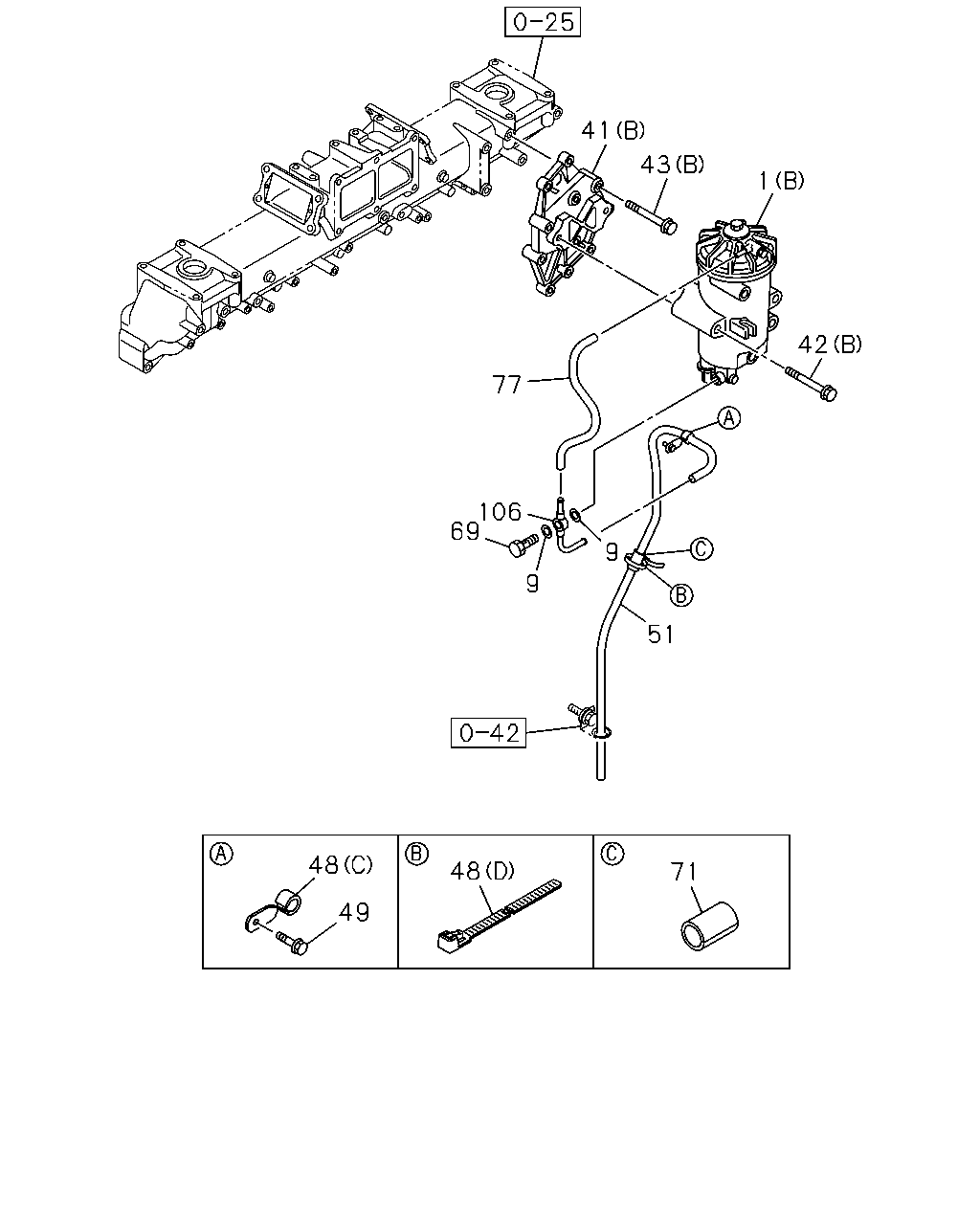

41 43 1 42 77 106 69 9 9 51 48 48 71 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER ASM; FUEL (B)	8-98167-975-1	01	1	1108-1402	●
1	FILTER ASM; FUEL (B)	8-98258-016-0	01	1	1403-	●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	0710-1005		●
1	FILTER ASM; FUEL (A)	1-13201-006-1	01	1	1006-1106		●	●
1	FILTER ASM; FUEL (A)	8-98175-164-0	01	1	1107-		●	●
9	GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1108-	●
41	BRACKET; FUEL FILTER (B)	8-97628-208-0	01	1	1108-	●
41	BRACKET; FUEL FILTER (A)	8-97608-898-1	01	1	0710-1005		●
41	BRACKET; FUEL FILTER (A)	8-97608-898-1	01	1	1006-		●	●
42	BOLT; FUEL FILTER (B) M12X100 FLANGE	0-28151-200-0	02	1	1108-	●
42	BOLT; FUEL FILTER (A) M10X45 FLANGE	0-28051-045-0	04	1	0710-1005		●
42	BOLT; FUEL FILTER (A) M10X45 FLANGE	0-28051-045-0	04	1	1006-		●	●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	0710-1005		●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	1006-		●	●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	0710-1005		●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1006-1107		●	●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1108-	●	●	●
48	CLIP; VINYL PIPE (D) L=250	5-09707-030-1	01	1	1108-1205	●
48	CLIP; VINYL PIPE (D) L=250	8-98216-430-0	01	1	1206-	●
48	CLIP; VINYL PIPE (C) ID=11 L=40	8-94123-171-1	01	1	1108-	●
48	CLIP; VINYL PIPE (A) L=140	5-09707-031-1	01	1	0710-1005		●
48	CLIP; VINYL PIPE (A) L=140	5-09707-031-1	01	1	1006-1205		●	●
48	CLIP; VINYL PIPE (A) L=140	8-98216-431-0	01	1	1206-		●	●
48	CLIP; VINYL PIPE (B) ID=21 L=47.5	8-94178-108-0	02	1	0710-1005		●
48	CLIP; VINYL PIPE (B) ID=21 L=47.5	8-94178-108-0	02	1	1006-		●	●
49	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1108-	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0710-1005		●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1006-1107		●	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1108-	●	●	●
69	BOLT; EYE,FUEL FILTER M10X21 FLANGE	8-97372-239-0	01	1	1108-	●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0710-1005		●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1006-1107		●	●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1108-	●	●	●
77	HOSE; FUEL FILTER	8-98118-453-0	01	1	1108-	●
106	PIPE; FUEL	8-97631-785-0	01	1	1108-	●
